ADJ Data Distro 6, Output RDM/DMX Truss Mount Splitter, 5 Pin DMX

Roll over image to zoom in

ADJ Data Distro 6, Output RDM/DMX Truss Mount Splitter, 5 Pin DMX

Name: ADJ Data Distro 6, Output RDM/DMX Truss Mount Splitter, 5 Pin DMX
Brand: ADJ - American DJ
SKU: DAT600
Price: 249.99 USD
Availability: InStock

Save $89.96

ADJ - American DJSKU: DAT600

Share this product

The ADJ Lighting Data Distro 6 is a 6-way DMX and RDM data splitter. With one (1) 5-pin input, one (1) 5-pin thru and six (6) 5-pin outputs, the Data Distro 6 makes running DMX cables easier and more efficient.

Data Distro 6

AVAILABLE NOW FROM ADJ USA

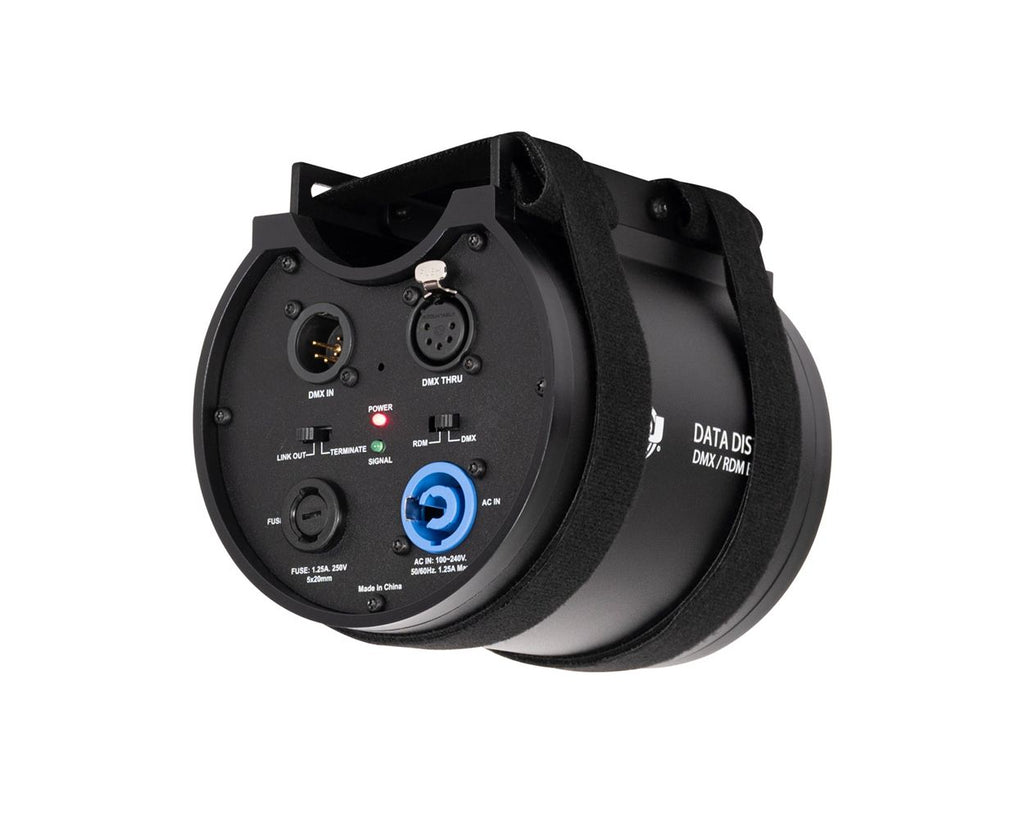

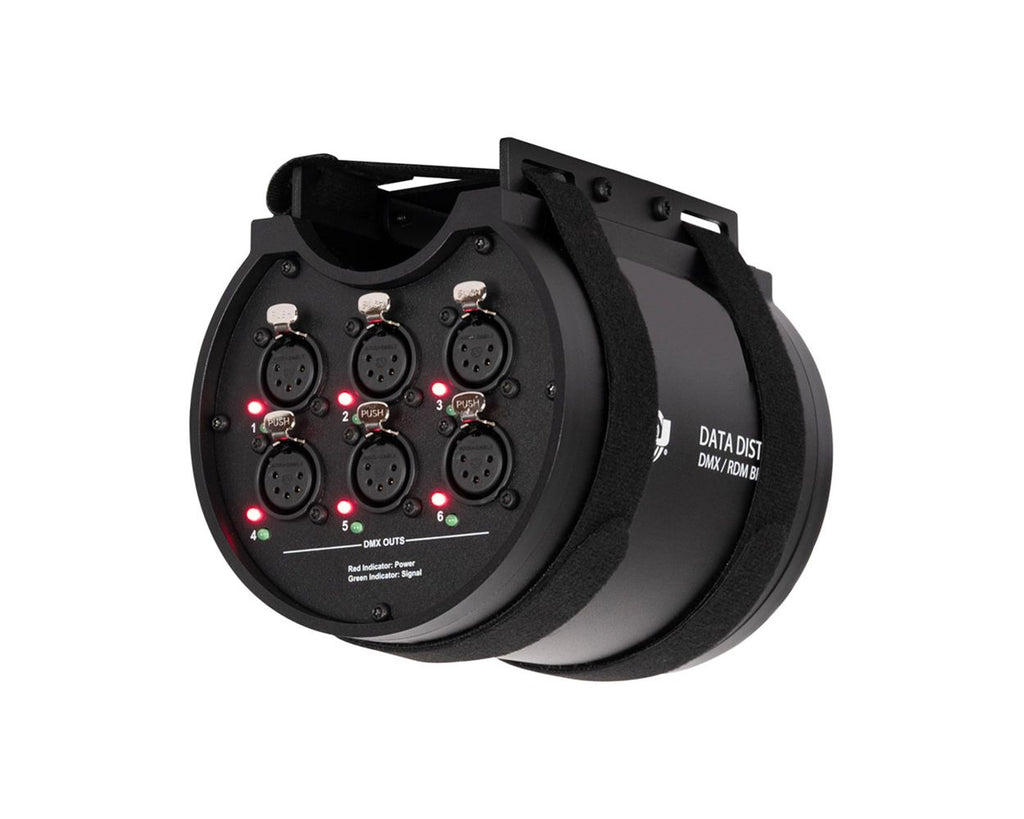

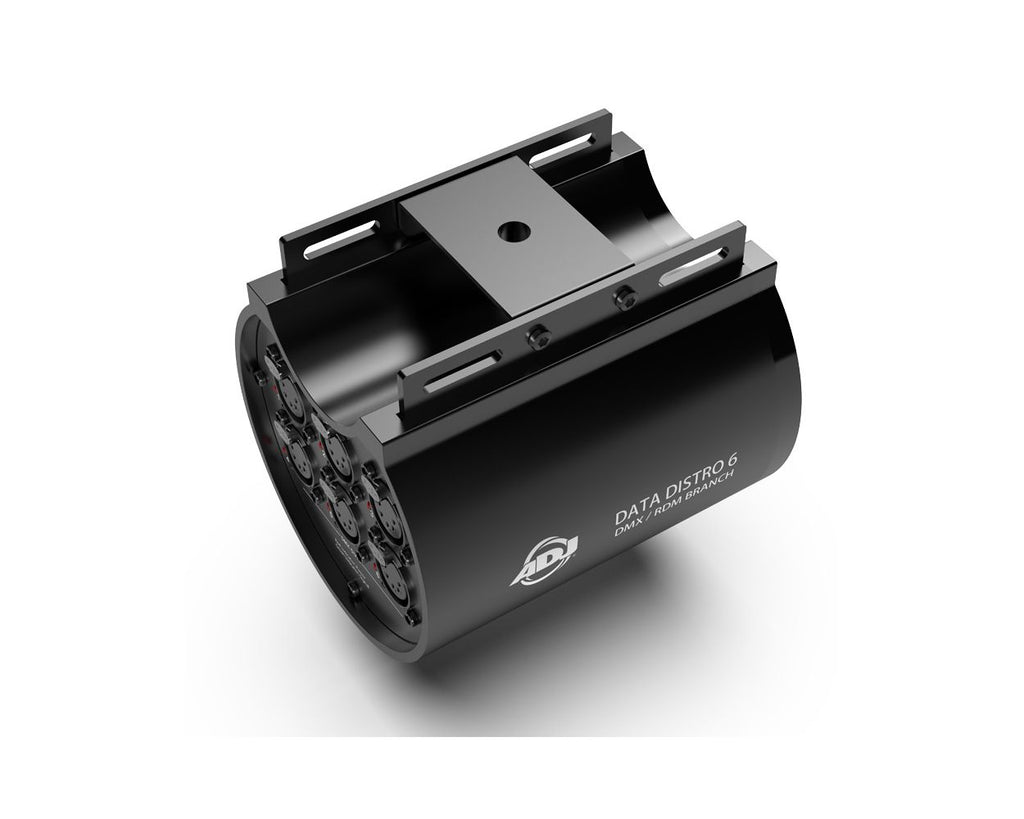

The ADJ Lighting Data Distro 6 is a versatile and compact solution for streamlined DMX512 and RDM signal distribution. Designed for seamless integration into your lighting setup, this data splitter ensures reliable and convenient hanging with 1 Truss Mount featuring two Velcro Straps or M10 Screw Clamp (clamp not included). Its robust physical configuration includes 1x indoor 5-pin XLR input, 1x indoor 5-pin XLR thru, and 6x indoor 5-pin XLR outputs. Equipped with a Link Out Termination Switch and a DMX/RDM Protocol Switch, it also features an indoor locking power socket for added security.

Click here to read the Data Distro 6 press release.

Specifications

Protocols:

DMX512
RDM

Physical:

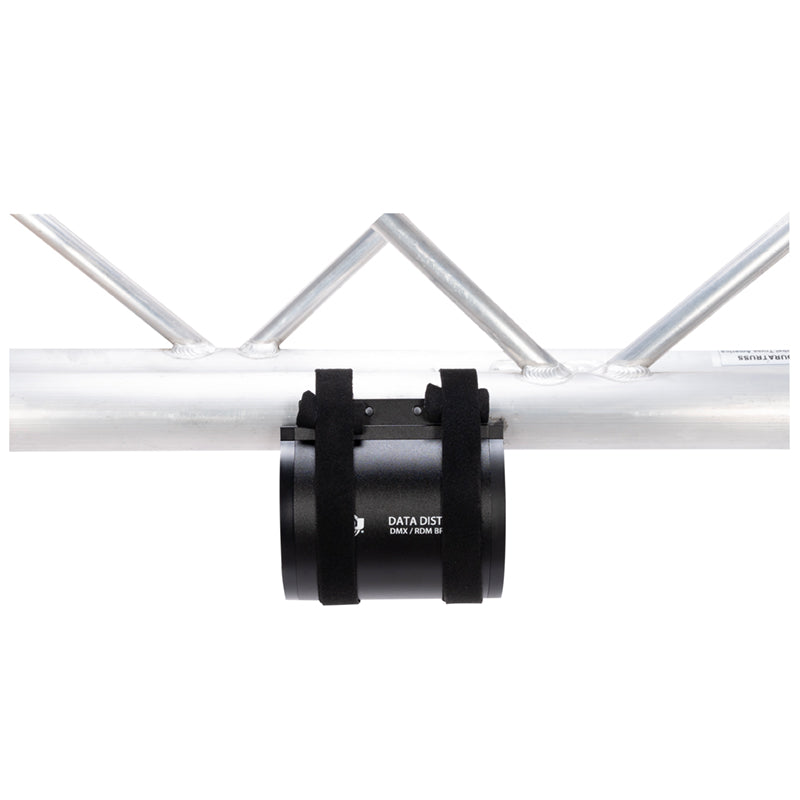

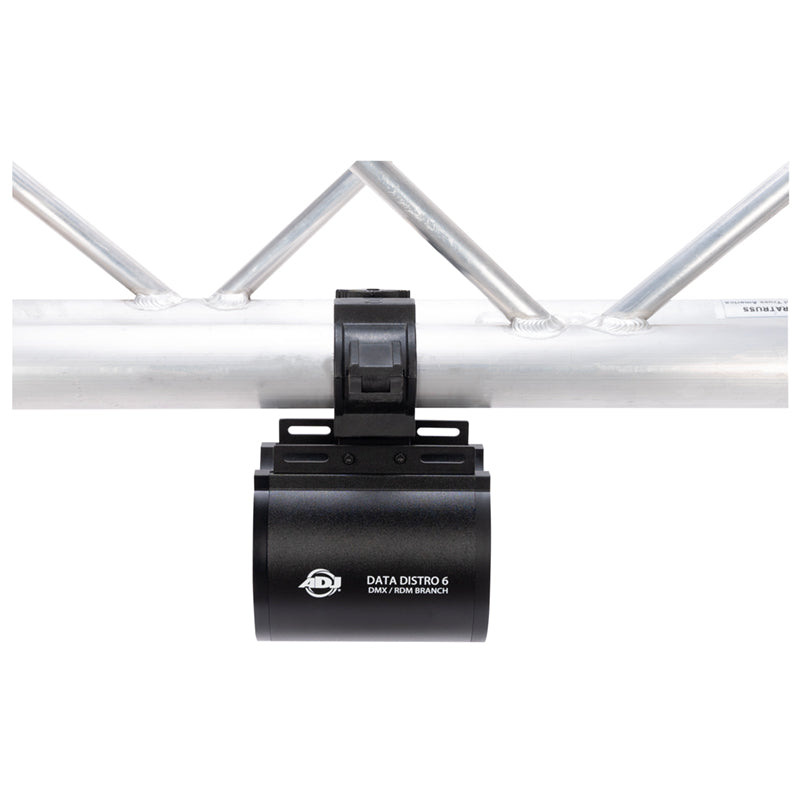

1 Truss Mount with Velcro Straps or M10 Screw Clamp (Clamp Not Included)

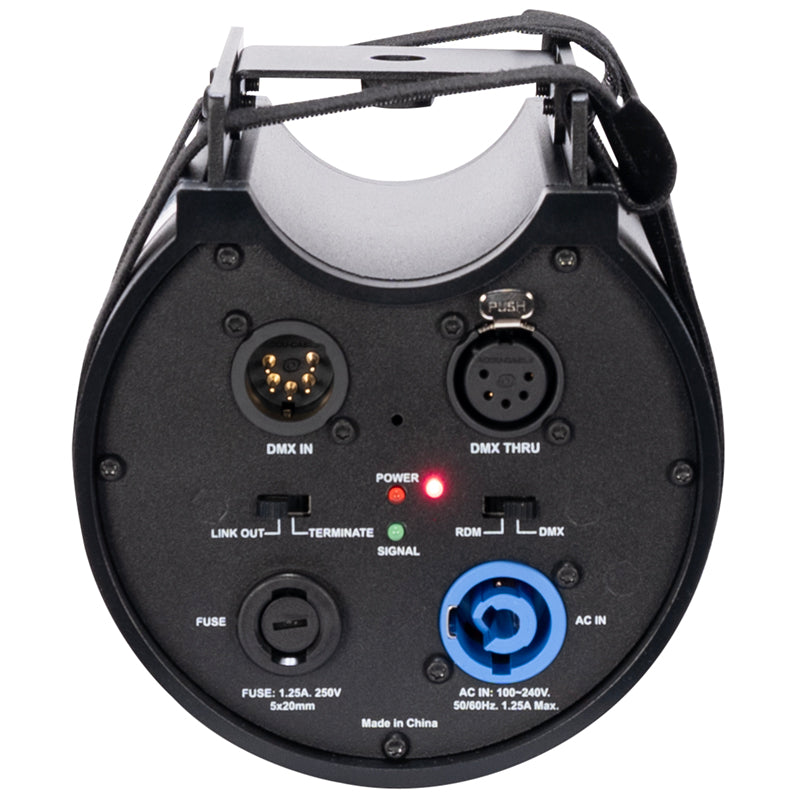

1x Indoor 5pin XLR Input
1x Indoor 5pin XLR Thru

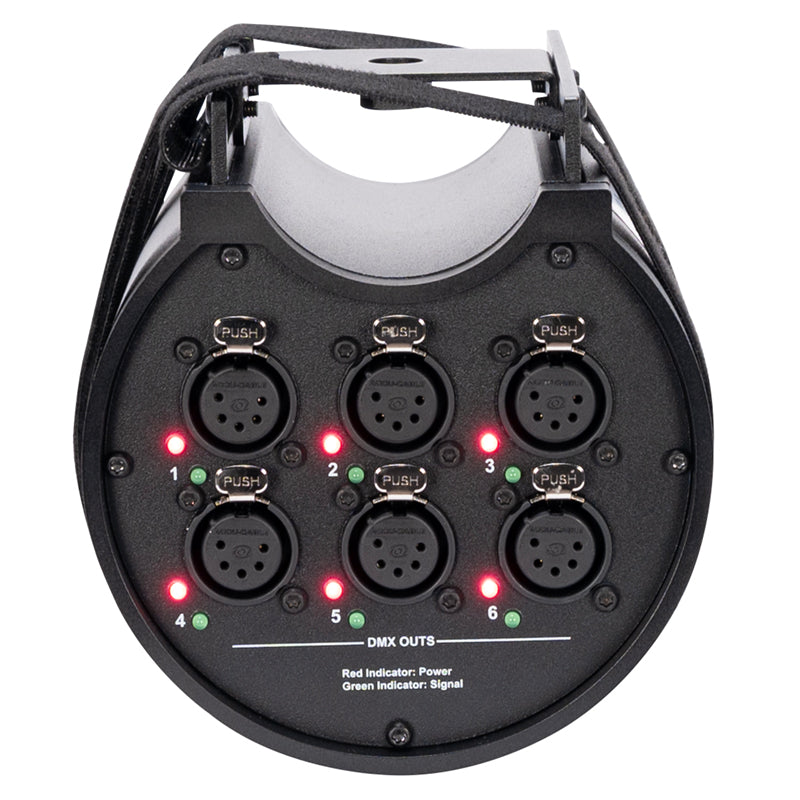

6x Indoor 5pin XLR Outputs
Link Out / Termination Switch
DMX / RDM Protocol Switch
Indoor locking power socket

Dimensions Weight:

Length: 4.73" (120mm)
Width: 5.43" (137.75mm)
Height: 5.10" (129.55mm)
Weight: 1.83lbs. (0.83kg)

Power:

AC Input: 100-240V 50/60Hz
Power Consumption: 2.7W @ 120V and 2.9W @ 230V
Power Input Protection: Fuse, T1.25A/250 (5.2x20mm)

Thermal:

Ambient Operational Temperature: 32°F to 113°F (0°C to 45°C)
Humidity: <75%
Storage Temperature: 77°F (25°C)

Certifications IP Rating:

CE
cETLus (Control # 5014475)
UKCA
FCC
IP20

Specifications subject to change without notice.
