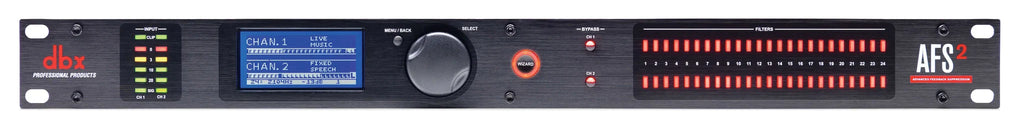

Hear No Evil and See no Evil. The AFS 2 Advanced Feedback Suppression processor has been completely re-designed to take the foundation of the best selling AFS224 and bring it to thte next level. The AFS 2 now offers the highly-intuitive Wizard function that takes all of the guesswork out of setting up any room. The AFS 2 also incorporates a completely re-designed Advanced Feeback Supression module. Best of all, the AFS 2 now provides the user with a full LCD display setup and monitoring. With its powerful DSP module, the AFS 2 provides all the processing and control necessary for both installation and live use. Ten and twelve filter feedback elimination processors are the de facto standard, but the AFS 2 offers a dedicated feedback suppression processor that offers up to 24 filters per channel with filter Qs up to 1/80 of an octave. To achieve these staggering numbers dbx utilized their improved AFS technology that had previously only been available in the upper echelon line of products and made it available in this stand-alone processor. In addition to the plethora of feedback suppression filters available, the AFS 2 also offers selectable modes, live filter lift, and types of filtration, which are all readily available via the intuitive user interface front panel. With all of these state-of-the-art features in place, not only do you hear no evil, but you will now be able to see no evil. ® Recommended for: Portable , Tour .

Features

• Wizard Setup Function
• Full LCD Display
• dbx’s patented (Advanced Feedback Suppression) AFS™ technology
• 24 Programmable Filters per Channel
• Stereo or Dual Independent Channel Processing
• Live and Fixed Filter Modes
• Selectable Filter Lift Times
• Application-specific filter types include: Speech and Music Low, Med and High
• Input channel Metering
• 24 LED per Channel Filter Metering
• XLR and TRS Inputs and Outputs

Specifications

• Model: AFS2
• Number of Inputs: 2
• Input Connectors: Female XLR and 1/4” TRS
• Input Type: Electronically balanced/unbalanced, RF filtered
• Input Impedance: Balanced 50kΩ, Unbalanced 25kΩ
• Max input line level: +20 dBu
• CMRR: > 40dB, typically >55dB @ 1kHz
• Number of Outputs: 2
• Output Connectors: Male XLR and 1/4” TRS
• Output Type: Electronically balanced/unbalanced, RF filtered
• Output Impedance: Balanced >120 Ω, Unbalanced >60 Ω
• Max Output Level: +20 dBu
• A/D Converter: dbx Type IV™ Conversion System
• A/D Dynamic Range: >113 dB A-weighted, >110 dB unweighted, 22kHz BW
• Type IV Dynamic Range: >119 dB, A-weighted, 22kHz BW; >117 dB, unweighted, 22kHz BW
• A/D Conversion: 24-bit
• Sample Rate: 48kHz
• D/A Dynamic Range: 112 dB A-weighted, 109 dB unweighted
• D/A Conversion: 24-bit
• Dynamic Range: 109 dB A-weighted, 106 dB unweighted, 22kHz BW
• THD+Noise: 0.003% typical at +4 dBu, 1 kHz
• Frequency Response: 20Hz - 20kHz, +/- 0.5dB
• Interchannel Crosstalk: >80 dB typical
• Crosstalk input to output: >80 dB
• Operating Voltage: 100-120VAC 50/60 Hz - EU: 220-240 VAC 50/60 Hz
• Power Consumption: 9 W
• Unit Weight: 4.5 lbs. (2.04 kg)
• Dimensions: 1.75” (H) x 5.75” (D) x 19” (W), 4.4cm (H) x 14.6cm (D) x 48.26cm (W)
• Weight: 6 lb
• Dimensions (L x W x H): 22.5 x 3.5 x 11.5 in
• UPC: 691991401510
• Country of Origin: CN
