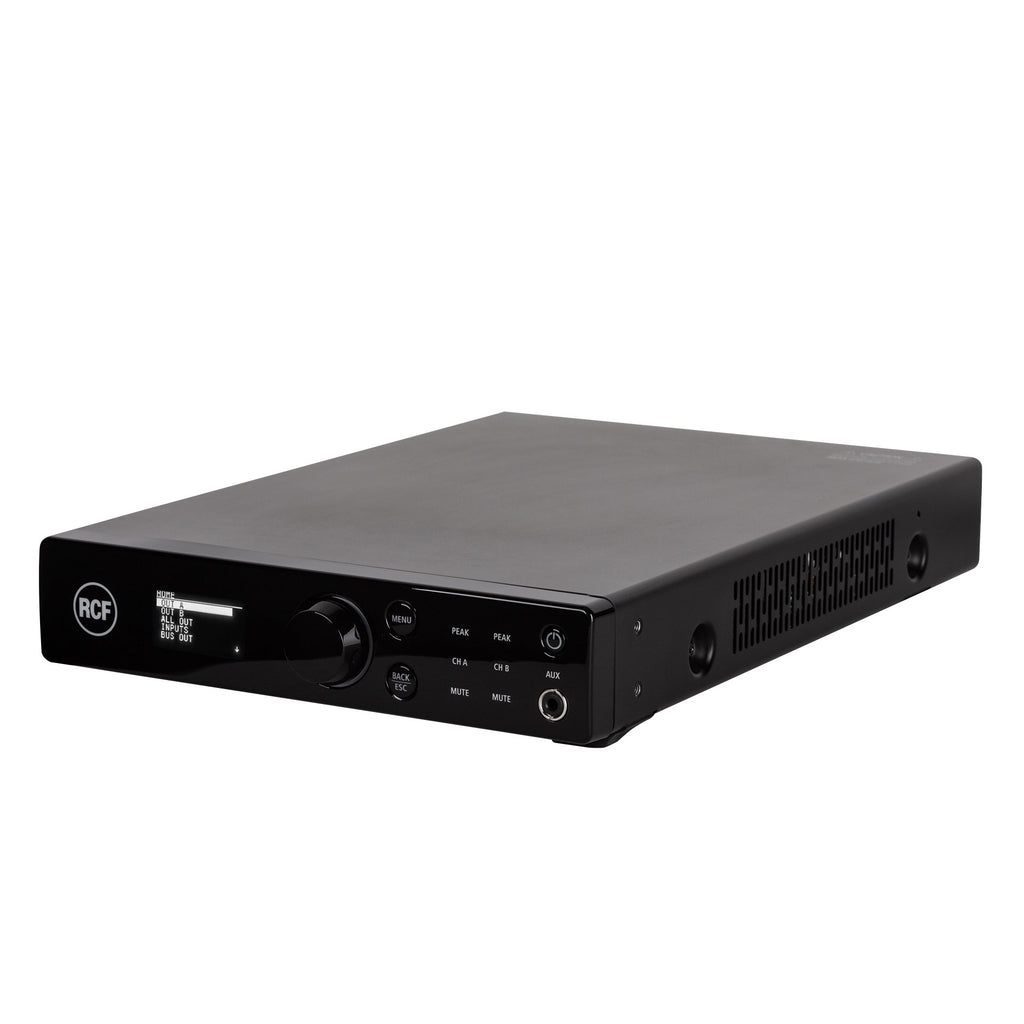

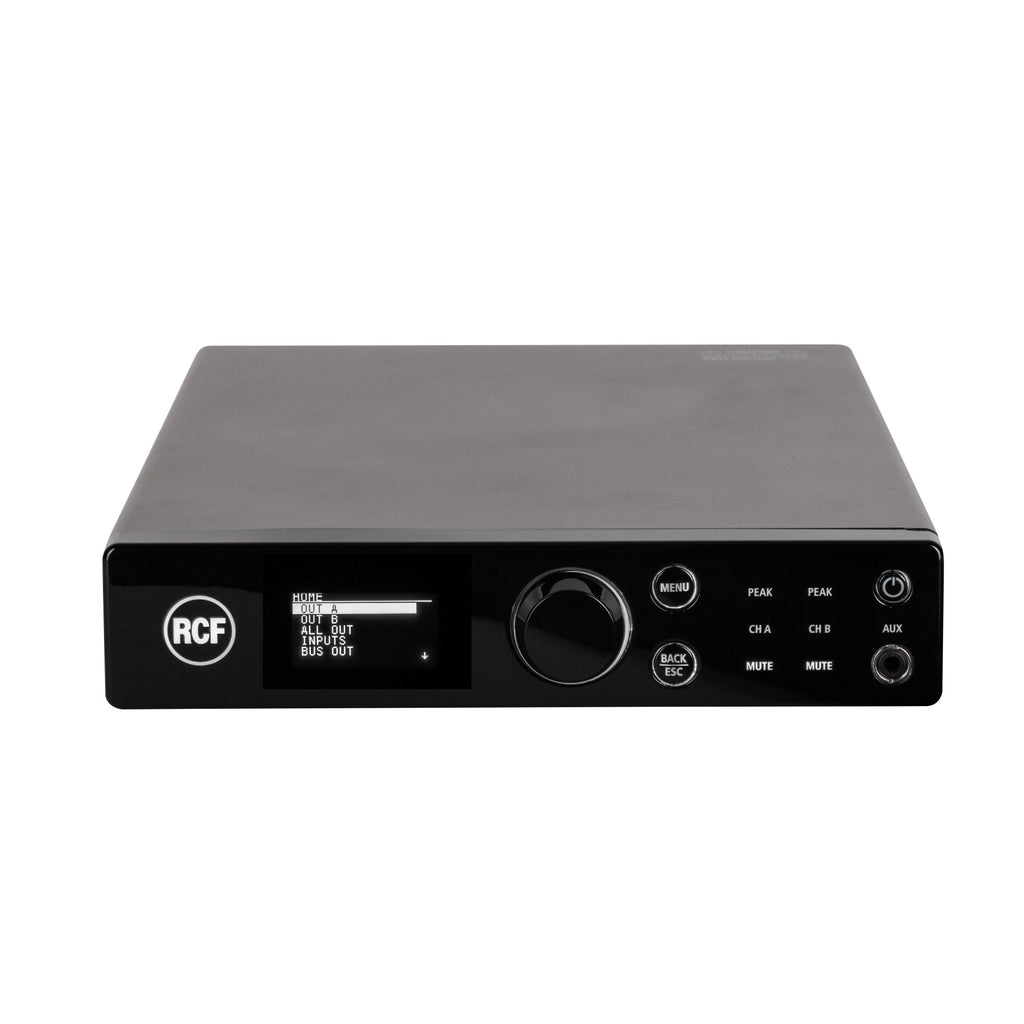

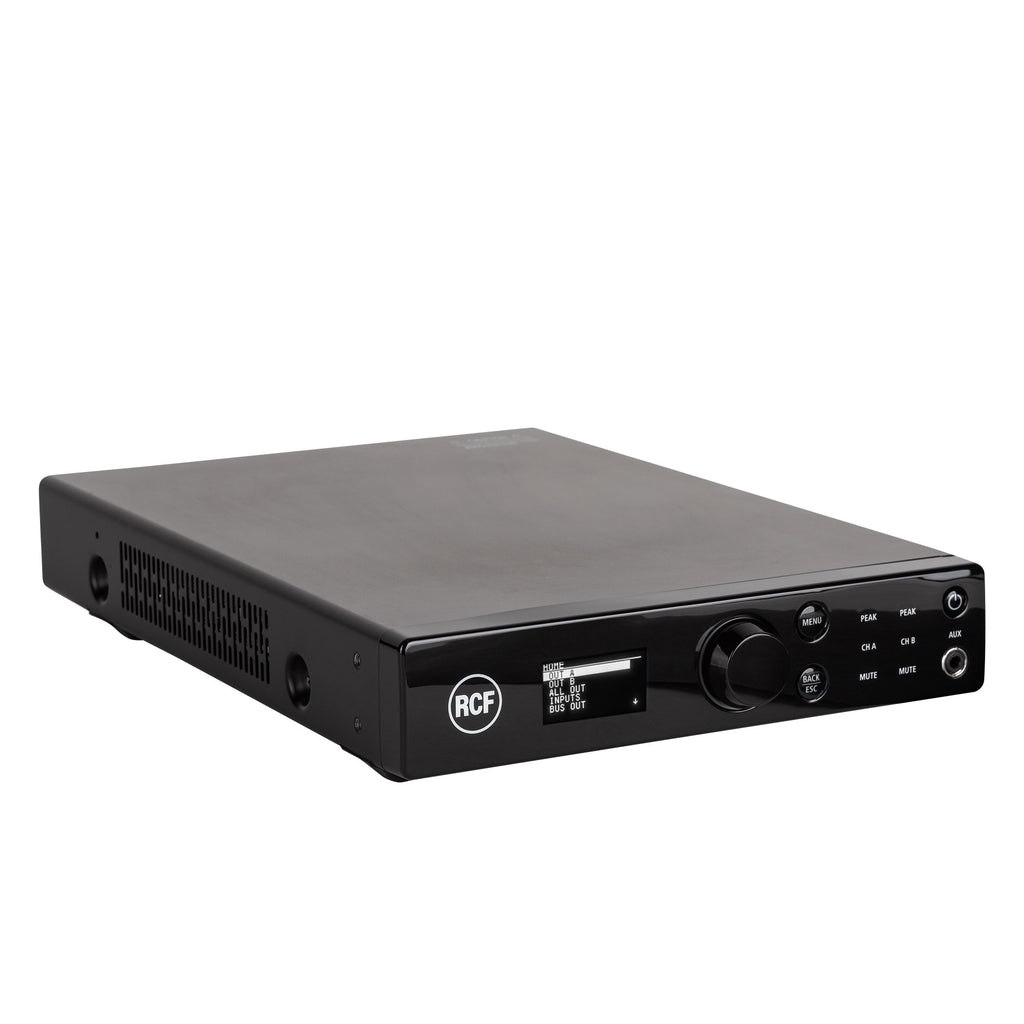

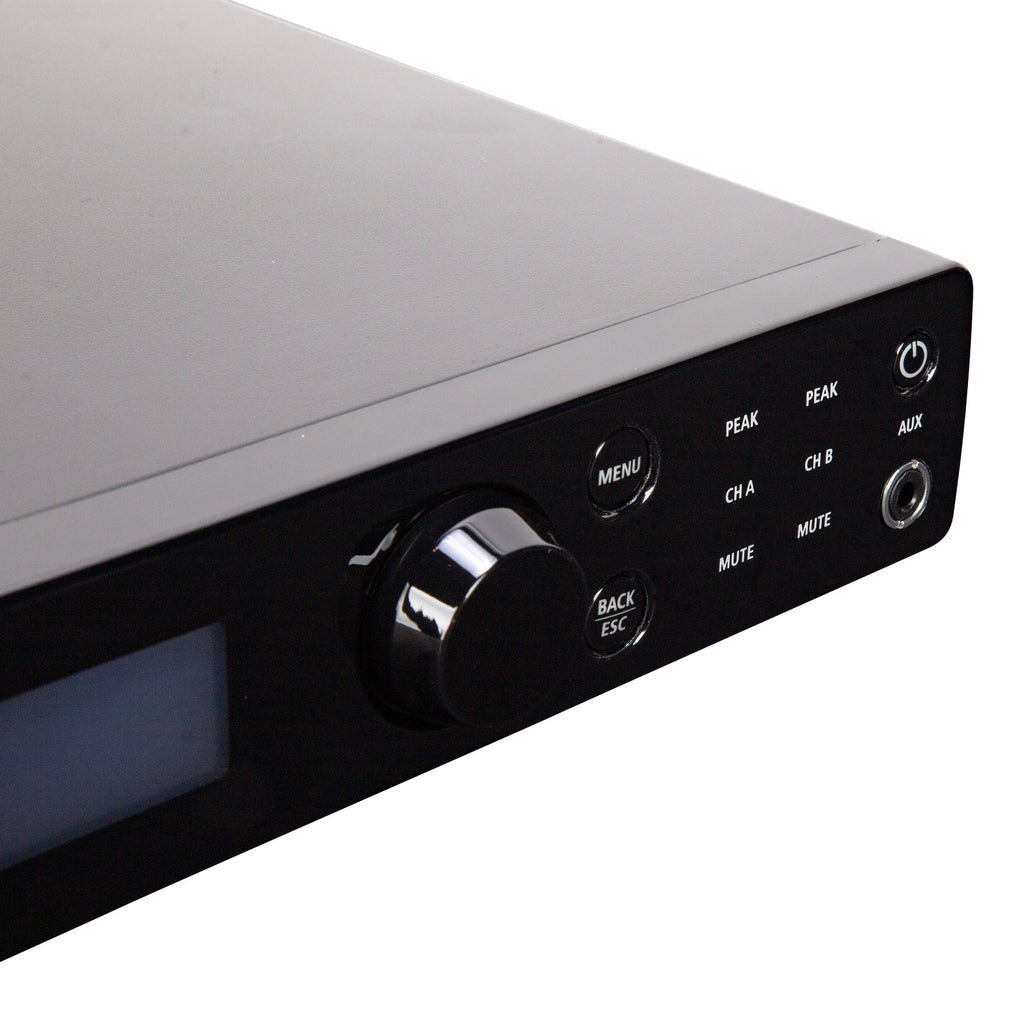

DMA 162 is a two-channel class-D matrix amplifiers equipped with a powerful DSP platform, allowing managing inputs and outputs in terms of routing and equalization (a complete set of processing functions is available, including PEQ, FIR filters, bass enhancement, limiters, compressors and environmental equalization); moreover, dedicated presets for RCF speakers have been implemented to optimize their acoustic performance. It can distribute 4 audio channels to DMA 162P units through an analogue audio BUS, combining a flexible and scalable multi-room architecture with an easy connection and installation. Its configuration is simple and user friendly and can be carried out through either its front panel controls (with OLED display) or RDNet. Thanks to its installation flexibility, accurate design, and robustness, it is ideal for a wide range of business music and installed sound applications.

Features

• 2 x 160 W Class-D power amplifier
• 20 ÷ 20000 Hz frequency range
• Full on-board processing
• RCF speakers' presets
• Proprietary bass enhancer algorithm
• FiRPHASE linear phase filters
• Flexible and scalable multi-room architecture
• Suitable for desktop or rack installation
• RDNet ready for networked management
• Remote controls and paging console accessories

DMA Series

Class-D amplifiers equipped with a powerful DSP platform, allowing managing inputs and outputs in terms of routing and equalization. A complete set of processing functions is available, including speaker presets, proprietary bass enhancer algorithm, FIR filters, and environmental equalization. Thanks to its extremely compact size, accurate design, and robustness, it is ideal for a wide range of applications.

Scalable architecture

To fit with any installation need, DMA amplifiers have been designed with a highly scalable architecture and each device can distribute 4 audio channels to satellite units. This allows increasing installed power and creating a multi-room architecture. The connection can be done with just 1 CAT5e cable. Each satellite unit can be differently set using the DIP-SWITCH on the rear panel to receive the desired channels.

Technical specifications

2 X 160 W ​@ 4 OHM OR 320 W hi-Z

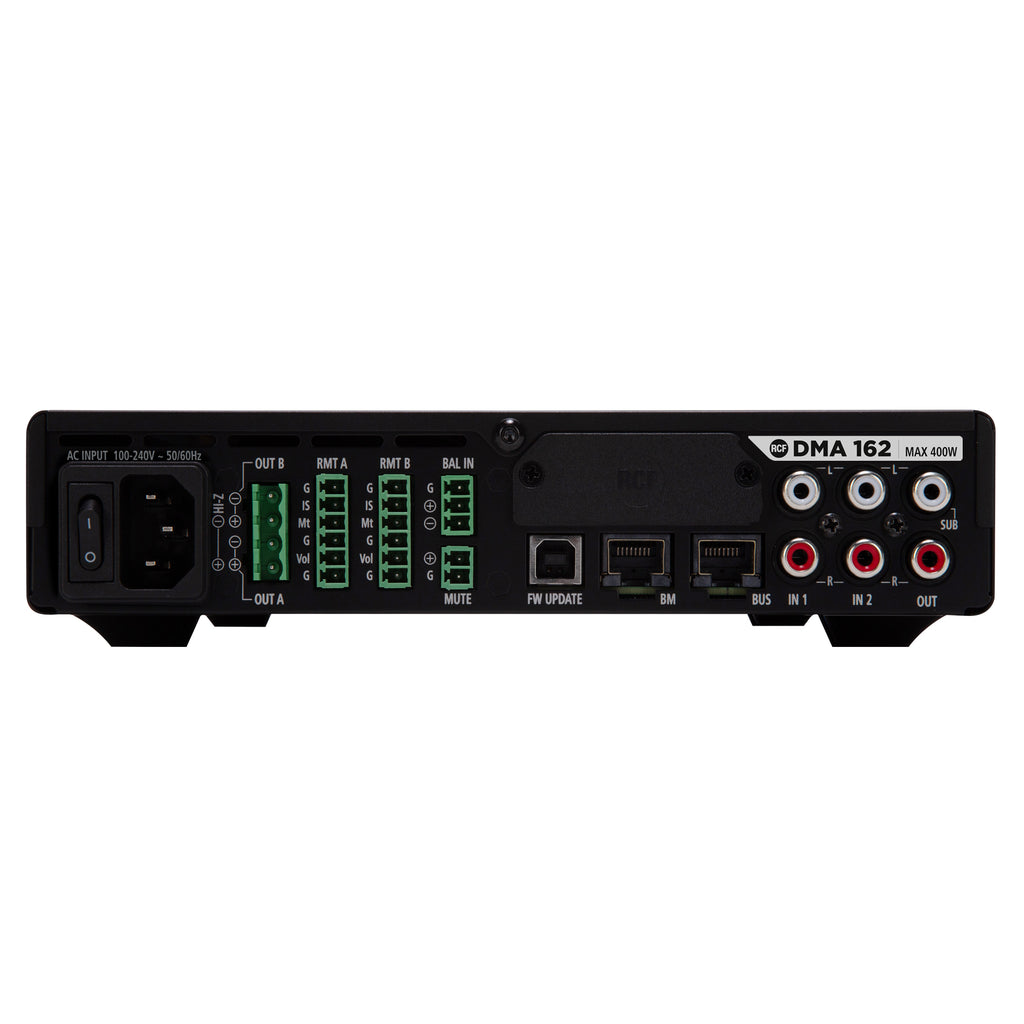

Inputs

2 x LINE STEREO( RCA) (1 alternative to AUX IN on the front panel) 1 x MIC/LINE balanced (removable terminal) 1 x PAGING (RJ 45)

Outputs (signal)

1 x STEREO LINE/SUB (RCA) 1 x 4 CHANNELS AUDIO BUS (RJ 45)

Controls

1 x REMOTE MUTE CONTACT 2 x WALL MOUNT REMOTE CONTROLS 1 x CTRL + FIRMWARE UPDATE USB PORT

Full on-board processing

Equipped with a powerful DSP platform, DMA units integrate RCF proprietary technologies such as FiRPHASE, a FiR filtering technology, and BASS ENHANCER, a sophisticated algorithm that increases low frequencies perception without affecting the output power.

Speakers presets

Pre-loaded presets, to optimize the performance and equalization of any RCF speaker and to have the right RCF signature sound.

Easy and flexible configuration

RCF Business Music products are ready to use in few steps, even faster when connected to the RDNet networked management.

NETWORKED CONTROL AND MUCH MORE

RDNet is an advanced platform for integrated monitoring and control of sound systems - from small live and installed setups to massive arena systems. Based on a robust networked architecture, RDNet combines system control, line array design, and comprehensive audio measurements into a single powerful software package. Engineers and technicians can intuitively manage every device on the network, from individual components to multiple groups. The platform provides full DSP control of compatible devices, with flexible configuration tools for perfectly tuning the system response at maximum speed. Users have real-time access and oversight of all key settings from a centralized interface.

Application examples

Discover our collection of installation examples for the most common public spaces with configurations, schematics, and product lists.

Small shop

Large retail shop

Meeting rooms

Bars and pubs

Restaurants

Multi-room clubs

Supermarkets

Fitness centers

Shopping Center

Dance Floor

Live Stage

DMA CONNECT APP

The DMA Connect app provides wireless control of RCF DMA Series Business Music amplifiers. With its functionality and user-friendly interface, it allows access to DMA settings such as: input and output levels, equalizers, routing, speaker preset selection, device information, and real-time VU-meters. Advanced settings for expert users are also available, including customizable names for input, outputs, and devices.
