Description

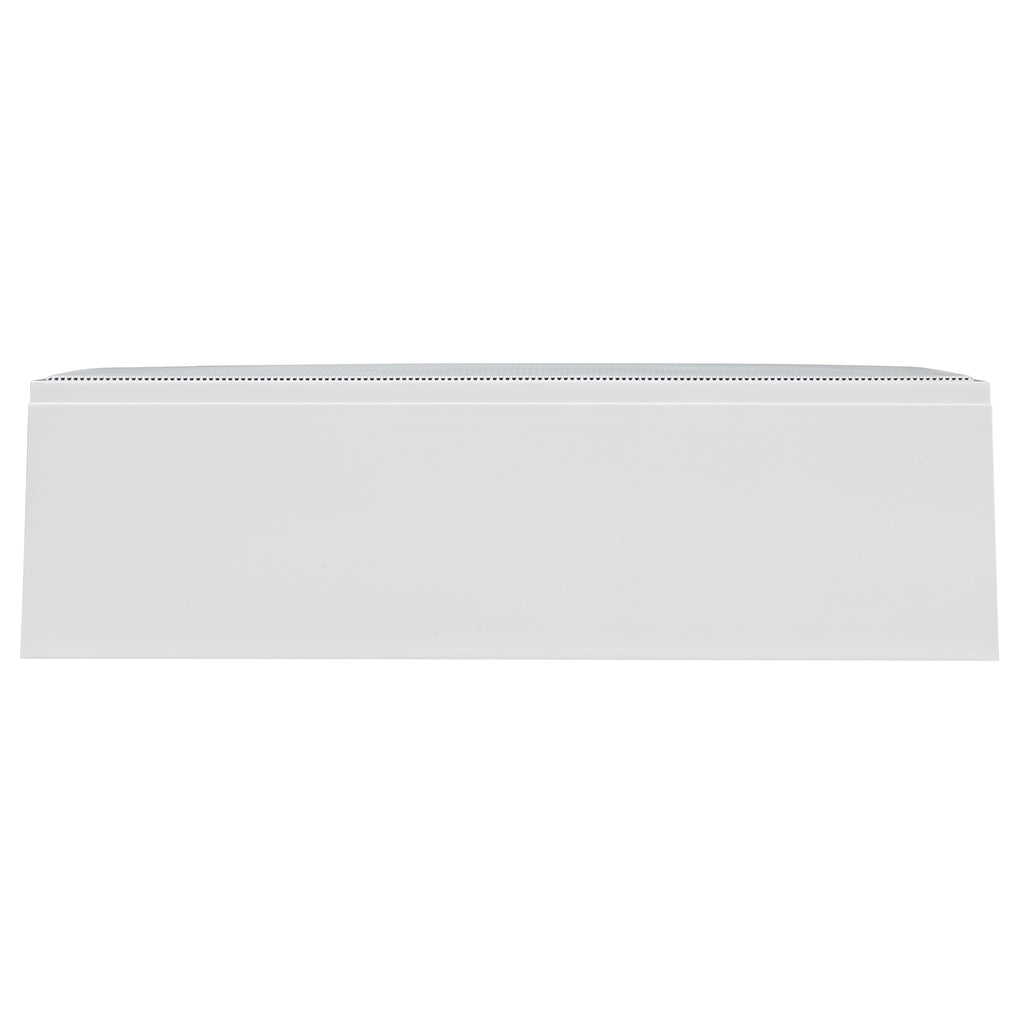

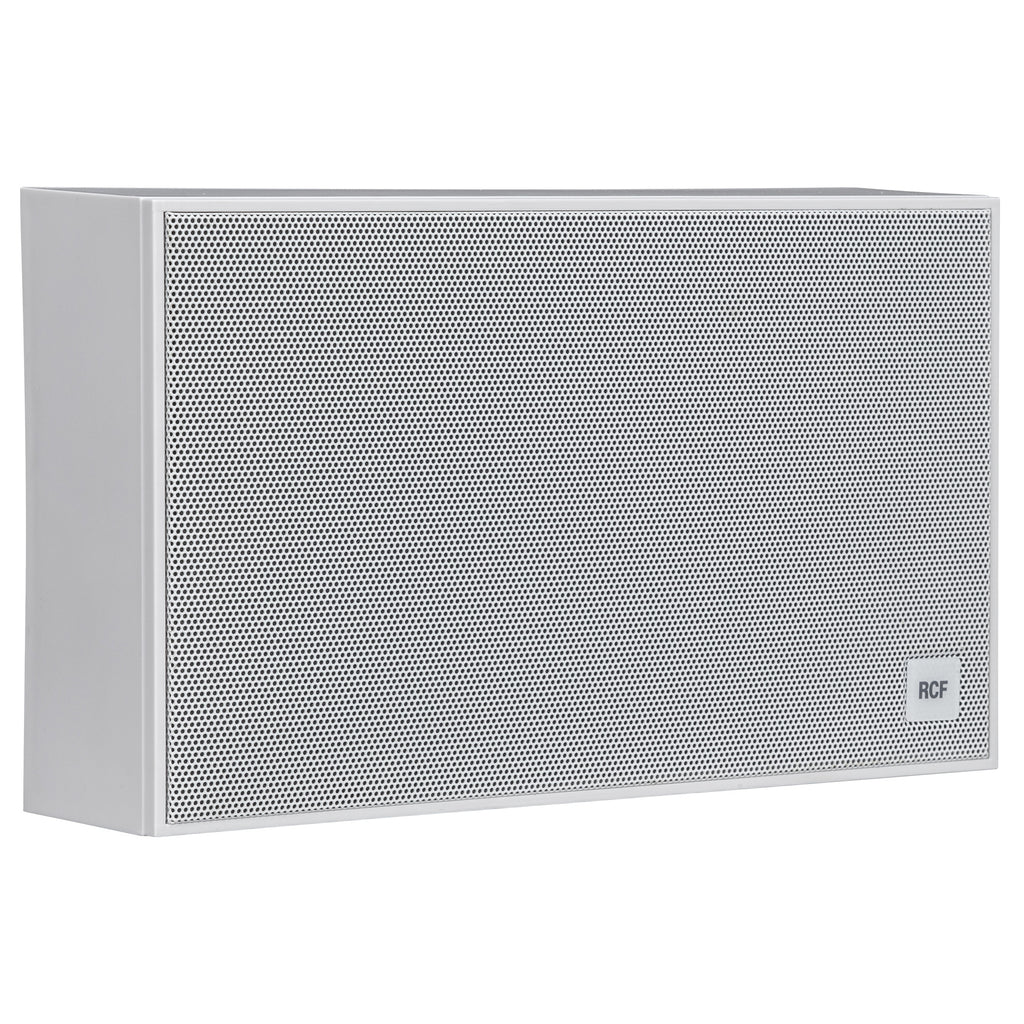

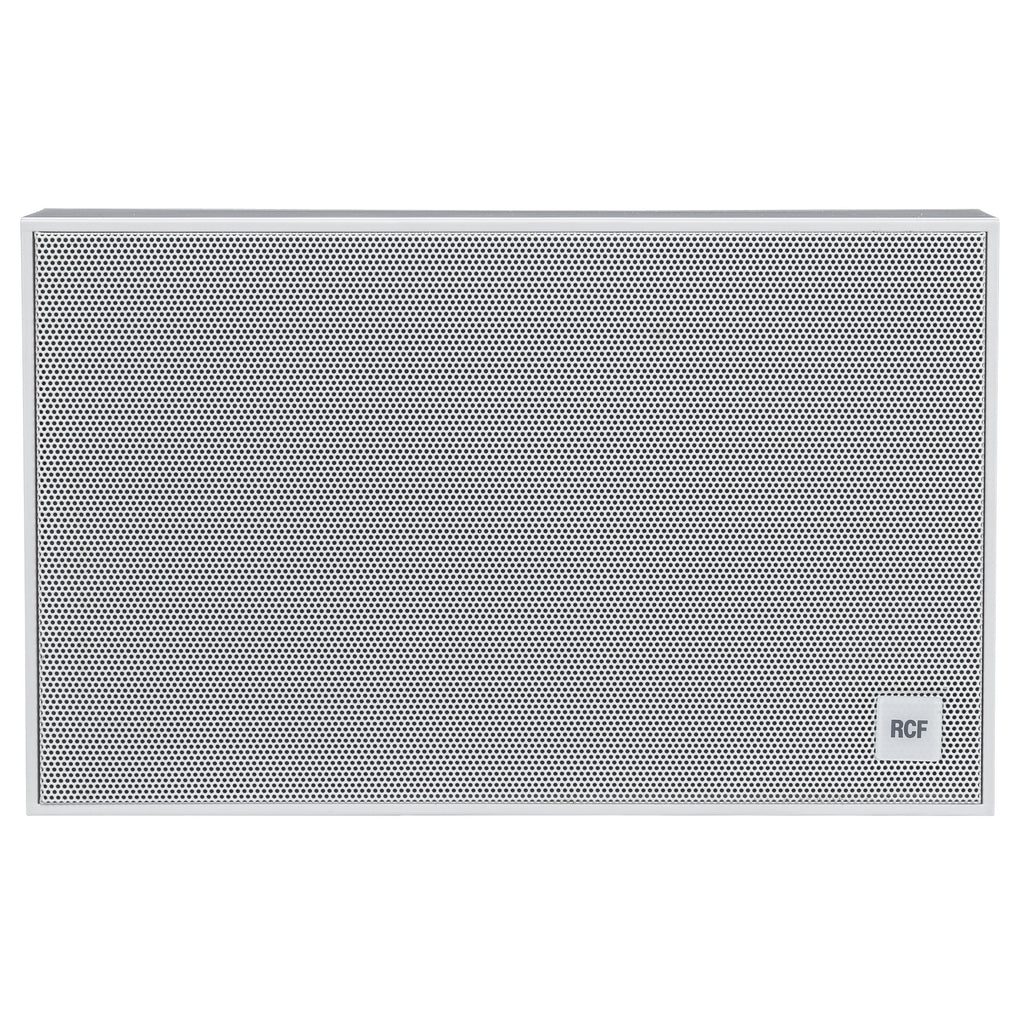

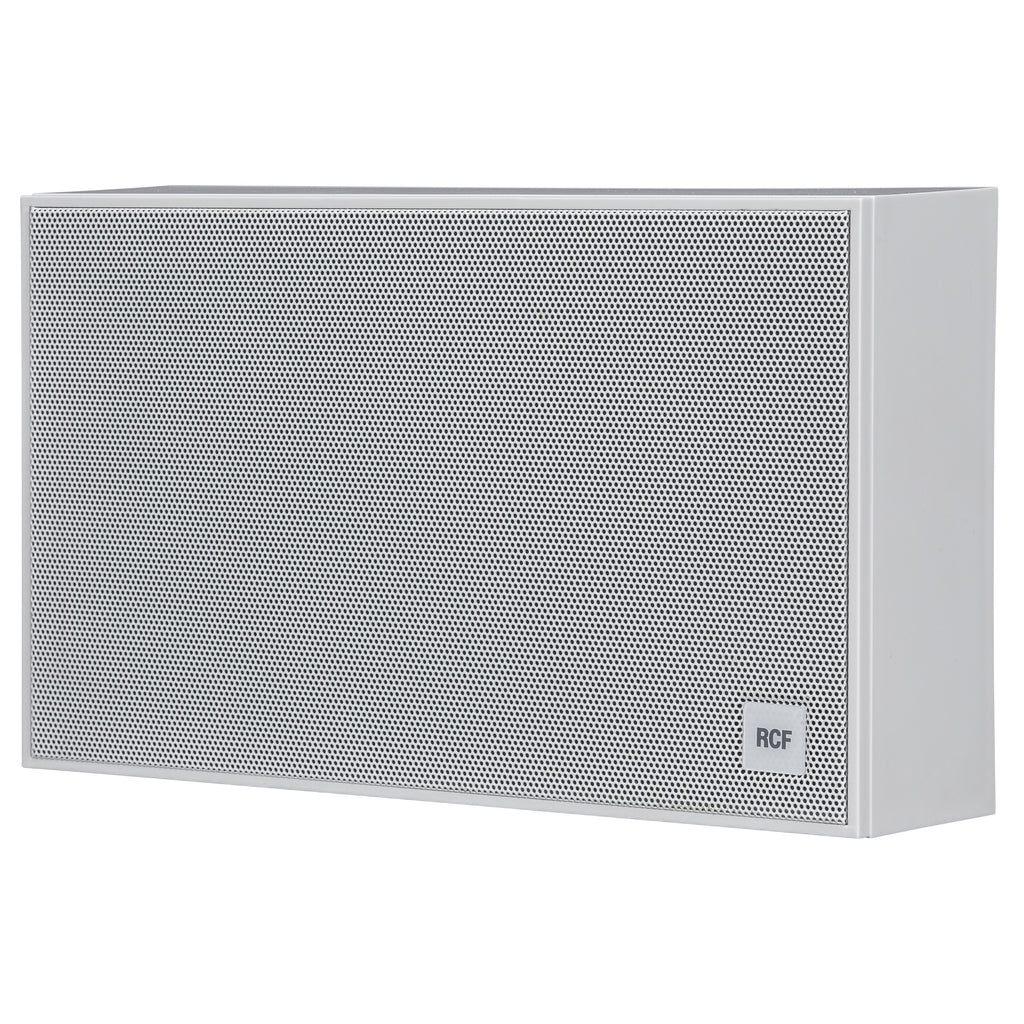

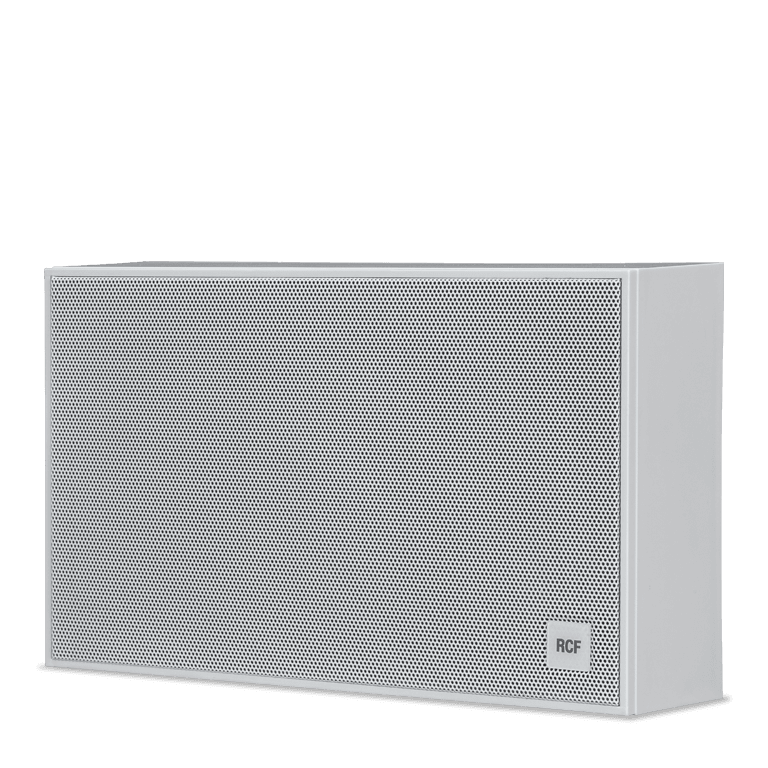

VOICE ALARM EN54 | COMMERCIAL | INSTALLED | DUP 5EN | WALL MOUNT UNIVERSAL PLASTIC SPEAKER | 5.5" fullrange transducer.
Technical Specifications
| Acoustical specifications | |
| Frequency Response (-10dB) | 130 Hz - 17000 Hz |
| Max SPL @ 1m | 100 dB |
| Max SPL @ 4m | 88 dB |
| Coverage angle | 180° |
| System Sensitivity | 92 dB |
| System Sensitivity 1W @ 4m | 80 dB |
| Power section | |
| Power Handling | 6 W |
| Peak Power Handling | 24 W PEAK |
| Protections | Thermal fuse |
| Recommended Amplifiers | DXT 3000, DXT 4000, DXT 7000 |
| Transducers | |
| Fullrange | 1 x 5.5'' |
| Input/Output section | |
| Input connectors | Ceramic screw terminals |

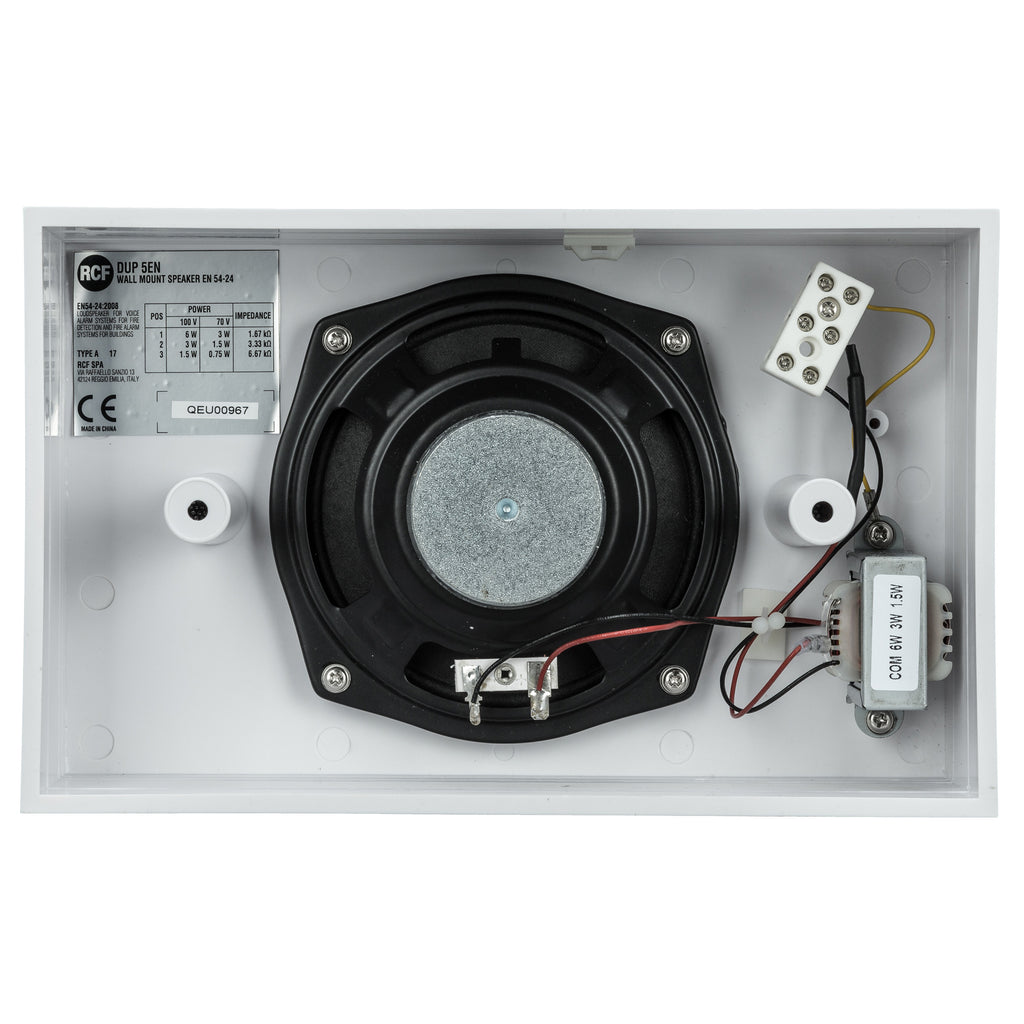

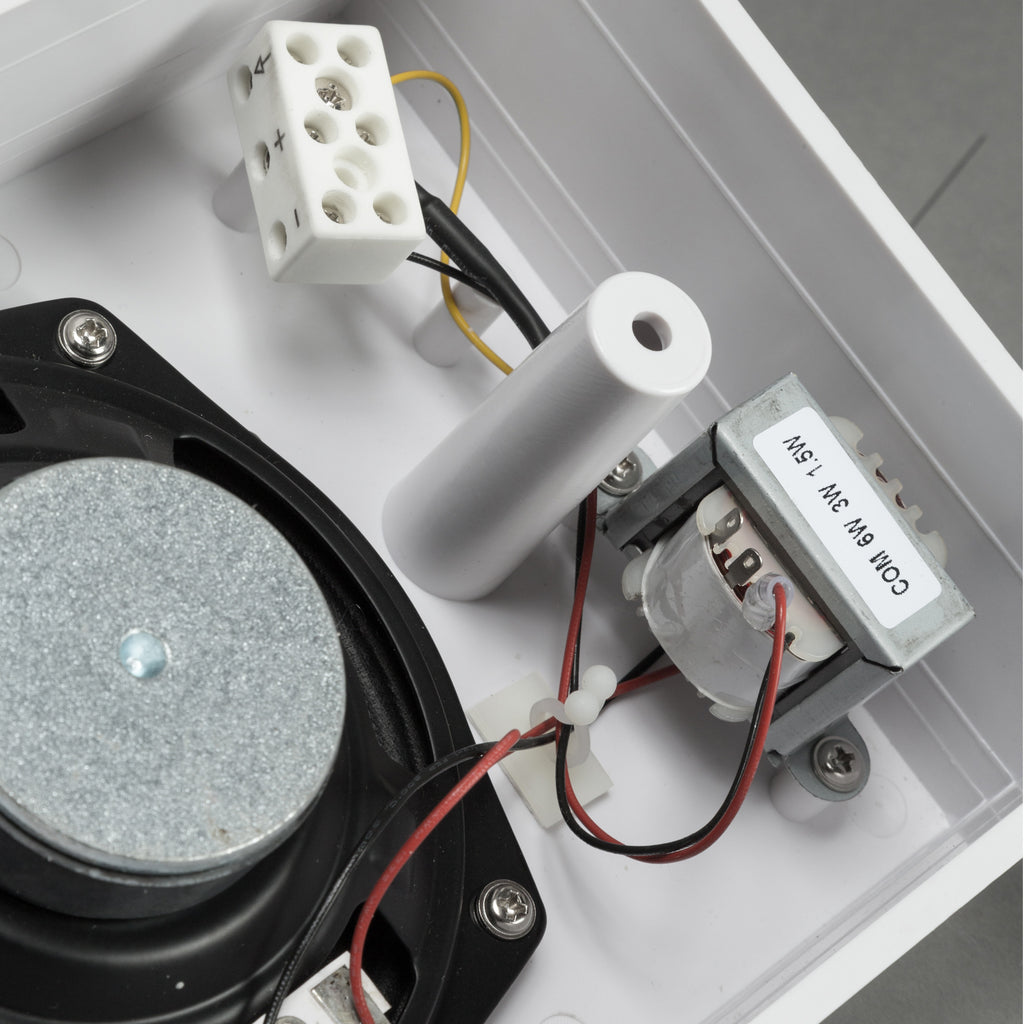

| Output connectors | Constant Voltage Transformer |
| 100 V | Power selection 1 |
| 6 W - 1667 ohm | Power selection 2 |
| 3 W - 3333 ohm | Power selection 3 |
| 1.5 W - 6667 ohm | |
| Standard compliance | |
| Safety agency | CE compliant |
| EN54-24 certified | Yes |
| CPR number | 0068-CPPR-085/2017 |
| Physical specifications | |
| Cabinet/Case Material | ABS |
| Grille | Steel |
| Color | White - RAL 9016 |
| Size / Weight | |
| Height | 166 mm / 6.54 inches |
| Width | 267 mm / 10.51 inches |
| Depth | 80 mm / 3.15 inches |
| Weight | 1.15 kg / 2.54 lbs |
| Shipping information | |
| Package Height | 90 mm / 3.54 inches |
| Package Width | 280 mm / 11.02 inches |
| Package Depth | 170 mm / 6.69 inches |
| Package Weight | |
