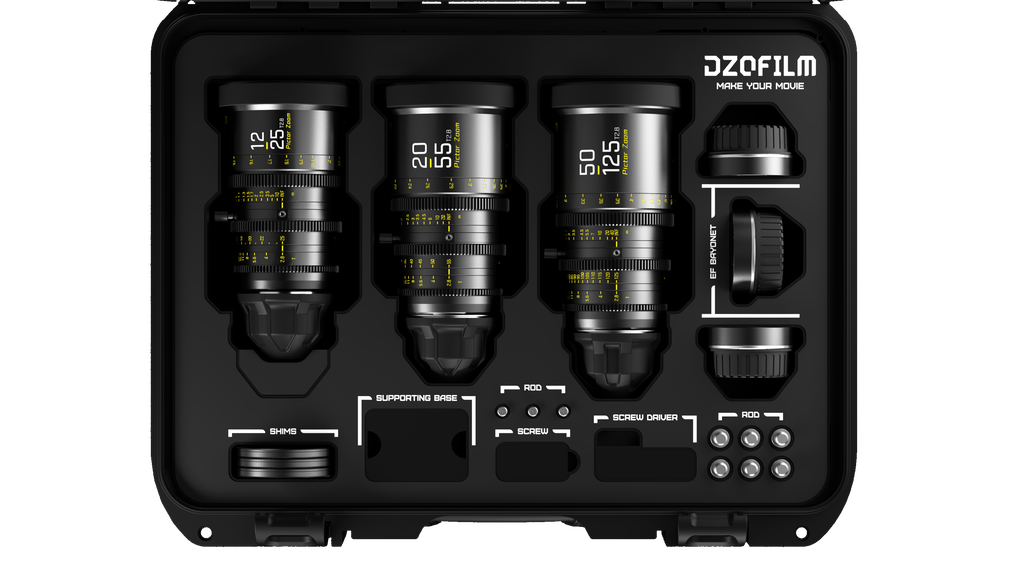

Pictor Zoom 3-lens kit with Case (12-25/20-55/50-125, T2.8)(Black)

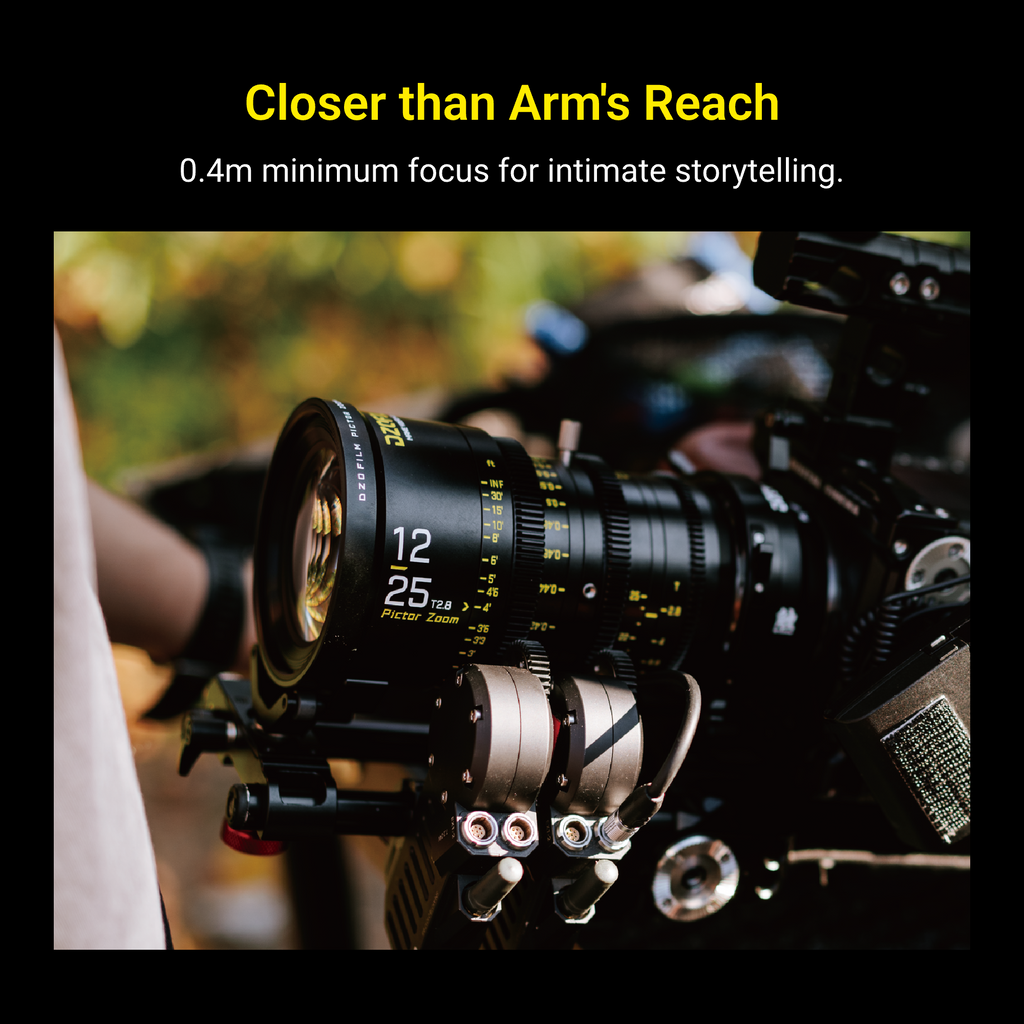

Wider, Closer For Deeper Image Immersion

Get as close as 0.4m (15.74in) - closer than your arm can reach. This cine zoom lens is perfect for those tight shooting spaces. It delivers exceptional close-up performance with precisely controlled field curvature, allowing cinematographers to create intimate framing that pulls audiences deeper into the narrative.

A Creative Vision Inspires Brilliant Ideas

See beyond human vision - the 12-25mm opens up a world wider than your eyes can take in. The perspective effect of ultra-wide angle draws attention to the foreground while enhancing the depth of field and tension. Even shooting at maximum wide-open aperture, you will find the distortion stays remarkably in check - ideal for creating majestic and surreal images in film production.

Explore Wider Horizon

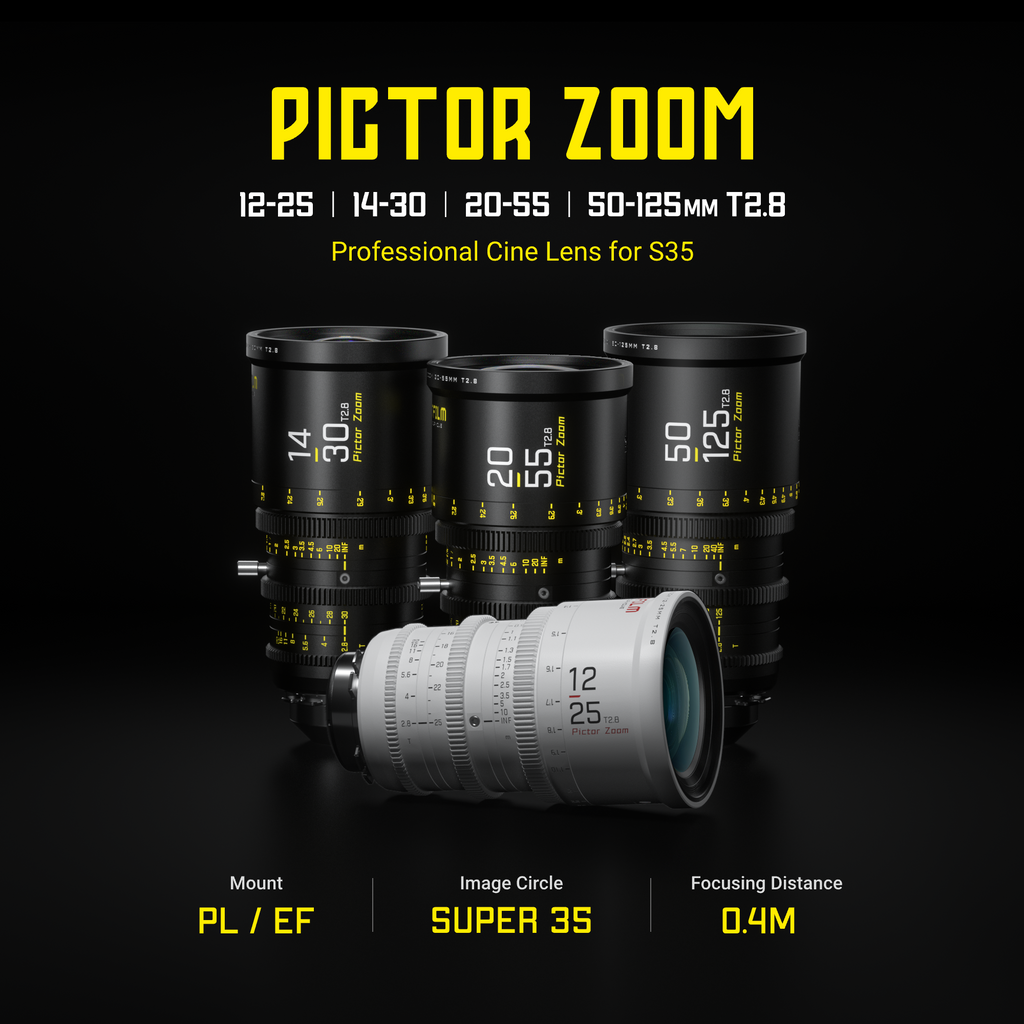

DZOFILM Pictor 12-25mm T2.8, the latest Super 35 wide-angle lens, captures wide shots with ease. Team it up with the Pictor 14-30mm, 20-55mm & 50-125mm, and you have a complete arsenal ready for any shot your story demands.

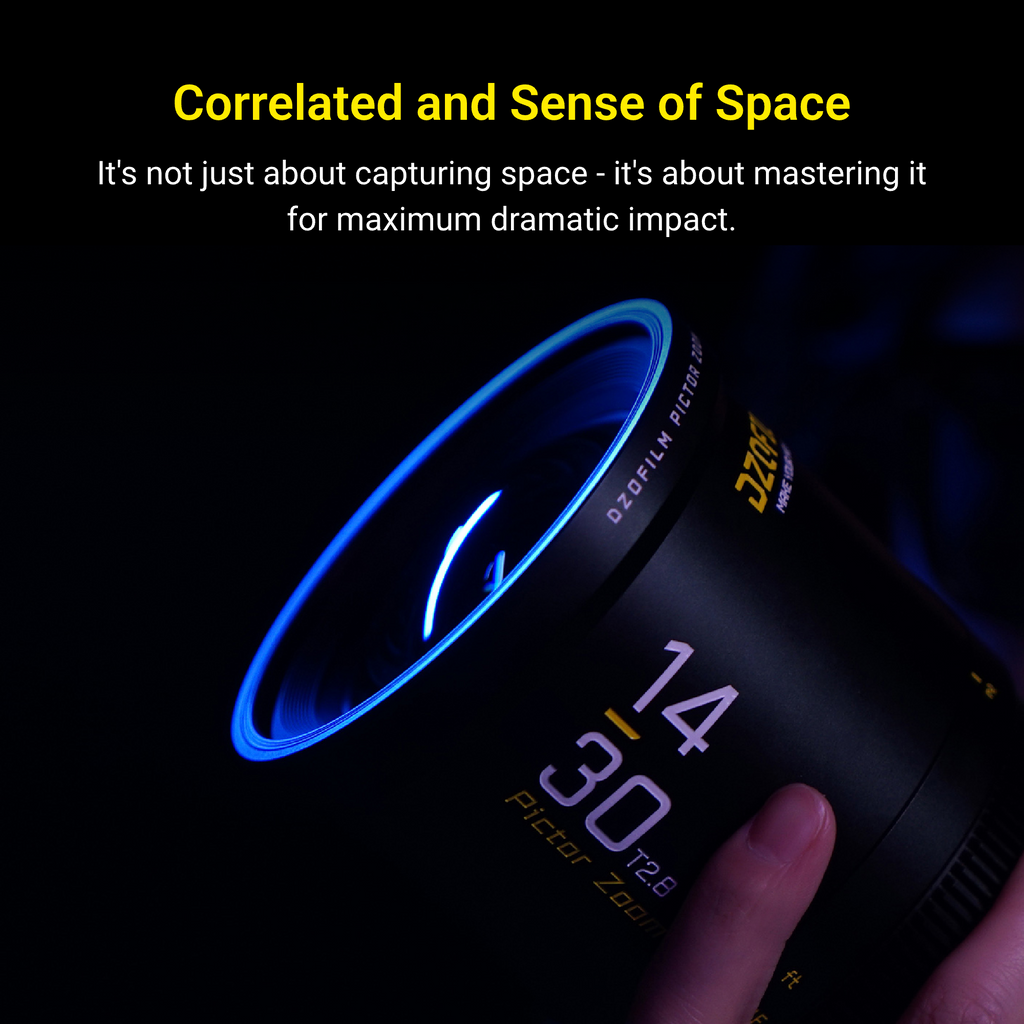

Correlated and Sense of Space

Deeper DOF and wider FOV captures broader background. Each frame of this wide-angle cinema zoom lens becomes a living canvas where characters breathe with their environment, while the zoom lens unique characteristics create compelling separation between foreground and background elements.

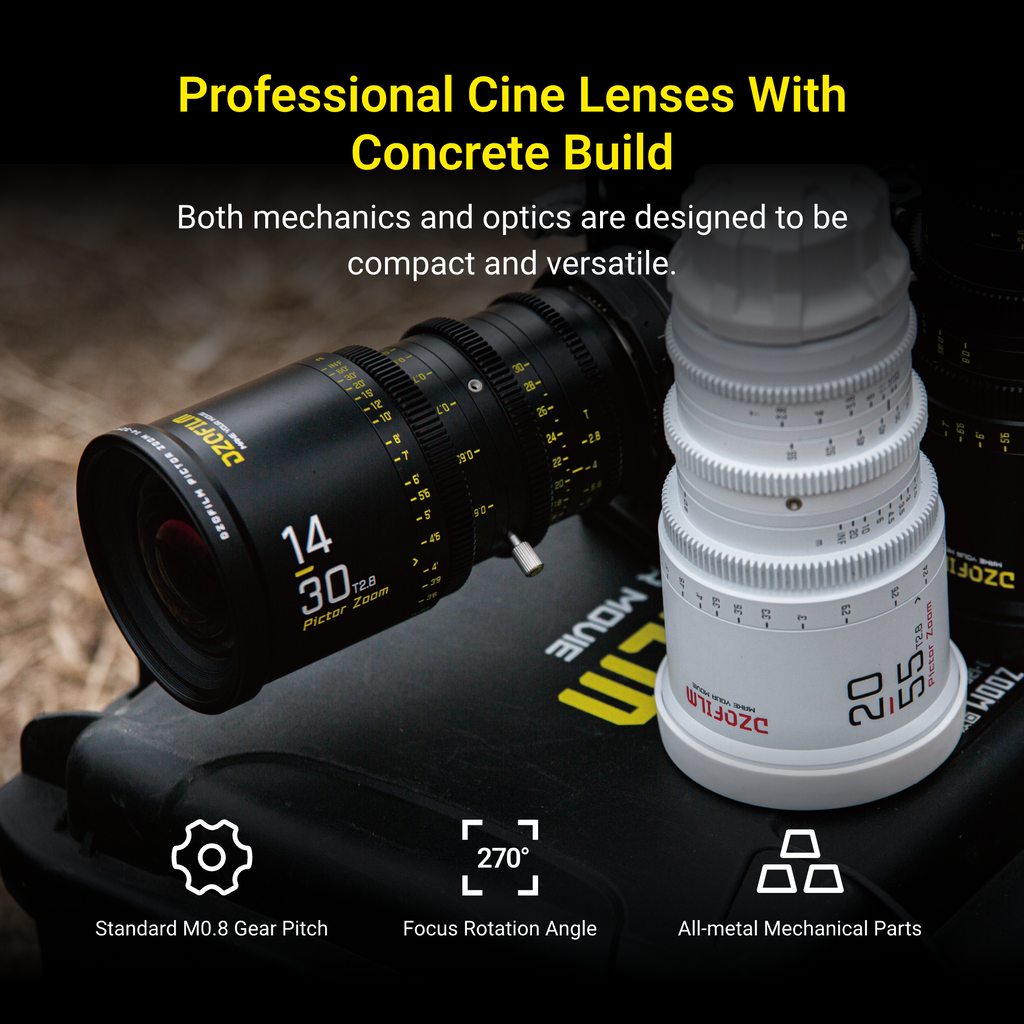

Professional Cine Lenses with Concrete Build

DZOFILM is devoted to exploring the aesthetic of film and design of optics. Both mechanics and optics are designed to be compact and versatile, allowing users to enjoy the smooth and precise operation and every shooting moment with Pictor Zoom. Standard M0.8 gear pitch, wide focus rotation angle, all-metal mechanical parts.

Parfocal Design

Center image stay sharp during zooming in or out. True parfocal performance of a zoom lens means your focus stays locked from close-up to wide, and everything in between, essential for fast-paced documentary shoots.

Minimal Breathing

Thanks to the floating structure, the breathing of Pictor Zoom lenses are negligible during focusing.

Versatile In Ultra Compact

At just 1.6kg (3.5 lbs), Pictor zoom can be easily mounted on a crane, jib, tripod, ROV and other moving platforms. Less weight means more creative freedom and safer operation. When every second counts, one versatile zoom lens keeps you in the action - no missed moments, no lens swaps.

Gentle Sharpness & Vivid Look

From feature film, commercial, to documentary, Pictor Zoom captures crisp details while expressing organic look and cinematic texture.

Spot Effect Increases Sense of Separation

Dreamy Bokeh & Aesthetic Transition. During the focus fall-off, 16 blades T2.8 iris generated soft bokeh. The natural transition from focus to de-focus conveys the ambiance and highlights the subject.

Speed up Your Shooting

Consistent Design & Higher Efficiency. Delivering consistent color reproduction and mechanical precision to meet rigorous production demands. Standard M0.8 gear rings ensure integration with your existing follow focus system, while multiple mounting options enhance operational flexibility.

Seek for More Possibility

This cinema zoom lens offers interchangeable PL and EF mounting design. With Octopus adapters, this lens maximizes compatibility with cinema cameras featuring X, L, RF, E, and DX mounts, provides more shooting possibilities.

Specifications

• Specification (Pictor Zoom series)
• Focal Length: 12-25 / 14-30 / 20-55 / 50-125 mm
• Colour: Black / White
• Mount: PL / EF
• T-Stop: T2.8-22
• Image Circle: 31.5mm (S35)
• Optical Construction: 21 Elements in 15 Groups (12-25), 21 Elements in 17 Groups (14-30), 18 Elements in 15 Groups (20-55), 18 Elements in 13 Groups (50-125)
• Flange Distance: 52mm (PL) / 44mm (EF)
• Close Focus (from sensor plane): 0.4m/1ft4in (12-25 & 14-30), 0.6m/2ft (20-55), 0.8m/2ft8in (50-125)
• Zoom Ratio: 2.08X (12-25), 2.14X (14-30), 2.75X (20-55), 2.5X (50-125)
• Iris Control: 64.4 (12-25), 61 (14-30), 65 (20-55), 72 (50-125) degrees
• Focus Control: 270 degrees
• Zoom Control: 100 degrees
• Front Diameter: 80mm / 3.15in
• Length: 150mm(PL)/159mm(EF) (12-25), 173mm(PL)/181mm(EF) (14-30), 164mm(PL)/171.9mm(EF) (20-55), 175mm(PL)/182.9mm(EF) (50-125)
• Iris Blade: 16
• Filter Size: M86x0.75
• Gear Pitch: 0.8 Mod
• Material: Aluminum Alloy
• Weight: 1600g (12-25), 1880g (14-30), 1520g (20-55), 1700g (50-125)
