Description

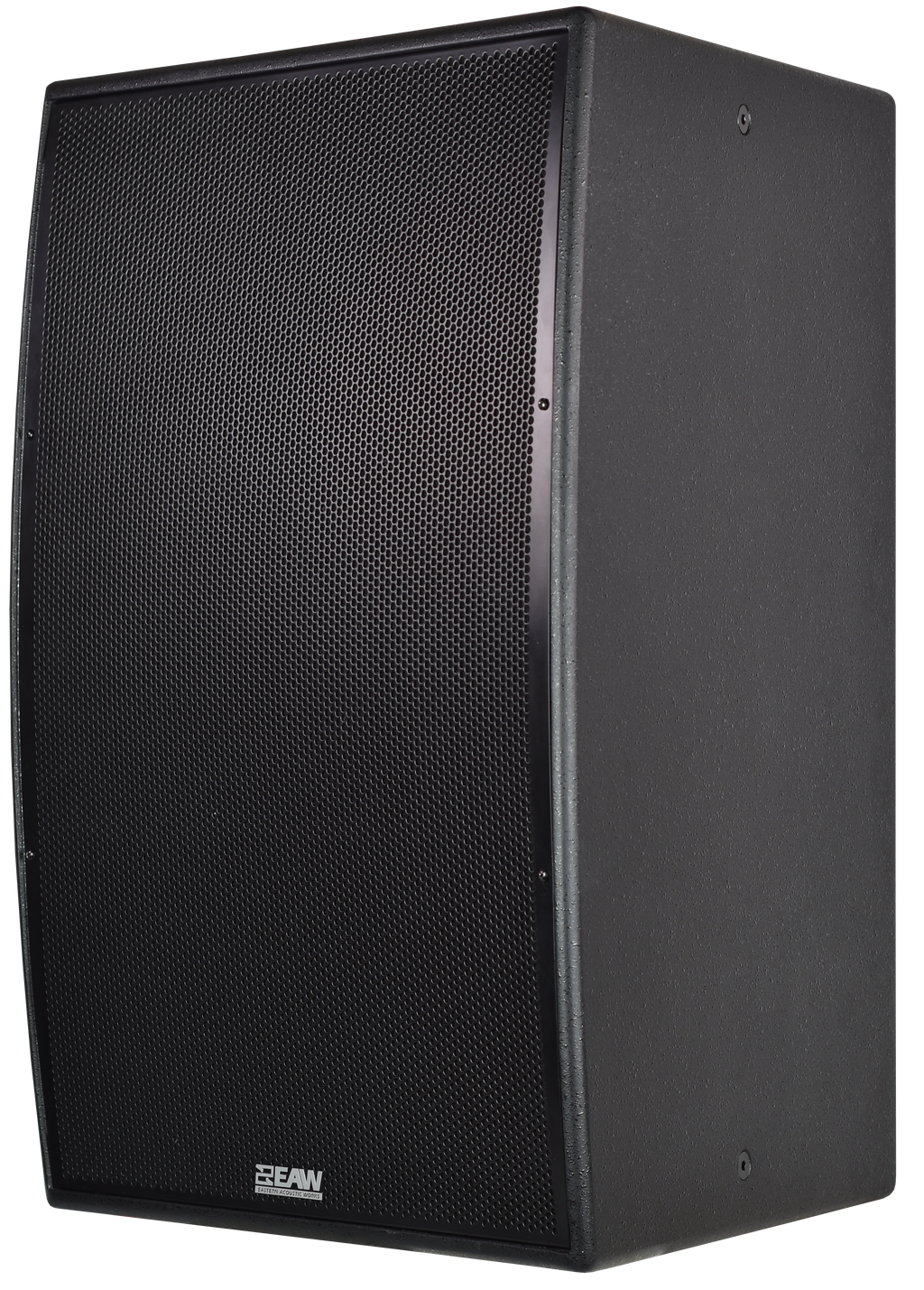

The MKD installation loudspeaker series is engineered to deliver the high output, broadband pattern control and exceptional fidelity that is required by real-world applications from stadiums to intimate music clubs.
Nominal beamwidth 60° x 45°
Features include:
- High output passive or bi-amplified two-way performance
- QX inspired 4in voice coil compression driver with extended
- Precision EAW signature broadband pattern control
- Flexible mounting, weather protection, color and transformer options
Specifications
Frequency Response: 47Hz - 20kHz
Max SPL: 147 dB
Operating Mode: Passive, Bi-Amp
Subsystem: 2 x 12in Cone, 3in Voice Coil, Vented 1 x 2in Exit, 3.5in Voice Coil, Compression Midrange, Horn Loaded 1 x 2in Exit, 1.75in Voice Coil, Compression driver, Horn Loaded
Nominal Beamwidth: 60° Horizontal 45° Vertical
Power Handling: LF/MF/HF 1200W @ 8ohms LF 1200W @ 8ohms HF/MF 140W @ 8ohms
Connections: Terminal Block
Dimensions: Height: 32 in Width: 22.7 in Depth: 20.6 in
Weight: 104 lbs. (47.2kg)
