Description

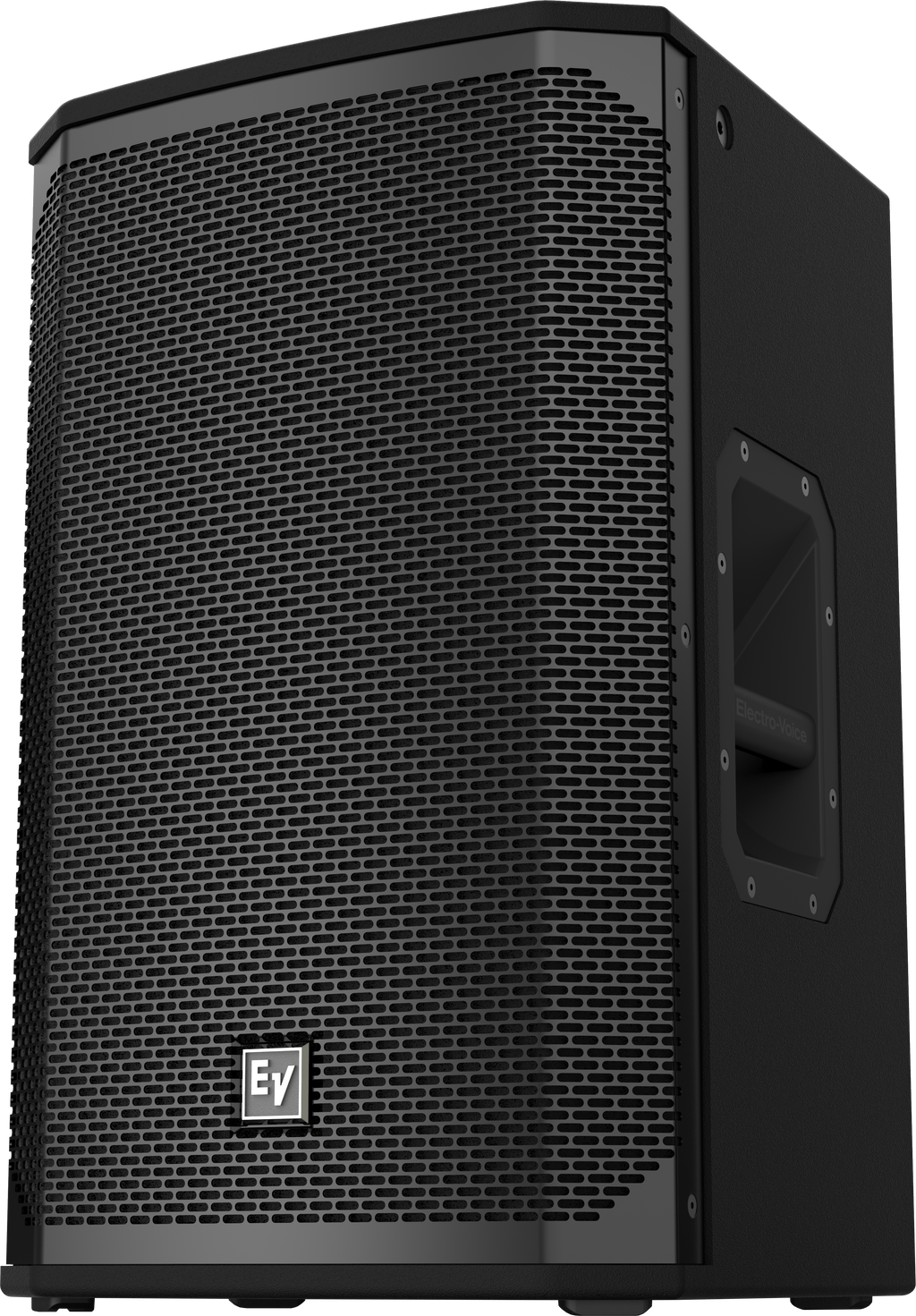

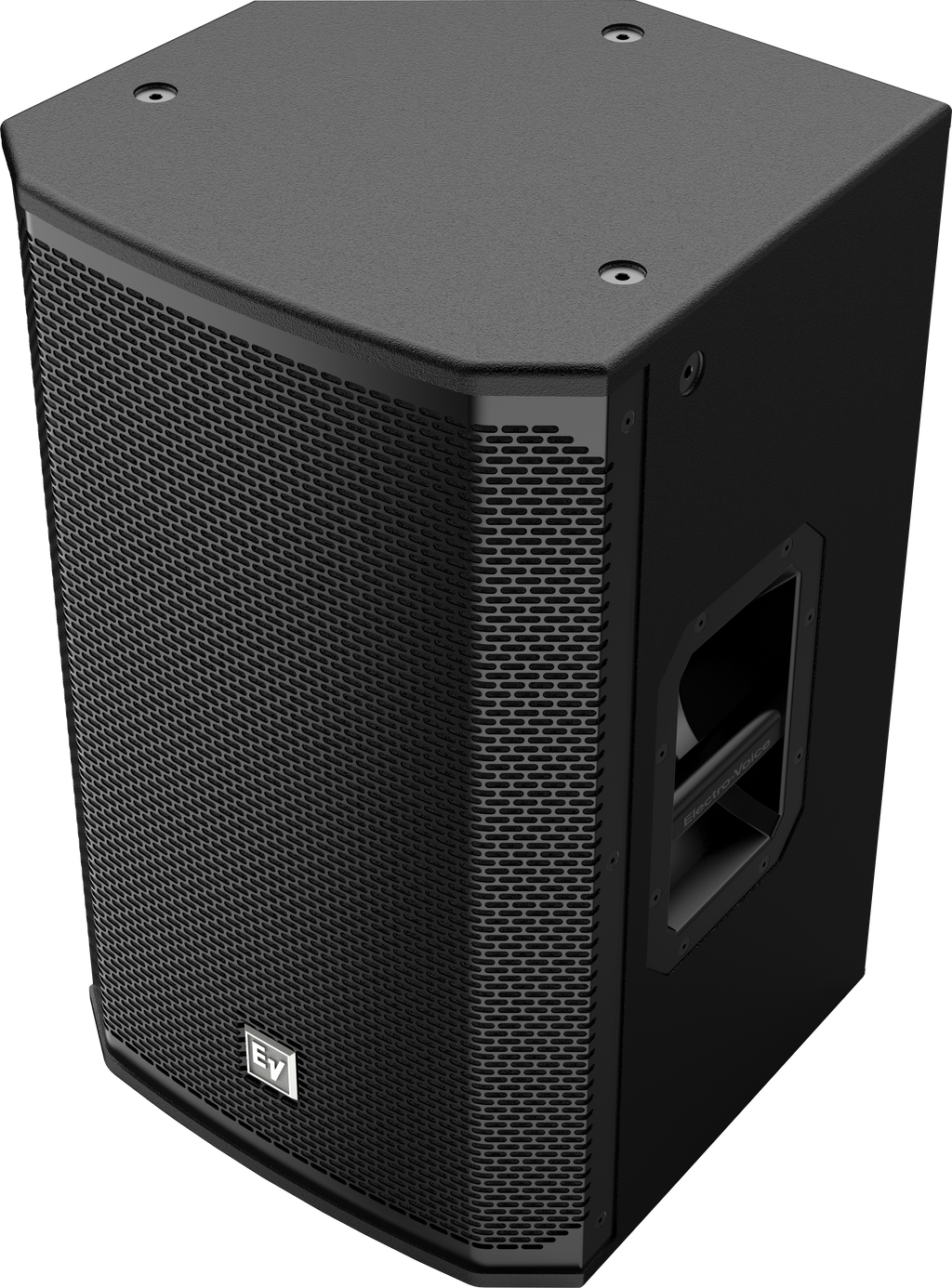

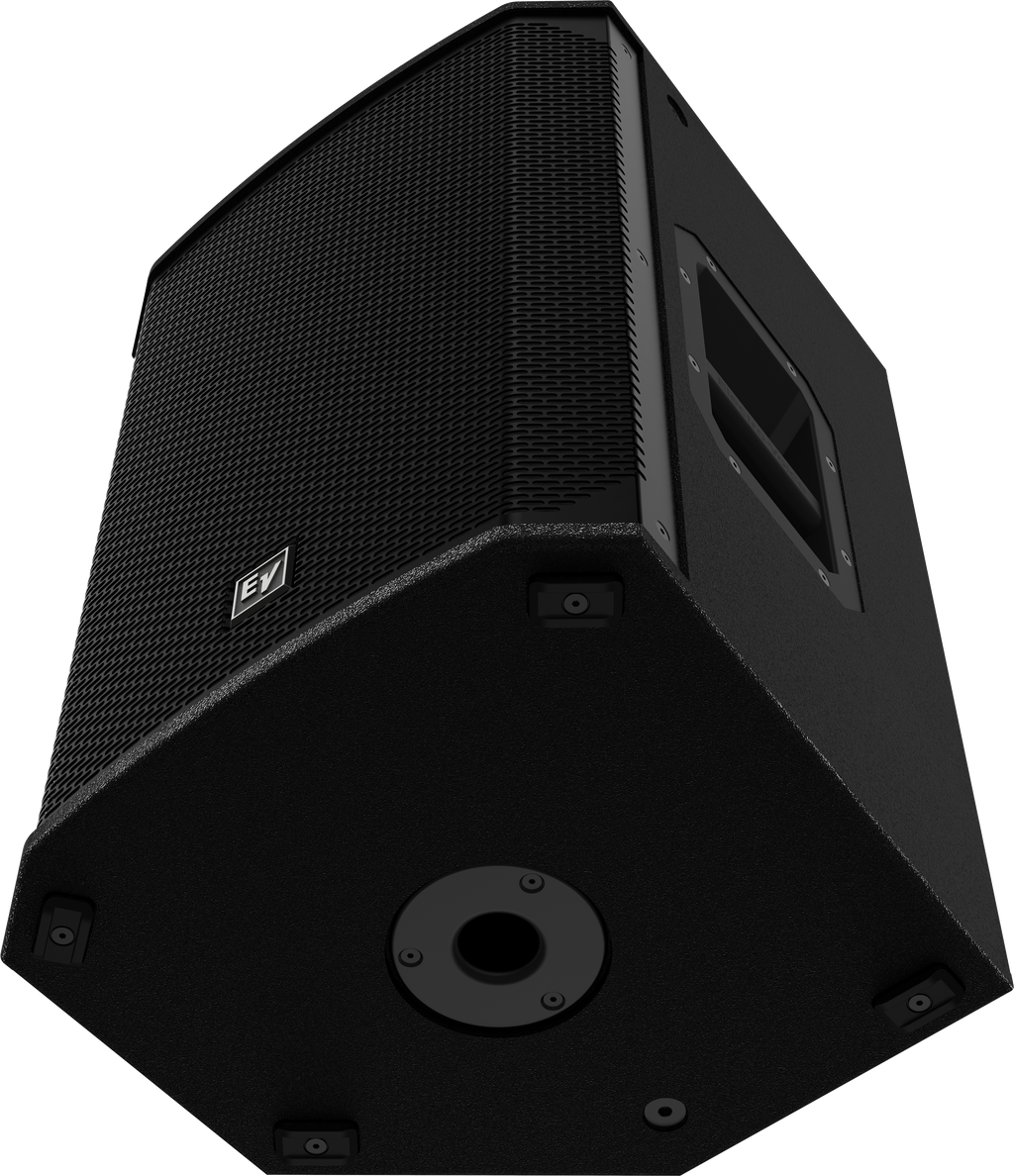

EKX-12 — 12" passive loudspeaker
- EKX-12: 1400 W (peak), 131 dB peak SPL utilizing high-sensitivity transducers designed and engineered by EV
- EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage
- Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish
- Eight M10 threaded mounting points, aluminum pole mounts, and all-metal handles
- 90˚ x 60˚ pattern for best coverage on mid-size stages. 40˚ monitor angle with rubber feet
EKX combines renowned EV sound quality and reliability with the latest technology — all in a compact package suitable for a wide range of sound reinforcement scenarios, including musicians, DJs and small-to-medium live, club, and installed sound applications. EKX is equipped with professional features not usually found at its price point, making it an incredible value.
| Frequency Response (-3 dB) | 82 Hz – 18 kHz |
| Frequency Range (-10 dB) | 55 Hz – 20 kHz |
| Maximum SPL | 131 dB |
| Coverage (Nominal -6 dB) H x V | 90° x 60° |
| LF Transducer | EVS-12M 300 mm (12 in) |
| HF Transducer | DH-1M 1-inch titanium compression driver |
| Power Handling (Continuous / Peak) | 350 W / 1400 W |
| Crossover Frequency | 1.6 kHz |
| Nominal Impedance | 8 ohms |
| Minimum Impedance | 7.5 ohms |
| Axial Sensitivity (SPL, 1W @ 1m) | 95 dB |
| Connector Type | Dual NL4 |
| Enclosure Material | 15 mm plywood with EVCoat |
| Grille | 18 AWG steel with powdercoat |
| Suspension | (8) M10 threaded mounting points |
| Dimensions (H x W x D) | 607 mm x 375 mm x 356 mm (24" x 15" x 14") |
| Net Weight | 17.4 kg (38.4 lb) |
| Shipping Weight | 21.4 kg (47.2 lb) |
