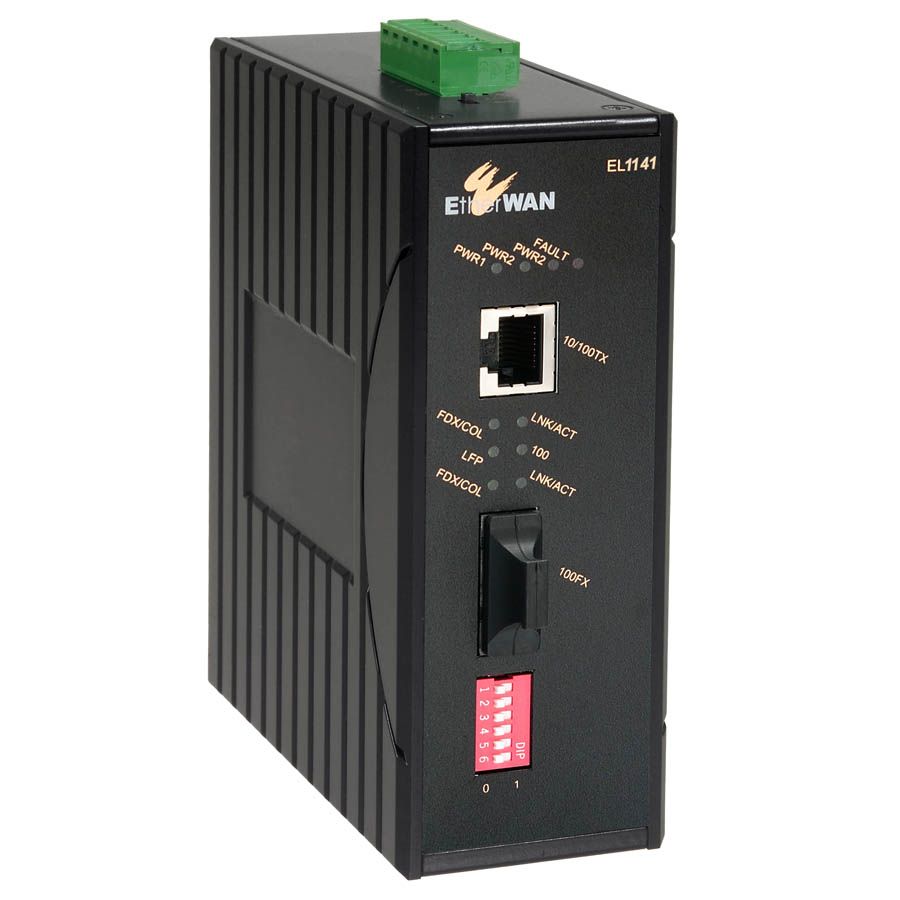

The EL1141 Series provides media conversion between 10/100BASE-T and 100BASE-SX-LX Fiber. Built specifically for mission-critical applications in harsh environments, the EL1141's hardened design features high shock and vibration resistance, electrical noise immunity, a wide operating temperature range from -40°C to 75°C, and ruggedized aluminum housing. EL1141 passes IEC61850-3/IEEE1613 certifications and is suitable for power substation applications. With triple power inputs, link down alarming, Link-Fault-Pass-Through and a wide range of fiber connectivity options the EL1141 is the ideal media converter for harsh environments. EtherWAN - "When Connectivity is Crucial."

Highlights

• EN 50121-4 Certification: Designed and tested for railway environment applications
• IEC 61850-3/IEEE 1613 Certification: Meets standards for application in power substation automation
• Wide Operating Temperature: -40°C to 75°C wide operating temperature range design is suitable for installation in outdoor cabinets
• Link-Fault-Pass-Through (LFPT): Provides constant monitoring of the links connected to the media converters; if a copper link fails, the media converter will pass the fail state on throughout the link, disabling the fiber link and the copper link on the opposite end

Features

• Hardened-grade specs allows for usage in mission critical applications
• Supports conversion to single mode or multi mode with ST, SC, or WMD
• Link Fault Pass Through helps improves monitoring by passing through information on disruptions
• Built-in alarms for power and link failure

Specifications

• Standards: IEEE 802.3 10BASE-T; IEEE 802.3u 100BASE-TX and 100BASE-FX; IEEE 802.3x Full duplex and flow control
• Forward and Filtering Rate: 14,880pps for 10Mbps; 148,810pps for 100Mbps
• Packet Buffer Memory: 128K bits
• Processing Type: Store-and-forward; Auto Negotiation; Half-Duplex back-pressure and IEEE 802.3x Full-Duplex flow control; Auto MDI/MDIX
• Ethernet Ports: 10/100BASE-TX: 1 port; 100BASE-FX: 1 port
• LED Indicators: Per Unit: Power 1, Power 2, Fault, Link-Fault-Pass-Through; Per port 10/100TX: Link/Activity, Full-duplex/Collision, Speed; Per port 100FX: Link/Activity, Full-duplex/Collision
• Relay Contact: Relay contact rating with current 1A @ 30VDC, 0.5A @ 120VAC
• Operating Temperature: -40 to 75°C (-40 to 167°F)
• Storage Temperature: -40 to 85°C (-40 to 185°F)
• Ambient Relative Humidity: 5% to 95% (non-condensing)
• Power Input: 12 to 48VDC (Terminal Block); 12VDC (DC Jack)
• Power Consumption: 12 to 48VDC, 0.24 to 0.06A; 2.88W Max.
• Protection: Overload Current Protection; Reverse Polarity Protection
• Casing: Aluminum Case; IP30
• Dimensions: 50mm (W) x 110mm (D) x 135mm (H) (1.97" (W) x 4.33" (D) x 5.31" (H))
• Weight: 0.8Kg (1.76lbs.)
• Installation: DIN-Rail (top hat type 35mm) or panel mounting
• ISO: Manufactured in an ISO 9001 facility
• Safety: UL508; UL62368-1
• EMI: FCC Part 15B Class A; EN 55022; EN 61000-6-4; EN 61000-3-2; EN 61000-3-3
• EMS: EN 61000-6-2; EN 61000-4-2 (ESD Standards); EN 61000-4-3 (Radiated FRI Standards); EN 61000-4-4 (Burst Standards); EN 61000-4-5 (Surge Standards); EN 61000-4-6 (Induced RFI Standards); EN 61000-4-8 (Magnetic Field Standards)
• Environmental Test Compliances: IEC 60068-2-6 Fc (Vibration); IEC 60068-2-27 Ea (Shock); FED STD 101C Method 5007.1 (Free fall w/ package)
• Industrial Compliance: IEC61850-3 / IEEE1613; EN50121-4; NEMA TS2
• Model: EL1141-X0B = 10/100BASE-TX to 100BASE-FX Hardened Media Converter (DIN-Rail mounting kit included)
• 100FX Fiber Options (X): 1 = Multi Mode (SC) - 2Km (1310nm); 2 = Multi Mode (ST) - 2Km (1310nm); A = Single Mode (SC) - 20Km (1310nm); B = Single Mode (SC) - 40Km (1310nm); H = Single Mode (ST) - 20Km (1310nm); 6 = Multi Mode (SC) WDM-TX: 1310nm/RX: 1550nm-2Km; 7 = Multi Mode (SC) WDM-TX: 1550nm/RX: 1310nm-2Km; 8 = Multi Mode (SC) WDM-TX: 1310nm/RX: 1550nm-5Km; 9 = Multi Mode (SC) WDM-TX: 1550nm/RX: 1310nm-5Km; P = Single Mode (SC) WDM-TX: 1310nm/RX: 1550nm-20Km; Q = Single Mode (SC) WDM-TX: 1550nm/RX: 1310nm-20Km; R = Single Mode (SC) WDM-TX: 1310nm/RX: 1550nm-40Km; S = Single Mode (SC) WDM-TX: 1550nm/RX: 1310nm-40Km
• Optional Accessories: KP-AA96-480 = Panel mounting kit; HDR-30-24 = 30W/1.5A DIN-Rail 24VDC Industrial Power Supply; HDR-60-24 = 60W/2.5A DIN-Rail 24VDC Industrial Power Supply; EDR-75-24 = 75W/3.2A DIN-Rail 24VDC Industrial Power Supply; EX41-145046-X = Power Supply 45W 12VDC with Open Wire (X = 1: US, 2: EU, 3: UK, 4: AU, 5: JP, 6: SA)
