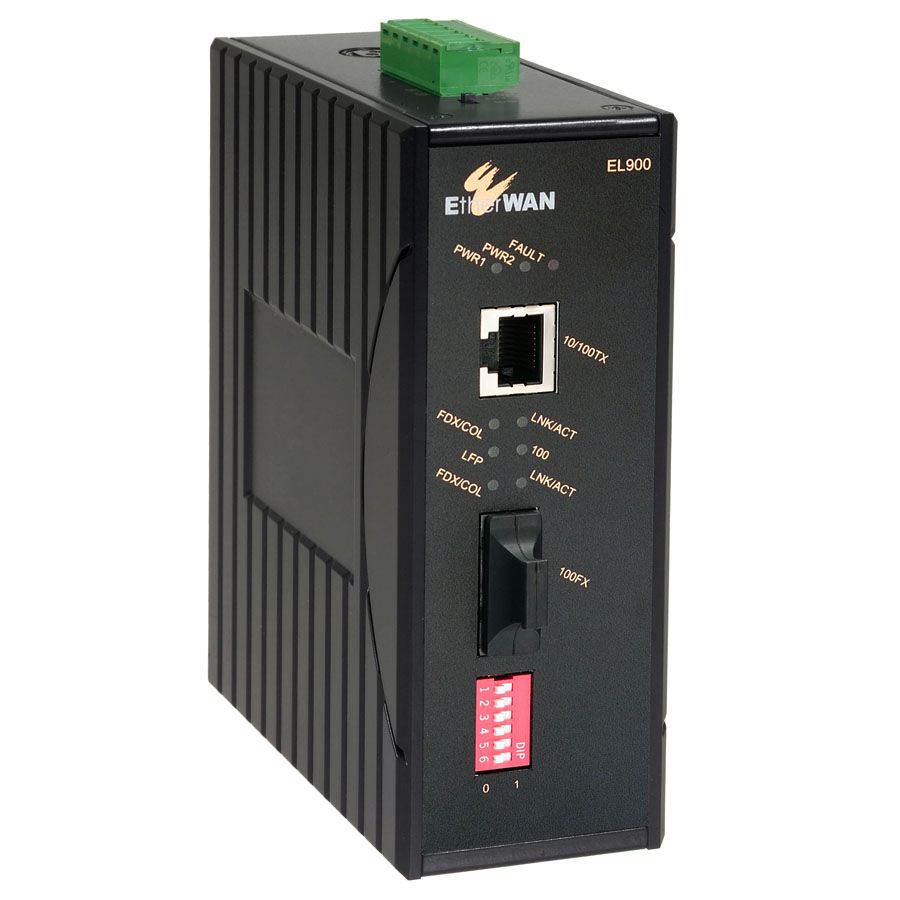

The EL900 Series provides media conversion between 10/100BASE-T and 100BASE-SX-LX Fiber. Built specifically for mission-critical applications in harsh environments, the EL900's hardened design features high shock and vibration resistance, electrical noise immunity, wide operating temperature range from -40C to 75C, and ruggedized aluminum housing. With triple power inputs, link down alarming, Link-Fault-Pass-Through and a wide range of fiber connectivity options, the EL900 is the ideal media converter for harsh environments. EtherWAN - "When Connectivity is Crucial."

Highlights

• ISA 12.12.01 Certification: Highly qualified for explosive environmental applications and certified by UL with ISA 12.12.01 Class I, Division 2 classified for use in hazardous locations
• Wide Operating Temperature: -40C to 75C wide operating temperature range design is suitable for installation in outdoor cabinet
• Link-Fault-Pass-Through (LFPT): Lets network operators be aware of network connection status; when fiber link is down, LFPT turns down the Ethernet port to inform the connected device that the link is down, and vice versa

Specifications

• Standards: IEEE 802.3 10BASE-T; IEEE 802.3u 100BASE-TX and 100BASE-FX; IEEE 802.3x Full duplex and flow control
• Forward and Filtering Rate: 14,880pps for 10Mbps; 148,810pps for 100Mbps
• Packet Buffer Memory: 128K bits
• Processing Type: Store-and-forward; Auto Negotiation; Half-Duplex back-pressure and IEEE 802.3x Full-Duplex flow control; Auto MDI/MDIX
• Ethernet Ports: 10/100BASE-TX 1 port; 100BASE-FX 1 port
• LED Indicators: Per Unit Power1, Power2, Alarm; Per 10/100BASE-TX port Link/Activity, 100, Full-Duplex/Collision, LFPT; Per 100BASE-FX port Link/Activity, Full-Duplex/Collision
• Relay Contact: Dry contact with current 0.6A/30VDC
• Operating Temperature: -40 to 75C (-40 to 167F); Storage -40 to 85C (-40 to 185F); Ambient Relative Humidity 5% to 95% non-condensing

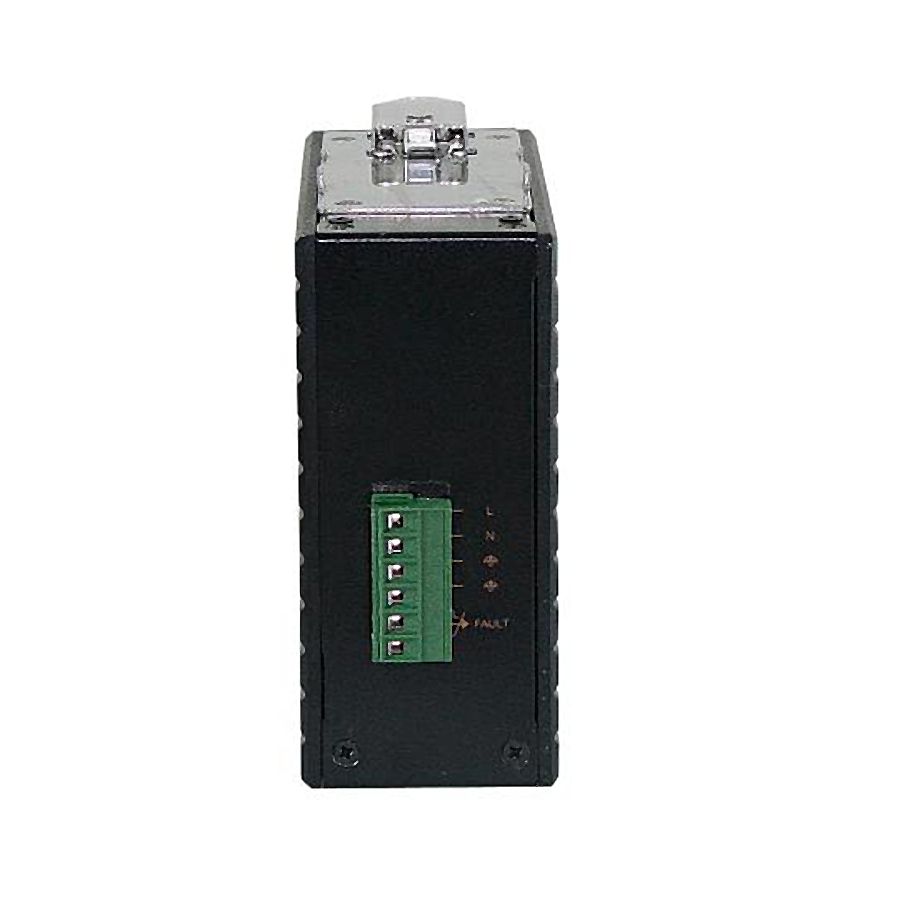

• Power Input: 10-48VDC (DC Terminal Block); 12VDC (DC Jack)
• Power Consumption: 3.84W Max, 10-48VDC, 0.29-0.08A
• Protection: Overload Current Protection; Reverse Polarity Protection
• Casing: Aluminum Case; IP30

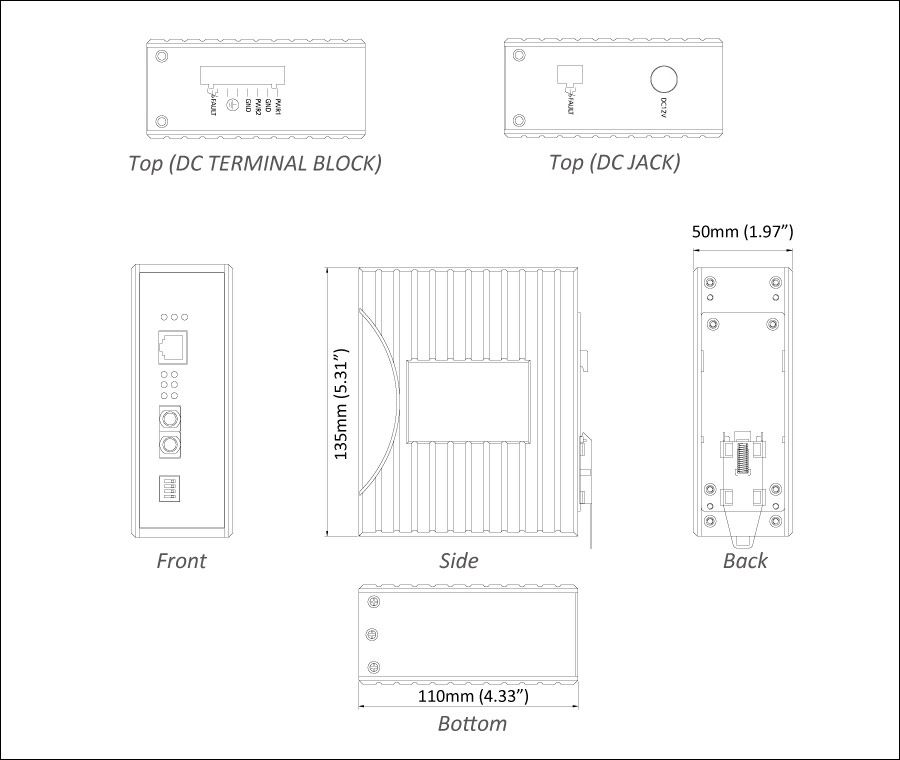

• Dimensions: 50 x 110 x 135mm (W x D x H); 1.97in x 4.33in x 5.31in
• Weight: 0.8kg (1.76lbs); Installation DIN-Rail (top hat type 35mm) or panel mounting
• Safety: ISA 12.12.01 Class 1, Division 2 group A, B, C and D for hazardous locations
• EMC: FCC Part 15B Class A; VCCI Class A; EN 55022; EN 61000-3-2; EN 61000-3-3; EN 61000-6-3
• EMS: EN 61000-6-2; EN 61000-4-2/3/4/5/6/8
• Environmental Test: IEC 60068-2-6 Fc (Vibration); IEC 60068-2-27 Ea (Shock); FED STD 101C Method 5007.1 (Free fall with package); NEMA TS1/2
• Ordering: EL900-A-Y-1-P, 10/100BASE-TX to 100BASE-FX Hardened Media Converter; DIN-Rail mounting kit included; Y = 100FX fiber option, P = power connector (A DC Terminal Block, B DC Jack)
