Description
The ElectraPix Bar 8FC is a rugged flight case designed to house, transport, and charge up to six ElectraPix Bar 8 LED fixtures. Featuring a built-in 400W power supply, six charging bases, IP65-rated locking power connections, and a UC-IR24 remote.
ElectraPix Bar 8FC

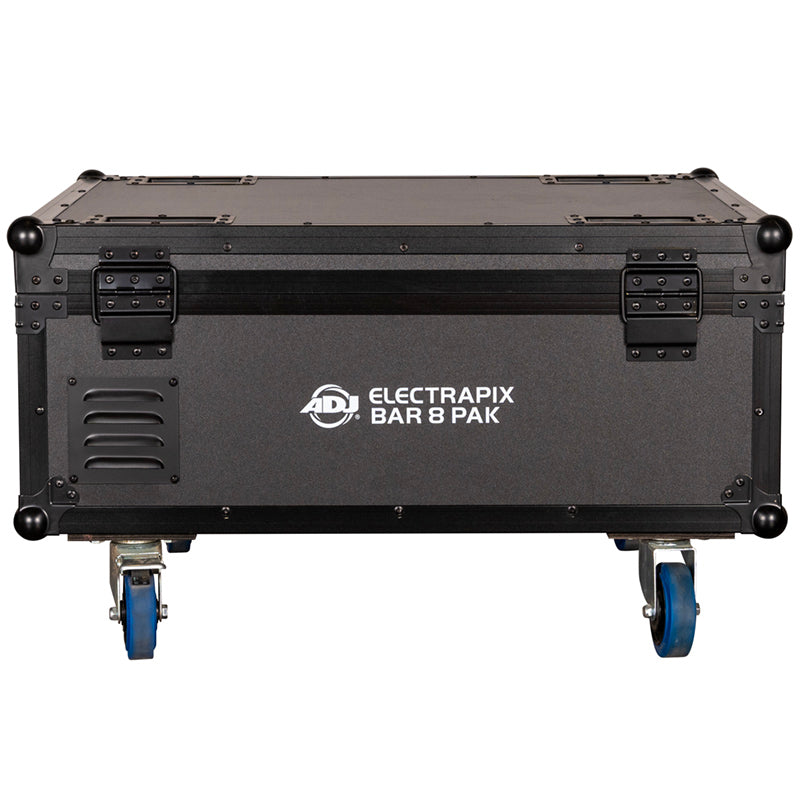

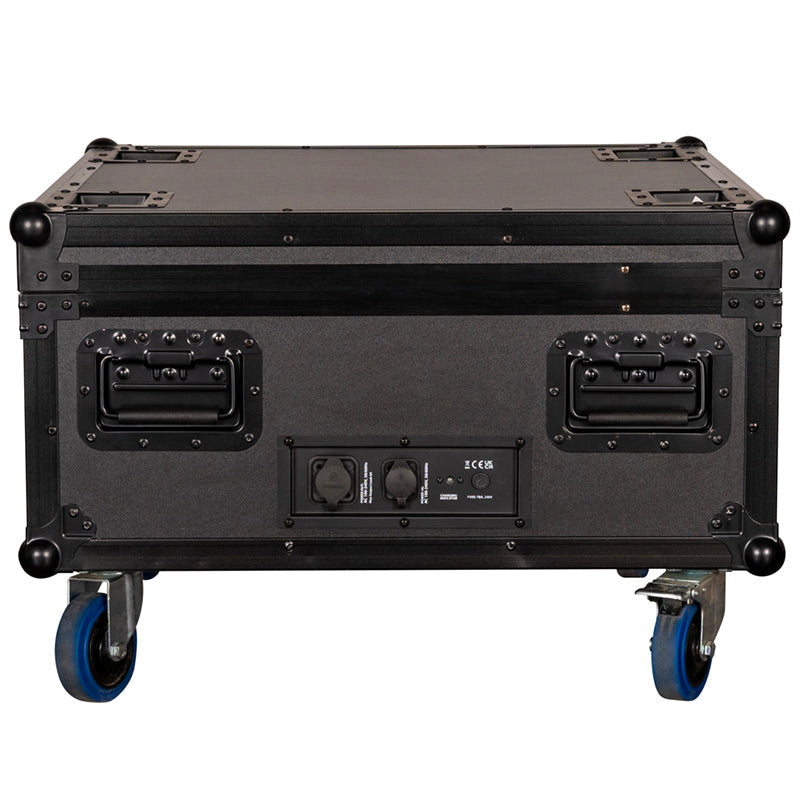

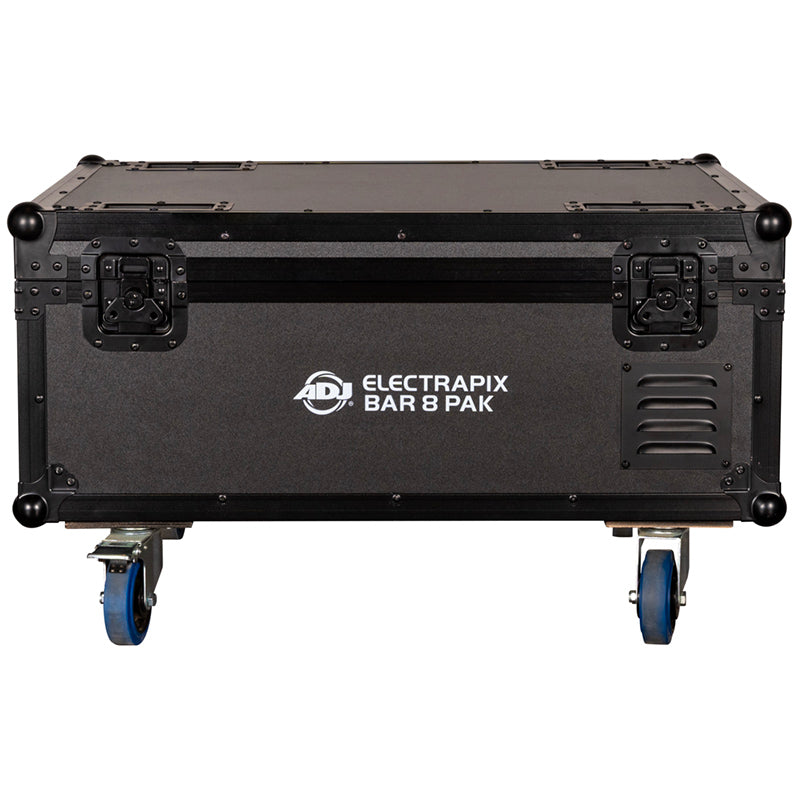

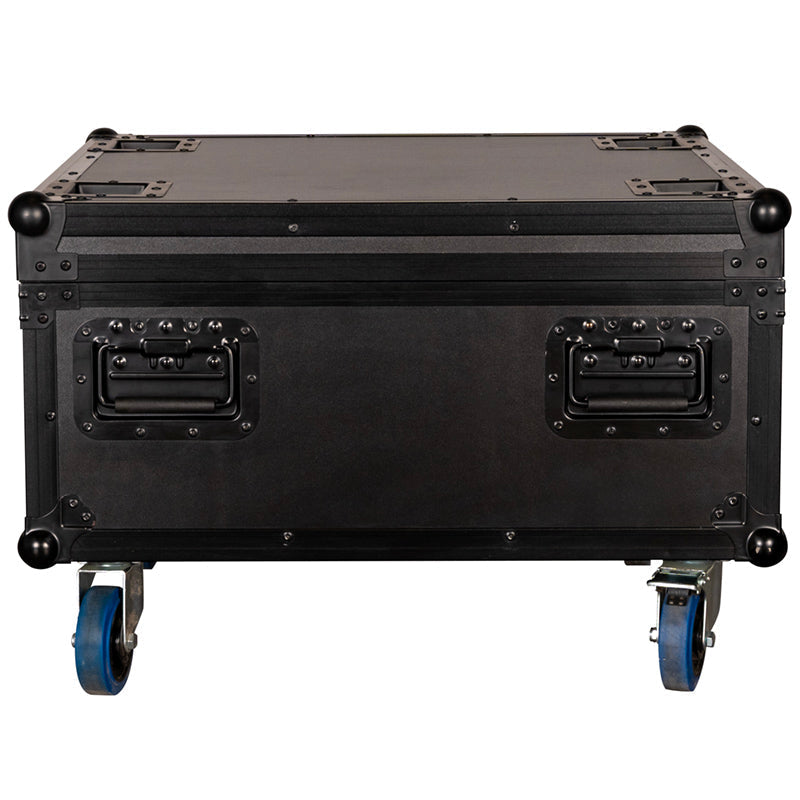

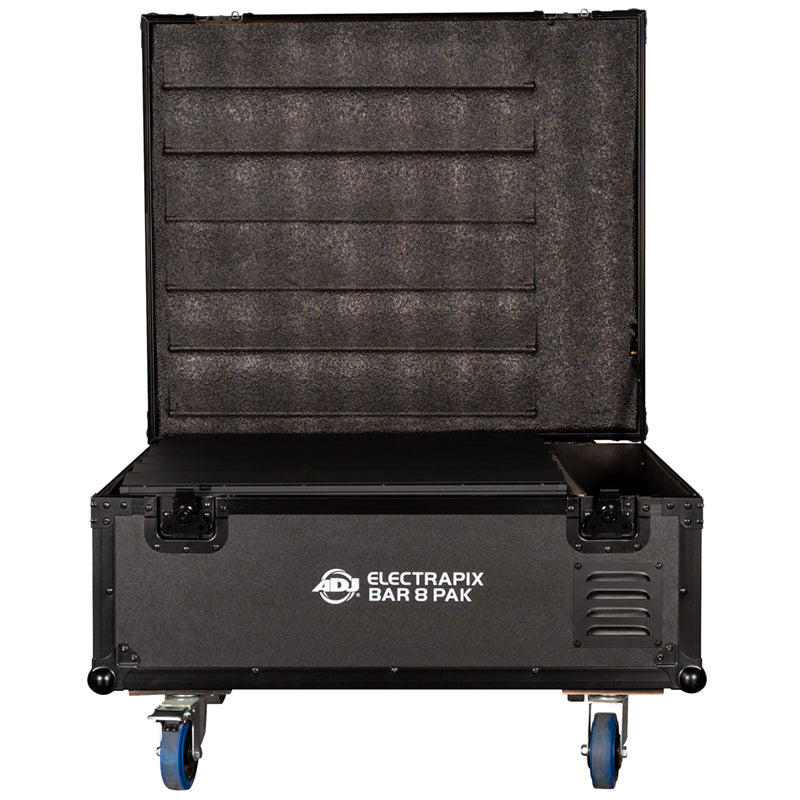

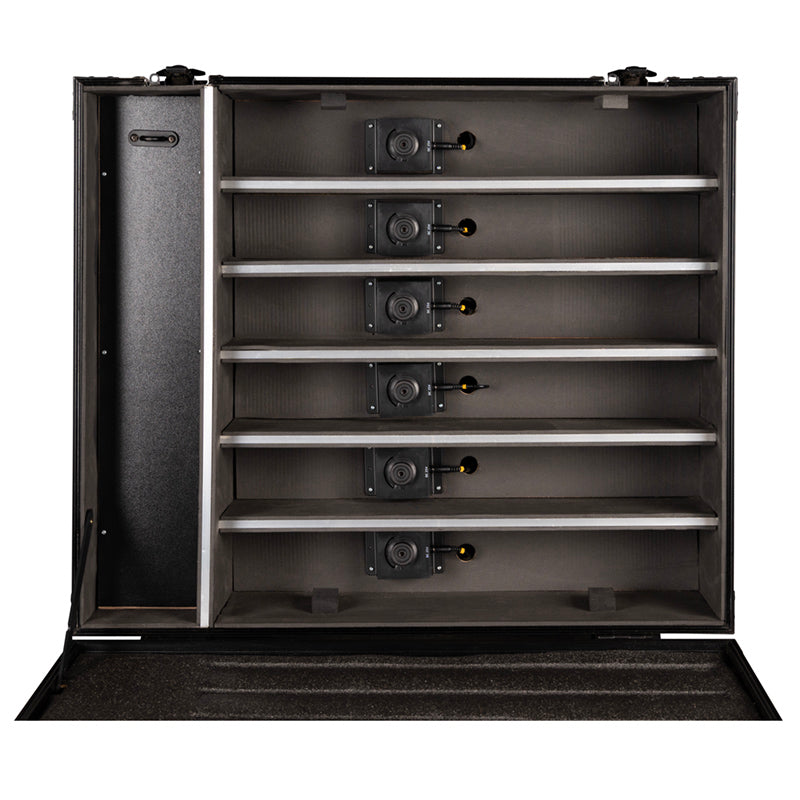

The ElectraPix Bar 8FC is an all-in-one flight case and charging solution engineered for the ElectraPix Bar 8 LED Bars. Built for durability and efficiency, this compact case safely houses and transports up to six fixtures, not included, while simultaneously charging them. It features a powerful 400W power supply, six integrated charging bases, a UC-IR24 infrared remote, and an IP65 locking main power cable for reliable connection.
Designed with professional demands in mind, the ElectraPix Bar 8FC offers an AC100-240V input range, a 6A maximum output load, and a charge status indicator to monitor your fixtures easily. The heavy-duty construction keeps your gear protected, while its compact dimensions Length: (23.1" L x 3.72" W x 10.6" H) and 16.1 lb (7.3 kg) weight make transport simple and manageable.
With IP65-rated power locking input and output connections and a wide operating temperature range of 14°F to 113°F (-10°C to 45°C), the ElectraPix Bar 8FC is built to withstand the rigors of live production environments.
Specifications
Houses / Transports and Charges (6) ElectraBix Par 8™ fixtures (ElectraPix Bar 8 Fixtures Not Included)
Includes: 400W Power Supply, 6x Charging Bases, 1x UC-IR24 Remote and 1x IP65 Locking Power CableDimensions Weight:
Length: 31.3" (795mm)
Width: 26.8" (680mm)
Height: 19.3" (490mm)
Weight: 68.3 Ibs. (31 kg)
Electrical / Thermal:
Power Input: AC100VAC~240VAC, 50/60Hz
Max Output Load: 6A

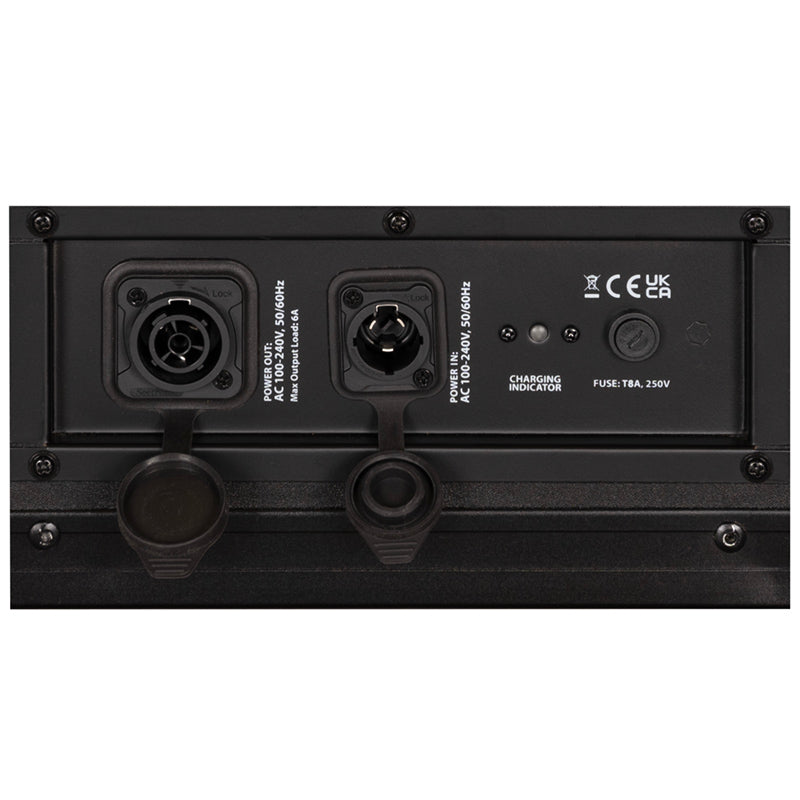

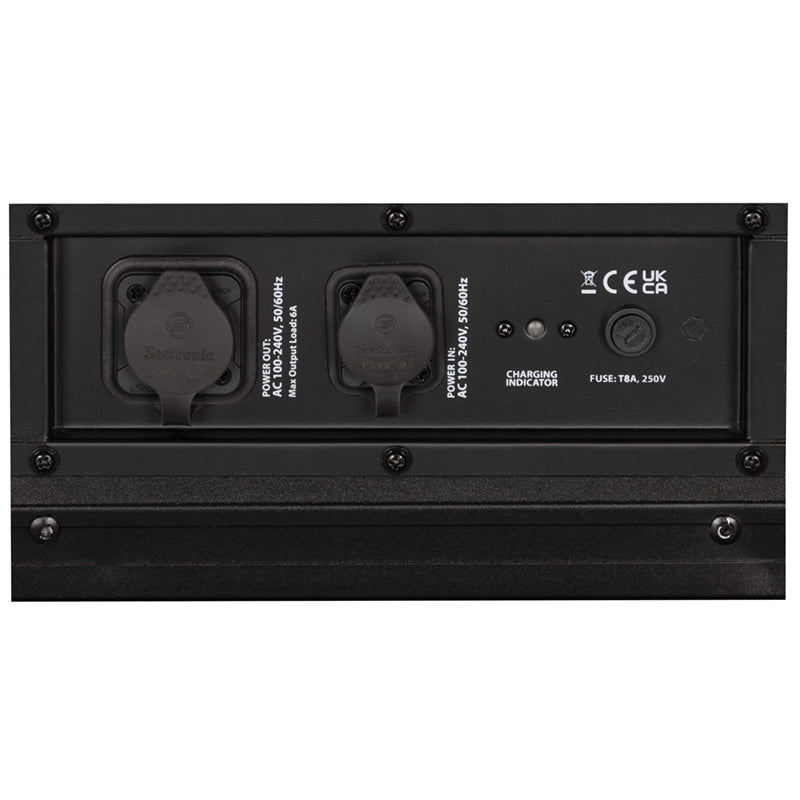

IP65 Power Locking Input and Output
Max Power Consumption: 400 Watts
Power Draw: 4A @120VAC or 2A @ 230VAC

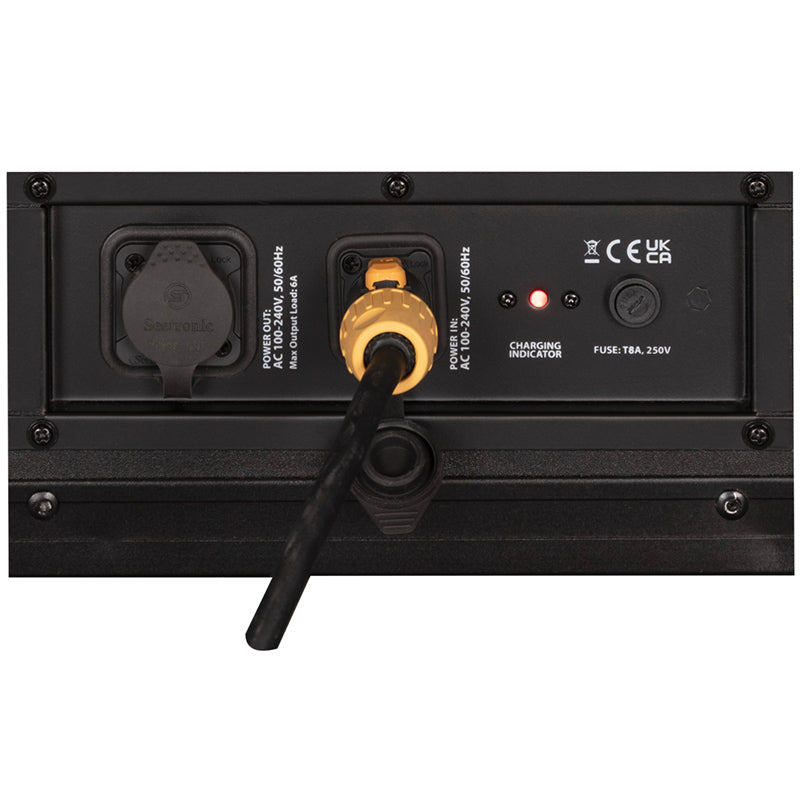

Charge status indicator
Fuse: T8A, 250V
14°F to 113°F (-10°C to 45°C)
Specifications are subject to change without notice.
