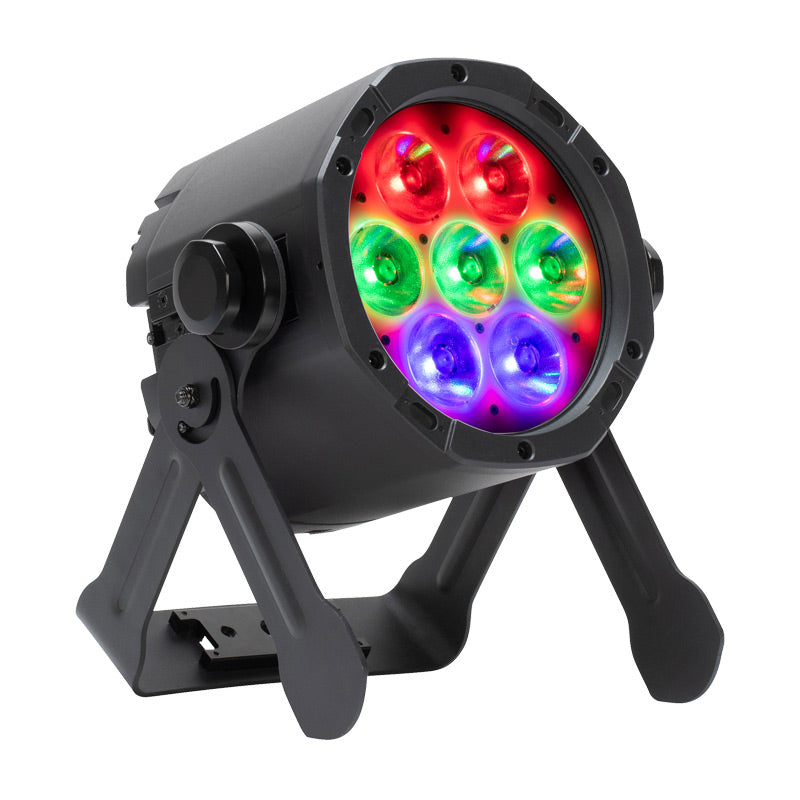

ElectraPix Par 7
Specifications

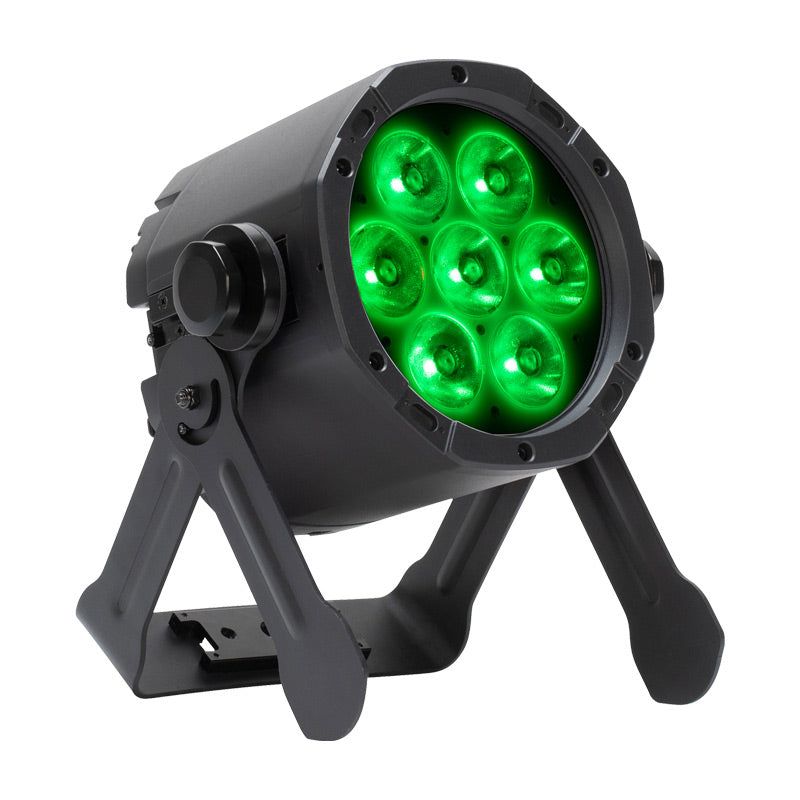

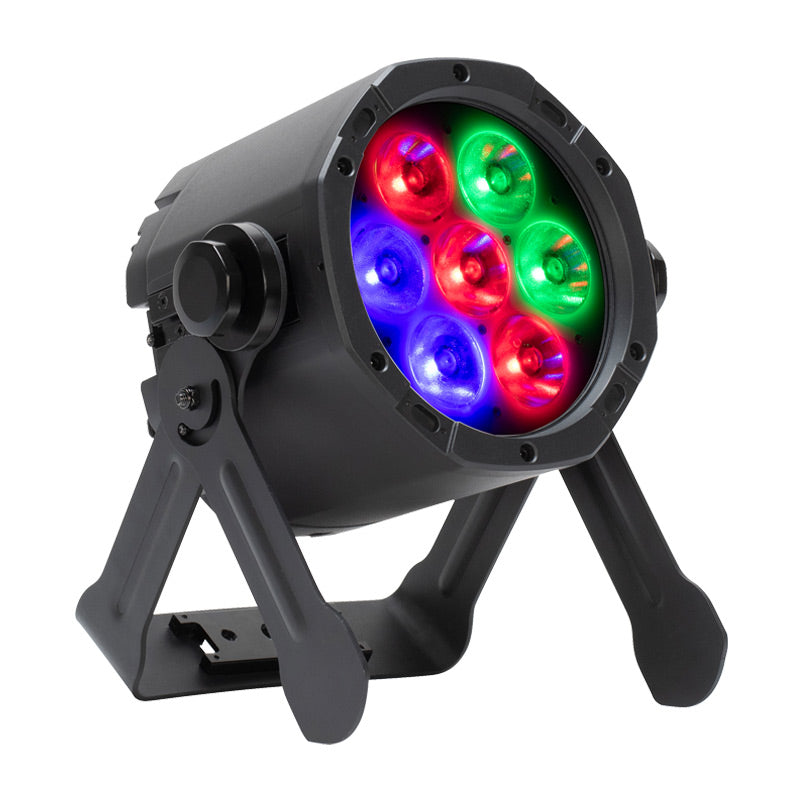

7 Pixel, Hex Color LED (RGBAL+UV) LED Par
Built-in Lithium-ion rechargeable battery or Wall Powered
Battery operation can be selected by the user for durations ranging from 5 to 20 hours
Individual Pixel Control
Built-In Foreground LED Programs
Built-In Background LED Programs

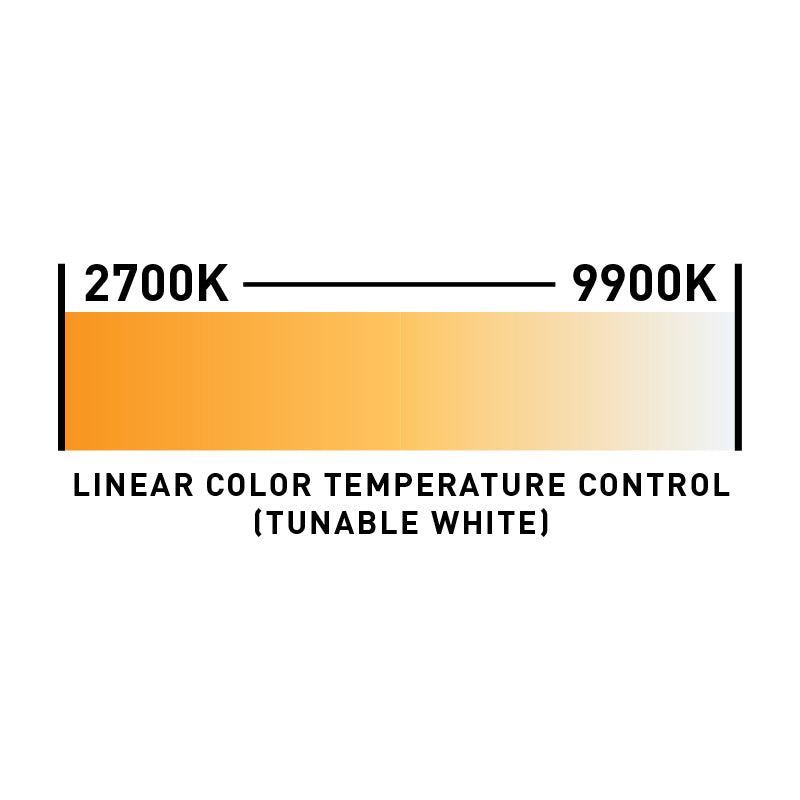

Variable White Color Temperature Control (2,700K ~ 9,900K)
English Spanish User Menu
Built-In Alarm
Color Calibrated LED's
User Selectable LED Refresh Rates (900Hz ~ 25K)
6 User Selectable Dim Modes
4 User Selectable Dim Curves
Electronic Strobe (0.3Hz ~ 11Hz)
Electronic Dimming
Source:
(7) 20W Hex Color RGBAL+UV Foreground LEDs
(29) 0.2W RGB Background LEDs
50,000 Hour Average Life*
*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
Optical:
2,300K ~ 9,900K White Color Temperature Range
17° Beam Angle
Physical:
IP65 Housing
OLED Digital display

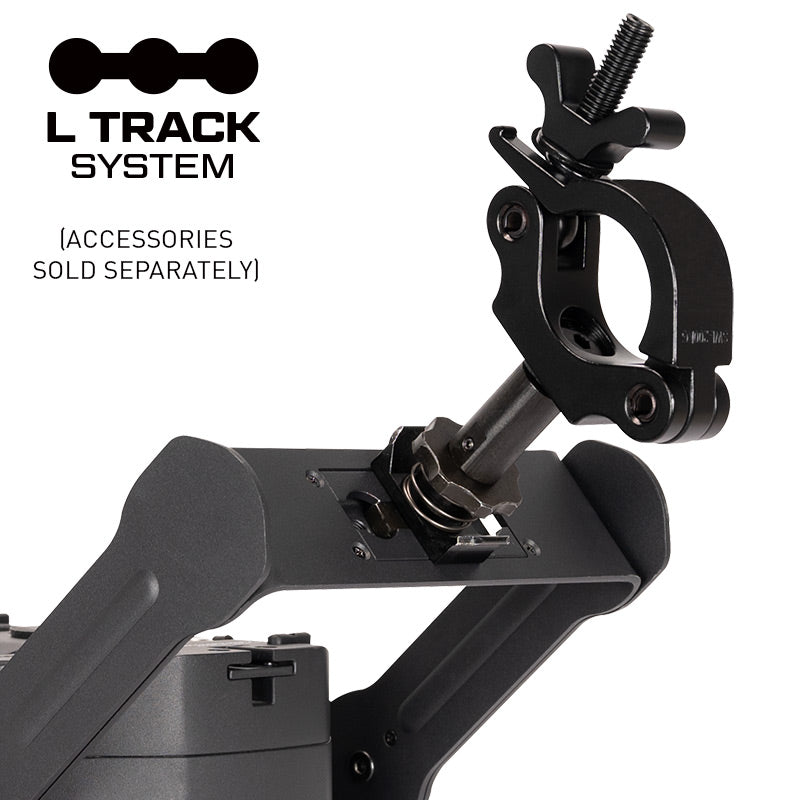

L Track system for locking accessories / rigging

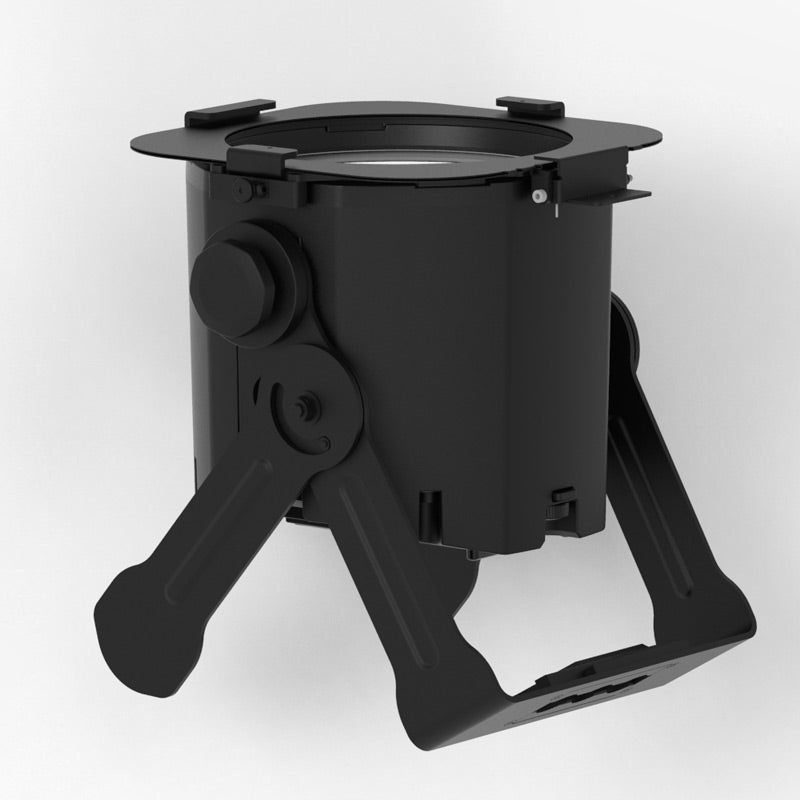

Gel Frame Holder

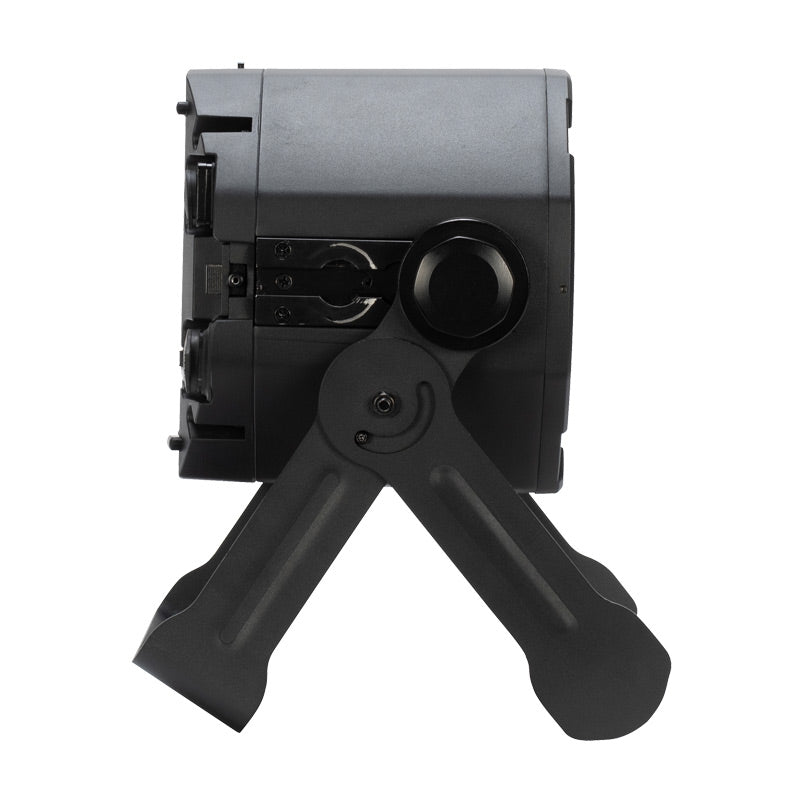

Adjustable, hanging / kick stand bracket
Control:
DMX512
Aria X2 Wireless Management / DMX System
Bluetooth
RDM and RDM Net Compatible
IR (Includes UCIR24 wireless remote)
(11) DMX Channel Modes (5, 6, 7, 9, 12, 13, 22, 24, 42, 45 & 60 Channel modes)
On-board Manual Control Mode
Primary / Secondary Mode

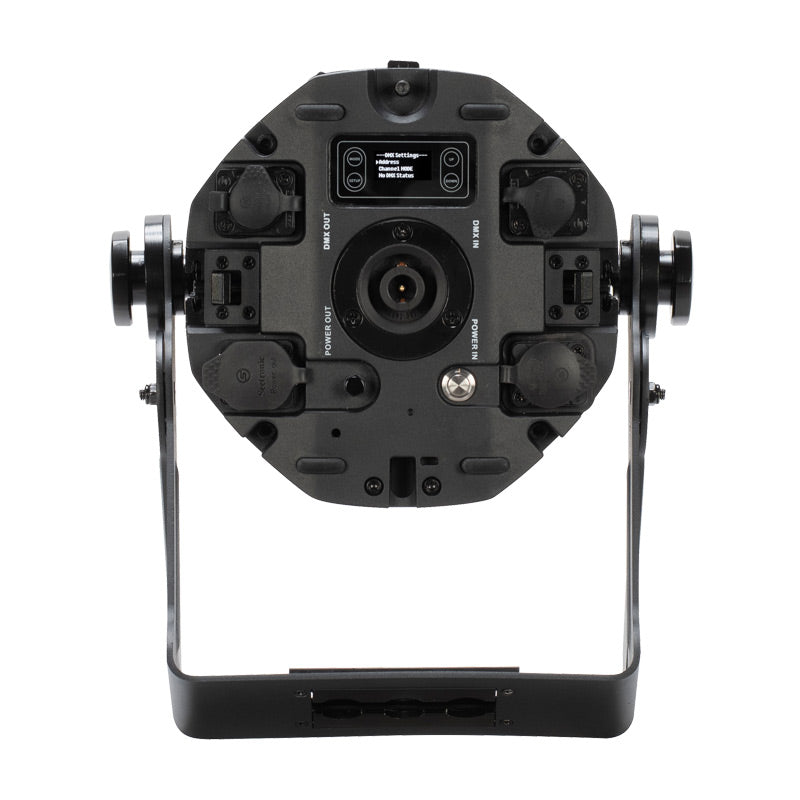

Connections:
5pin XLR Outdoor DMX In/Out Sockets (Must be used with STRxxx, 5pin DMX cables to create IP65 seal)
Outdoor Locking Power Sockets
Battery Charging Socket
Dimensions Weight:
Length: 12.1" (308mm) Width: 10.0" (255mm) Height: 7.5" (190mm)
Weight: 15.9 lbs. (7.2 kg)
Power:
AC100-240V/50Hz-60Hz Input
60W Power Consumption
Link 15 pieces @120VAC or 28 pieces @ 230VAC
Battery:
Rechargeable Lithium-ion
Battery Capacity: 7,000mAh
Battery Voltage: 22.2V
Charge Time: 6 Hours (To Full)
Battery operation can be selected by the user for durations ranging from 5 to 20 hours. 5 Hour duration will operate at Full Output when battery is fully charged
Battery Cycles: 500
Thermal:
Ambient Operational Temperature: -4°F to 113°F (-20°C to 45°C)
Storage Temperature: -22°F to 113°F (-30°C to 45°C)
Certifications IP Rating:
CE
cETLus (Control # 4002034)
FCC
IP65
Included Accessories:
(1) Outdoor Locking Power Cable
(1) Floor / Mounting Bracket
(1) UCIR24 Remote

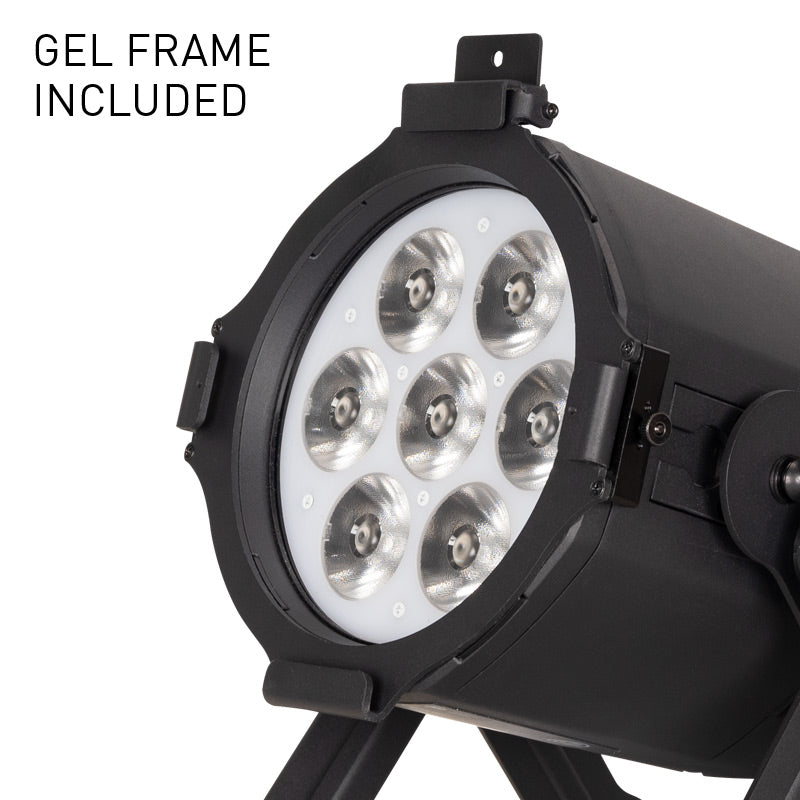

(1) Gel Frame

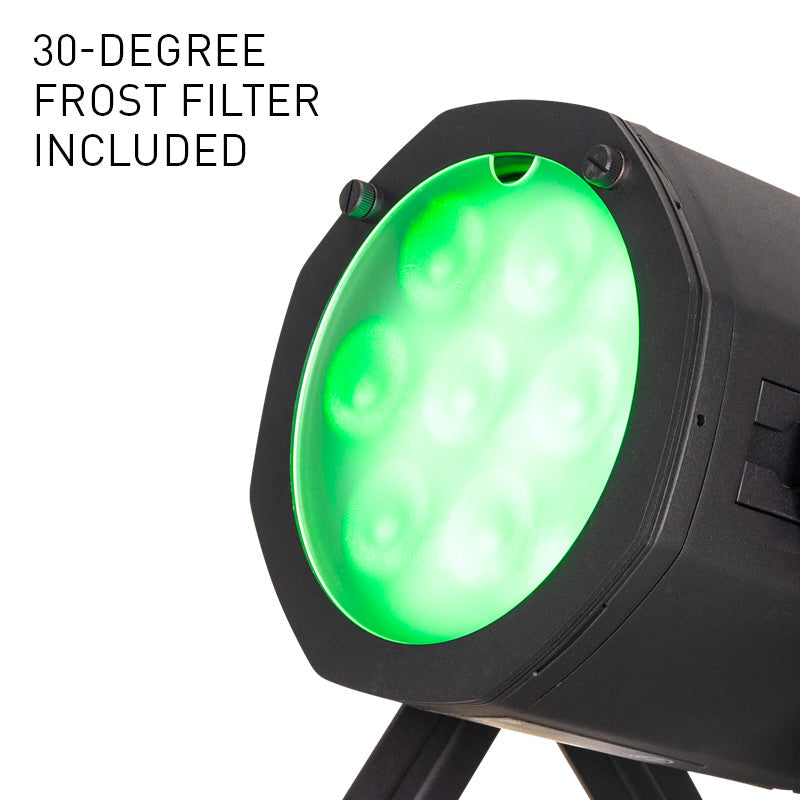

(1) 20° Diffusion Filter
Optional Accessories:
LTrack A2 (LTrack Adapter Only)
LTrack CA2 (LTrack Adapter with Narrow Clamp)

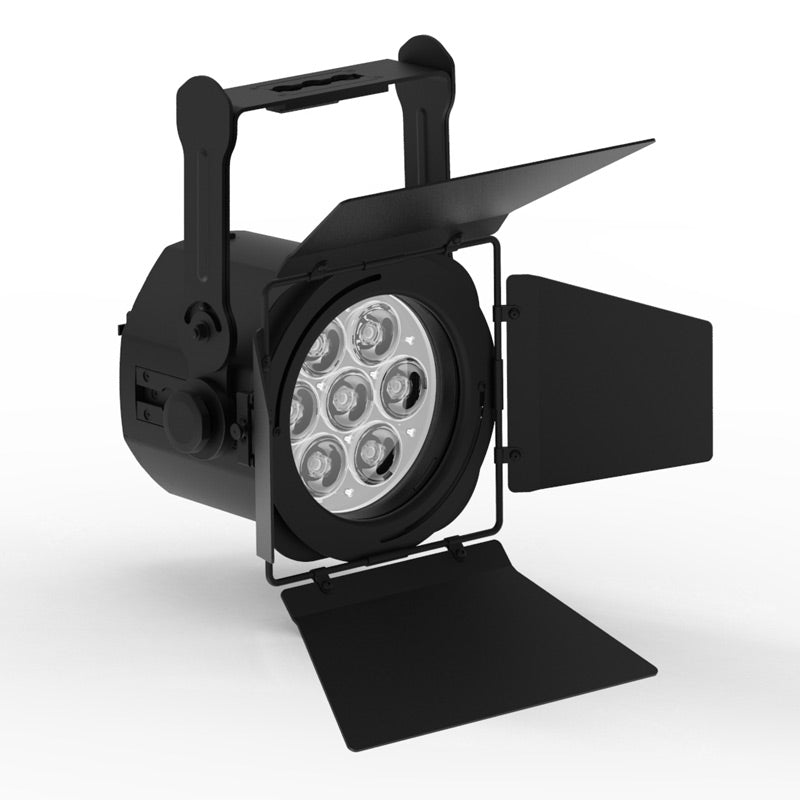

ELP12IPBDA (Barn Door and Gel Frame Assembly, Sku: ELP404)
ELPIX7L55: 55° diffusion filter for the ElectraPix Par 7
ELPIX7L40: 40° diffusion filter for the ElectraPix Par 7
ELPIX7L30: 30° diffusion filter for the ElectraPix Par 7
ELPIX7L20: 20° diffusion filter for the ElectraPix Par 7
ELPIX7L30X60: 30x60° linear filter for the ElectraPix Par 7
ELPIX7L15X60: 15x60° linear filter for the ElectraPix Par 7
ELPIX7L10X60: 10x60° linear filter for the ElectraPix Par 7
ELPIX7L10X40: 10x40° linear filter for the ElectraPix Par 7
EPIX P7 IPCB: replacement charging base and power supply
Specifications and documentation subject to change without notice.
