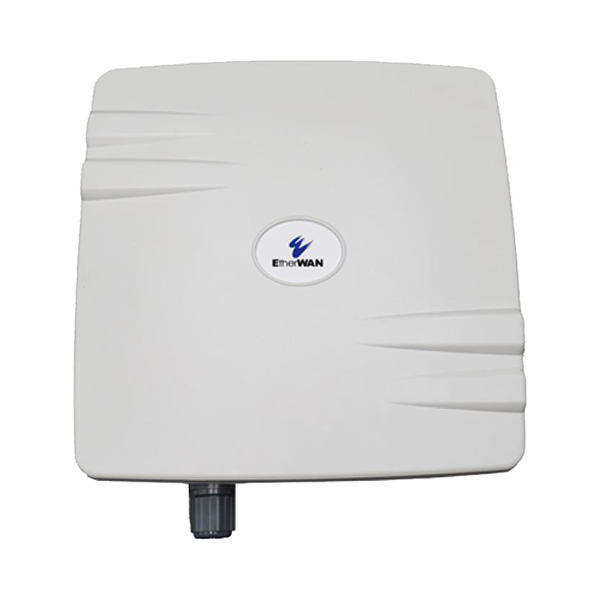

The eWAV EW75000-13MP is a hardened IP67 outdoor wireless Multi-Point Bridge/Access Point unit providing high speed wireless connectivity remotely. Comprised of high-power IEEE 802.11ac MIMO wireless radios with gigabit IEEE 802.3at PoE connectivity, the EW75000-13MP is hardened against extreme temperatures and water ingress for harsh and demanding environments. eWAV delivers the power and range (up to 20 miles) to wirelessly connect remote networks, or extend existing networks in an efficient and cost-effective way. It supports 5GHz 802.11a/n/AC for long distance Point-to-Point data transmission. Maximum transmission speeds are up to 867Mbps on the 5GHz band.

Highlights

• Only Available in North America
• Directional Antennas
• IEEE 802.11a/n/AC providing high throughput data transmission on 5GHz up to 867 Mbps
• Hardened grade with IP67 protection
• Static routing, RIPv1, RIPv2, & OSPFv2

Features

• High Bandwidth Wireless Connectivity: Designed for Point-to-Multi-Point Wireless Remote Connectivity; IEEE 802.11a/n/AC providing high throughput data transmission on 5GHz up to 867Mbps; 2 x 2 MIMO antennas with high gains
• Hardened Grade with IP67 Protection: Wide operating temperature range for extreme environments; Fanless and ruggedized outdoor IP67 enclosure
• Comprehensive and Advanced Software Features: Static routing, RIPv1 & v2 and OSPFv2; Built in Stateful Firewall and RADIUS for security control; RF strength LEDs and Bandwidth Tester to ease installation effort
• Interface: Web Browser; SNMP v1/v2/v3
• Management: Firmware and configuration upgrade and backup via Web Browser; Supports DHCP Server/Client/Relay; DNS cache and Web Proxy; System health monitoring including temperature and voltage; Local system log, e-mail and remote log service; SNTP client; Useful tools such as Bandwidth Test, E-mail, Ping, Traceroute, Packet Sniffer and Traffic Generator
• Wireless: Encryption WPA, WPA2, WEP, AES; Dynamic Frequency selection; Proprietary Nstreme and Nv2 protocols for long distance transmission
• Security: RADIUS client; Powerful Firewall with Stateful packet inspection, Layer-7 protocol detection, Peer-to-peer protocols filtering and traffic classification
• Routing: Static routing, RIPv1 & v2 and OSPFv2; Bidirectional Forwarding Detection; Prefix List to filter and control the routing table

Specifications

• Mechanical Casing: UV Protected Polystyrene case with internal metal enclosure, IP67
• Mechanical Dimensions (W x H x D): 270 x 301.7 x 76mm (10.63 in x 11.88 in x 3 in)
• Mechanical Weight: 3.5lbs
• Mechanical Installation: Pole/Wall Mounting
• Technology Standards: IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, IEEE 802.11a/n/AC Wireless LAN
• Performance Wireless transmission rate 5GHz: 11a: 108Mbps, 11n: 300Mbps, 11ac: 867Mbps
• Performance Ethernet data rate: Up to 540Mbps (LAN to wireless 11ac)
• Wireless RF channels: Non-overlapping
• Wireless Frequency range: 5GHz 5150-5250MHz and 5725-5850MHz
• Wireless Channel width: 5GHz 10MHz, 20MHz, 40MHz, 80MHz
• Wireless Data security: 256-bit AES-CCM
• Wireless Transmit power/Receive sensitivity 5GHz: 6MBit/s 31dBm/-96, 54MBit/s 27dBm/-81, MCS0 30dBm/-96, MCS7 27dBm/-77, MCS9 22dBm/-72
• Interface Ethernet Port: 10/100/1000BASE-TX PoE
• Environment Operating Temperature: -40 to 75 C (-40 to 167 F)
• Environment Storage Temperature: -45 to 85 C (-49 to 185 F)
• Environment Ambient Relative Humidity: 5% to 95% (non-condensing)
• Regulatory ISO: Manufactured in an ISO 9001 facility
• Regulatory EMI: FCC Part 15B Class A, FCC Part 15C
• Environmental Test Compliance: IEC 60068-2-6 Fc (Vibration Resistance), FED STD 101C Method 5007.1 (Free fall w/package)
• Power Input: PoE, 802.3af/at/bt PSE
• Power Consumption: 13W Max
• MPN: EW75000-13MP, 1683899
• Ordering Model EW75000-13MP: Hardened IP67 outdoor wireless bridge/access point unit with 5GHz/19dBi Panel antenna
• Ordering Accessory JPOLE18: 18 in Wall Mount J-Pole
• Ordering Accessory Cable 25: 25ft Shielded Twisted Pair CAT 6 Cable with UV Resistant Coating
• Ordering Accessory Cable 50: 50ft Shielded Twisted Pair CAT 6 Cable with UV Resistant Coating
• Ordering Accessory Cable 150: 150ft Shielded Twisted Pair CAT 6 Cable with UV Resistant Coating
• Ordering Accessory Cable 300: 330ft Shielded Twisted Pair CAT 6 Cable with UV Resistant Coating

• UPC: 847653004395
• Country of Origin: Poland
• Tariff Code: 8517.18.0000
