Description

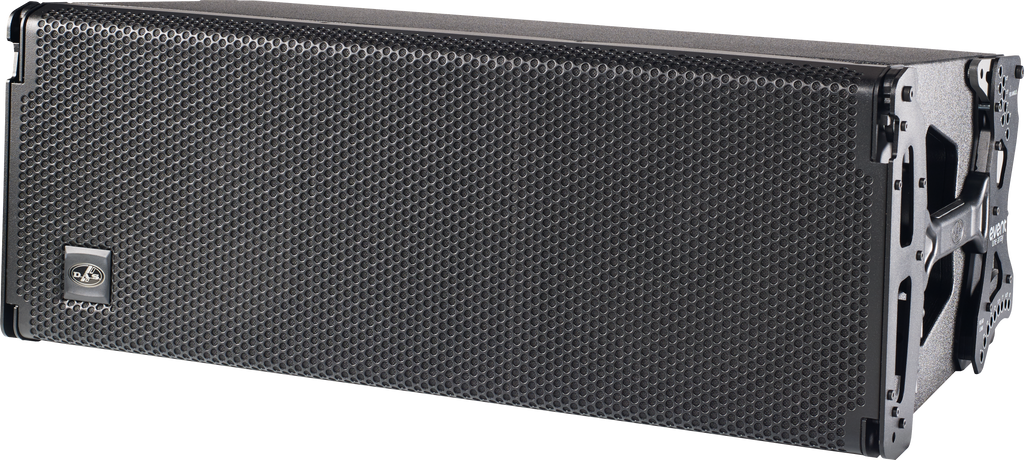

The DAS EVENT-212A is a powered, 3-way line array which employs two DAS 12″ loudspeakers in a dual band configuration where each speaker operates in a specific frequency range. At low frequencies, the speakers work in tandem for maximum power, each driven by a dedicated amplifier channel providing 1000 Wpeak output power. The DAS loudspeaker units have been teamed up with a single M-75 compression driver and purpose-designed injected aluminum high frequency waveguide to provide unmatched performance, sensitivity and coverage in both the 90º and 120º formats offered.
The EVENT-212A line array incorporates the DAScontrol™ interface which offers a quick and hassle-free set-up of the systems in arrays and easy alignment with the EVENT-218A and EVENT-121A subwoofer systems. Presets for the number of units of the array, HF compensation for throw distances, and correction for the splay angle of the array can be selected by way of DAScontrol™ and the LCD screen on the located on the back of the cabinet. The powerful digital signal processing of the EVENT-212A includes Finite Impulse Response (FIR) filters providing linear phase response and precise impulse response which in terms of performance, results in added clarity, defined attack in percussion and overall, a more natural sound.
Technical Specifications
| Performance | Frequency Range (-10 dB) |
| 60 Hz -20 kHz | Horizontal Coverage (-6 dB) |
| Splay Dependent | Maximum Peak SPL at 1 m |
| Electronics and Connectors | |
| Nominal Amplifier Power LF (continuous) | 500 W |
| Nominal Amplifier Power LF (peak) | 1000 W |
| Nominal Amplifier Power MF (continuous) | 500 W |
| Nominal Amplifier Power MF (peak) | 1000 W |
| Nominal Amplifier Power HF (continuous) | 500 W |
| Nominal Amplifier Power HF (peak) | 1000 W |
| Input Type | Balanced |
| Input Impeadance | 20 kohms |
| Input Sensitivity | 6.2 V (+18 dBu) |
| Audio Signal Input Connector | 1 x Female XLR |
| Audio Signal Loop Thru Connector | 1 x Male XLR |
| AC Input Connector | powerCon NAC3FCA |
| AC Output Connector | powerCON NAC3FCB |
| Current Draw 230 V / 115 V | 1.8 A/3.6 A |
| Enclosure | |
| Dimensions ( H x W x D ) | 325 x 855 x 435 mm |
| Net Weight | 41,0 kg ( 90,4 lb ) |
| LF Driver | 12MI4 |
| MF Driver | 12MI4 |
| HF Driver | M-75 |
| Horn/Waveguide | BPS-90VNT |
| Carton Dimensions ( H x W x D ) | 470 x 275 x 480 mm |
| Shipping Weight | 43,5 kg ( 95,9 lb ) |
