Description

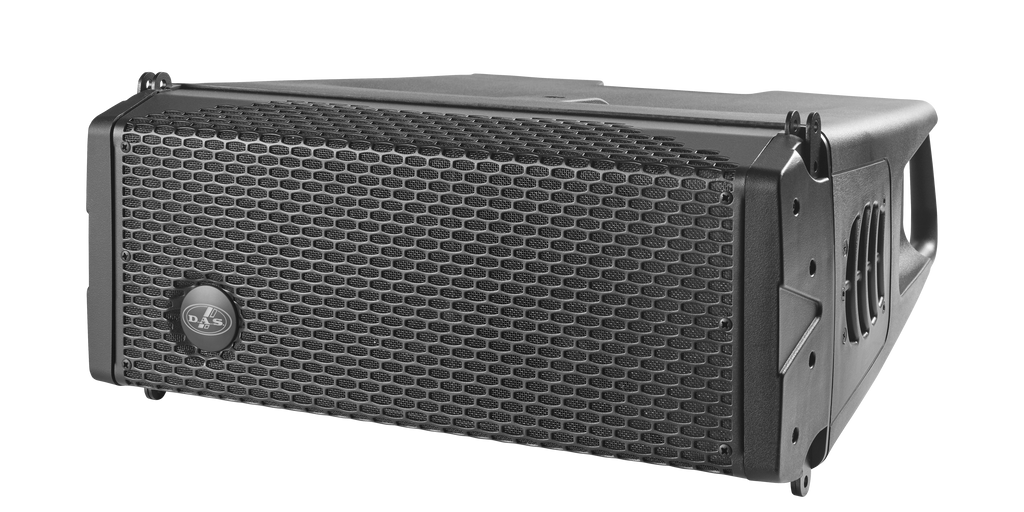

The EVENT-26A is a symmetrical, ultra-compact, two-way powered line array system. Designed by DAS engineers to deliver stunning performance and exceptional ease-of-use, the stylish polypropylene cabinet design offers a highly portable and road-worthy system. A comprehensive range of accessories makes the EVENT-26A ideal for small to mid-size rental and installation applications.
The EVENT-26A combines two 6.5″ transducers and a single M-60 compression driver in a rugged yet lightweight polymer cabinet. The symmetric “V” shaped configuration of the cone transducers provides consistent 100º of horizontal coverage down to 300 Hz. The M-60 compression driver is coupled to an advanced waveguide design that provides control of the vertical dispersion as well as precise coupling between units when used in vertical arrays.
Powered by a two-channel Class D amplifier providing 800 Wpeak power, the amp´s rear panel includes quality Neutrik® XLR and powerCON connectors. The DAScontrolTM interface makes the preset selection for the number of units in the array both fast and simple. An onboard DSP featuring a 24-bit high-end processor handles X-over, EQ, delay, and limiter functions. The powerful FIR filtering technology incorporated in the EVENT-26A offers constant phase response which translates to transparent sound and exceptional clarity, improving the listening experience.
Streamlined deployment of EVENT-26A arrays is possible thanks to the innovative FSSTM (Fast Set Splay) rigging system developed to permit angle selection while stacked on dollies. The stainless-steel rigging hardware allows flown arrays of up to 16 units in 1º steps from 0º to 10º.
Low-frequency reinforcement for the EVENT-26A is provided by its flyable companion subwoofer the EVENT-115A.
Technical Specifications
| Performance | Frequency Range (-10 dB) |
| 76 Hz – 19 kHz | Horizontal Coverage (-6 dB) |
| Maximum Linear SPL | 1 |
| Maximum SPL | 2 |
| 137 dB | 1. Measured Maximum Linear SPL at 1m according to AES75 standard using 18dB crest factor M-Noise. |
| Electronics and Connectors | |
| Nominal Amplifier Power (continuous) | 400 W |
| Nominal Amplifier Power (peak) | 800 W |
| Input Type | Balanced |
| Input Impeadance | 20 kohms |
| Input Sensitivity | 6.2 V (+18 dBu) |
| Audio Signal Input Connector | 1 x Female XLR |
| Audio Signal Loop Thru Connector | 1 x Male XLR |
| AC Input Connector | powerCON NAC3MPA |
| AC Output Connector | powerCON NAC3MPB |
| Current Draw 230 V / 115 V | 0.8 A/1.6 A |
| Enclosure | |
| Dimensions ( H x W x D ) | 225 x 480 x 500 mm |
| Net Weight | 16,5 kg ( 36,4 lb ) |
| LF Driver | 6MI |
| HF Driver | M-60 |
| Carton Dimensions ( H x W x D ) | 565 x 565 x 290 mm |
| Shipping Weight | 20,0 kg ( 44,0 lb ) |
