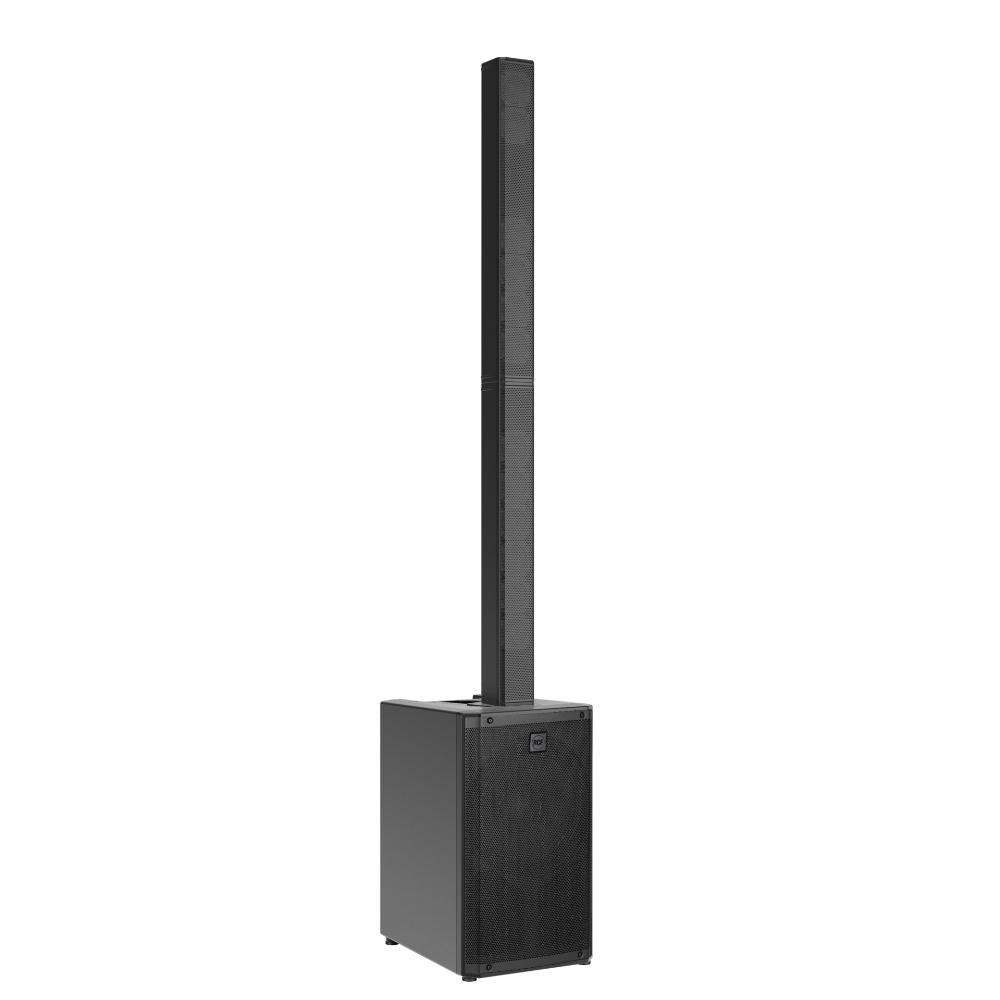

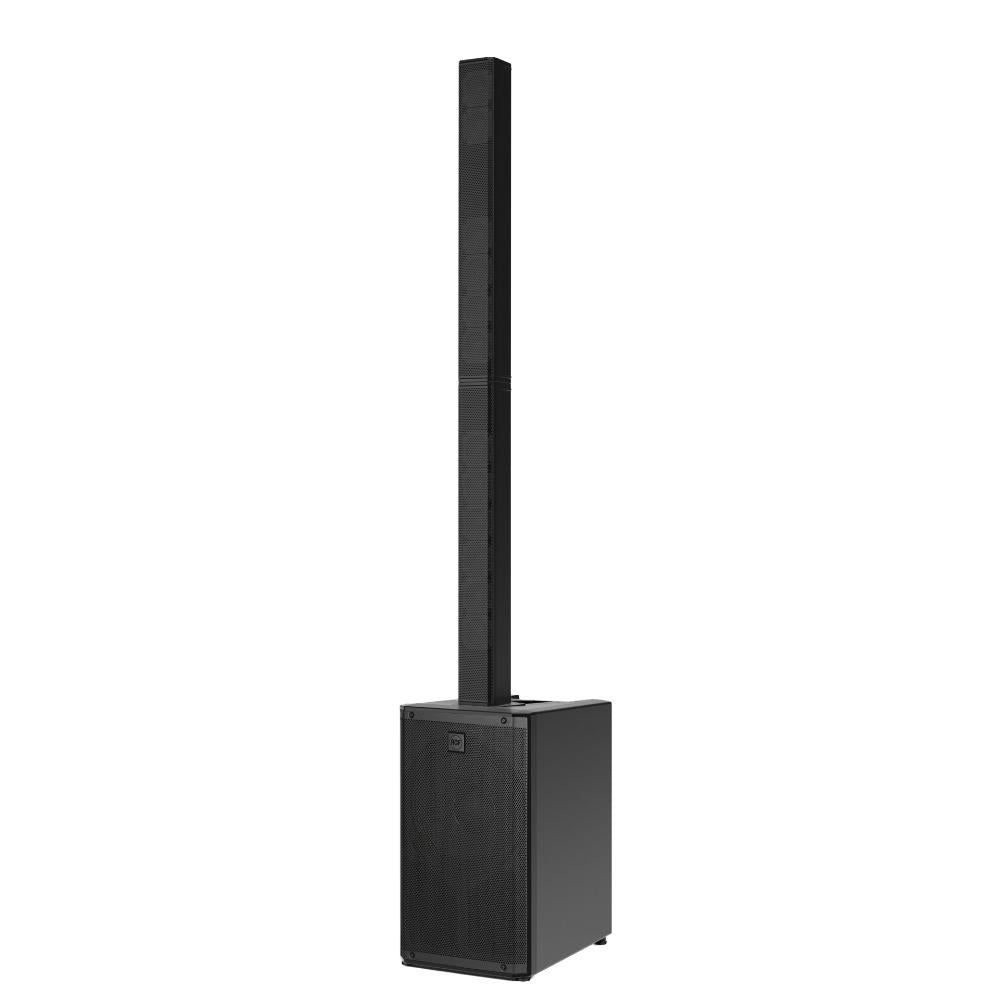

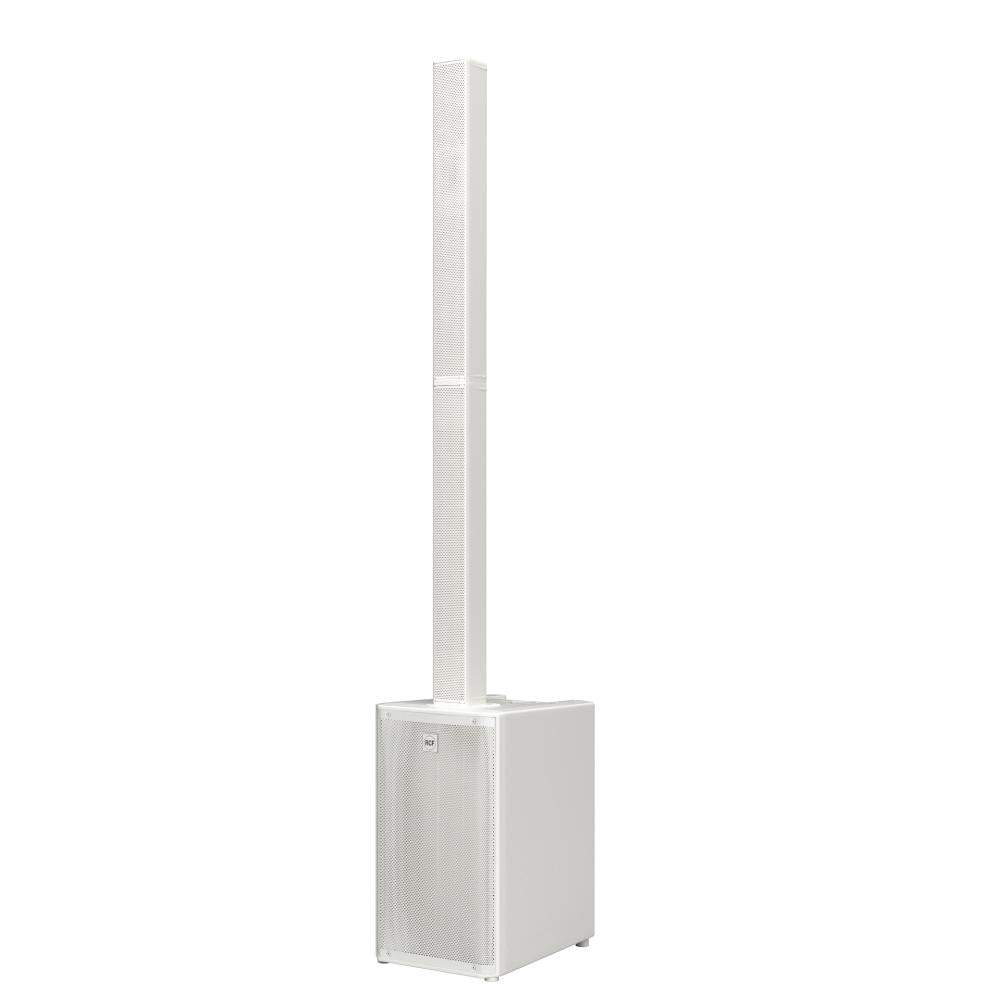

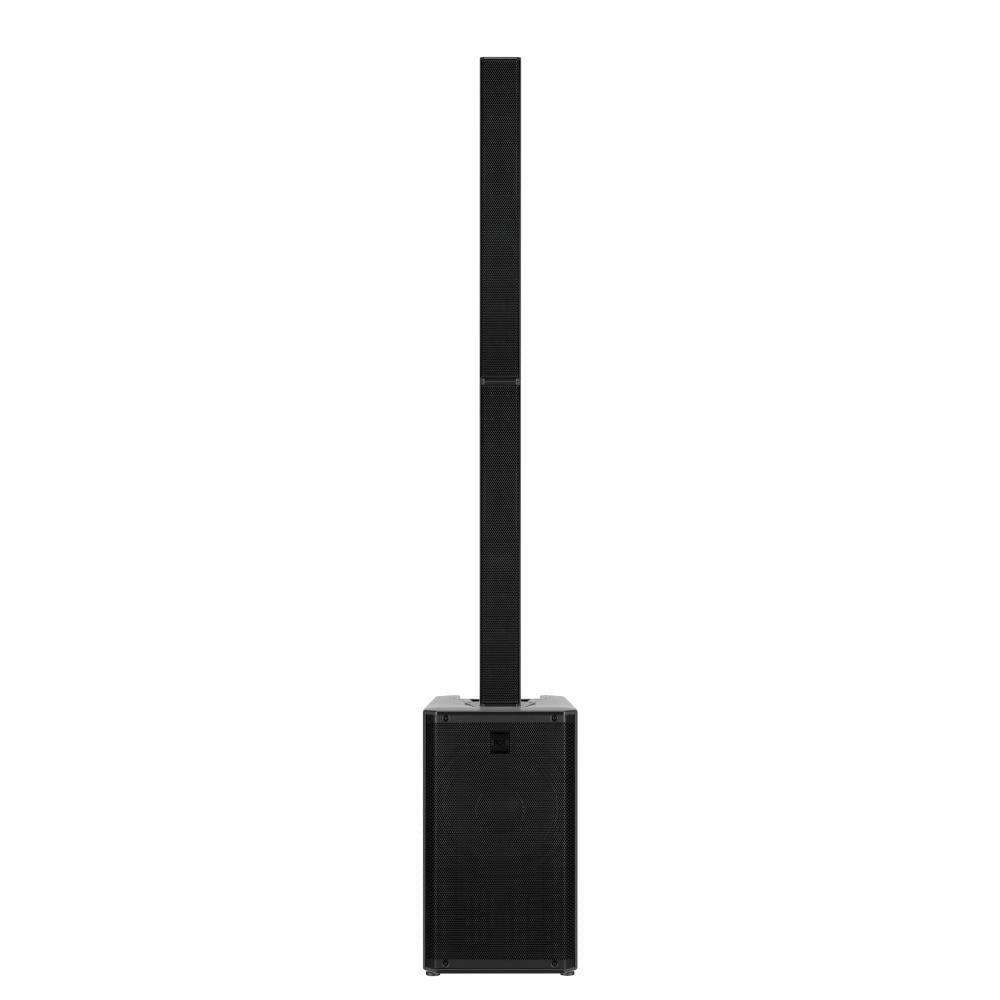

The RCF EVOX J11 is an active, three-way portable column system designed for maximum clarity and power in a compact format. A 1.75 inch neodymium compression driver on a 120 by 40 degree True Resistive Waveguide ensures wide, consistent coverage, while twelve 3 inch full-range neodymium transducers and a high-power 12 inch woofer in a bass-reflex enclosure deliver articulate mids and deep, controlled lows. Driven by a 3500 W onboard dual-channel Class-D amplifier, the J11 delivers an impressive 132 dB Max SPL output. It sits at the top of the EVOX J Series, incorporating RCF tour-grade technology in a sleek, unobtrusive package for bands, DJs, and live performers. Available in black or white.

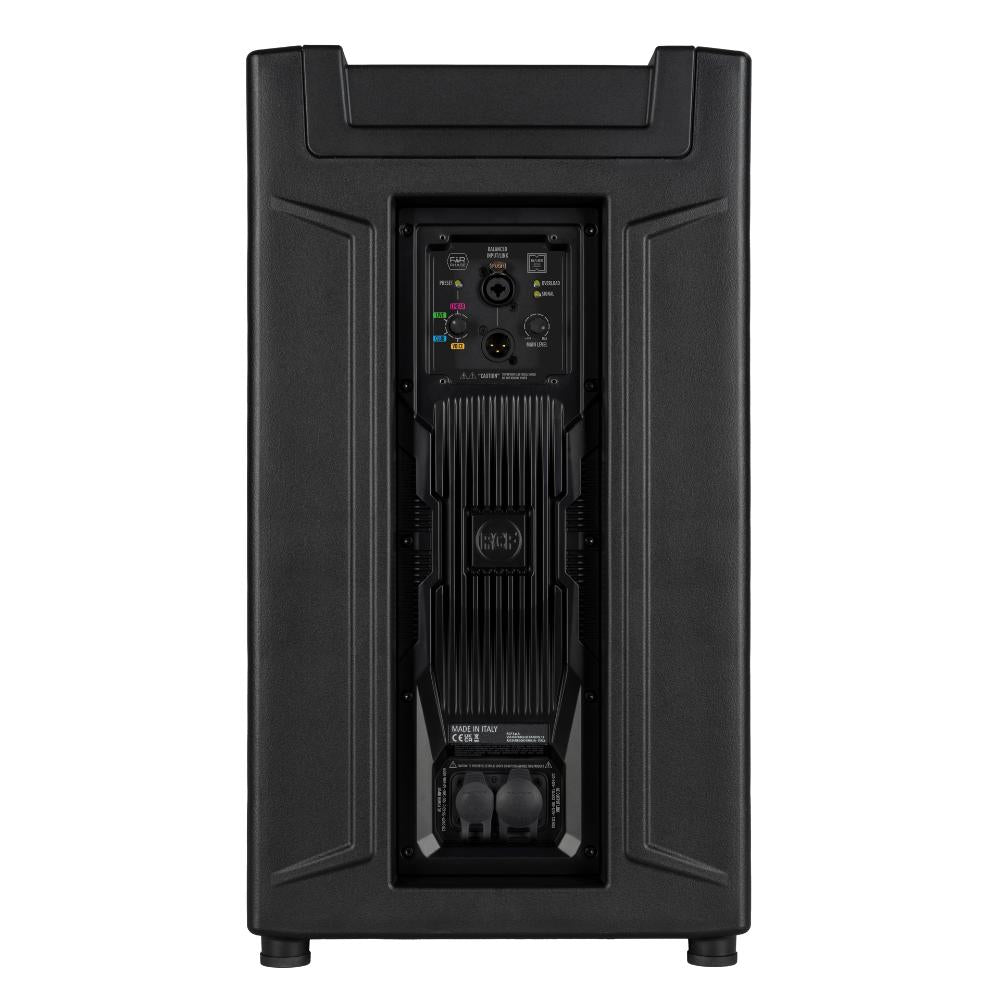

Up to 2.5 Times More Power. The new generation 3500 W Class-D two-channel amplifier delivers up to 2.5 times more power than the previous architecture, with ultra-fast attack, realistic transient response, and minimal thermal buildup. It is highly energy efficient and requires no cooling fan. The amplifier is mounted on a solid aluminum heat exchanger at the rear of the unit with no moving parts, mechanically coupled to the internal frame for long-term reliability. The input stage features a low-distortion design with an advanced safety limiter, is designed in accordance with EN 62368-1, and features a switch-mode power supply that combines high efficiency with minimal weight.

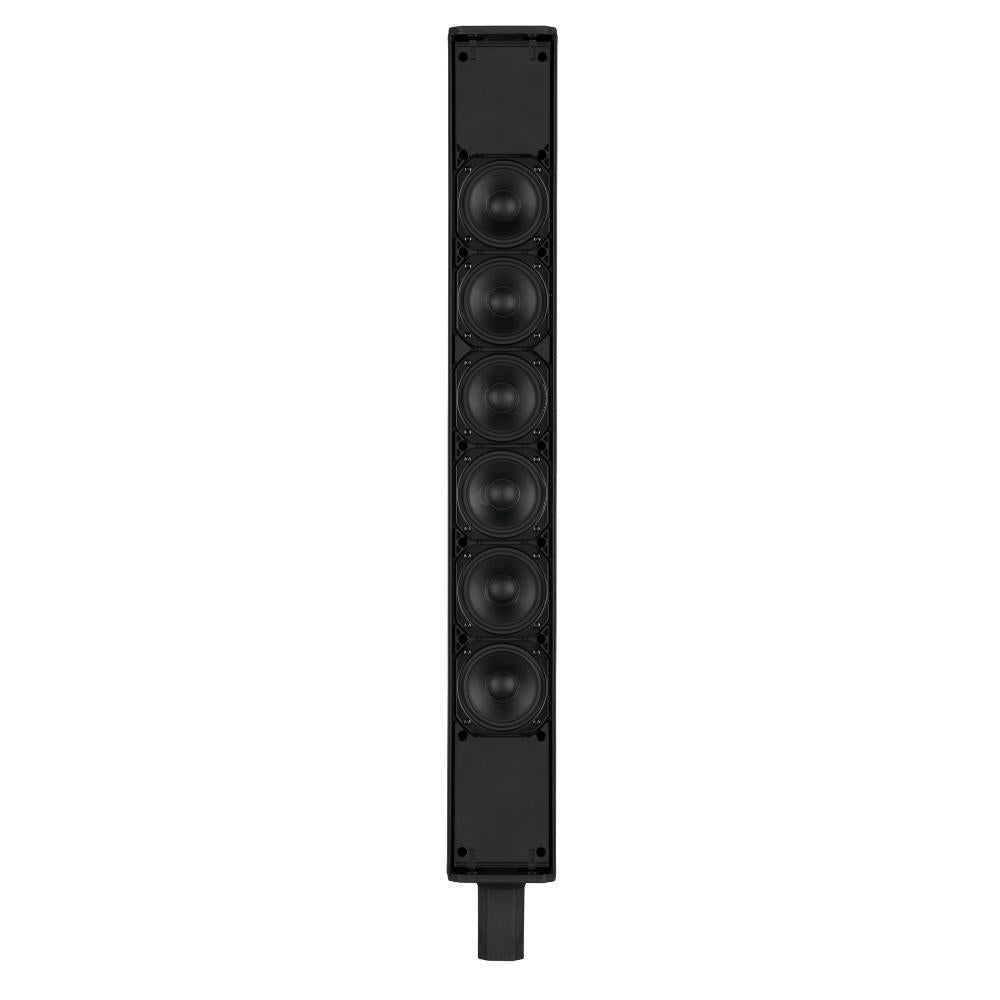

True 3-Way Design. The neodymium compression driver uses a 1.75 inch voice coil and Kapton dome on a True Resistive Waveguide for a resonance-free load and constant 120 by 40 degree coverage. The forward radiation of the array of twelve 3 inch neodymium drivers, combined with the centered waveguide, delivers a balanced point-source response. The 12 inch RCF transducer provides deep, controlled low frequencies ideal for bass-heavy music and high-energy performances.

Bass Motion Control. BMC delivers the lowest audible frequencies without compromising woofer stability, with extended linearity and improved sound integrity, mapping the woofer dynamic behavior to limit overexcursions while allowing full freedom in signal reproduction.

FiRPHASE. Proprietary FiRPHASE processing delivers transparent sound, exceptional clarity, and precise imaging, optimizing phase response across the listening area while maintaining low system latency.

Fast, Flexible Deployment. The J11 integrates all required connections for fast setup. The included padded carrying bag for the two-piece column array makes moving the system effortless. For increased height, the J11 supports the single-half-pole, full-column array configuration. When extended low-end is required, add an RCF subwoofer. ACE-enabled models, starting from the SUB AX Series, include dedicated integration presets for EVOX systems for perfect tuning at the touch of a button.

Specifications

• Frequency Response: 37 Hz - 20000 Hz
• Max SPL at 1m: 132 dB
• Horizontal Coverage: 120 degrees
• Vertical Coverage: 40 degrees
• Compression Driver: 1 x 0.75 inch neo, 1.75 inch voice coil
• Fullrange: 12 x 3.0 inch neo, 1.0 inch voice coil
• Woofer: 1 x 12 inch, 2.5 inch voice coil
• Input Signal: balanced / unbalanced
• Input Connectors: Combo XLR / Jack
• Output Connectors: XLR
• Input Sensitivity: +4 dBu
• Crossover Frequencies: 160 Hz / 1800 Hz
• Protections: Thermal, RMS
• Limiter: Soft Limiter
• Controls: Volume, Presets LINEAR / LIVE, CLUB, VOICE
• Total Power: 3500 W Peak
• High Frequencies: 1500 W Peak
• Low Frequencies: 2000 W Peak
• Cooling: Convection
• Connections: powerCON TRUE1 TOP IN / OUT
• Safety Agency: CE compliant
• Cabinet / Case Material: PP Composite
• Handles: 1 Top

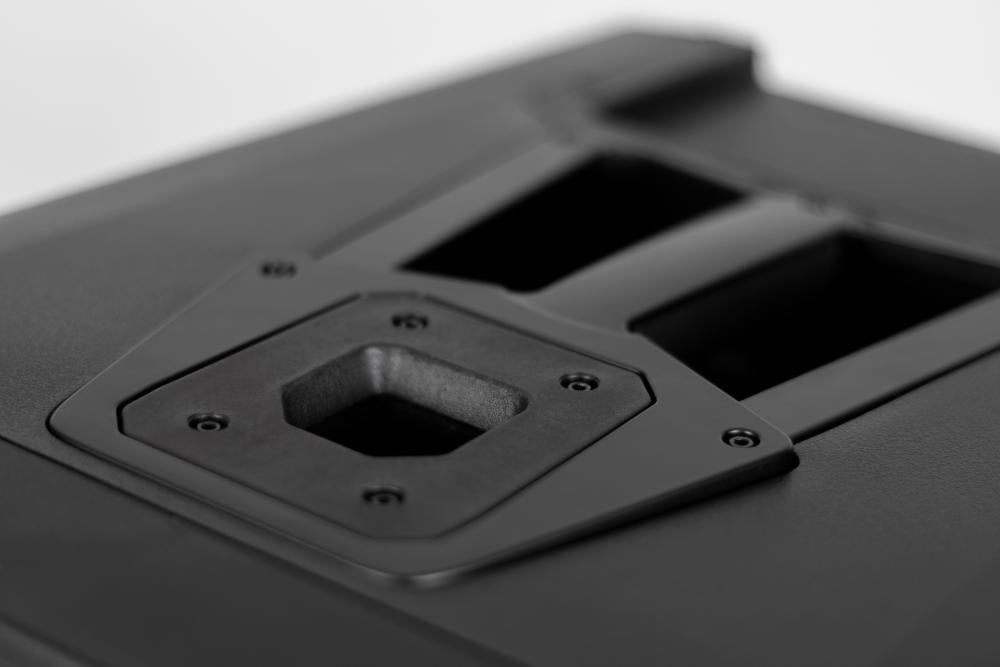

• Pole Mount: Quick-fit socket
• Grille: Steel

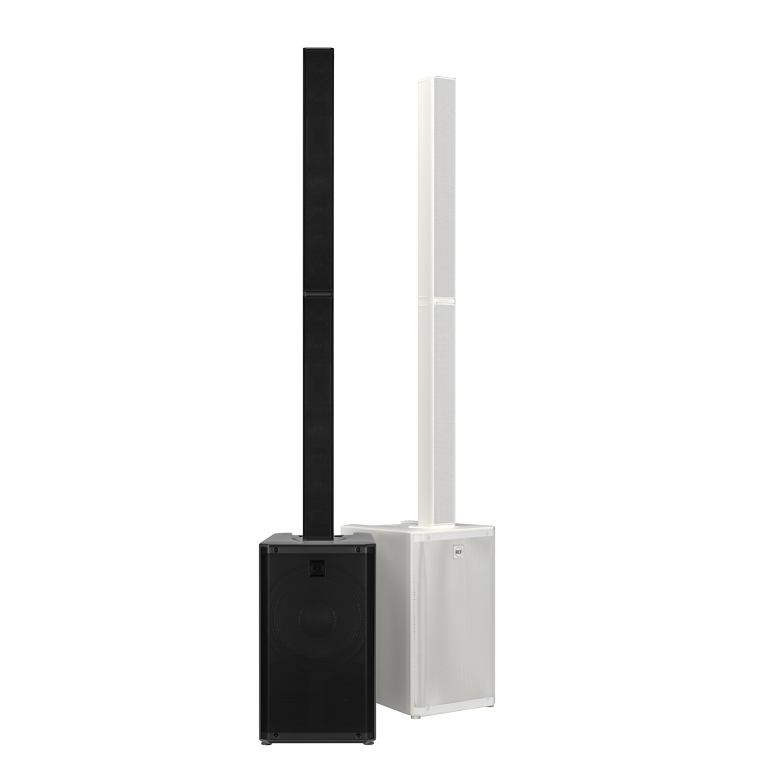

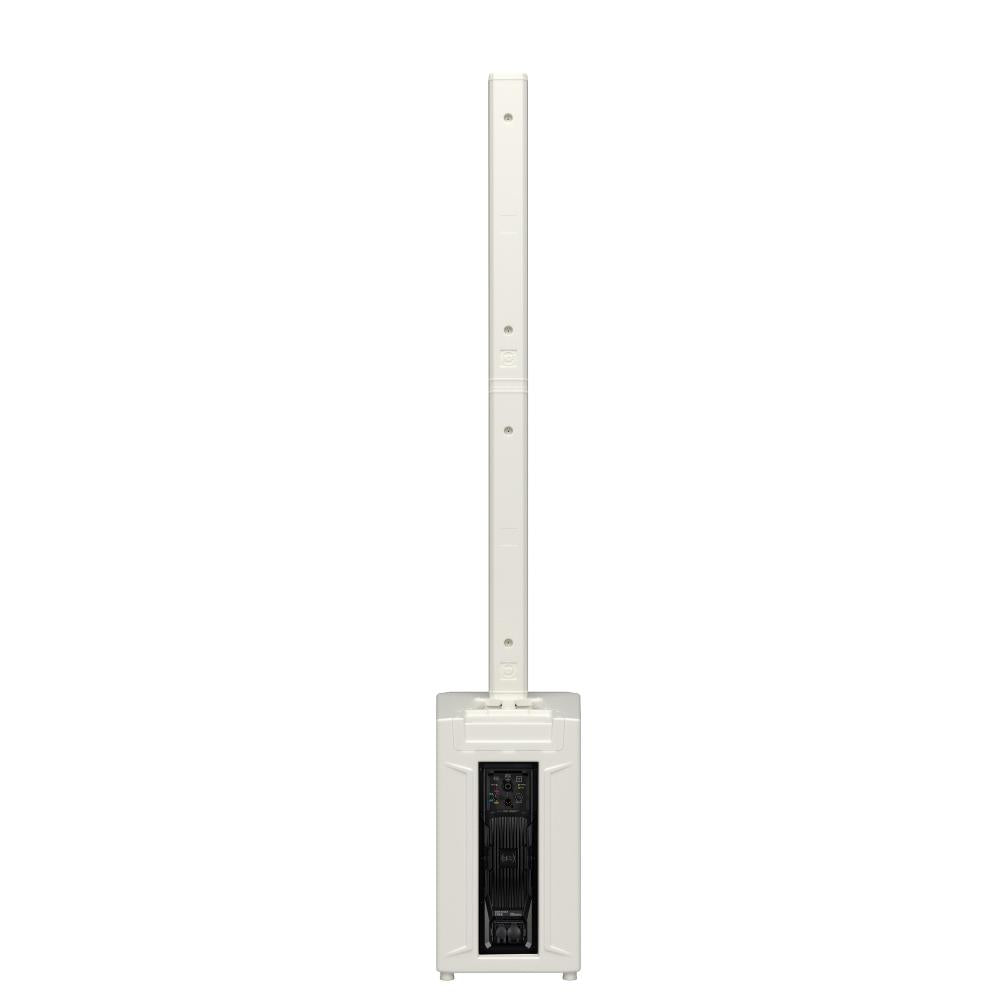

• Color: Black, White RAL 9003
• Height: 2080 mm / 81.89 inches
• Width: 350 mm / 13.78 inches
• Depth: 463 mm / 18.23 inches
• Weight: 29 kg / 63.93 lbs (Sub 20.6 kg / 45.42 lb, Top 8.4 kg / 18.52 lb)
• Package Weight: 35 kg / 77.16 lbs
