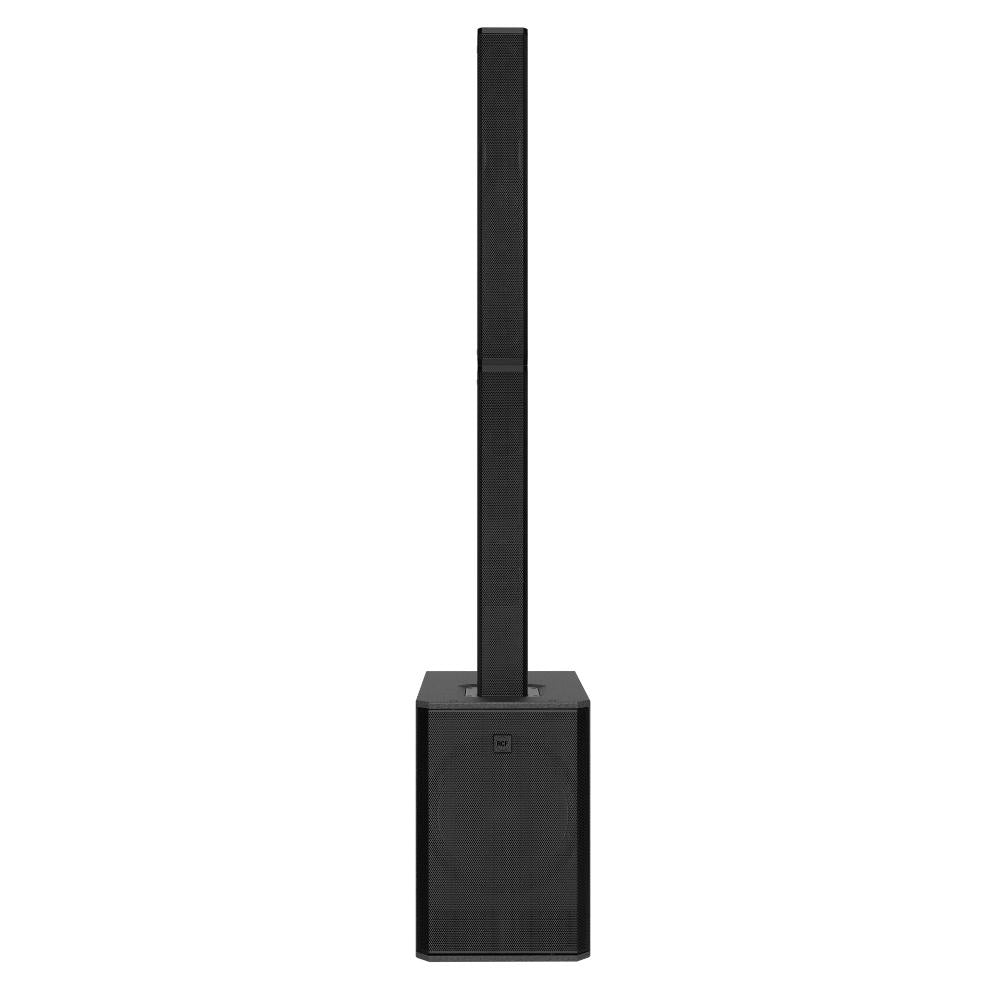

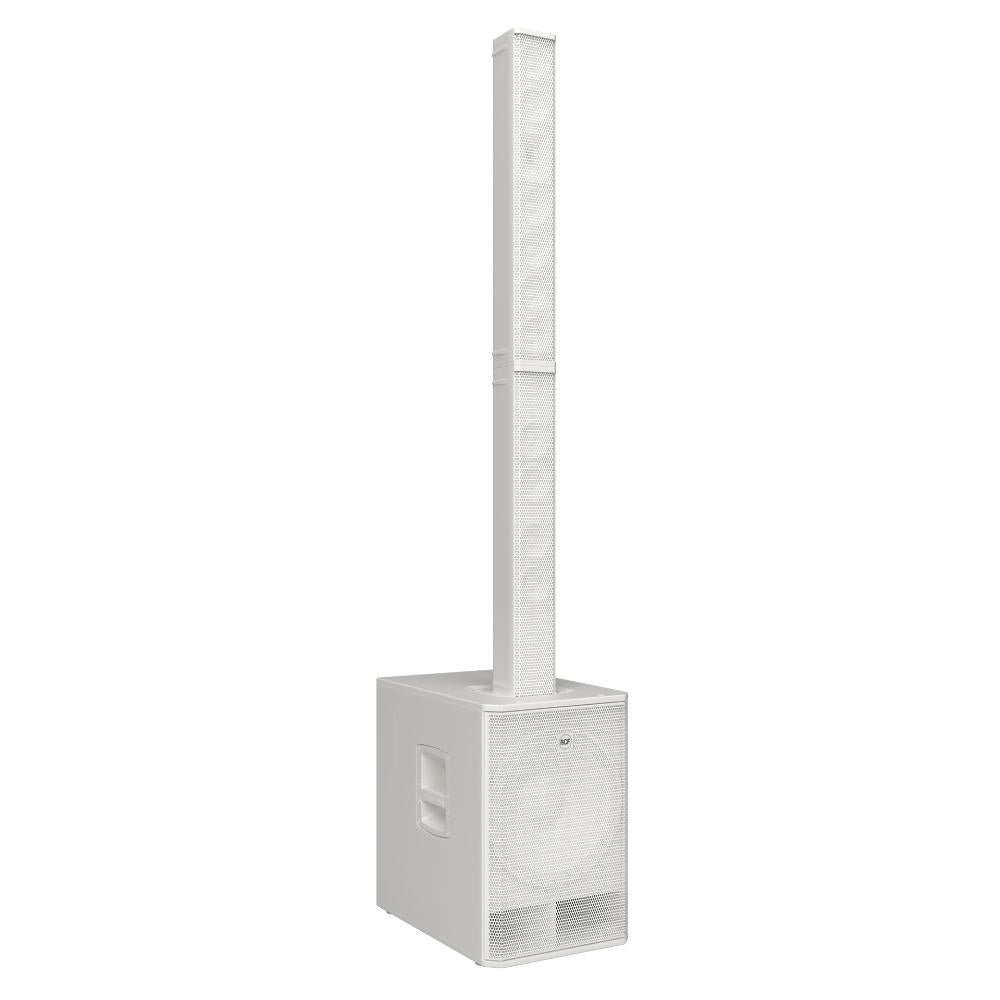

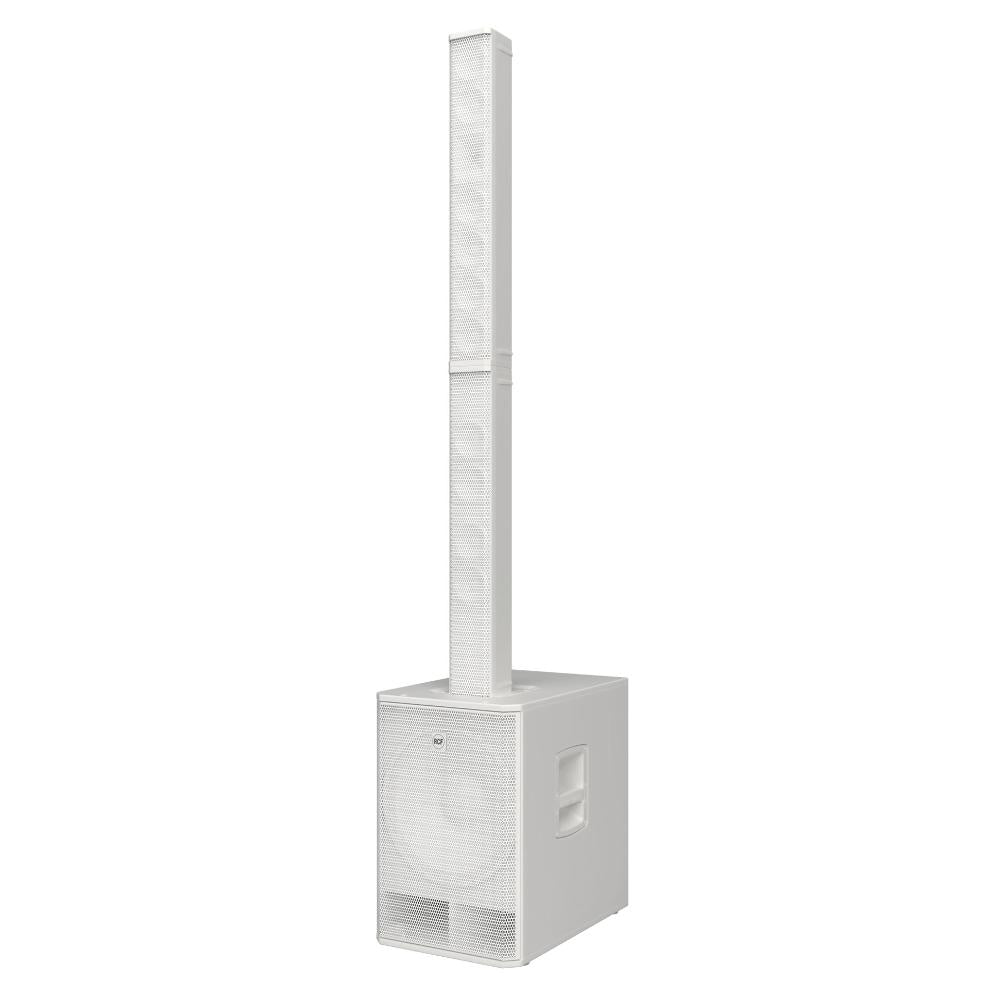

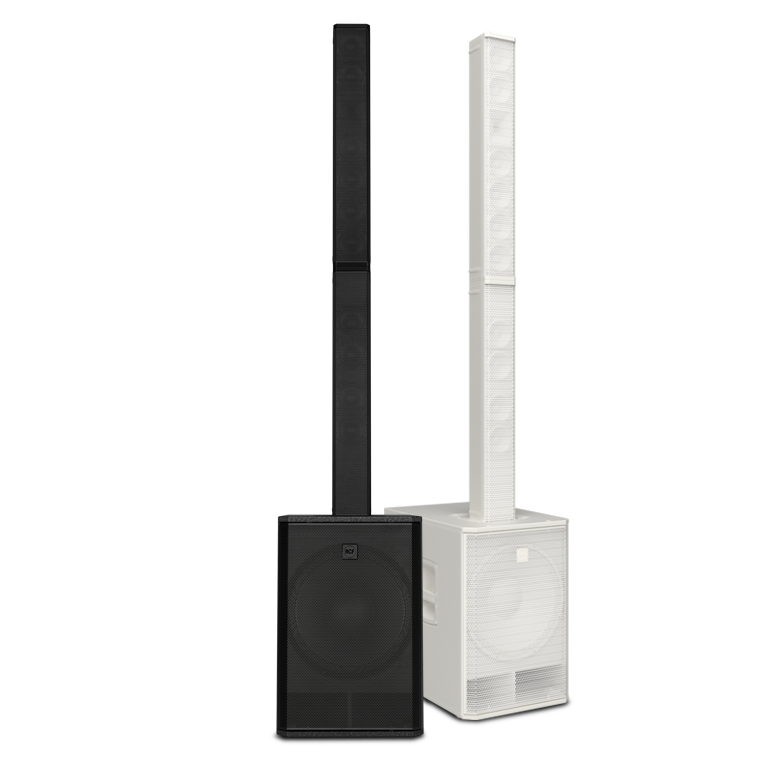

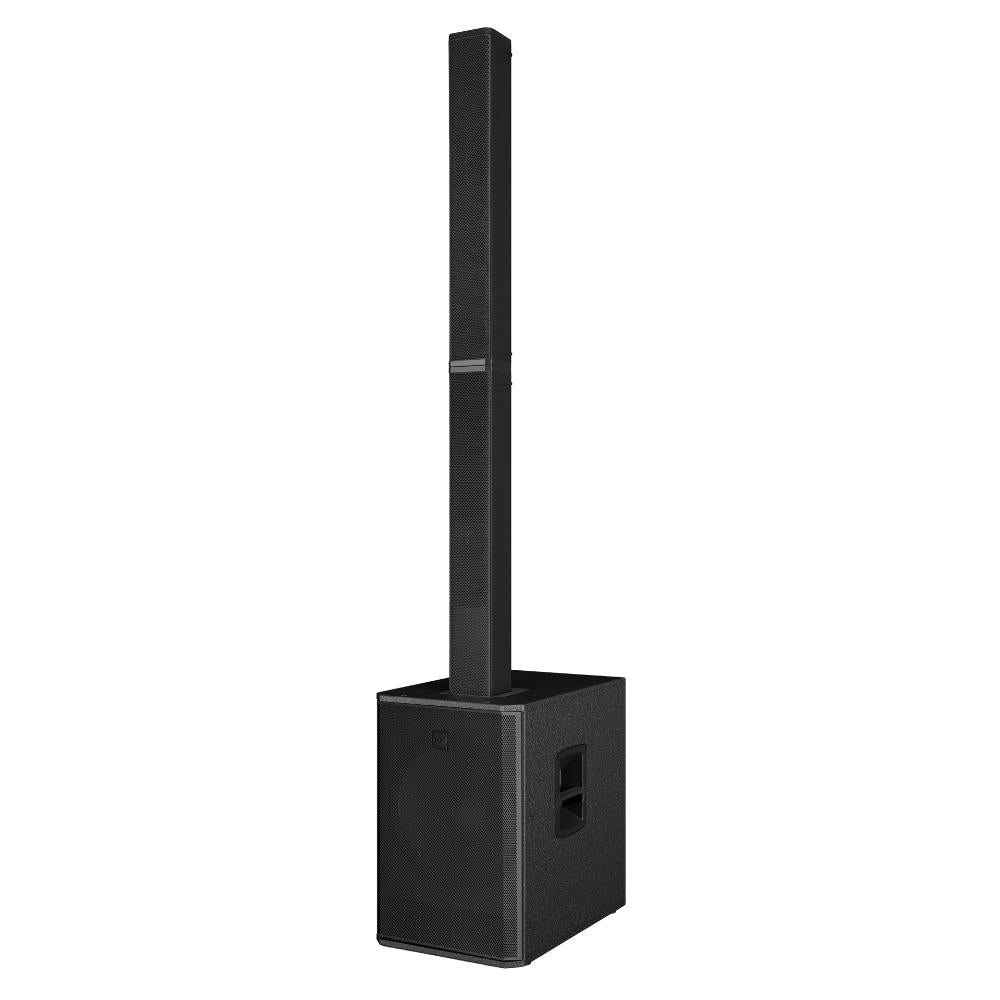

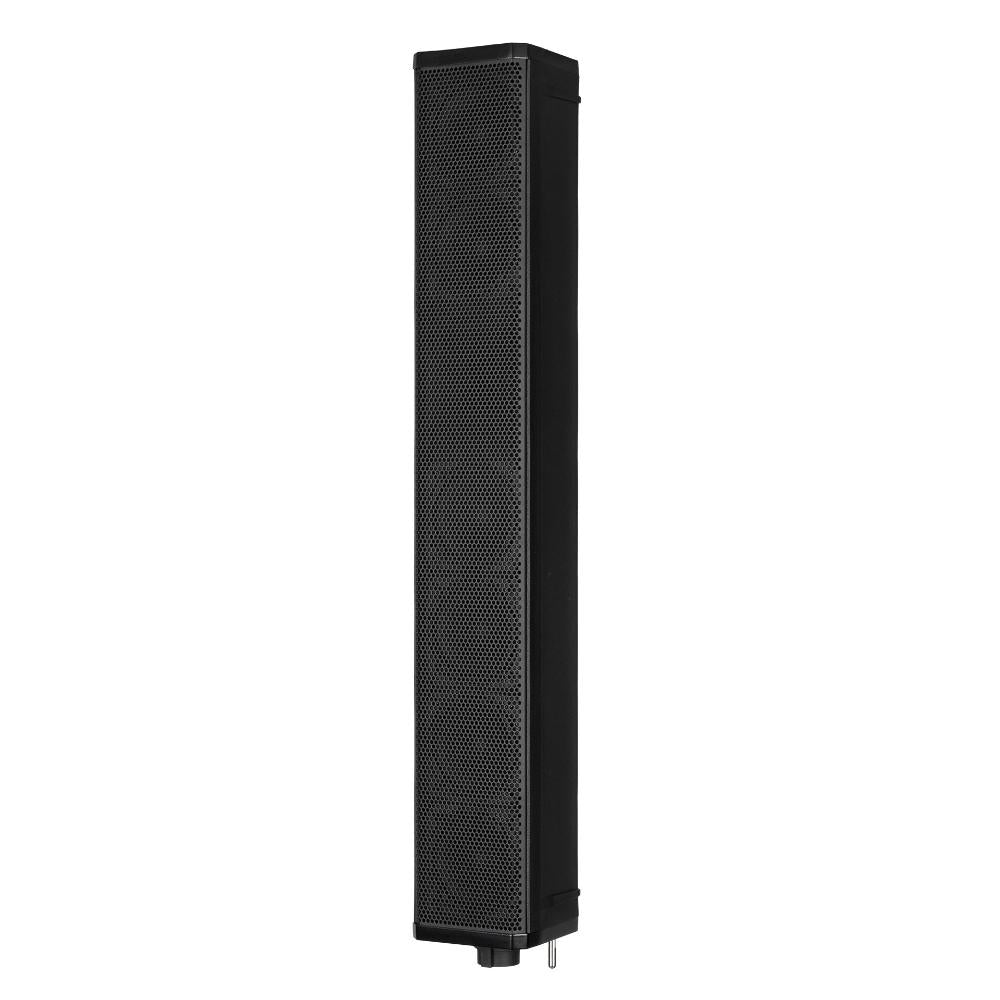

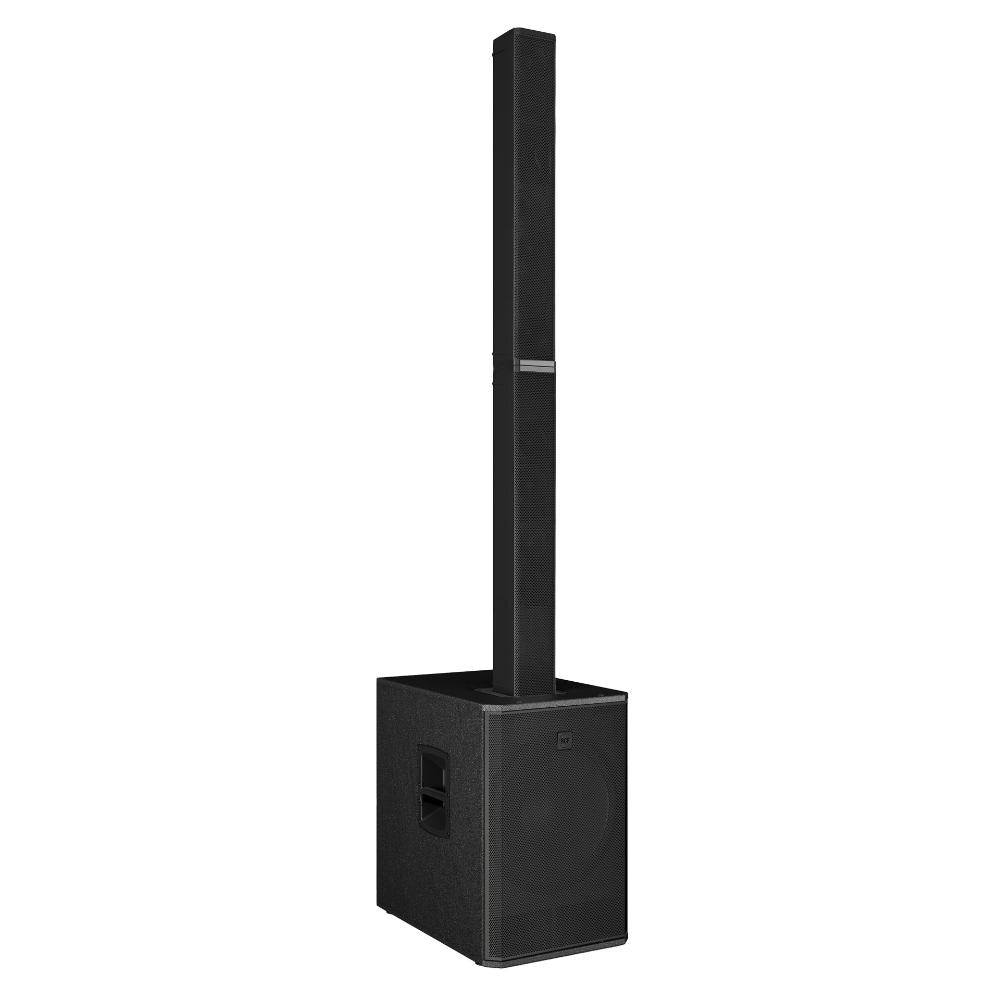

The RCF EVOX V15 is a professional three-way active column loudspeaker built to deliver clarity, output, and reliability in demanding live sound applications. A 1.75 inch neodymium compression driver on a 120 by 40 degree True Resistive Waveguide ensures wide, coherent coverage, while ten 4 inch neodymium midrange transducers deliver precise vocal definition. A high-power 15 inch RCF Precision woofer in a bass-reflex enclosure provides deep, controlled lows. Powered by a 3500 W dual-channel Class-D amplifier, the system reaches 133 dB Max SPL with touring-grade dynamics. The V15 takes the acclaimed EVOX concept to the next level in a sleek, unobtrusive format, available in black or white.

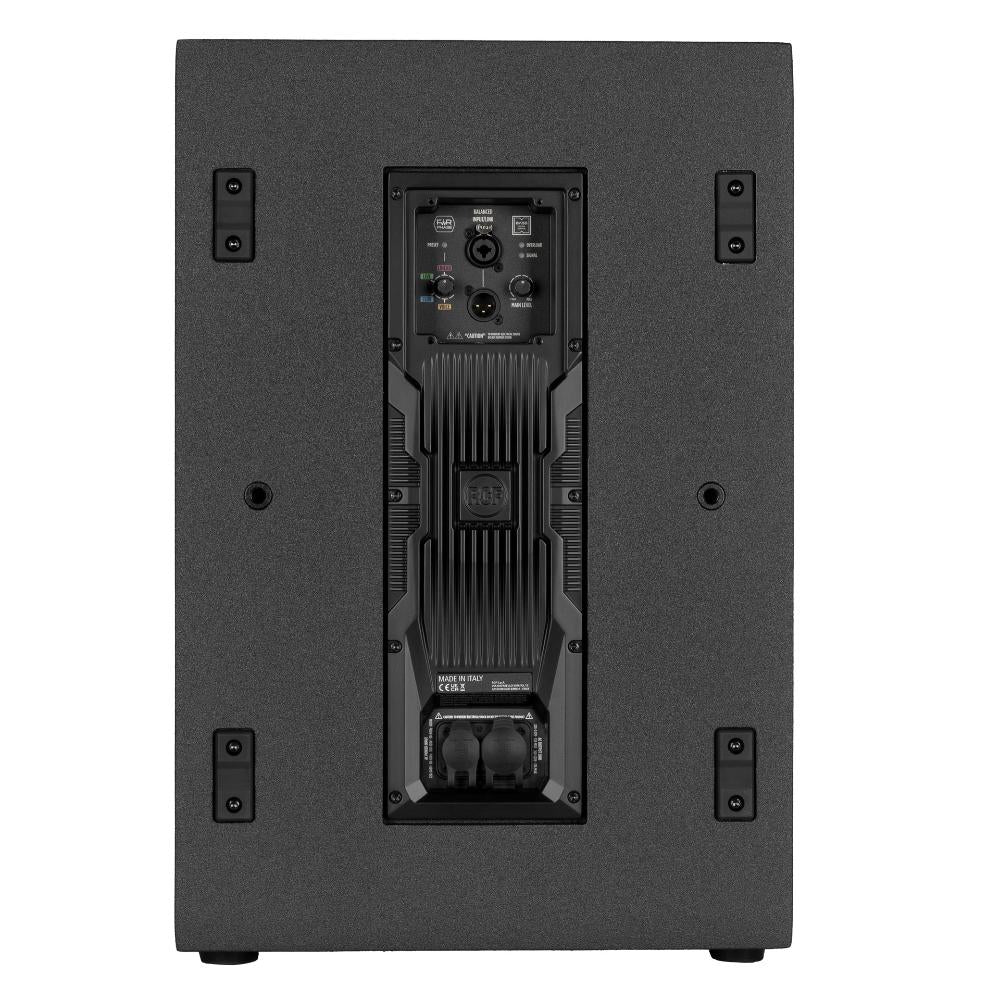

Engineered for Impact. The new generation 3500 W Class-D two-channel amplifier delivers up to 2.5 times more power than the previous architecture, with ultra-fast attack, realistic transient response, and minimal thermal buildup. It is highly energy efficient and requires no cooling fan. The amplifier is mounted on a solid aluminum heat exchanger at the rear of the unit with no moving parts, mechanically coupled to the internal frame for long-term reliability. The input stage features a low-distortion design with an advanced safety limiter that preserves the input signal character at any level. Four DSP presets (Linear, Live, Club, and Voice) optimize the system for neutral response, live reinforcement, or maximum speech clarity.

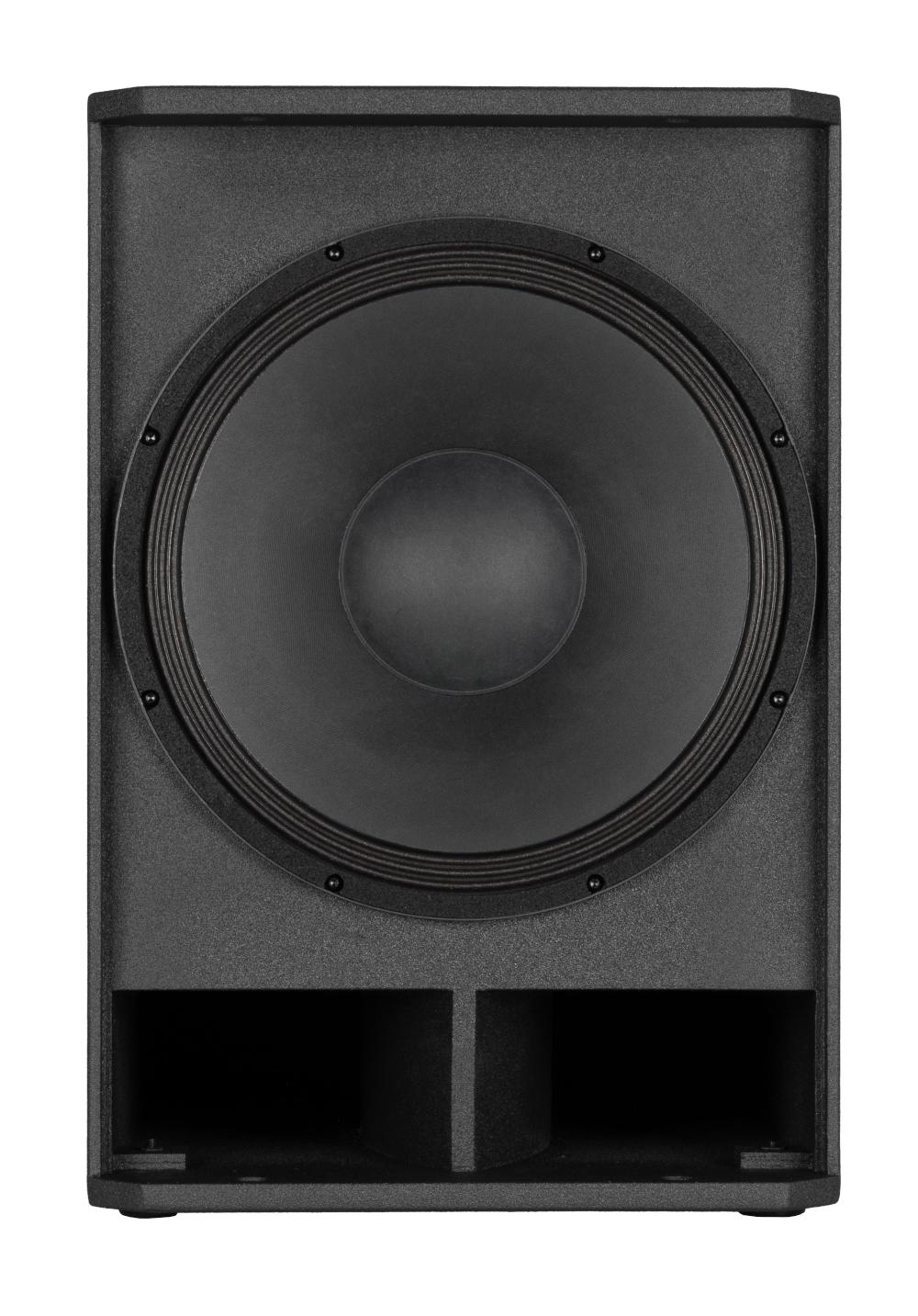

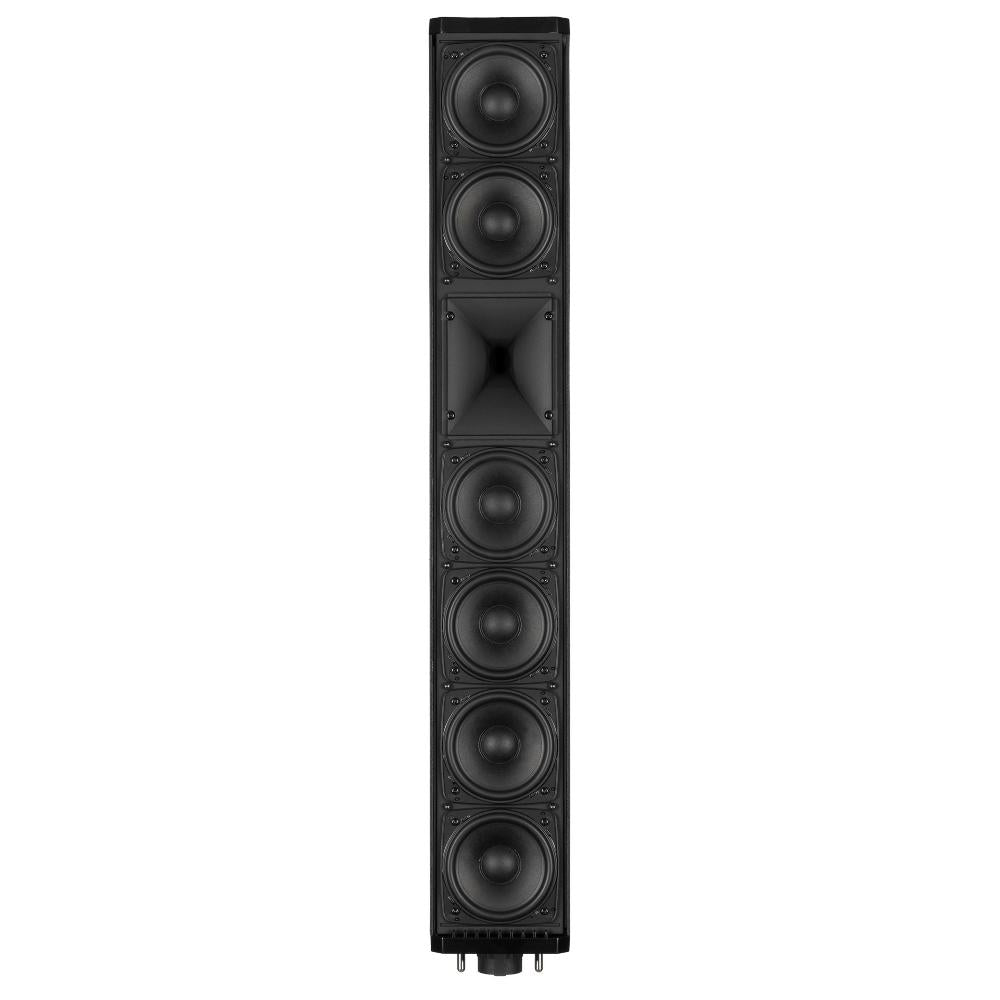

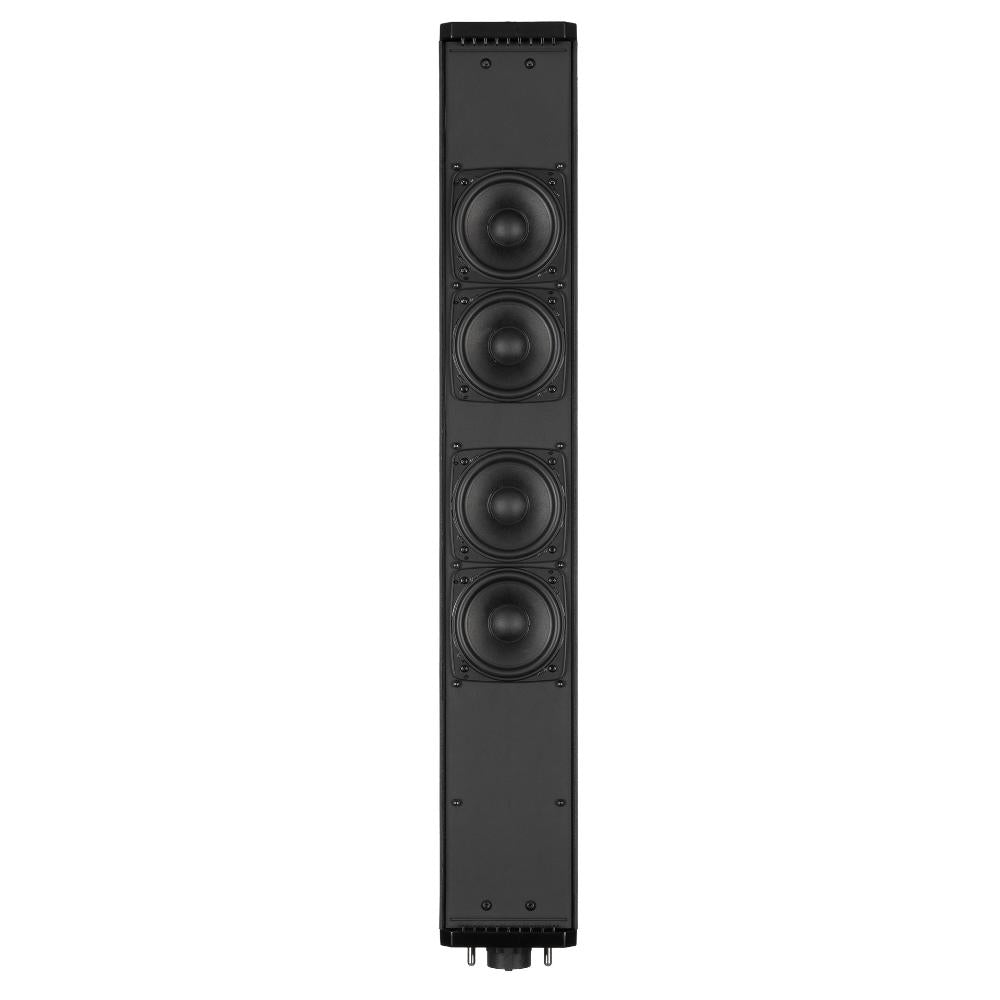

True 3-Way Design. The neodymium compression driver uses a 1.75 inch voice coil and Kapton dome on a True Resistive Waveguide for a resonance-free load and constant 120 by 40 degree coverage. The forward radiation of the array of ten 4 inch neodymium cone drivers, combined with the centered waveguide, delivers a balanced point-source response. The 15 inch RCF transducer provides deep, controlled low frequencies ideal for bass-heavy music and high-energy performances.

Bass Motion Control. BMC delivers the lowest audible frequencies without compromising woofer stability, with extended linearity and improved sound integrity. It maps the woofer dynamic behavior to generate a custom algorithm that limits overexcursions while allowing full freedom in signal reproduction.

FiRPHASE. Proprietary FiRPHASE processing delivers transparent sound, exceptional clarity, and precise imaging, optimizing phase response across the listening area while maintaining low system latency.

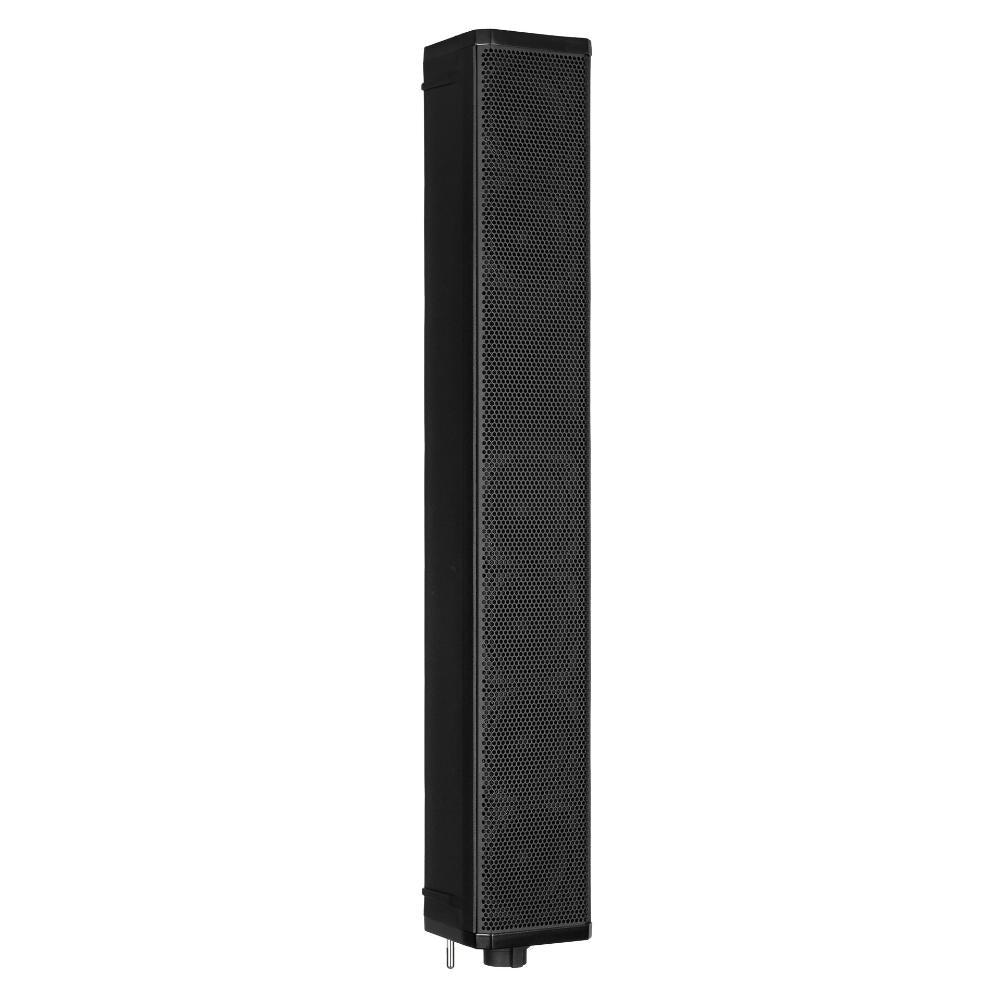

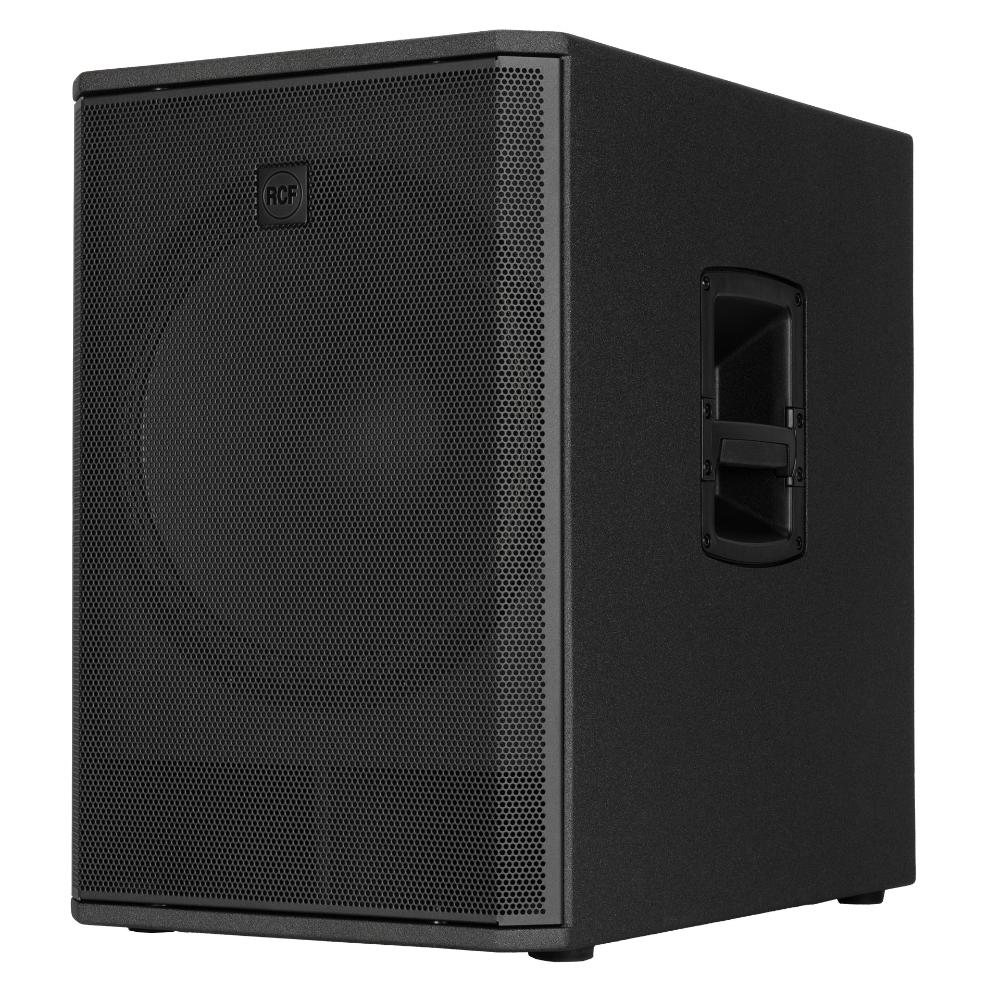

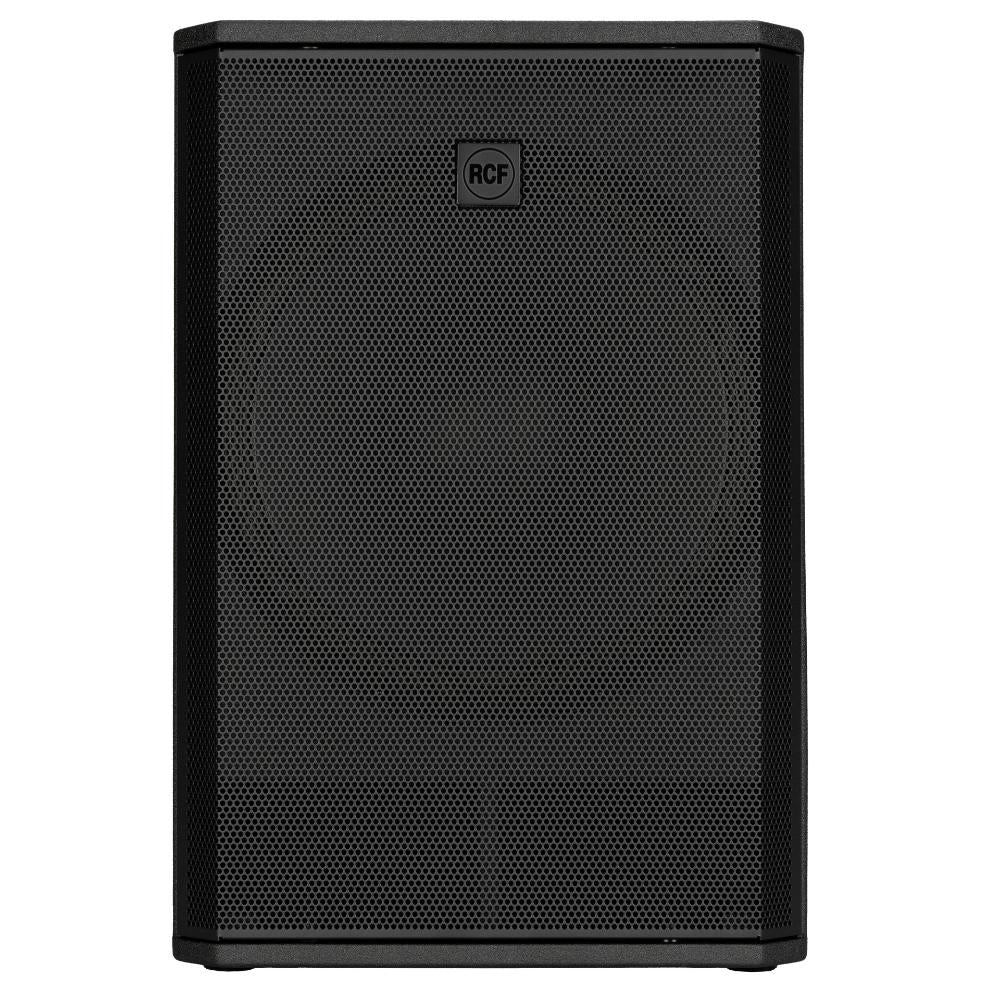

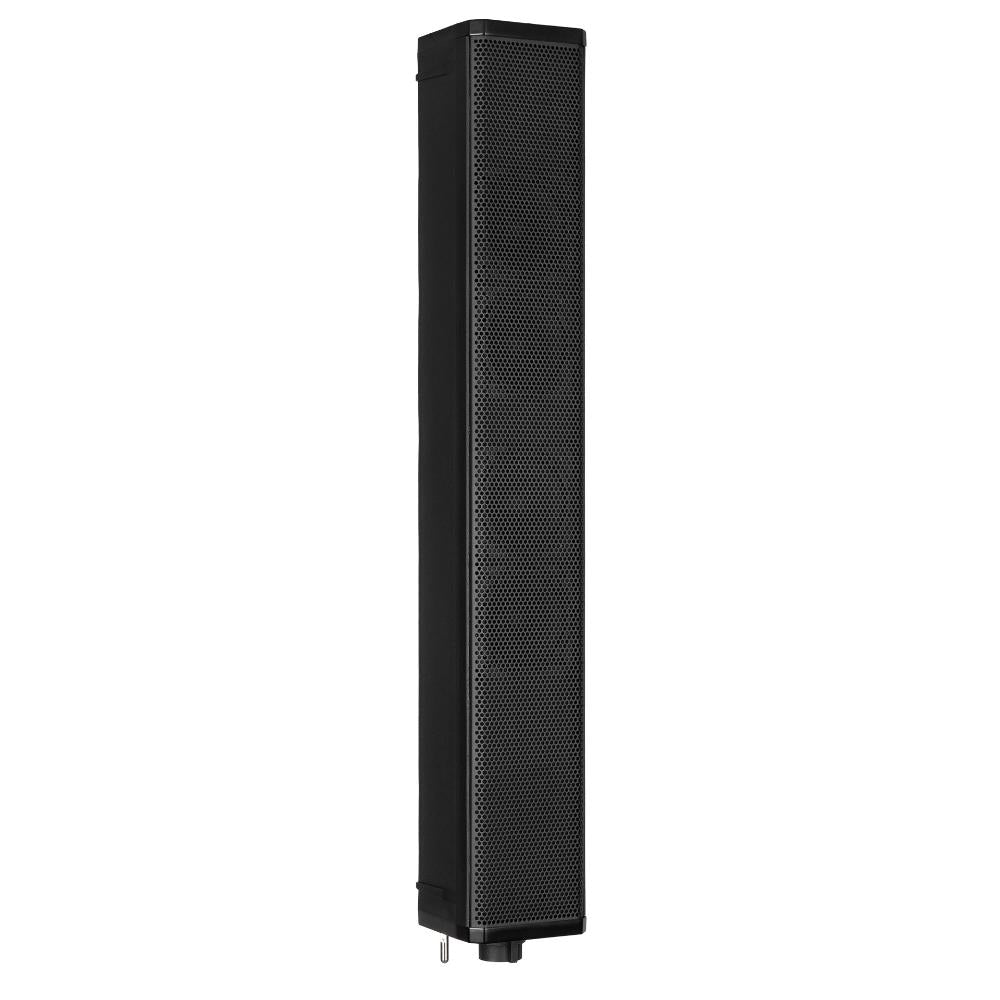

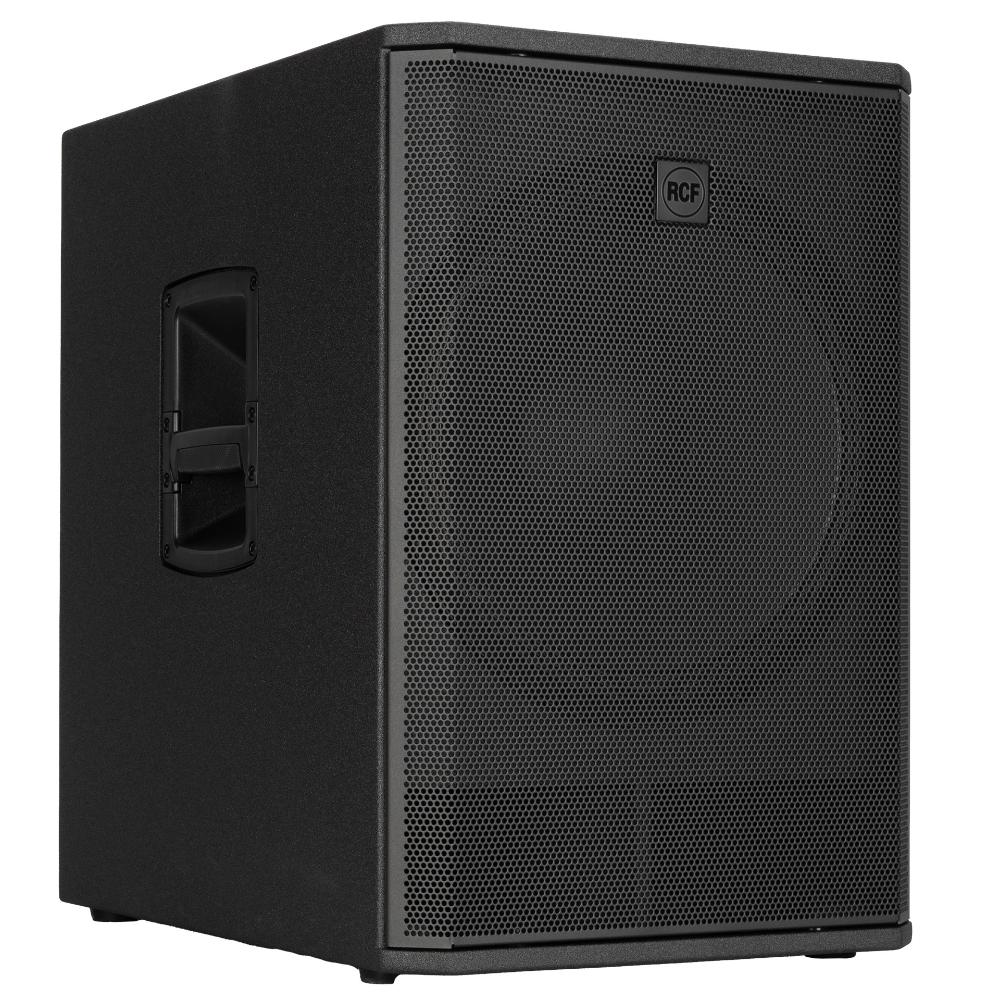

Refined, Road-Ready Design. Lightweight and easy to handle, with a rigid plywood subwoofer that ensures stability in professional applications. Every EVOX V15 includes a premium padded transport bag for the column array. When extended low-end is required, add an RCF subwoofer. ACE-enabled models, starting from the SUB AX Series, include dedicated integration presets for EVOX systems for perfect tuning at the touch of a button.

Specifications

• Frequency Response: 35 Hz - 20000 Hz
• Max SPL at 1m: 133 dB
• Horizontal Coverage: 120 degrees
• Vertical Coverage: 40 degrees
• Compression Driver: 1 x 1.0 inch neo, 1.75 inch voice coil
• Fullrange: 10 x 4.0 inch neo, 1.0 inch voice coil
• Woofer: 15 inch, 3.0 inch voice coil
• Input Signal: balanced / unbalanced
• Input Connectors: Combo XLR / Jack
• Output Connectors: XLR
• Input Sensitivity: +4 dBu
• Crossover Frequencies: 160 / 1600 Hz
• Protections: Thermal, RMS
• Limiter: Soft Limiter
• Controls: Volume, Presets LINEAR, LIVE, CLUB, VOICE
• Total Power: 3500 W Peak
• High Frequencies: 1500 W Peak
• Low Frequencies: 2000 W Peak
• Cooling: Convection
• Connections: powerCON TRUE1 TOP IN / OUT
• Safety Agency: CE compliant
• Cabinet / Case Material: Baltic birch plywood / PP Composite

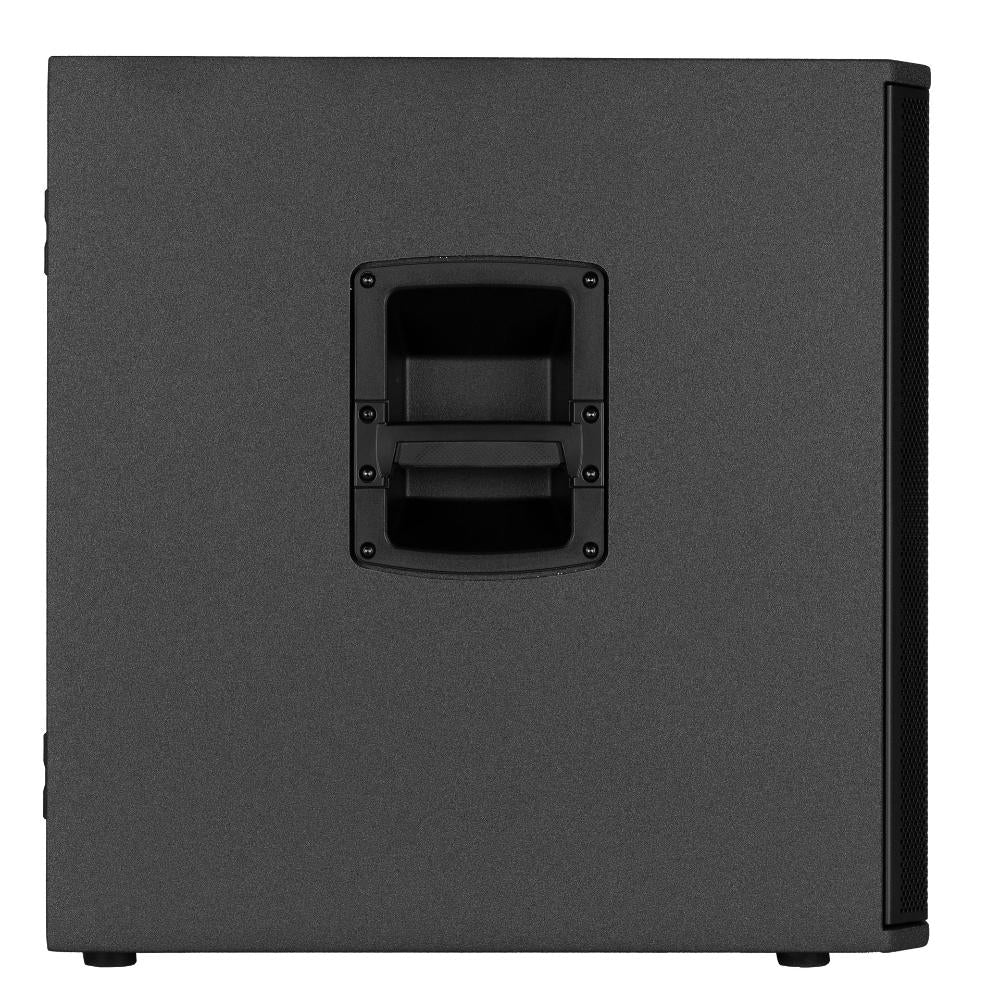

• Handles: One handle each side of the subwoofer
• Grille: Steel

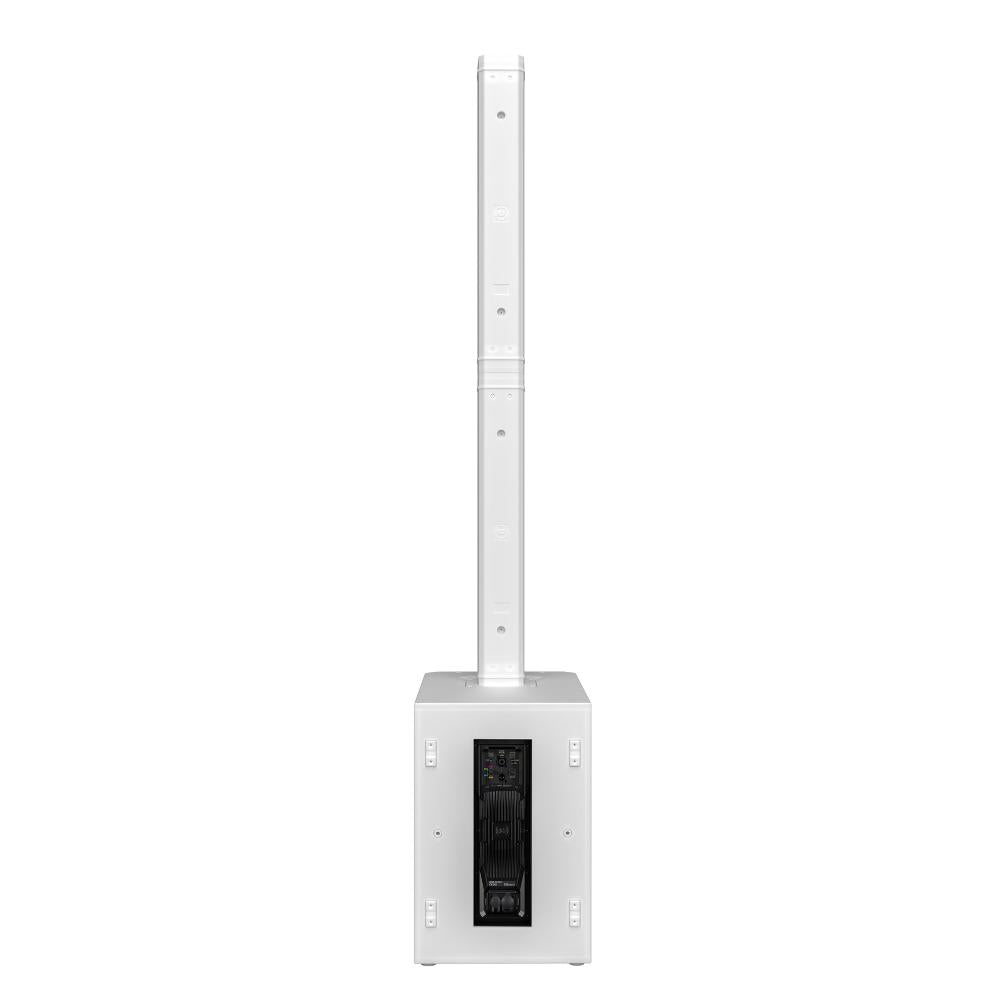

• Color: Black, White RAL 9003
• Height: 2223 mm / 87.52 inches
• Width: 410 mm / 16.14 inches
• Depth: 605 mm / 23.82 inches
• Weight: 44.4 kg / 97.89 lbs
• Package Weight: 53.2 kg / 117.29 lbs
