EtherWAN EX19162A, Unmanaged 16-Port Gigabit PoE Ethernet Switch with 2-Port SFP and 2-Port RJ45

Roll over image to zoom in

EtherWAN EX19162A, Unmanaged 16-Port Gigabit PoE Ethernet Switch with 2-Port SFP and 2-Port RJ45

Name: EtherWAN EX19162A, Unmanaged 16-Port Gigabit PoE Ethernet Switch with 2-Port SFP and 2-Port RJ45
Brand: EtherWAN
SKU: EX19162A
Price: 657.86 USD
Availability: InStock

EtherWANSKU: EX19162A

Share this product

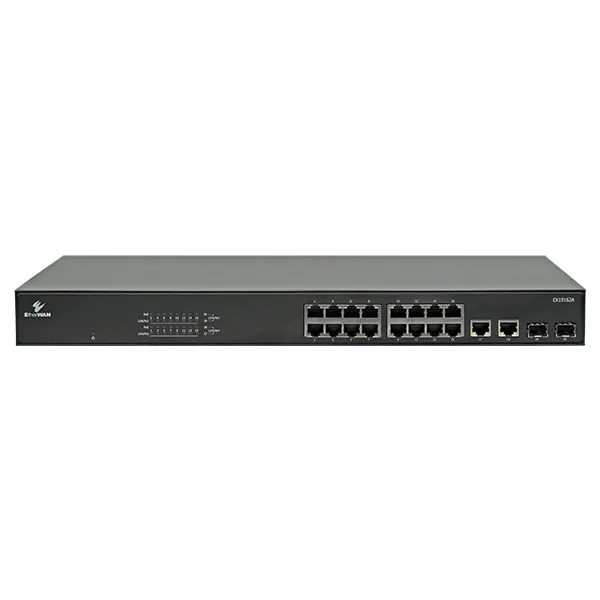

EtherWAN's EX19162A is a 20-port Gigabit Power over Ethernet switch with high performance and features suited for small-business and commercial environments. The EX19162A is equipped with 16 10/100/1000BASE-T(X) PoE+ ports along with 4 gigabit uplink ports (2 RJ45 and 2 SFP). With full wire speed throughput, port speeds up to gigabit for 4K cameras and higher, and a power budget of 250W, the EX19162A is the perfect solution for security networking.

Highlights

Power Over Ethernet: Total PoE power budget of 250W to deliver sufficient power to all connected PoE devices; Overloading protection; Power and data over a single cable with gigabit speed capable of handling cameras with 4K resolution and higher and other high bandwidth devices

Specifications

Ethernet: 10/100/1000BASE-T(X) 18 ports
LED Indicators: Per Unit Power; Per Port PoE Status; Per Port Link Link/Activity
Reset Button: Restore factory default settings
Standards: IEEE 802.3 10BASE-T; IEEE 802.3u 100BASE-TX/100BASE-FX; IEEE 802.3ab 1000BASE-T; IEEE 802.3z 1000BASE-SX/1000BASE-LX; IEEE 802.3x full duplex and flow control; IEEE 802.3af Power over Ethernet; IEEE 802.3at Power over Ethernet (PoE+)
Switching Fabric: 40Gbps
MAC Table Size: 8K
Packet Buffer Memory: 4Mb
Forward/Filtering Rate: 14,880pps for 10Mbps; 148,880pps for 100Mbps; 1,488,000pps for 1000Mbps
Processing Type: Store-and-Forward; Auto-Negotiation; Half-duplex back-pressure full-duplex flow control; Auto MDI/MDIX
Power Input: 100-240VAC, 50/60Hz
Power Consumption: Device 20W (Without PoE)
PoE Power Budget: 250W
Casing Material: Metal
Dimensions: 17.3in x 8.66in x 1.73in (W x D x H); 440 x 220 x 44mm (W x D x H)
Weight: 6.6lbs (3Kg)
Installation Type: Rack Mounting
Operating Temp.: 32 to 122F (0 to 50C)
Storage Temp.: -4 to 176F (-20 to 80C)
Relative Humidity: 10% to 90% (non-condensing)
ISO: Manufactured in ISO-9001 facility
EMI: FCC Part 15 Class A
Safety: UL 62368-1
Warranty: Limited Lifetime; www.etherwan.com/support/warranty-policy
What's Included: Device Ethernet Switch; Power AC power cord; Installation Mounting brackets, screws; Documentation Quick install guide
MPN: EX19162A 1683913
Ordering: EX19162A (18-port 10/100/1000BASE-T(X) (16 PoE) + 2 1000M SFP); Rack mounting kit included

UPC: 850047425041
Country of Origin: Taiwan
Tariff Code: 8517.62.0050
