EtherWAN's EX71000 Series is a hardened DIN-rail mounted managed Ethernet switch platform. Equipped with up to 8 10/100BASE-TX and 2 fiber ports, the EX71000 Series provides flexibility, speed, and reliability to support networks for urban infrastructure, transportation, security, and other areas where connectivity is crucial. EtherWAN - "When Connectivity is Crucial."

Highlights

• Hardened-Grade for Non-Ventilated & Harsh Environments: Wide operating temperature range -40 to 75C (-40 to 167F); Fanless operation; High impact, thermal shock, and electrical noise resistance
• Compliance: EN 50121-4 certified for railway applications; NEMA TS2 rated; UL certified for safety
• Management/Security Features: Port control; 802.1x port-based network access control and remote authentication through RADIUS; Configure and monitor with eVue and eLite
• Support: Complimentary Technical Support; Free Firmware Upgrades; Limited Lifetime Warranty

Features

• Interface: CLI, Telnet, Web GUI; SNMP v1/v2c/v3
• Management: Firmware upgrade; Configuration backup via TFTP; DHCP Server/Client; RMON (Remote Monitoring) group 1, 2, 3, 9; Port Mirroring TX/RX and both; NTP (Network Time Protocol) synchronization; IEEE 802.1ab LLDP (Link Layer Discovery Protocol); IPv4/IPv6
• Security: MAC Address Filtering; Enable/Disable port; Storm control (Broadcast and multicast types); IEEE 802.1x LAN Access control; Remote authentication through RADIUS and TACACS+; SSH for CLI and Telnet security; SSL for web security; System log (Remote/Local); Multi-level user account/password against unauthorized configuration
• Quality of Service (QoS): Priority Queues 4 queues per port; Traffic classification based on IEEE 802.1p CoS, DSCP, WRR and strict mode; Rate Limiting (Ingress/Egress)
• Layer 2 Features: Auto-negotiation for port speed and duplex (Flow Control; IEEE 802.3x full duplex mode; Back-Pressure half duplex mode)
• Redundant Protocols: IEEE 802.1D STP; IEEE 802.1w RSTP; IEEE 802.1s MSTP; EtherWAN's Alpha-Ring network fault recovery (<15ms)
• VLANs: Port-based VLANs; IEEE 802.1Q Tag VLANs (128 groups, 4096 VID); GVRP; GMRP
• Link Aggregation: Static Trunk (2 groups, support MAC base); IEEE 802.3ad LACP
• IGMP Snooping: v1/v2/v3

Specifications

• Ethernet: 4, 6 or 8 x 10/100BASE-T(X); 0 or 4 x 100BASE-FX; 0, 1 or 2 x Gigabit
• Console: 1 x DB9 RS-232
• Alarm Contact: 1 x Relay output, current capacity 0.6A/30VDC
• LED Indicators: Per Unit Power 1, Power 2, Alarm; Per Port Link/Activity, Speed
• Operating Temp.: -40 to 75C (-40 to 167F) Tested @ -40 to 85C (-40 to 185F)
• Storage Temp.: -45 to 85C (-49 to 185F)
• Relative Humidity: 5% to 95% (non-condensing)
• Standards: IEEE 802.3 10BASE-T; IEEE 802.3u 100BASE-TX/100BASE-FX; IEEE 802.3ab 1000BASE-T; IEEE 802.3z 1000BASE-SX/1000BASE-LX; IEEE 802.3x Full duplex and flow control; IEEE 802.1p QoS; IEEE 802.1Q Tag VLANs; IEEE 802.1w RSTP; IEEE 802.1x PNAC
• Forward/Filtering Rate: 14,880pps for 10Mbps; 148,810pps for 100Mbps; 1,488,100pps for 1000Mbps
• Packet Buffer Memory: 12M bits
• Processing Type: Store-and-Forward; Auto-negotiation; Half-duplex back-pressure and IEEE 802.3x Full-duplex flow control; Auto MDI/MDIX
• Address Table Size: 16K MAC Addresses
• ISO: Manufactured in ISO-9001 facility
• EMI: FCC Part 15B Class A; EN 55032; EN 61000-6-4; EN 61000-3-2; EN 61000-3-3
• EMS: EN 61000-6-2; EN 61000-4-2 (ESD); EN 61000-4-3 (Radiated RFI); EN 61000-4-4 (Burst); EN 61000-4-5 (Surge); EN 61000-4-6 (Induced RFI); EN 61000-4-8 (Magnetic Field)
• Safety: UL 61010; ISA 12.12.01
• Vibration: IEC 60068-2-6 Fc
• Shock: IEC 60068-2-27 Ea
• Free Fall: FED STD 101C Method 5007.1
• Industrial Compliance: NEMA TS2; EN 50121-4
• Power Input: 12-48VDC Redundant (Terminal block)
• Power Consumption: 7.5W Max. 0.31A@24VDC
• Protection: Reverse Polarity Protection
• Casing Material: Aluminum
• IP Rating: IP30

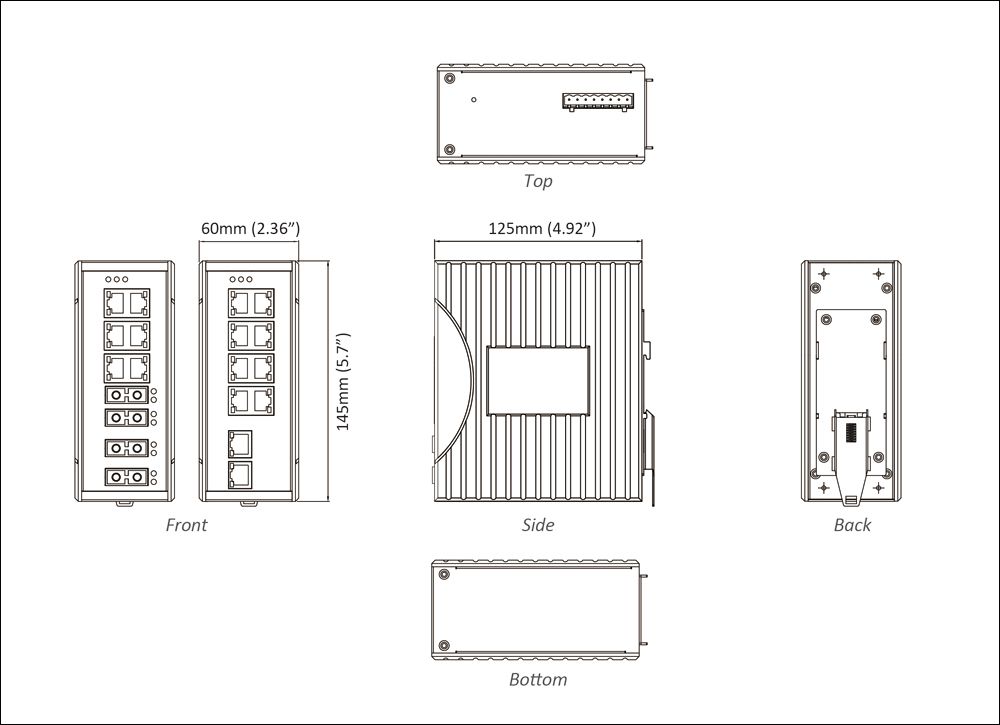

• Dimensions: 60 x 125 x 145mm (W x D x H); 2.36in x 4.92in x 5.7in
• Weight: 1.05kg
• Installation Type: DIN-rail mounting
• Warranty: Limited Lifetime; www.etherwan.com/support/warranty-policy
• What's Included: Device Ethernet Switch; Cables 1 Console Cable; Documentation Quick Install Guide
• MPN: EX71622-VVB 1535339; EX71802-0VB 1535346
• Ordering: EX71802-0VB (8-port 10/100BASE-TX + 2-port 100/1000BASE SFP); EX71620-V0B (6-port 10/100BASE-TX + 2-port 100BASE-SFP); EX71622-VVB (6-port 10/100BASE-TX + 2-port 100BASE-SFP + 2-port 100/1000BASE-SFP); DIN-Rail mounting kit included
• Accessories: Hardened SFP Modules (www.etherwan.com/products/SFP-fiber-transceiver)
