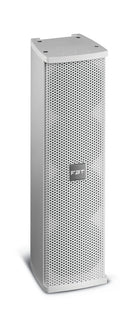

IP55, EN54-24 COLUMN LINE ARRAY 120W - 116 / 119DB SPL

Bringing new coverage options to the installed sound market, the new VERTUS CLA (Column Line Array) range will receive its official launch at Frankfurt Pro Light + Sound 2018. Boasting EN54-24 certification and an IP55 rating, the range has been created to add discreet but powerful sound reinforcement in even the most challenging of projects, including the ability to select dispersion angles depending on the project’s requirements.

Suited to both indoor and outdoor use, the VERTUS CLA range comprises two models: the VERTUS CLA 803with eight 3” full range woofers, and the CLA 403, with four 3" full range woofers. Both versions have the same sleek, lightweight and durable, powder-coated aluminum housing. Completely dustproof and waterproofthe enclosure’s grille is covered with a special hydrophobic fabric to ensure absolute rejection of all atmospheric agentsFull EN54-24 certification also means both columns can be used for emergency and evacuation applications – in the event of a fire, all VERTUS CLA columns are equipped with a ceramic terminal block and thermal fuse.

The range also offers powerful new features for systems integrators facing challenging acoustic conditions. Both the CLA 803 and CLA 403 are characterized by an integrated passive directivity control system which delivers a consistent frequency-based vertical dispersion, and which offers users the choice of two angles – NARROW and WIDE (110° (H) x 15° (V) and 110° (H) x 40° (V), respectively).

This new functionality guarantees enormous flexibility for the integrator, even allowing for the horizontal mounting of columns. In addition, each VERTUS CLA enclosure is fully modular, so multiple enclosures can be linked to increase low frequency control, high frequency dispersion and overall SPL. Other features include a 100V line transformer with switchable power levels.

wide range of accessories is also available for total system configuration flexibility, including a bracket with two diffusers offering a 0° - 15° swivel range (in 5° steps); a fixed 0° bracket for assembling straight arrays; a tilting wall-bracket for mounting at up to 20° (V) and 90° (H); and a fixed wall support for near-flush mounting. A flybar is also available (with optional clamp), plus a foldable floor stand. The accessories match to the enclosures with sliding guides and integrated quick release pins for an exceptionally quick, easy and effective installation.

  • Passive column array
  • 4 x 3” full-range custom woofers with 0.7” voice-coils
  • Frequency response from 140Hz to 20KHz
  • Vertical dispersion angle selector: 110° H x 25° V (NARROW), 110° H x 50° V (WIDE)
  • Ceramic screw-in connector with thermal fuse
  • 100V / 60W line transformer with power selector (excludable)
  • Extruded aluminum cabinet with powder coating
  • Grille with hydrophobic fabric
  • Wide availability of accessories for installation
  • Multiple CLA 803 and CLA 403 columns can be linked to increased SPL and coverage
  • IP55 rating means suitable for outdoor installation
  • EN54-24 certification means suitable for emergency and evacuation systems
  • Ideal for fixed installations in reverberant environments where requiring heightened intelligibility of both music and voice
Code: Black 41807 - White 41824
Configuration: 1 way
Recommended amplifier: 120 W RMS
Long Term power: 60 W
Short term power: 240 W
Transformer: 100/50 V
Nominal impedance: 16 ohm
Frequency response: 140hz-20kHz -6dB
Low Frequency woofer: 4x3 - 0.75 coil inch
Sensitivity (@1W/1m): 92 dB
Maximum SPL cont/peak: 113/116 dB
Dispersion: 110°x25° narrow wide - 110°x50° wide mode HxV
Recommended HP filter: 130hz - 24 dboct
Input connector: Ceramic terminal block
Net Dimension (WxHxD): 100x368x125 - 3.9x14.5x4.9 mm/inch
Net Weight: 2.8/6.2 kg/lb
Transport Dimension (WxHxD): 140x410x165 - 5.5x16.1x6.5 mm/inch
Transport Weight: 4.3/9.5 Kg/lb
Certification EN 54-24: true
