PROCESSED ACTIVE REINFORCEMENT MONITOR 400W + 100W RMS - 130DB SPL

MaxX More! The new stage monitor without compromise

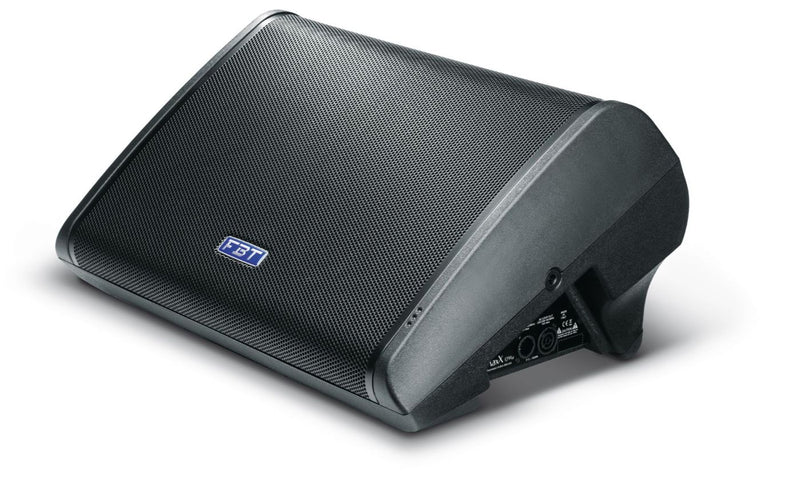

FBT’s new StageMaxX 12Ma has been inspired by the need to have a product specifically designed and engineered for use as stage monitor, overcoming all these compromises for a full user satisfaction.

• Low profile and aesthetic elegance
• Compact size
• Frequency response studied for stage monitor applications
• High headroom before feedback
• High sound quality
• Great power and dynamics
• Symmetric dispersion
• Aligned LF and HF acoustic centers
• Easy handling on stage
• Lightweight
• Heavy-duty polypropylene cabinet

400W + 100W RMS - 130dB SPL

• 2-way, bi-amplified, bass reflex design cabinet
• Coaxial custom FBT 12” B&C speakers with 64mm (2.5”) voice coil
• B&C 25mm (1”) exit throat compression driver and 44mm (1.7”) voice coil
• Bi-amp: high dynamic Class D amplifiers 400W+100W RMS to provide a pleasant sound even at loud volume
• High efficiency switch mode power supply
• Digital Signal Processor with 4 factory equalization presets
• Control Panel: XLR/Jack input and XLR link out, Volume, 4 Presets, HP Filter, 3 frontal status LED indicators
• 90° directivity horn
• Proprietary filtered algorithms, dynamic equalization at low frequencies, advanced energy control allows an high SPL while granting reliable and distortion-free audio reproduction with high headroom
• Sturdy gas-injected polypropylene molded enclosures to avoid undesired resonance
• Weather resistant coating under the grill to protect the driver and the speaker
• High SPL in a compact size monitor
• 35° or 55° tilted front panel for an optimal listening distance for single or multiple users
• Three ergonomic integrated carrying handles, two M10 rigging points
• Teflon replaceable feet allow an easy use on stage
• Available in white colour

• StageMaxX 12Ma features a 12” B&C loudspeaker custom made for FBT and coaxially mounted with a B&C 1” exit throat compression driver.
• The coaxial configuration allows perfect alignment of the acoustic centers of the transducers, guaranteeing symmetry of dispersion and improving focus of the stereo image in Left-Right configuration.
• Bi-amplification design with high dynamic Class D amplifiers delivering 400W + 100W RMS through a switch mode power supply.
• Digital Signal Processor with 4 factory equalization presets provides simple and efficient EQ adjustment to optimize the acoustical response for different applications.
• The FOH preset allows the use in suspended installation as well as ‘drum fill’ applications.
• StageMaxX features two lateral M10 rigging points and wall mounting bracket for different applications (optional accessories).
• 3 frontal status LED indicators to control ON OFF limiter and protection state.
• Three ergonomic integrated carrying handles, one frontally placed to easily drag and move the monitor on stage and the  replaceable Teflon feet ensure sliding on stage with minimal wear.
• The cabinet has 35° or 55° tilted front panel for an optimal listening distance for single user (35°) or for more users (55°).

The 4 presets are:

ORIGINAL: is the typical “MaxX” sound adapted to “STAGE” application

HI-CUT / DRUM FILL: provides less mid-high for a comfortable listening in near-field at high level

LO-CUT / DOUBLE: provides less low frequency for better intelligibility and for optimal coupling in stereo configuration

FOH: Front Of House use in suspended or pole-mount installations
