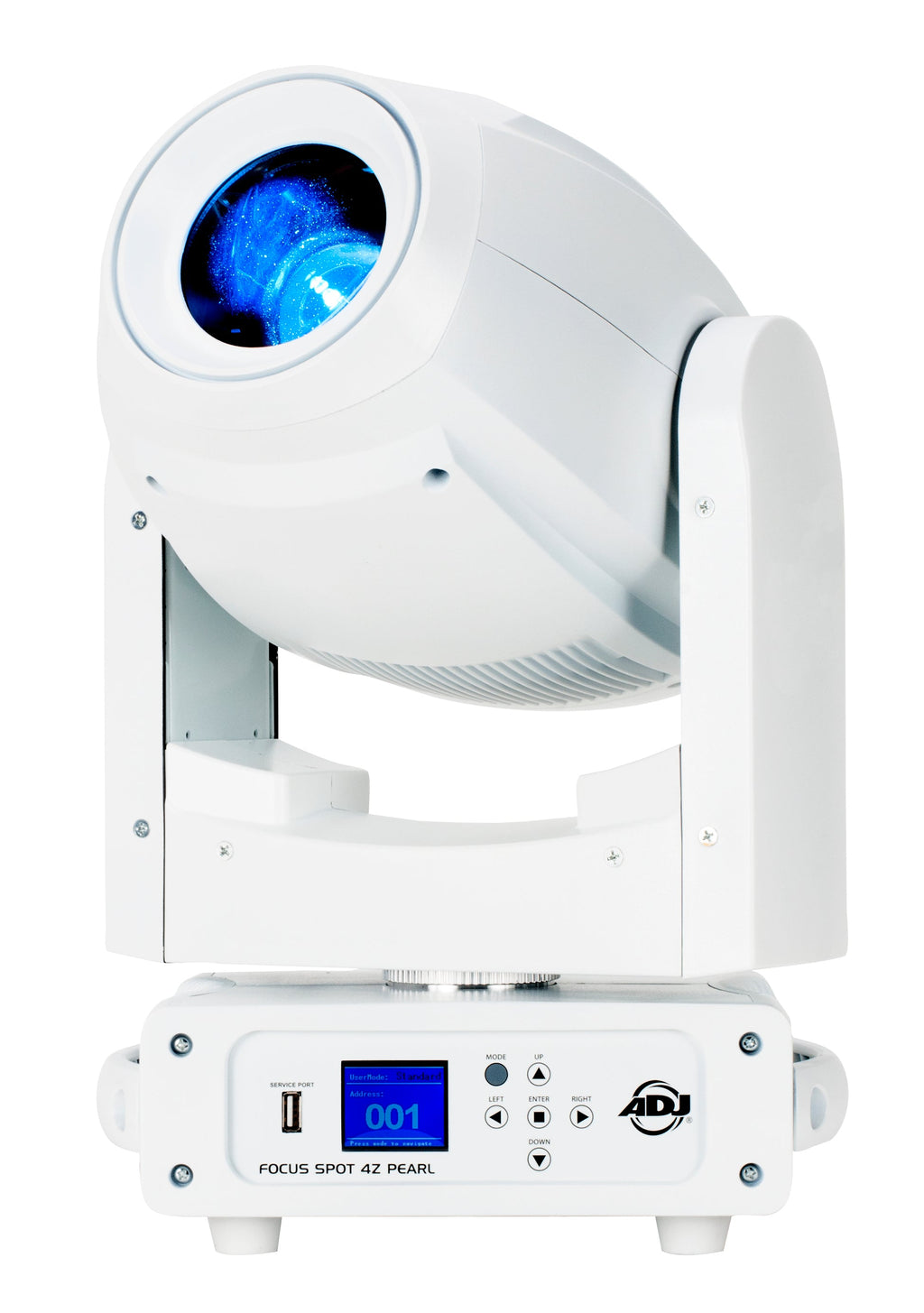

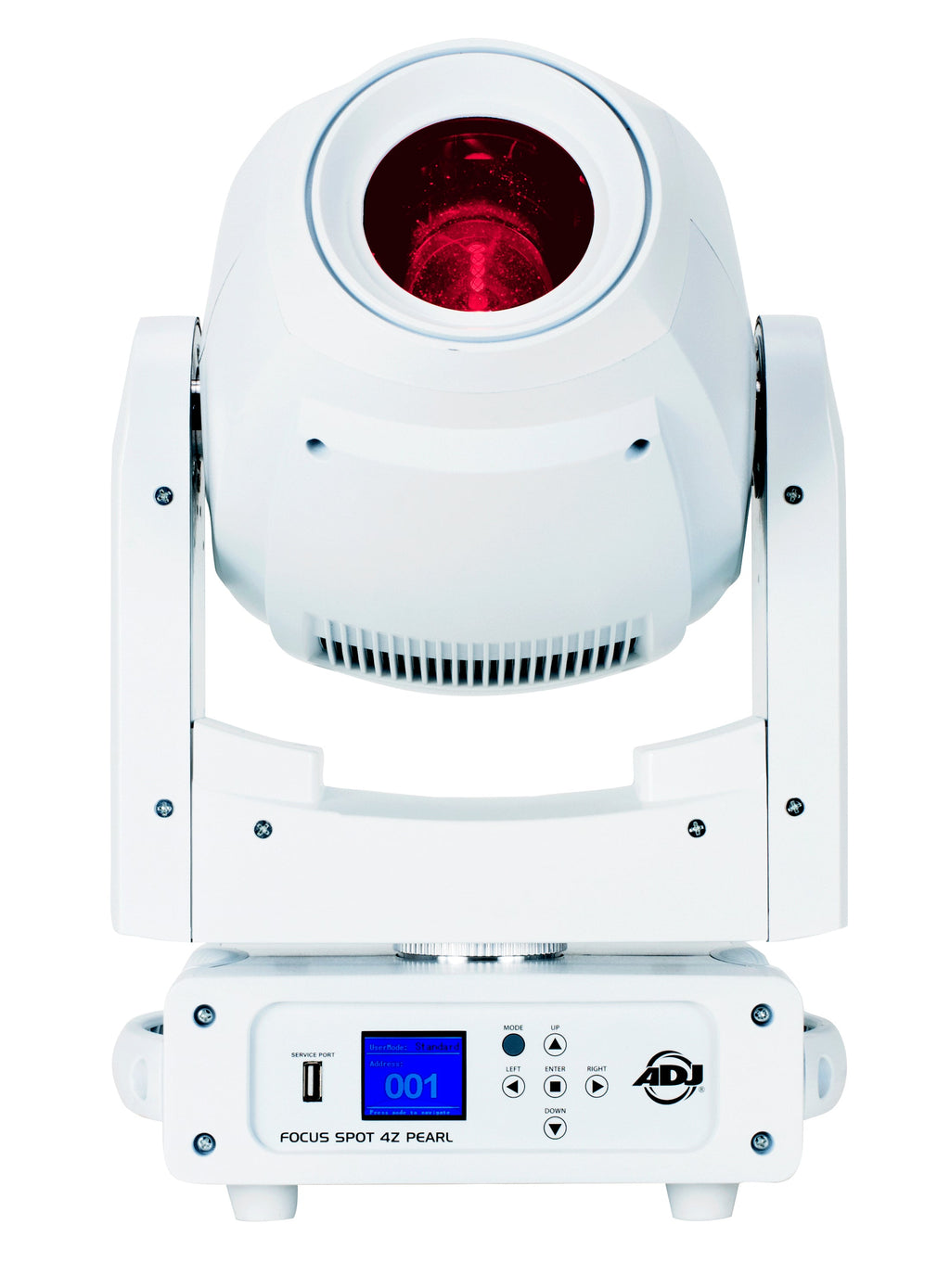

Focus Spot 4Z Pearl
The Focus Spot 4Z Pearl is powered by a brilliant 200W cool white LED engine and is equipped with motorized focus and zoom (11 ~ 22-degree zoom), and has a white exterior housing. Its designed for temporary live events and fixed installations in nightclub, stages or churches. It is professionally fit with one GOBO wheel with 6 rotating/replaceable GOBOS, 8 vibrant colors plus white, and 2 prism wheels (one 5-facet linear and one 6-facet circular).
The Focus Spot 4Z has locking power In/Out connections to daisy chain the power, as well as 5-pin DMX In/Out to transmit a DMX signal from one fixture to the next. There is a USB firmware update port built-in plus advanced control options such as: 16-bit fin pan and tilt, multiple DMX control modes, and 6 different dimming options. The Focus Spot 4Z offers a robust light output in a light weight, compact foot print (18-inch high and one 23 pounds).
Read the Focus Spot 4Z Pearl product spotlight.
Read the Focus Spot 4Z Pearl press release.
Specifications
• 200W Cool White LED Engine (50,000 hr.)
• 7000 Lumens
Features:
• Motorized Focus
• Motorized Zoom: 11 ~ 22-degrees plus 16-bit Fine Zoom
• 2 Prism FX: Rotating 5-facet Linear rotating 6-facet Circular
• 0-100% smooth dimming
• Various strobe speeds
• USB firmware update port
• 2 cooling fans
• White exterior housing

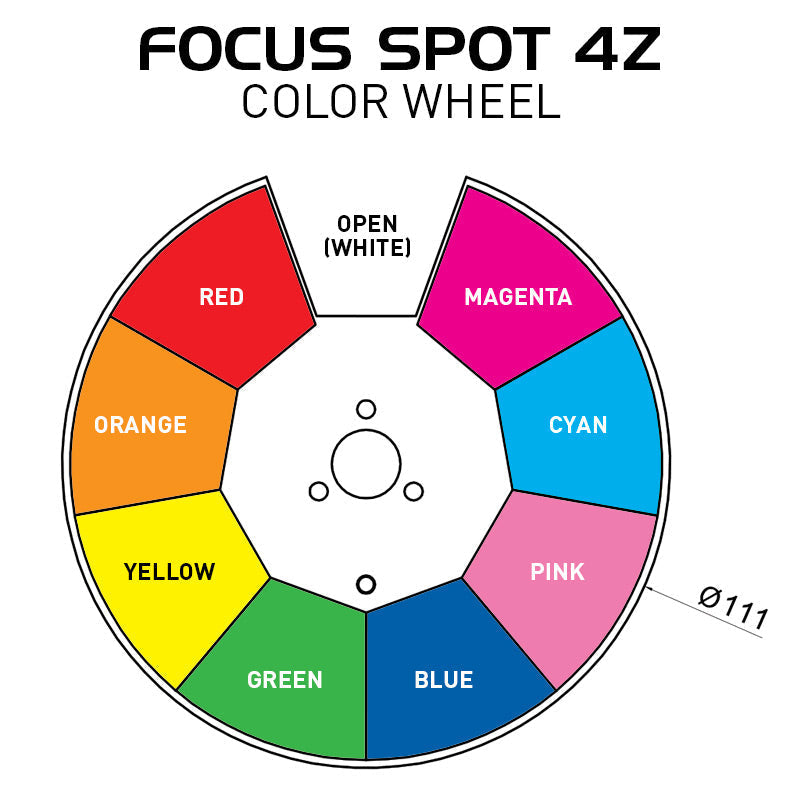

Color Wheel:
• 8 dichroic colors + white

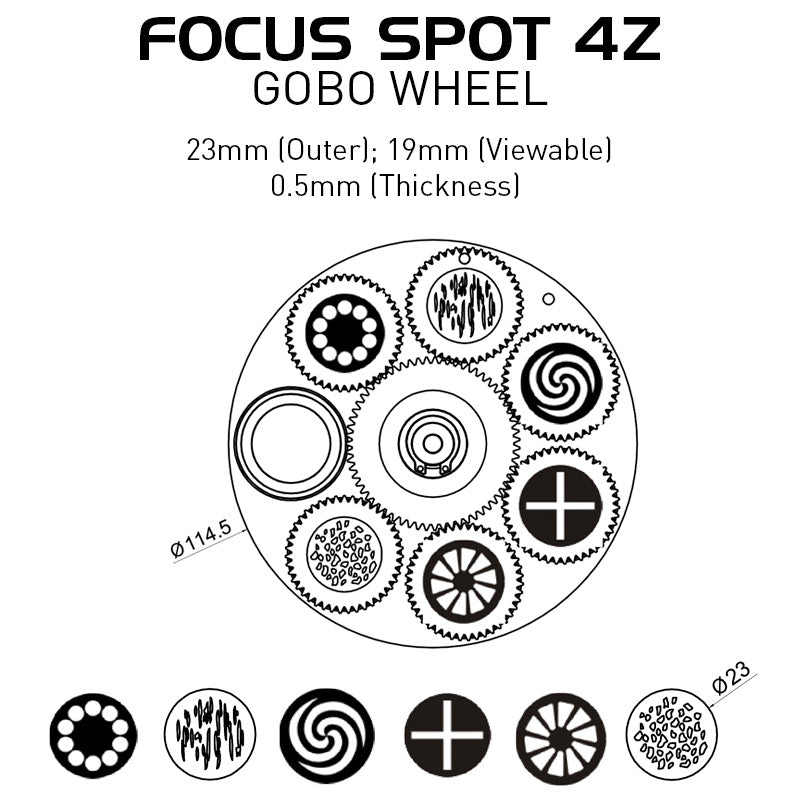

GOBO Wheel:
• 6 aluminum GOBOs + open
• All GOBOs removable rotatable
• GOBO Shake Effect
• GOBO size: 22.5mm (outer); 19mm (viewable); 0.5-2mm (thickness)
Prism Wheel:
• Prism Wheel 1: Rotatable 5-facet Linear
• Prism Wheel 2: Rotatable 6-facet Circular
• Prism Indexing
Control:
• 3 DMX Channel Modes: 16/18/22 Channels
• Color LCD display with 6-button function menu

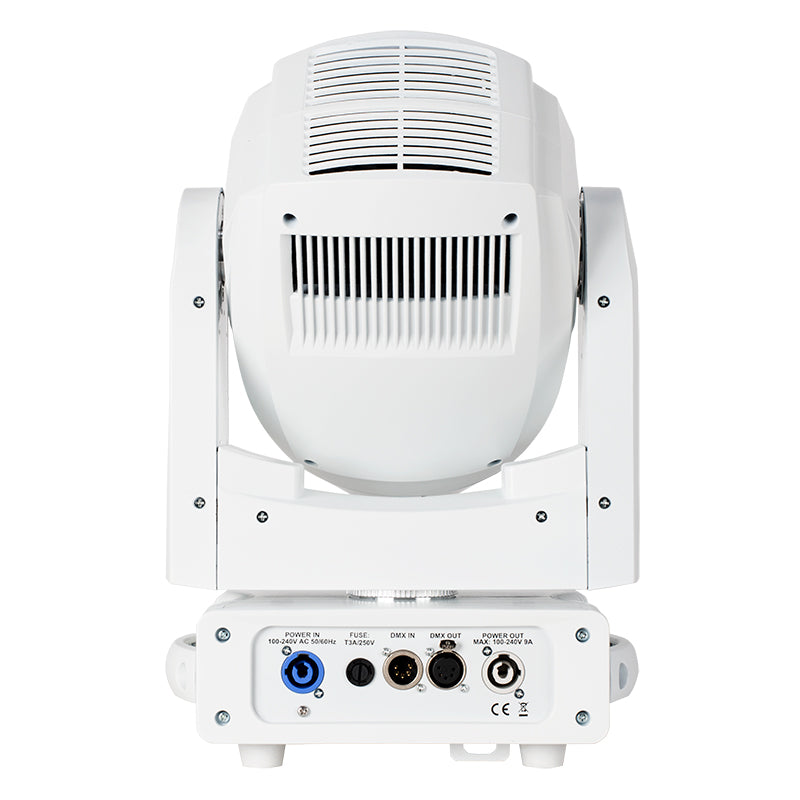

• Data In/Out: 5-pin DMX
• Power In/Out: Locking power In/Out connections (Daisy chain 4 units @ 120V; 10 units @ 240V)
• Control Mode: DMX512 or internal programs
• 6 Dimming Curve Modes: Standard, Stage, TV, Architectural, Theatre, Stage 2
• 0-100% smooth dimming
• Various strobe speeds
• USB firmware update port
• With Wired Digital Communication Network
• RDM (Remote Device Management)
Pan/Tilt:
• Pan: 540 630 degrees
• Tilt: 270 degrees
Dimensions Weight:
• Dimension: 7.15" (L) x 10.97" (W) x 18" (H) / 181.5 x 278.6 x 457.4mm
• Weight: 23 lbs. / 10 kg.
What's Included:

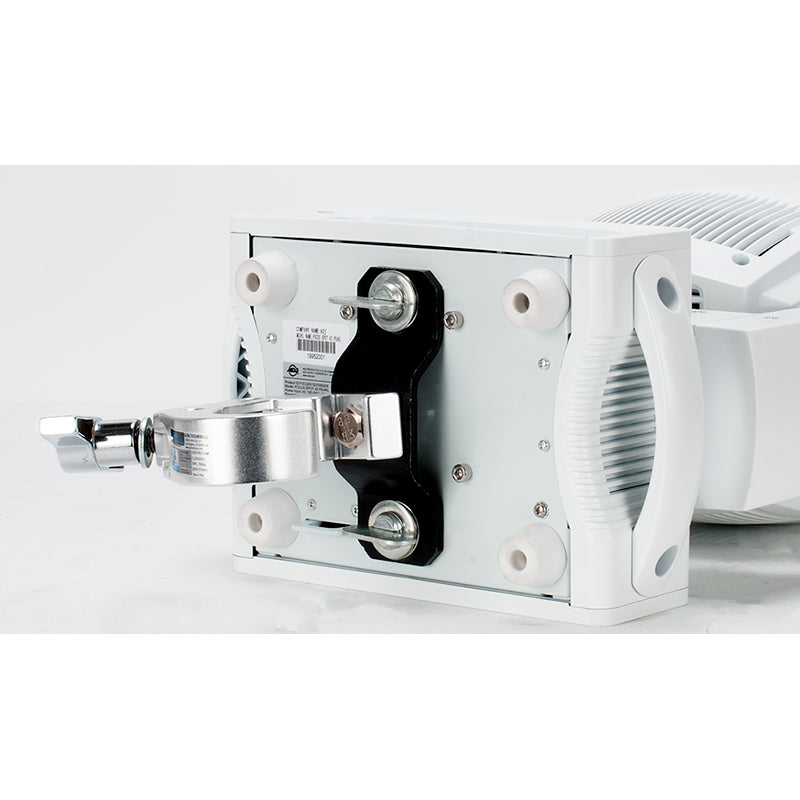

• Omega Bracket
• 6 ft/3M locking power to Edison cable
• Safety Cable
Optional Road Cases:
• DRC MH: 2 Focus Spot 4Z Pearl fit in the DRC MH Road Case
• QRC MH: 4 Focus Spot 4Z Pearl fit in the QRC MH Road Case
Rating/Approvals:
• cETLus approved (Control #4010765)
