Description

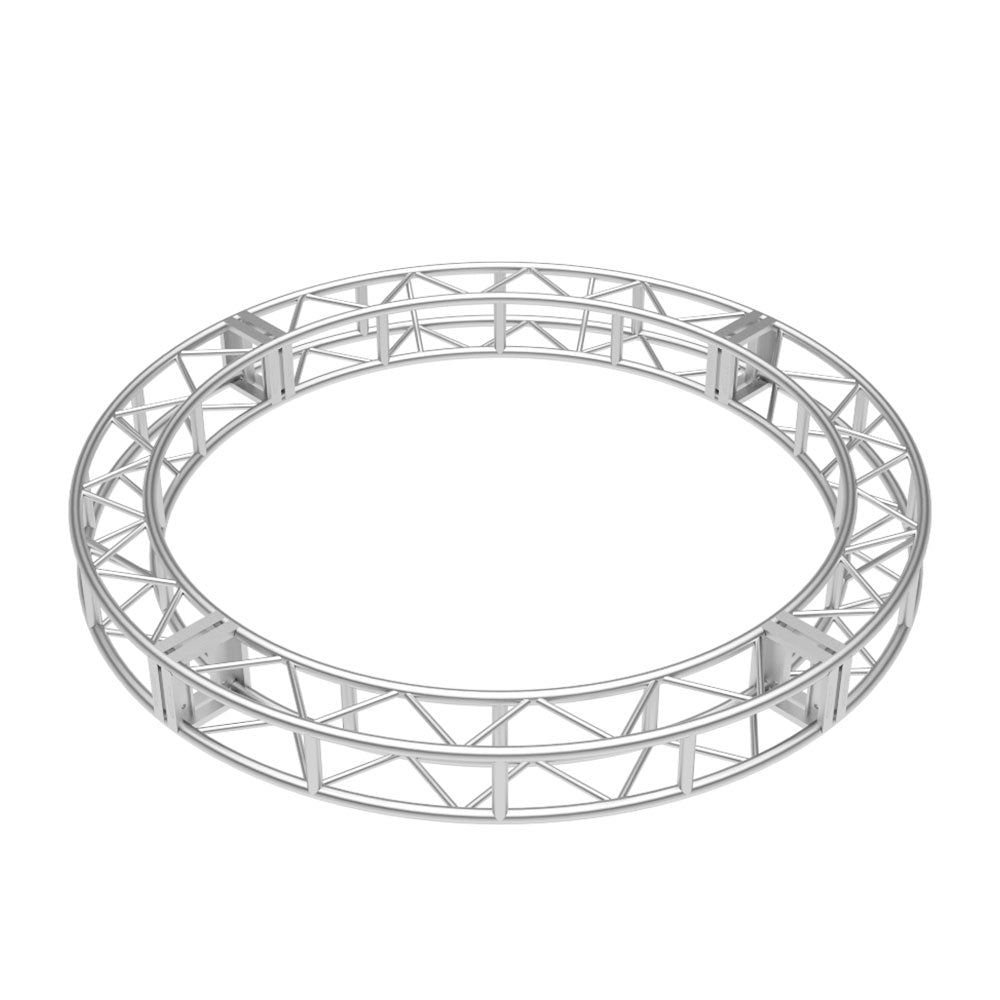

Global Truss DT-GP10-90C-KIT: 10 ft OD DT-GP 12 in End Plate Truss Circle Kit, 90 Degree Arcs
DT-GP Square Truss: 12" Bolt Together Box Truss. Engineered and manufactured to conform to the standards required to receive the TÜV SÜD stamp, our line of products offers truss solutions for all applications.
Specifications

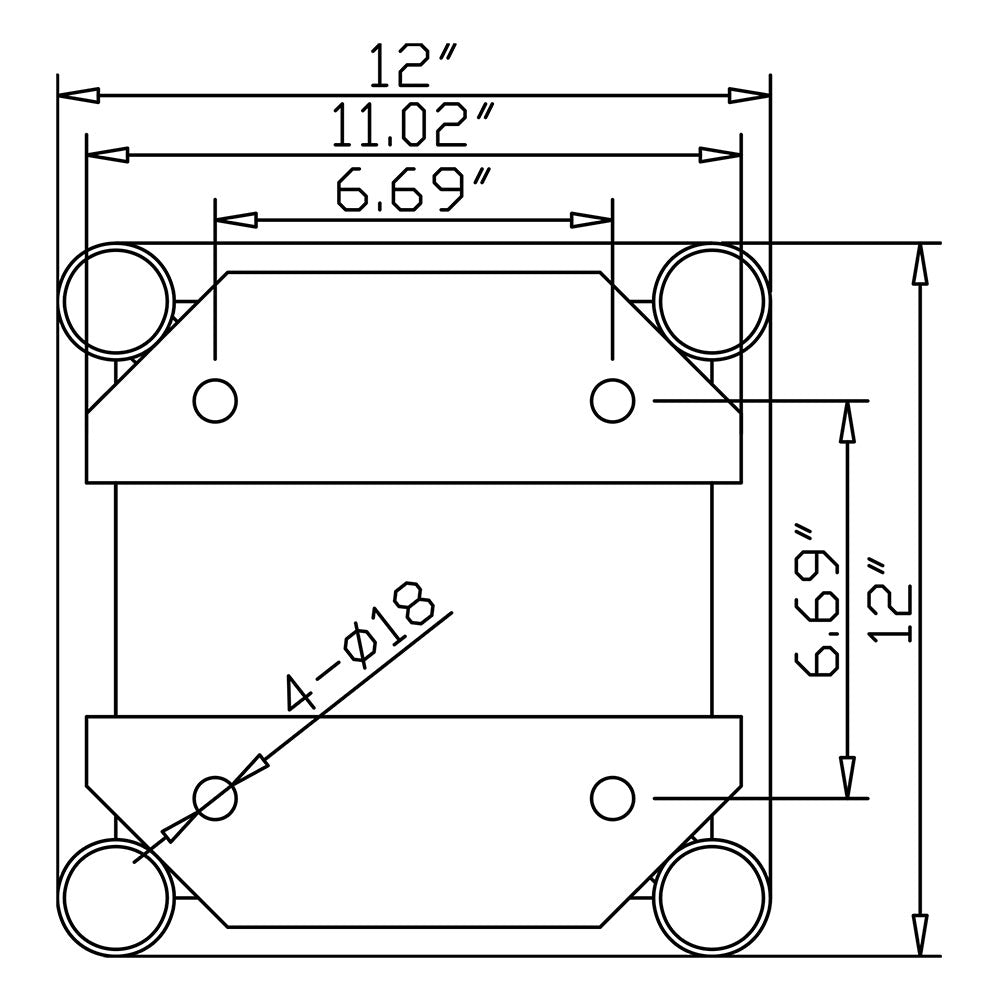

- 12-Inch End Plate Bolt Together Truss
- Outside Diameter: 10ft
- Inside Diameter: 8ft
- 12" Overall Truss Width
- 90 Degree Arcs
- 1.96" 50mm Outer Diameter Tubing
- 0.11" 3mm Wall Thickness
- 0.98" 25mm Diagonal Bracing
- 0.08" 2mm Wall Thickness
- 5/8" Grade 8 Bolts, Nuts and Washer Included
- Kit Components: 4x DT-GP10-90ARC
- Unit Weight: 196 Lbs.
