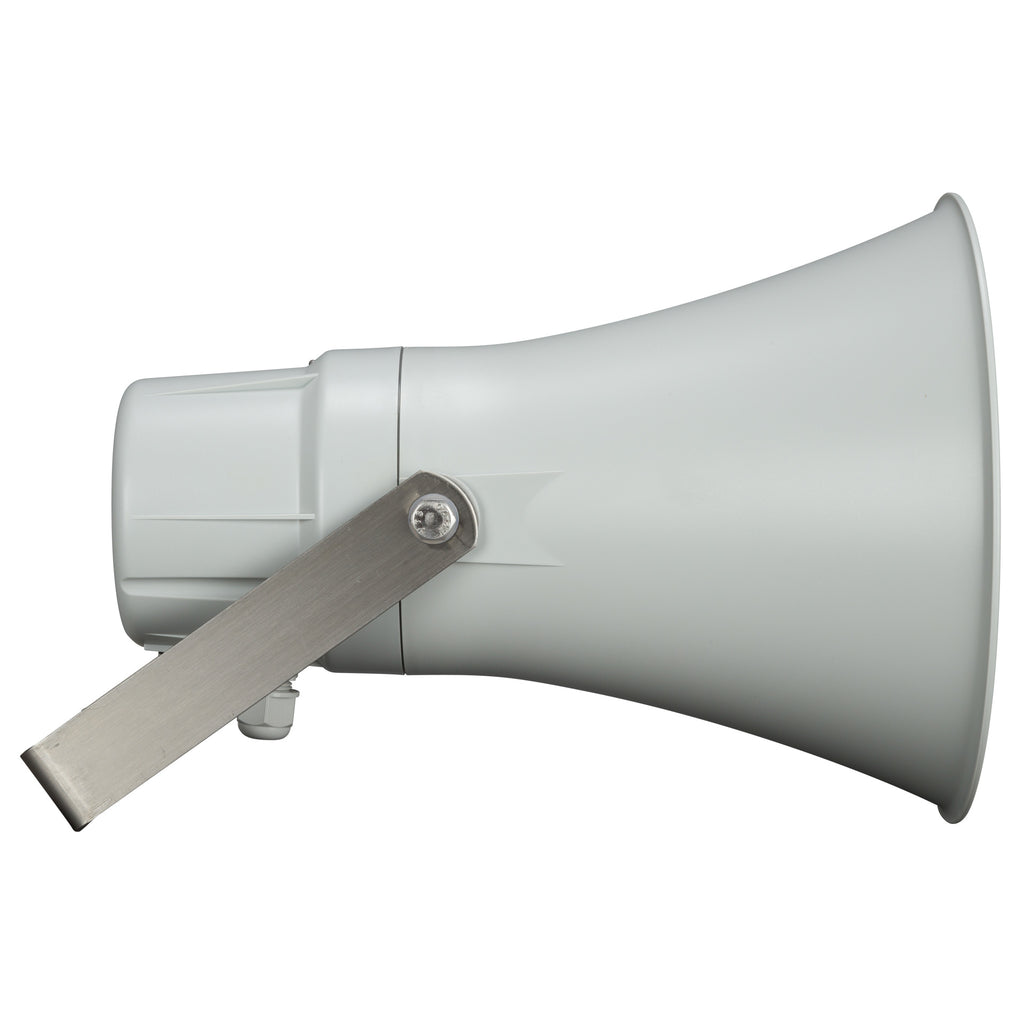

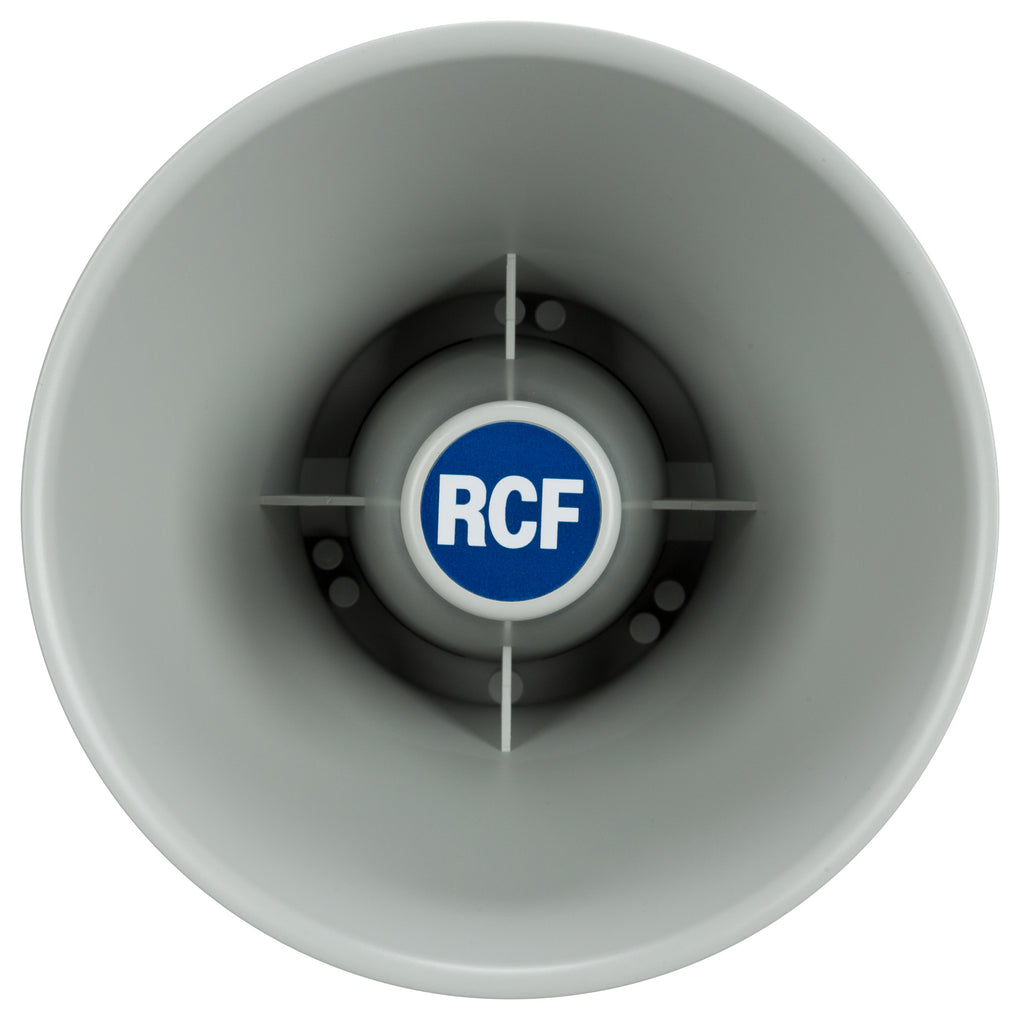

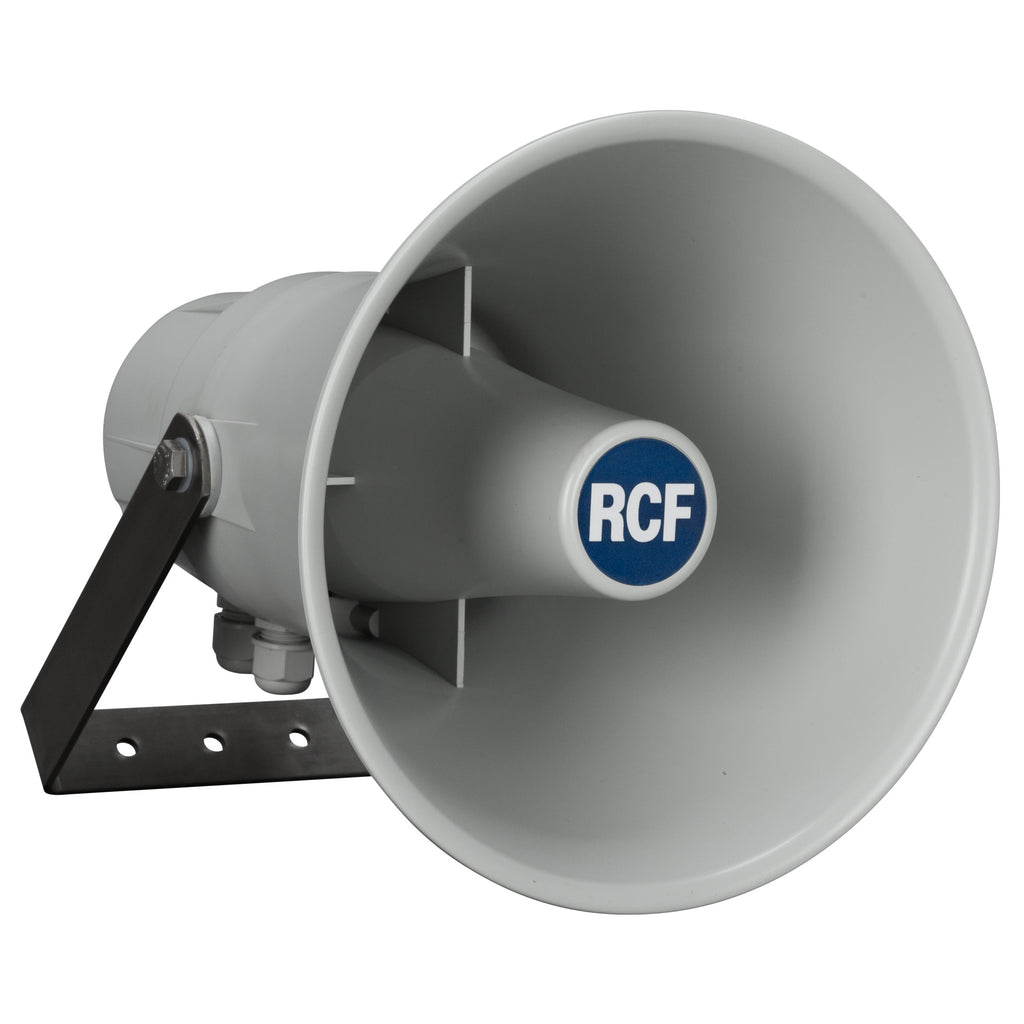

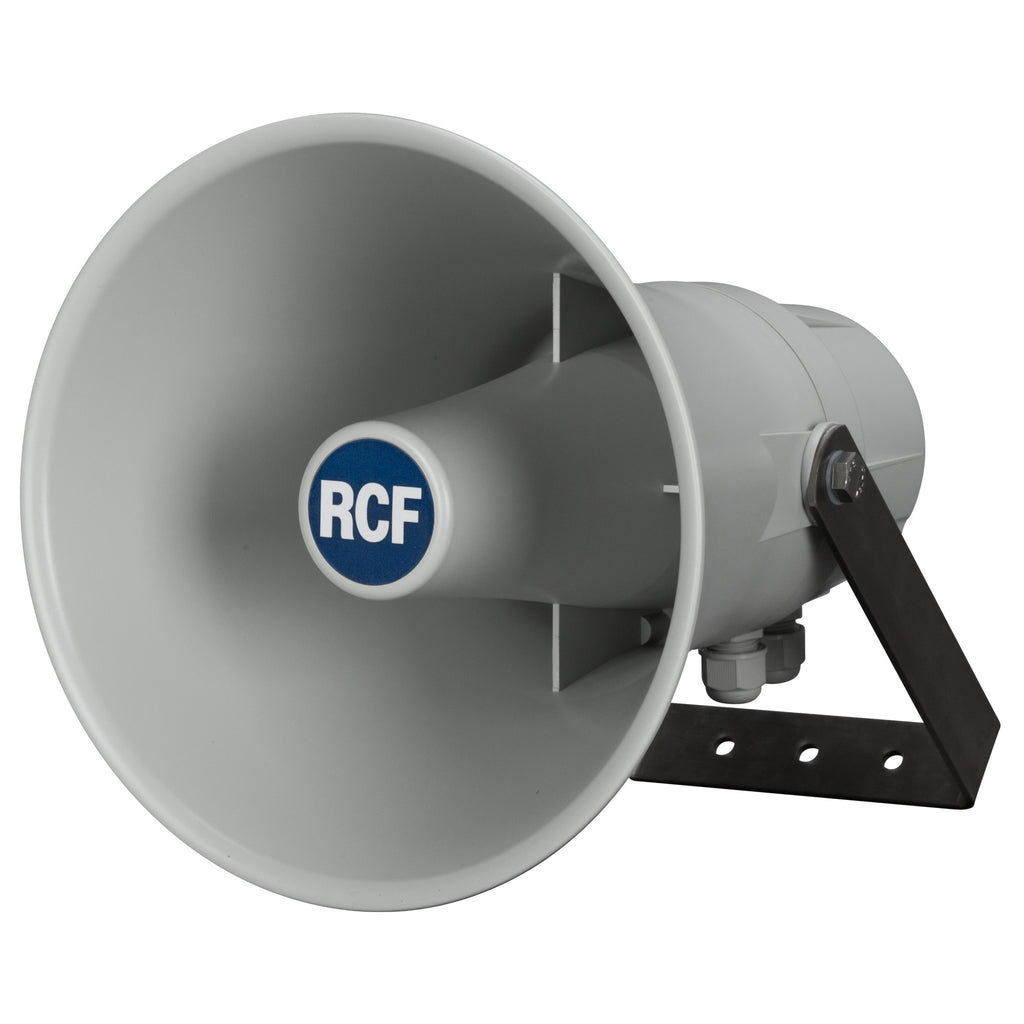

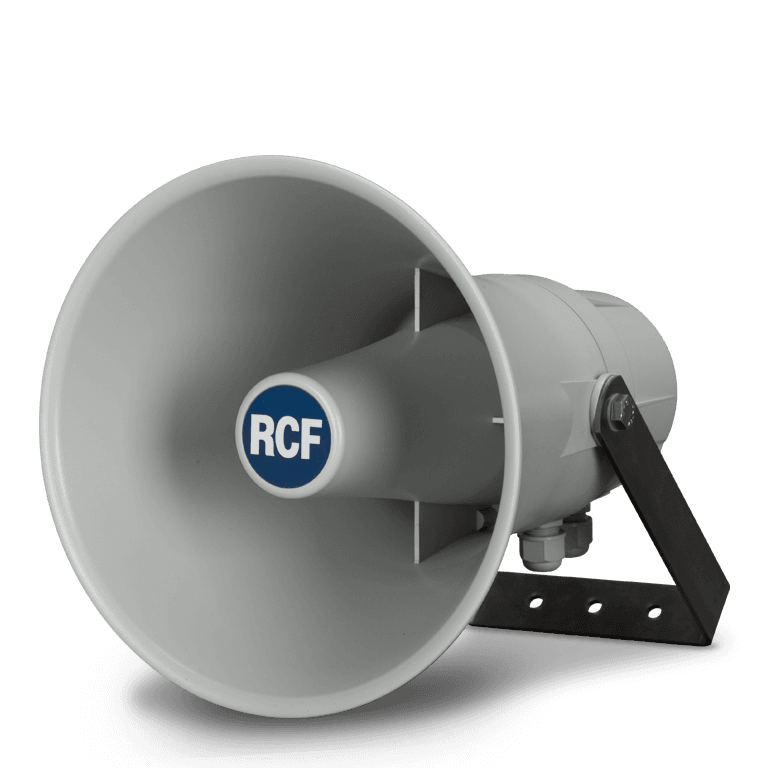

RCF HD 21EN - Passive 120W Horn Speaker with 1.5" Driver and Selectable Power (IP66)

RCFSKU: HD 21EN

Price:
$169

Shipping calculated at checkout

Description

VOICE ALARM EN54 | COMMERCIAL | INSTALLED | HD 21EN | PLASTIC HORN SPEAKER | 1.5" compression driver.

Technical Specifications

Acoustical specifications
Frequency Response (-10dB) 340 Hz - 9000 Hz
Max SPL @ 1m 117 dB
Max SPL @ 4m 105 dB
Coverage angle 135°
System Sensitivity 104 dB
System Sensitivity 1W @ 4m 92 dB
Power section
Power Handling 30 W
Peak Power Handling 120 W PEAK
Protections Thermal fuse
Recommended Amplifiers DXT 3000, DXT 4000, DXT 7000
Transducers
Compression Driver 1 x 1.5''
Input/Output section
Input connectors Ceramic screw terminals

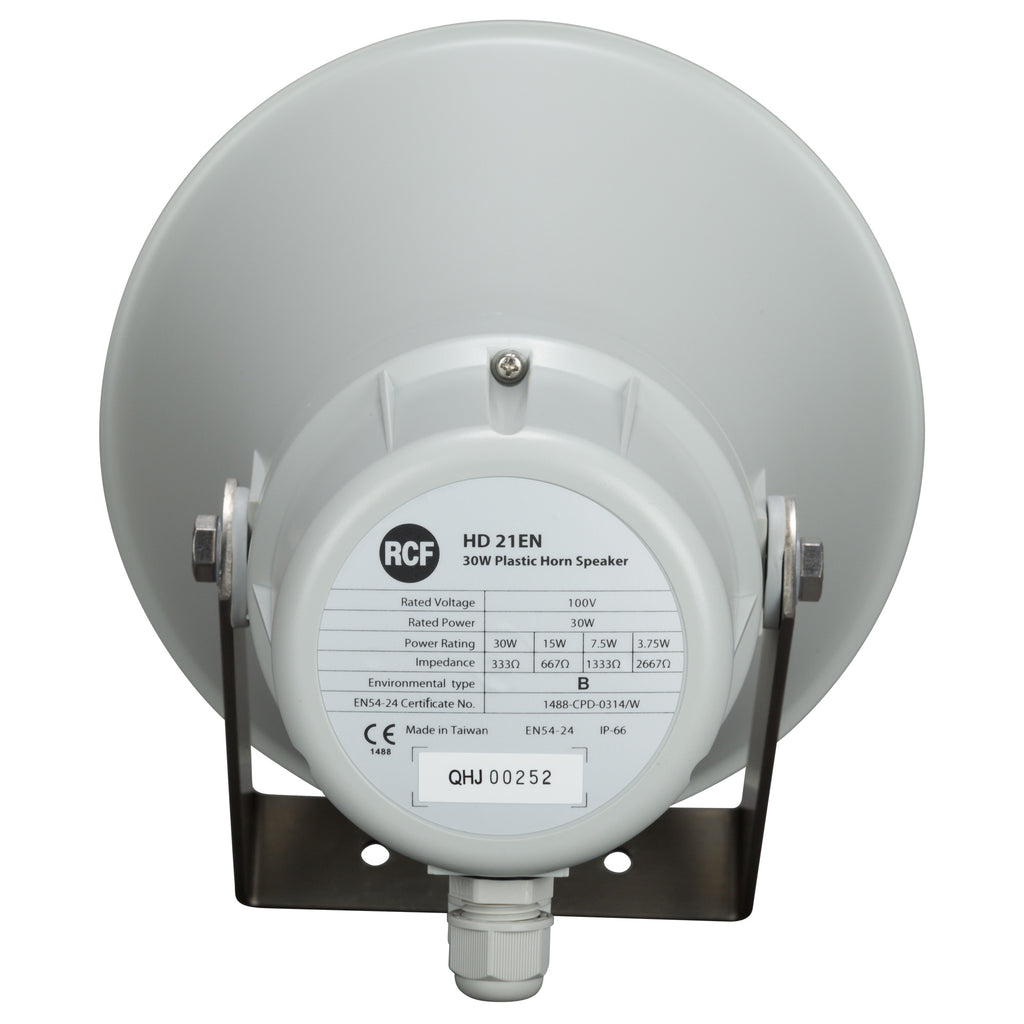

Output connectors Constant Voltage Transformer
100 V Power selection 1
30 W - 333 ohm Power selection 2
15 W - 667 ohm Power selection 3
7.5 W - 1333 ohm Power selection 4
3.75 W - 2667 ohm
Standard compliance
IP protection grade IP 66
Safety agency CE compliant
EN54-24 certified Yes
CPR number 1488-CPR-0652/W
Physical specifications
Cabinet/Case Material ABS
Hardware Stainless steel bracket
Color Grey - RAL 7035
Size / Weight
Height 212 mm / 8.35 inches
Depth 280 mm / 11.02 inches
Weight 2.1 kg / 4.63 lbs
Shipping information
Package Height 220 mm / 8.66 inches
Package Width 320 mm / 12.6 inches
Package Depth Package Weight
2.7 kg / 5.95 lbs
