Description

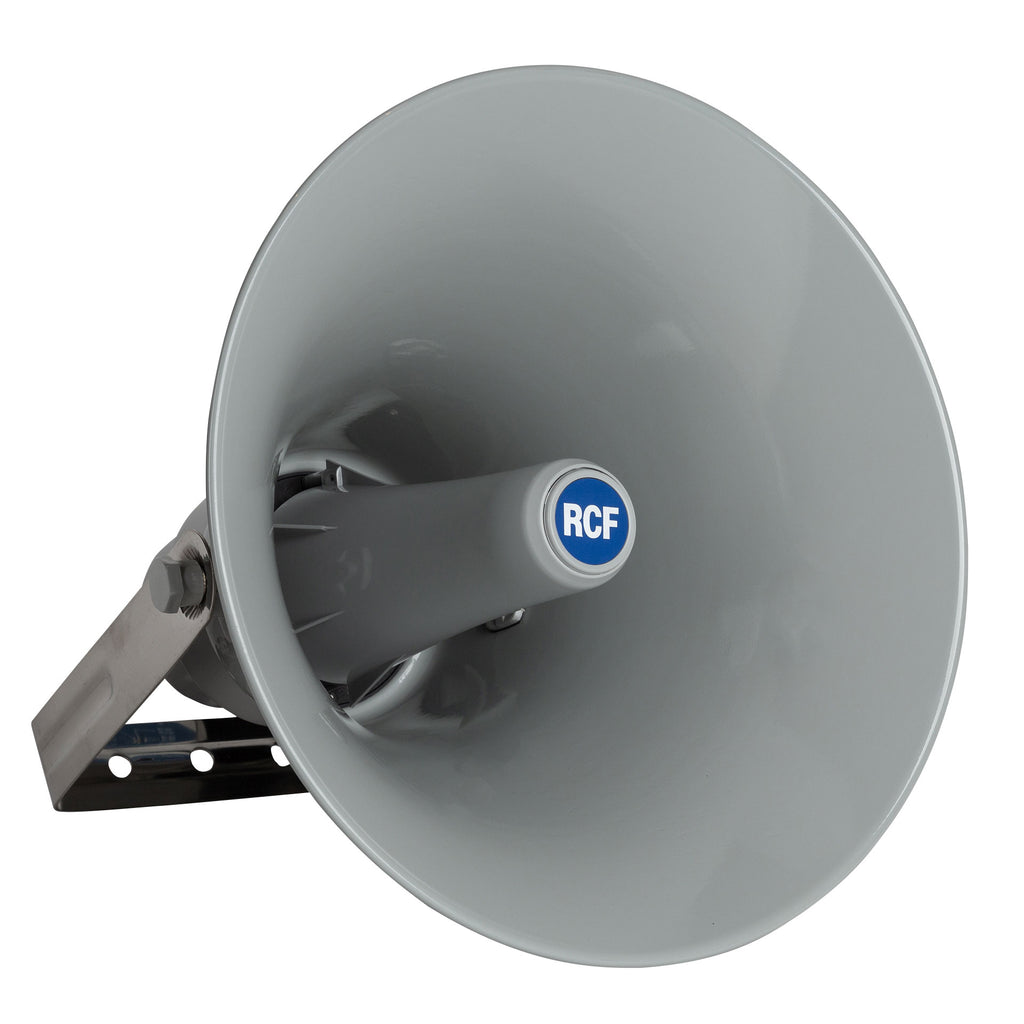

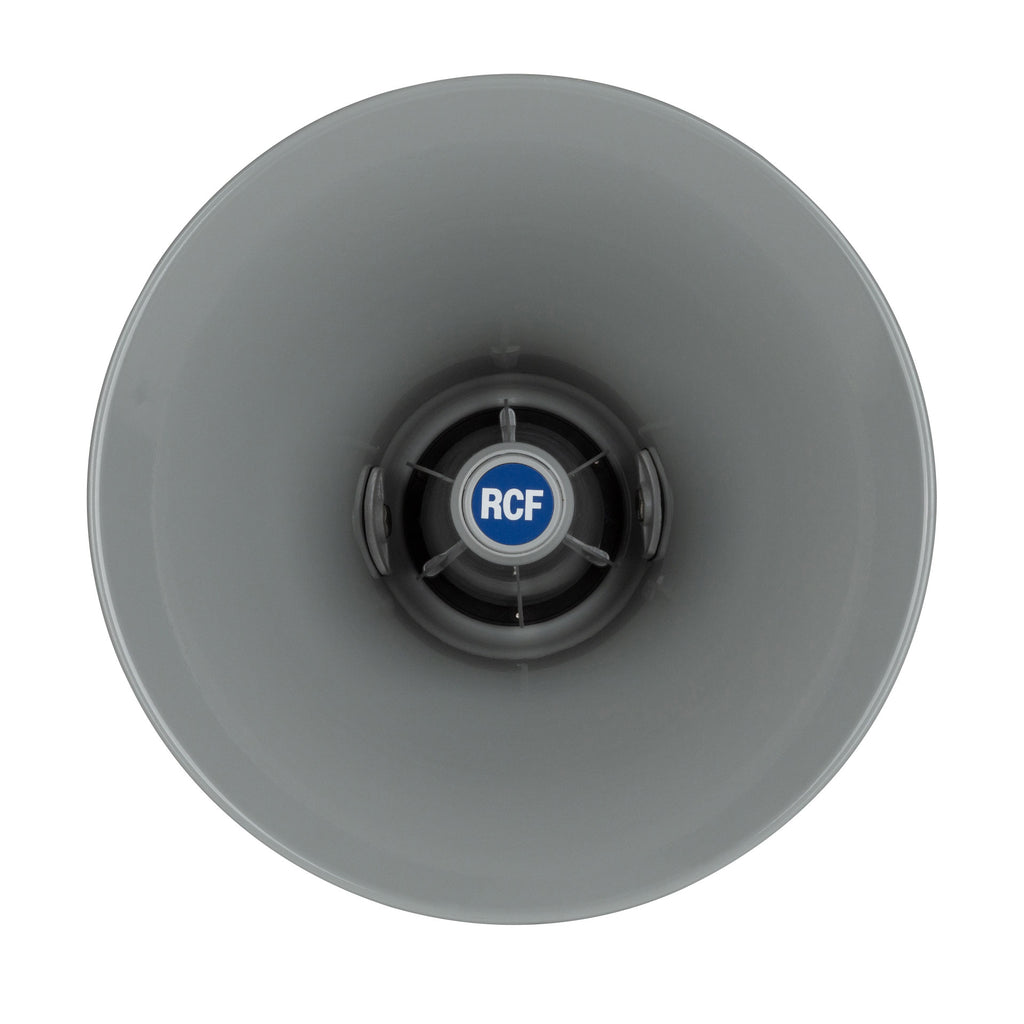

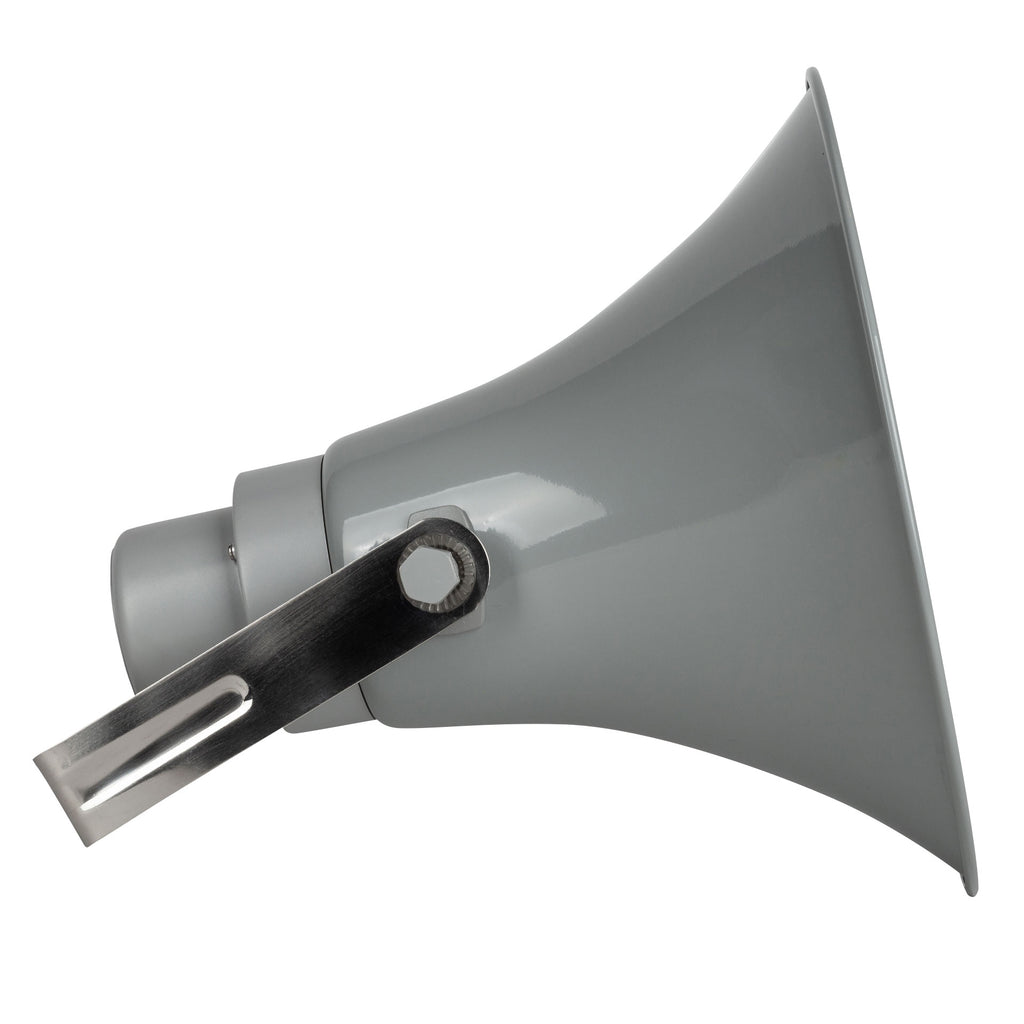

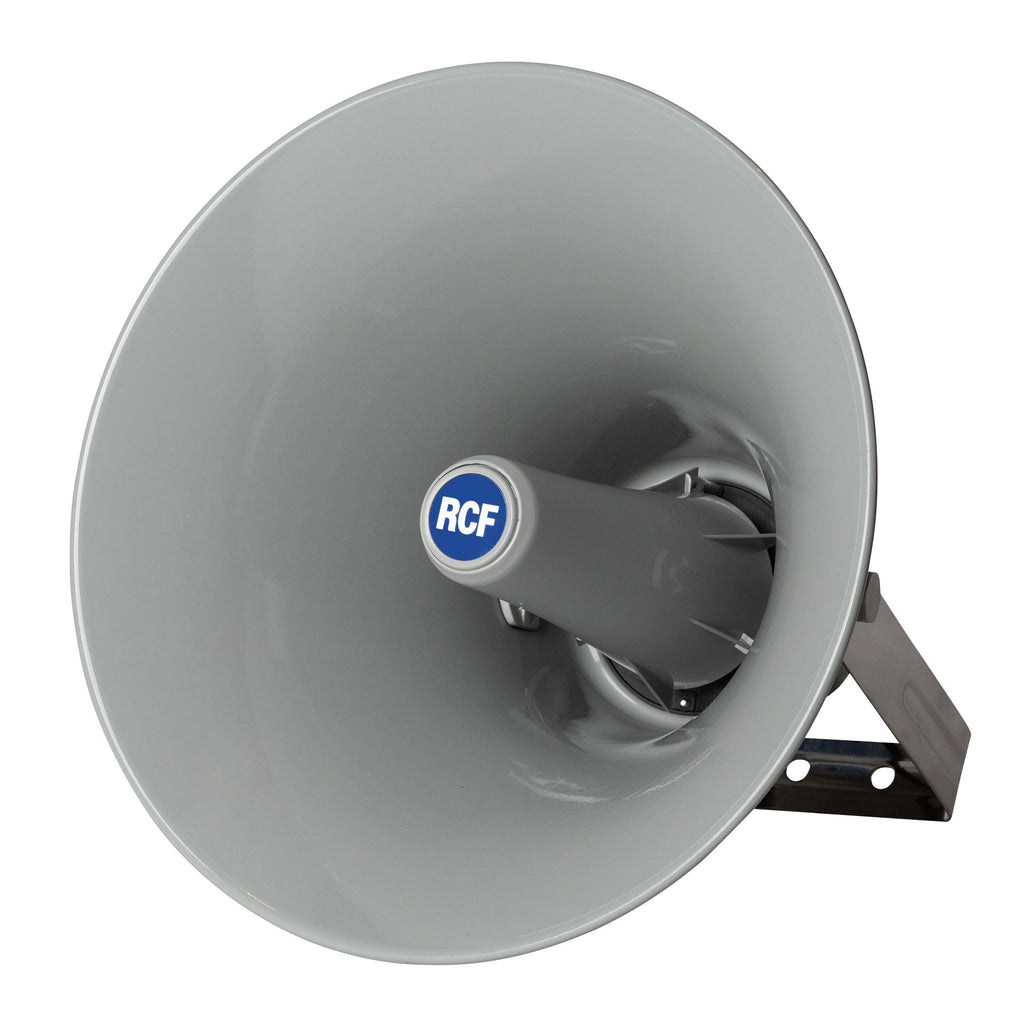

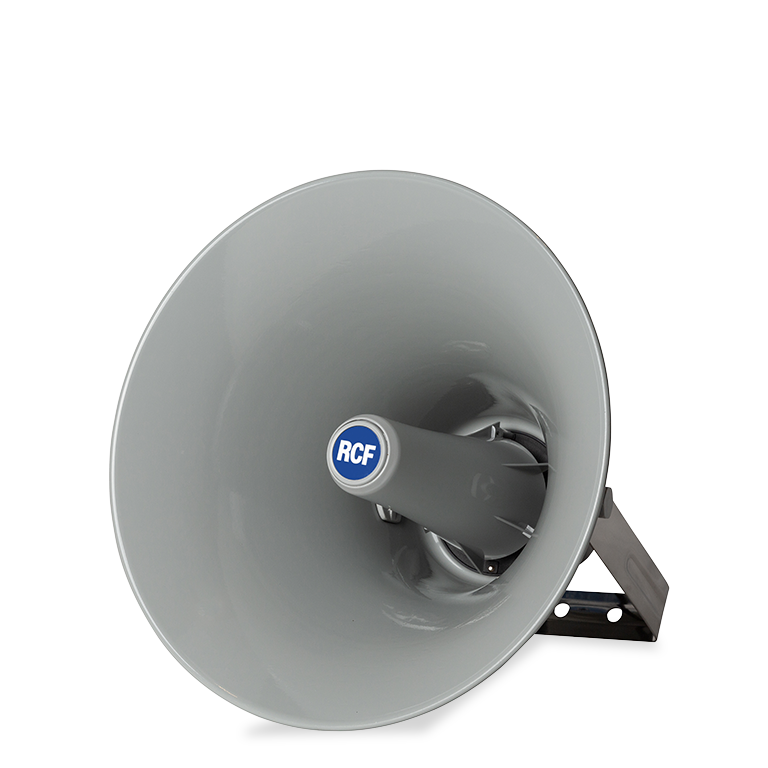

The HD 410/T are compact, lightweight and watertight horn speakers. They are designed to provide high efficiency and characterized by the high intelligibility of the reproduced sound with low distortion.The built-in line transformer makes it possible to connect the horn loudspeaker to both 70 and 100 V constant voltage lines, and select the delievered power by means of a rotary dial on the rear cover
Features

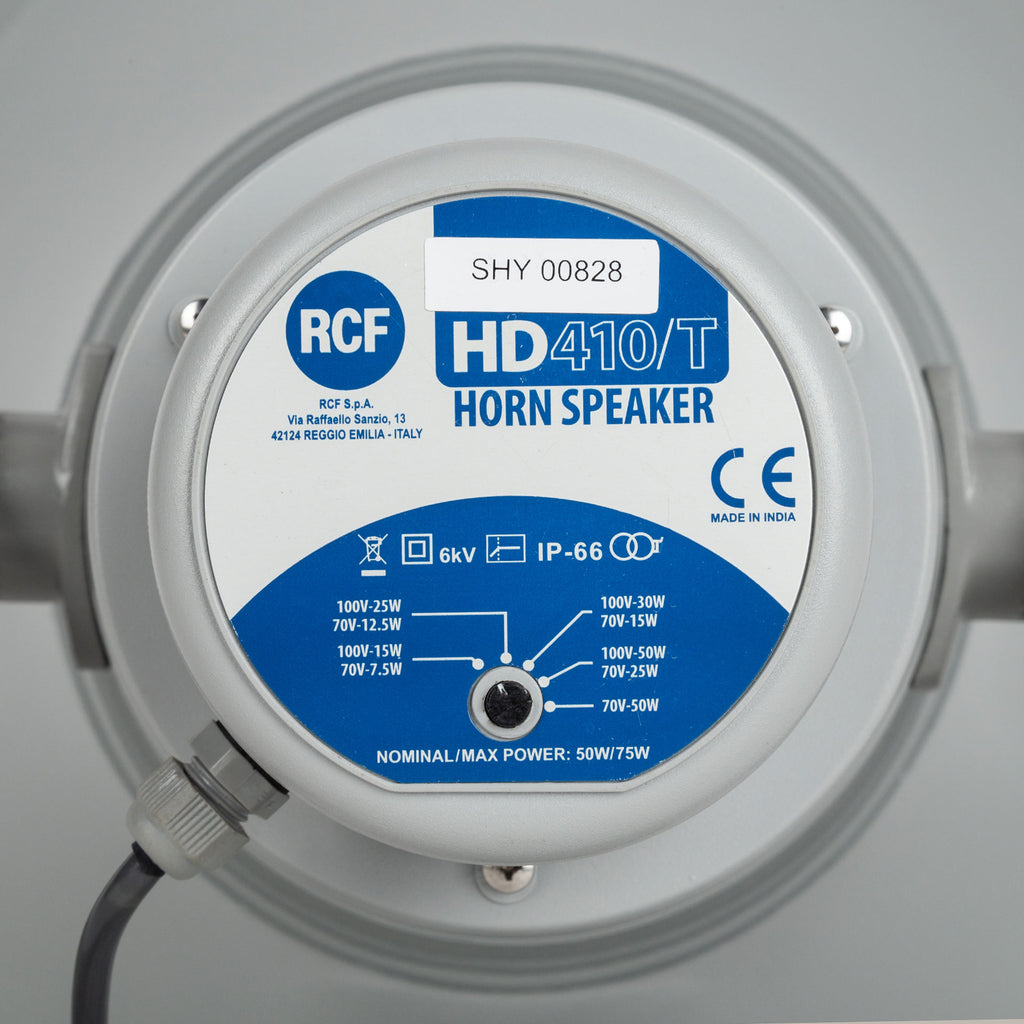

- Built-in line transformer with multitap power selector on rear cover
- Hi-pass filter for protecting driver against out-of-range low-freq
- IP 66 construction for indoor-outdoor environmental temperature between -25°C to +70°C
- Aluminum flare with UV-stabilized autoextinguishing UL-HB ABS rear cover
- Colour RAL 7035
Specifications
| Acoustical specifications | |
| Frequency Response (-10dB) | 180 Hz - 7000 Hz |
| Max SPL @ 1m | 130 dB |
| Coverage angle | 90° |
| System Sensitivity | 112 dB |
| Power section | |
| Amplification | Full Range |
| Power Handling | 50 W |
| Peak Power Handling | 200 W PEAK |
| Transducers | |
| Compression Driver | 1 x 2.0'' |
| Input/Output section | |
| Input connectors | Cable |
| Output connectors | Cable |
| Constant Voltage Transformer | 70/100 V |
| Power selection 1 | 50 W - 200 ohm |
| Power selection 2 | 30 W - 333 ohm |
| Power selection 3 | 25 W - 400 ohm |
| Power selection 4 | 15 W - 667 ohm |
| Power selection 5 | 7.5 W - 1333 ohm |
| Standard compliance | |
| IP protection grade | IP 66 |
| Safety agency | CE compliant |
| Physical specifications | |
| Cabinet/Case Material | Aluminum |
| Hardware | Stainless steel U bracket |
| Color | Grey - RAL 7035 |
| Size / Weight | |
| Depth | 393 mm / 15.47 inches |
| Diameter | 430 mm / 16.93 inches |
| Weight | 3.57 kg / 7.87 lbs |
| Shipping information | |
| Package Height | 415 mm / 16.34 inches |
| Package Width | 420 mm / 16.54 inches |
| Package Depth | 430 mm / 16.93 inches |
| Package Weight | 6.06 kg / 13.36 lbs |
