Save $1,170
RCFSKU: HD6045-EN
Price:
$2,689 $3,859

Shipping calculated at checkout

Description

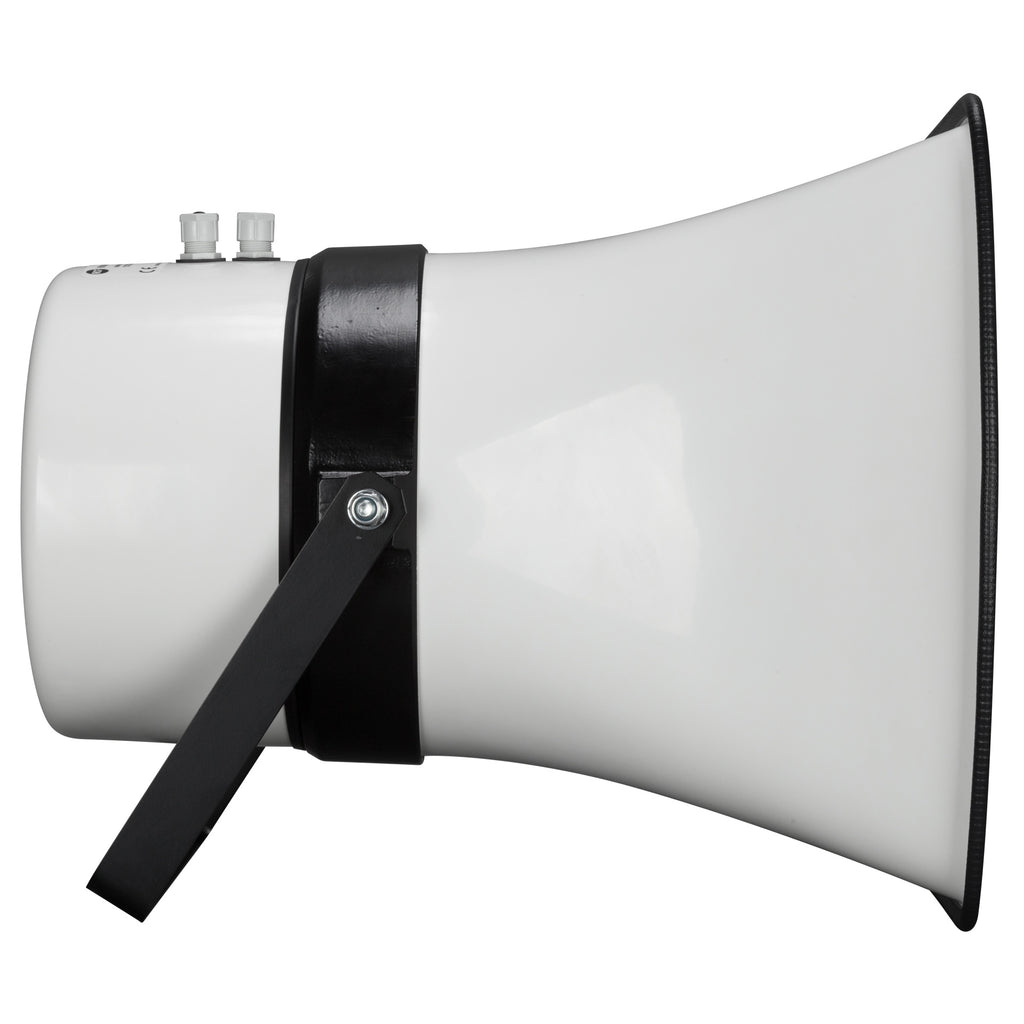

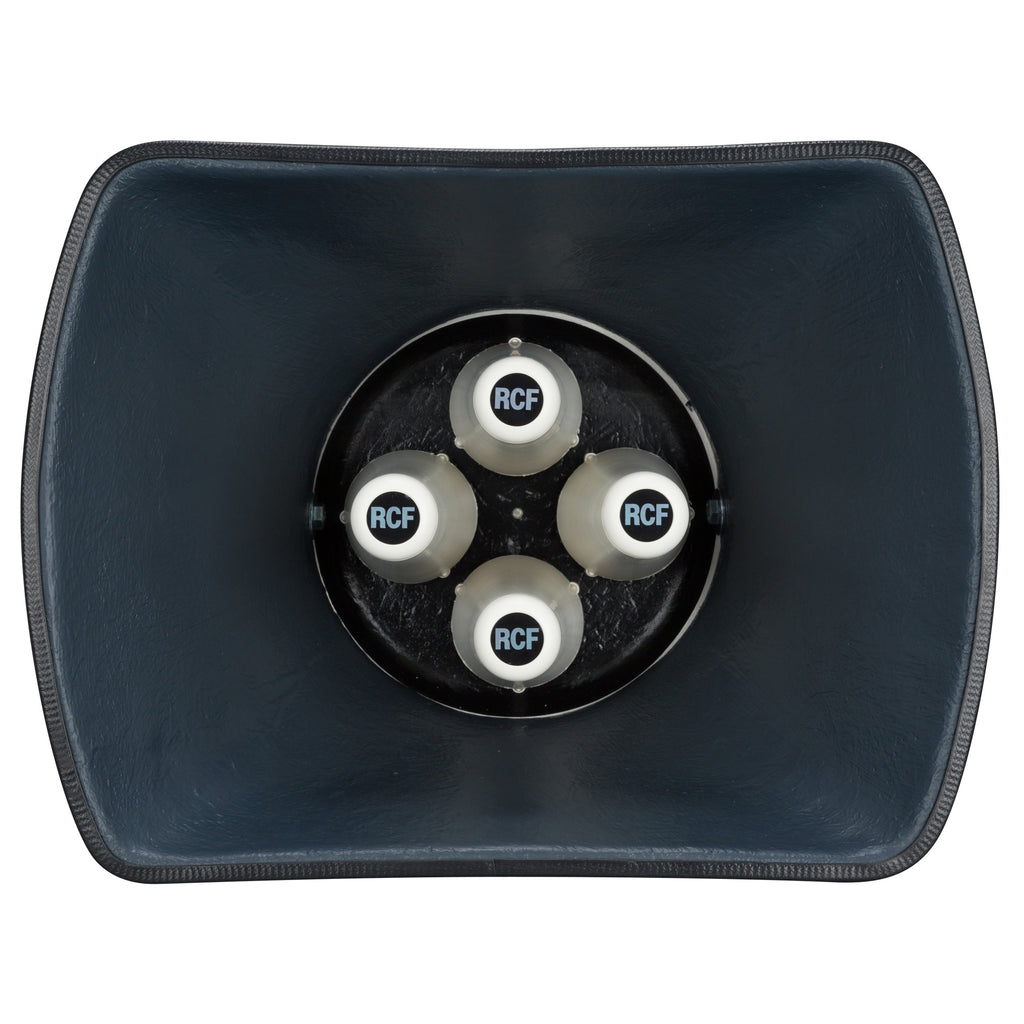

HD 6045EN is a fiberglass horn designed to withstand the most adverse weather conditions, offering high sound reproduction quality and sound pressure levels. A high level of efficiency and sound pressure can be obtained thanks to the use of 4 dynamic compression driver units. The terminal connection blocks, for input and output flameproof cables, are made of ceramic material. A thermal fuse protects the integrity of the line in case of heat affecting the speaker.

Features

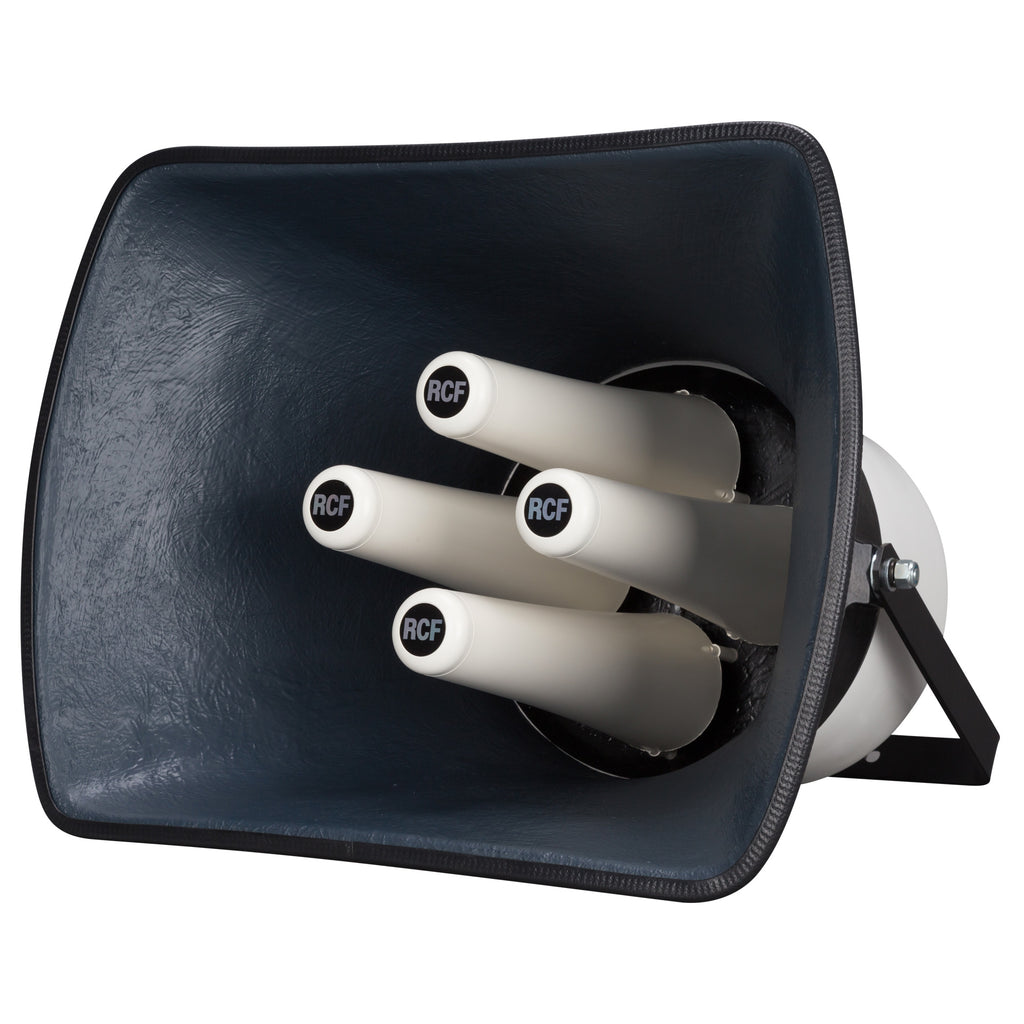

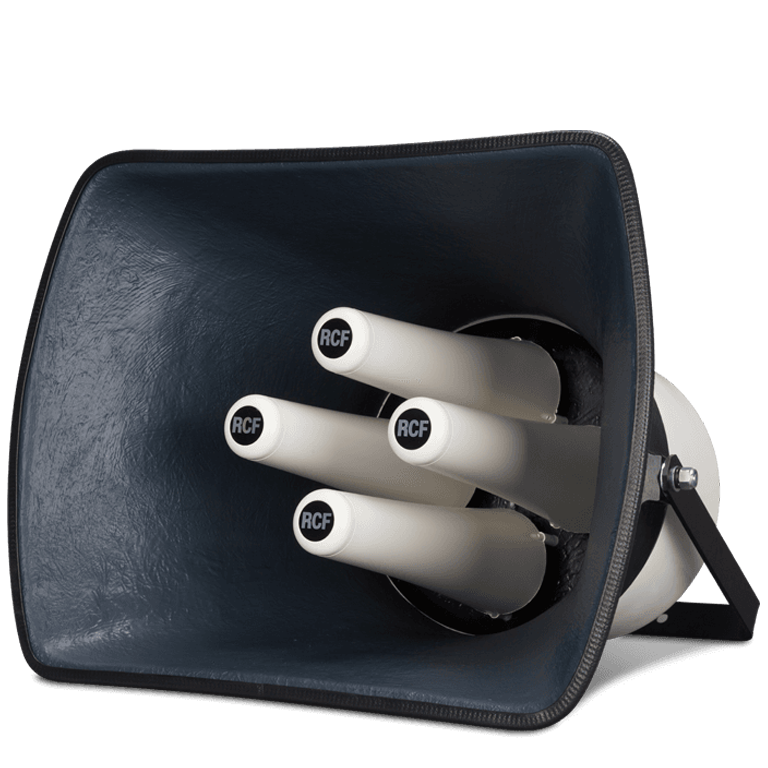

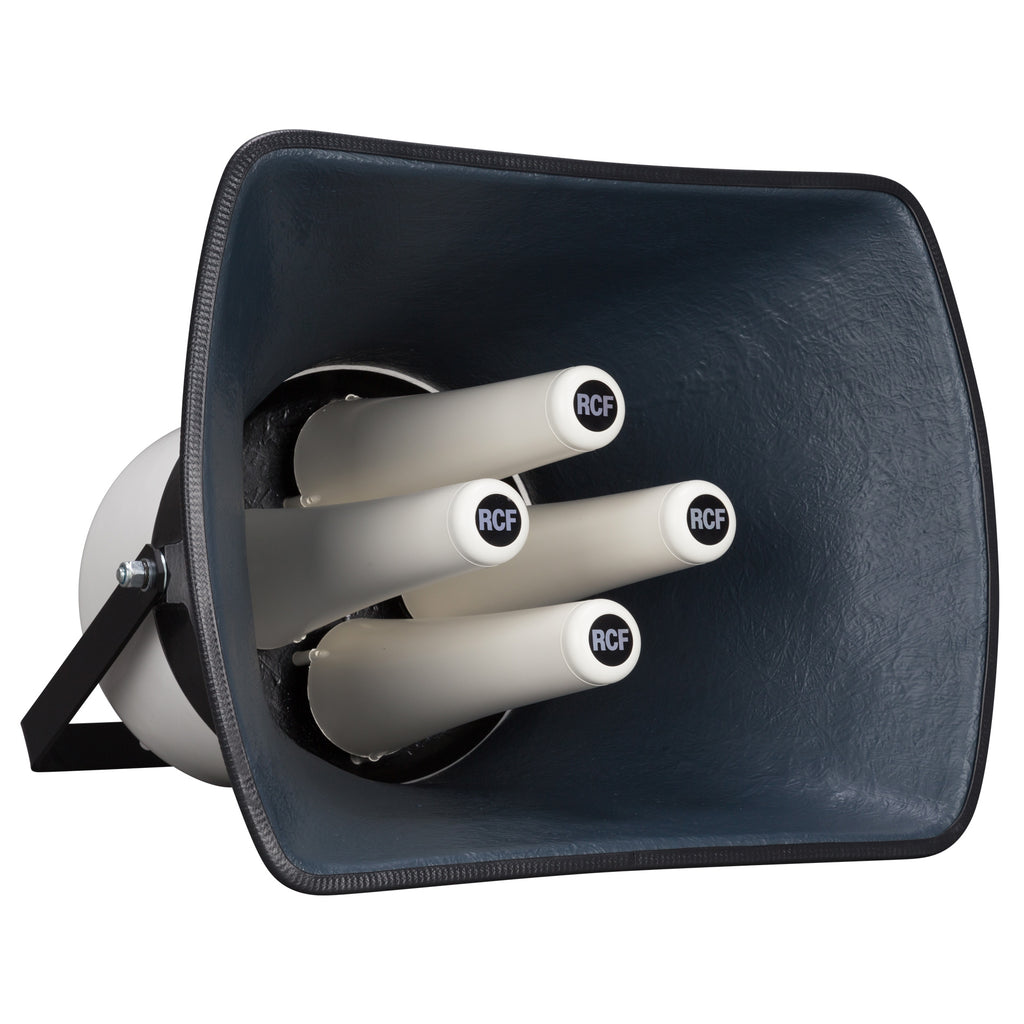

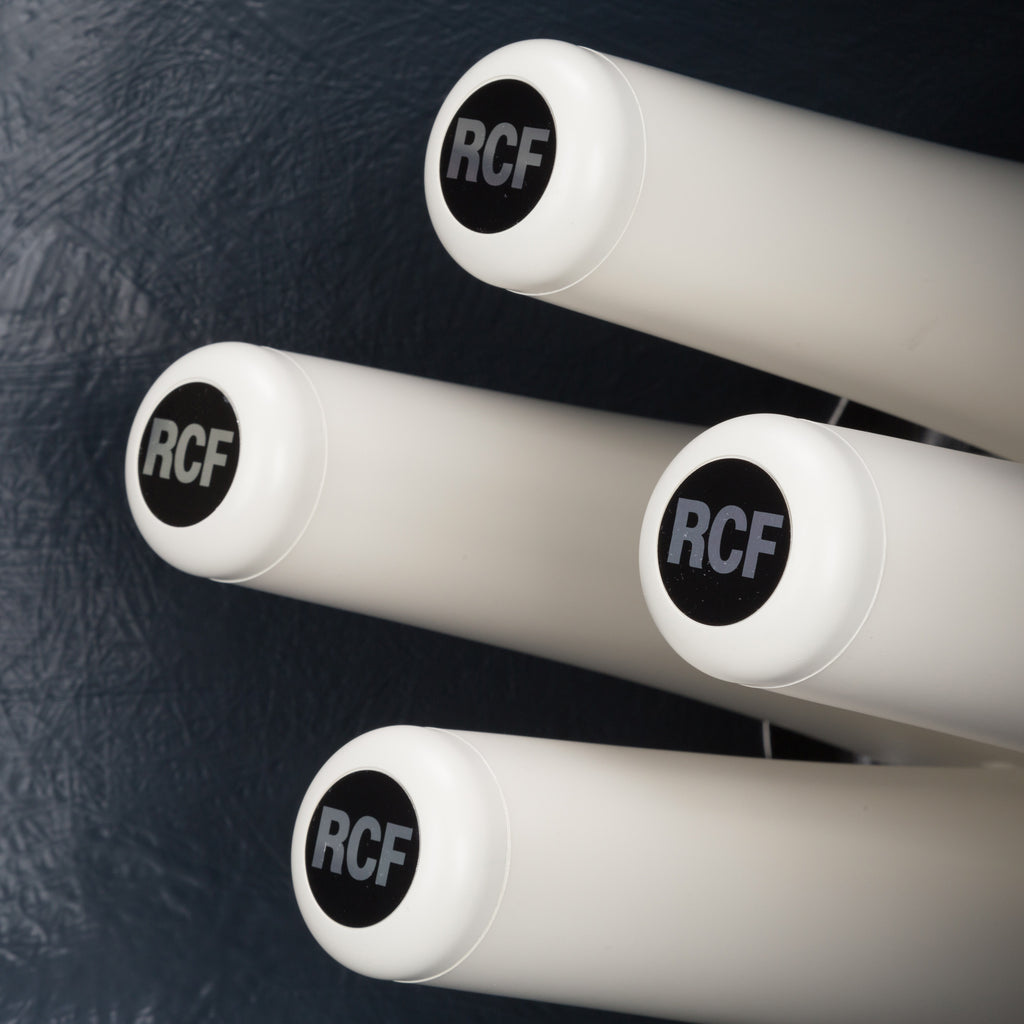

  • 4 x 2" compression drivers.
  • Rated power (100 V): 200 W.
  • 110 dB sensitivity.
  • Colour white RAL 9003.
  • Fiberglass body.

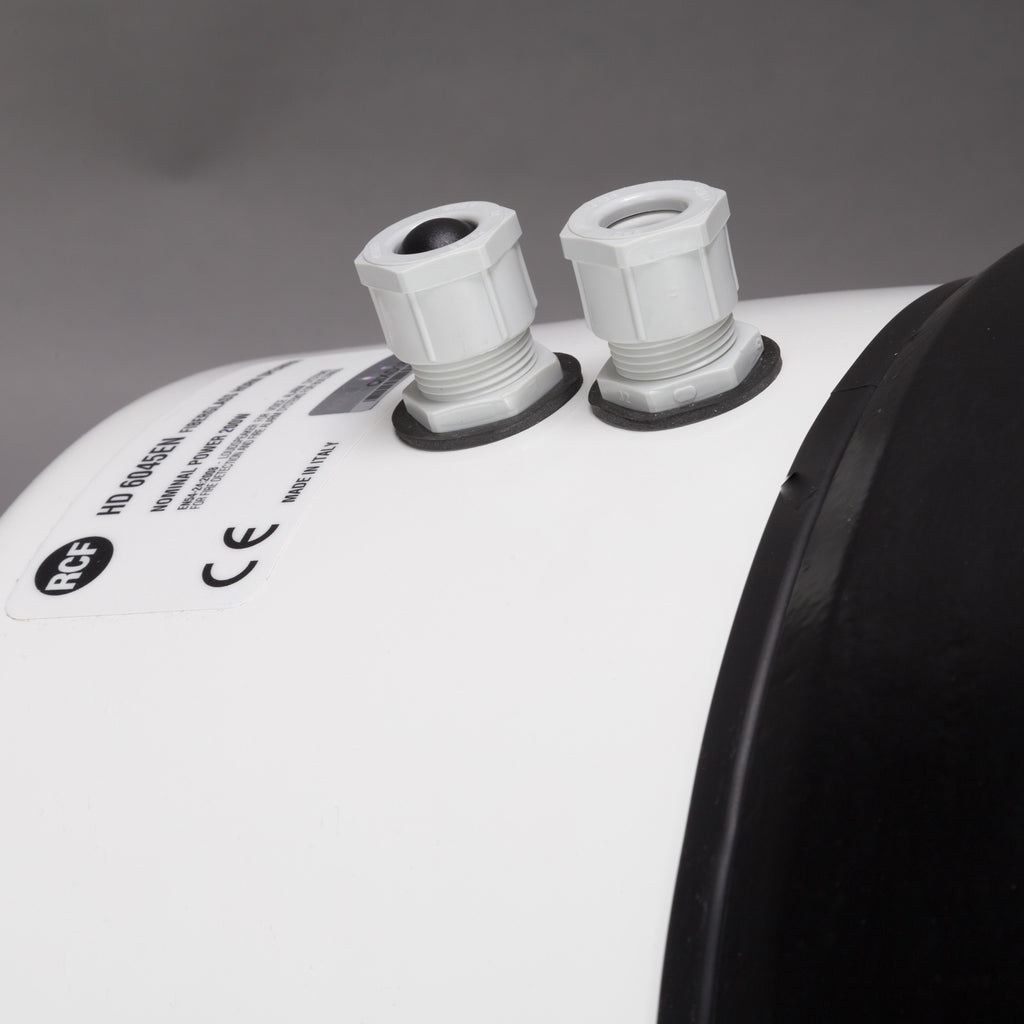

  • In/out ceramic terminal block.
  • Thermal fuse protection.
  • Protection grade IP65.

Specifications

Acoustical specifications
Frequency Response (-10dB) 200 Hz - 10000 Hz
Max SPL @ 1m 133 dB
Max SPL @ 4m 114 dB
Horizontal coverage angle 60°
Vertical coverage angle 50°
System Sensitivity 110 dB
System Sensitivity 1W @ 4m 91 dB
Power section
Power Handling 200 W
Peak Power Handling 800 W PEAK
Protections Thermal fuse
Recommended Amplifiers DXT 3000, DXT 4000, DXT 7000
Transducers
Compression Driver 4 x 2.0''
Input/Output section
Input connectors Ceramic screw terminals
Output connectors Ceramic screw terminals
Constant Voltage Transformer 100 V
Power selection 1 200 W - 50 ohm
Standard compliance
IP protection grade IP 65
Safety agency CE compliant
EN54-24 certified Yes
CPR number 0068-CPR-030/2015
Physical specifications
Cabinet/Case Material Fiberglass
Color White - RAL 9003
Size / Weight
Height 475 mm / 18.7 inches
Width 620 mm / 24.41 inches
Depth 564 mm / 22.2 inches
Weight 21.4 kg / 47.18 lbs
Shipping information
Package Height 615 mm / 24.21 inches
Package Width 645 mm / 25.39 inches
Package Depth 495 mm / 19.49 inches
Package Weight 23.6 kg / 52.03 lbs
