Save $950
RCFSKU: HDL10-A
Price:
$2,199 $3,149

Shipping calculated at checkout

Description

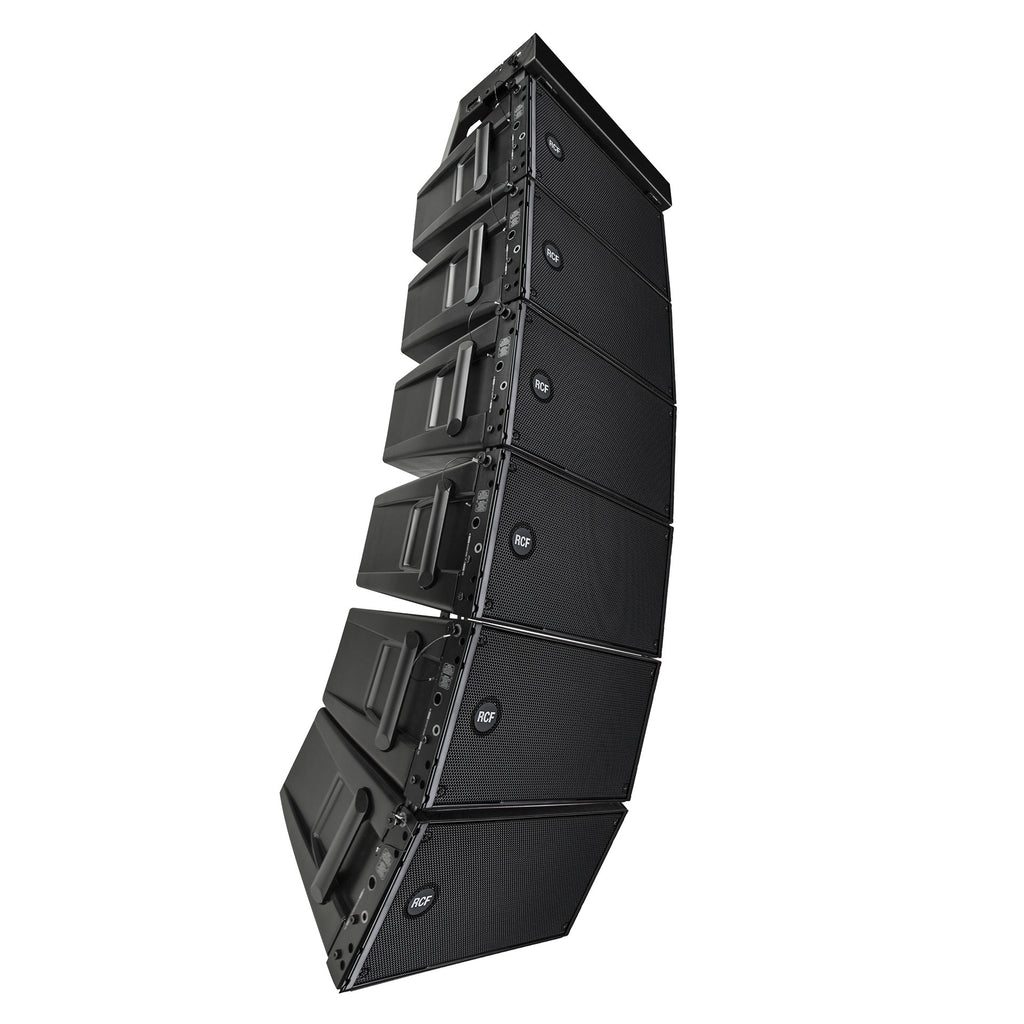

The very compact size, no compromise transducers and a unique composite cabinet design make the HDL 10-A the perfect tool in many situations. Ideal in live sound reinforcement and reliable installed situations. The HDL 10-A is the ideal choice when line array performance is needed and a fast and easy set up is a must. The system is powered from a 1400 Watt Peak Power 2 way digital amplifier, sound is processed from a powerful DSP. The HDL 15-AS is the ideal flyable bass complement for the HDL 10-A array system.

Features

  • 1400 Watt Peak power - 700 Watt RMS
  • 133 dB max SPL
  • 65 Hz 20 kHz frequency response
  • 2 x 8" Woofers
  • 1 x 2" Compression Driver
  • DSP controlled Input section with selectable presets
  • Tour grade safe and solid variable mechanics
  • Composite PP enclosure structurally wooden reinforced

Tour sound in a compact size

The HDL 10-A is a true active and high power ready to use touring system equipped with a high efficiency Class-D amplifier that delivers superior SPL reducing energy requirement. The integrated processing and the cabling reduction will make the set-up faster and easier and, thanks to its compact size, the truck space requirement is reduced to the minimum.

PRECISION SYSTEM DESIGN AND SIMULATION

RDShape is a 3D sound system design and acoustic-simulation platform for RCF and TT+ Audio speakers and subs. It enables touring pros, venue designers, and engineers to virtually lay out rigs, predict coverage and sound pressure level (SPL), verify rigging safety, and export system documentation.

Accurate 3D Acoustic Simulation Comprehensive Sound System Design AutoSplay and Sub Array Configuration Mechanical Validation and Safety

3D Venue Modeling STEP files for Collaboration Fine Tune with EQs & Filters Available on Windows and macOS

RCF precision transducers

High frequencies - The ND640 large format compression driver delivers one of the key advantages of the HDL 10-A, the 2.5" voice coil allows a crossover point of 800Hz and therefore almost all of the vocal range can be produced by this driver. This allows better coverage and dispersion control, and superior efficiency.

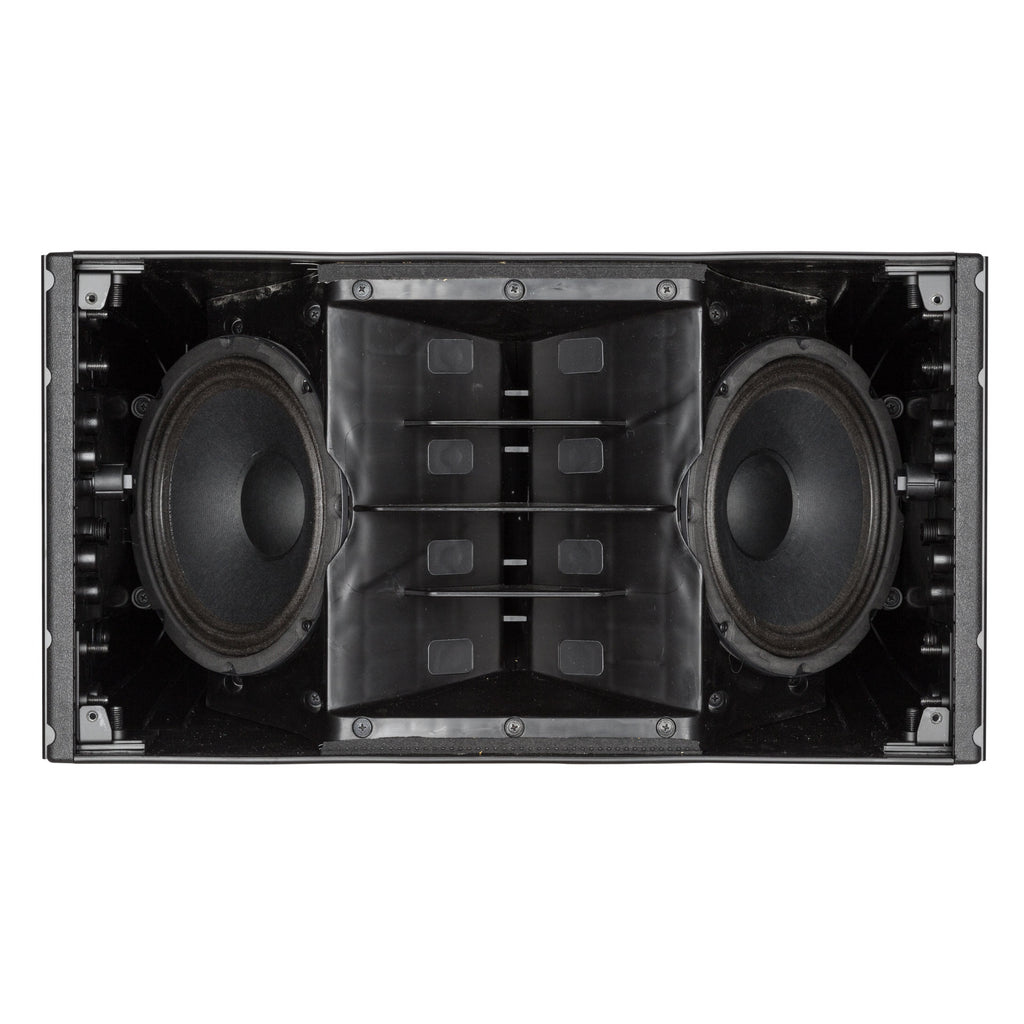

Low frequencies - High power woofers. Very high efficient and controlled bass reproduction. 2 X 8" Woofers, 2.0" Inside-Outside voice coil Water resistant fibre doped cone Polycotton M-roll surround High power magnetic structure

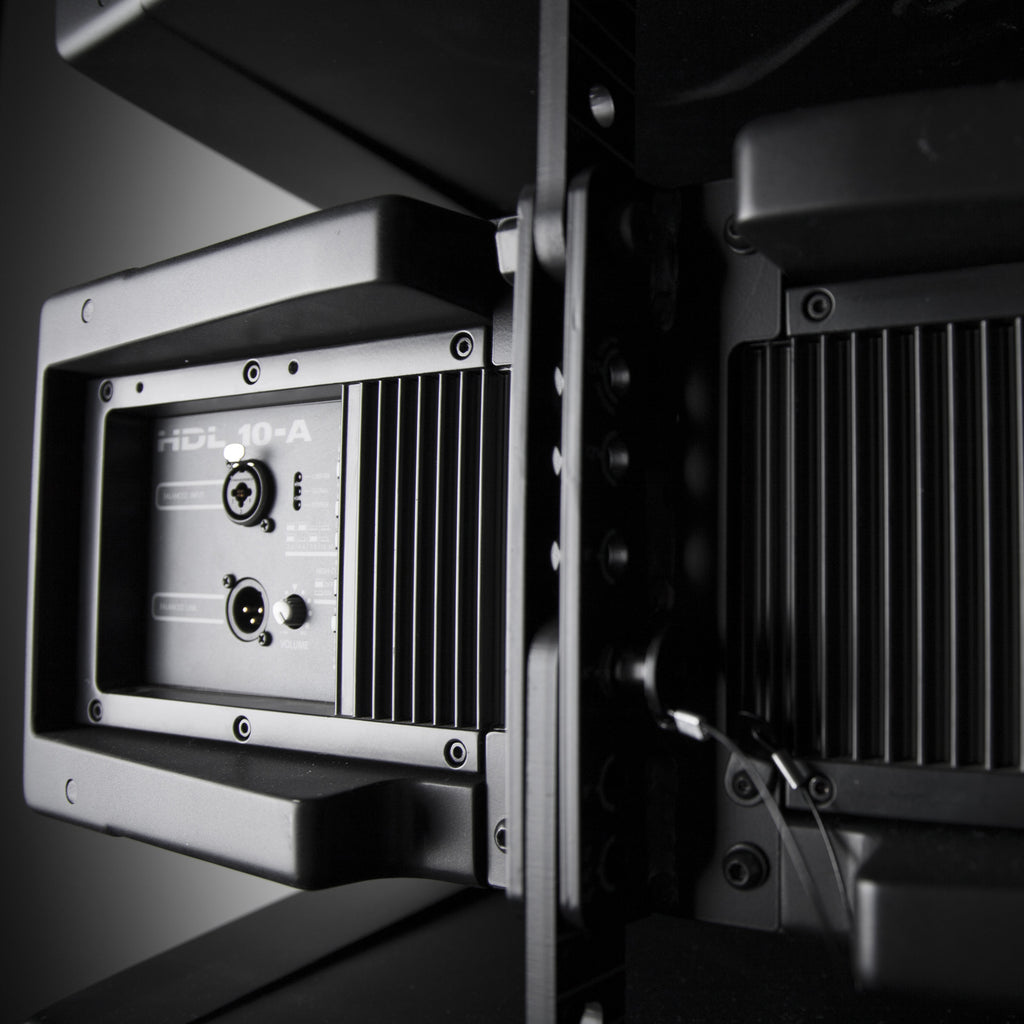

Powerful class D amplifiers

RCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. HDL amplifiers deliver a ultra-fast attack, realistic transient response, and impressive audio performance. The amplifier features a solid machined aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. All the HDL amplifiers present SMPS power supply section to produce maximum output and minimum weight.

Specifications

Acoustical specifications
Frequency Response 65 Hz - 20000 Hz
Max SPL @ 1m 133 dB
Horizontal coverage angle 100°
Vertical coverage angle 15°
Transducers
Compression Driver 1 x 2.0'', 2.5'' v.c
Woofer 2 x 8'', 2.0'' v.c

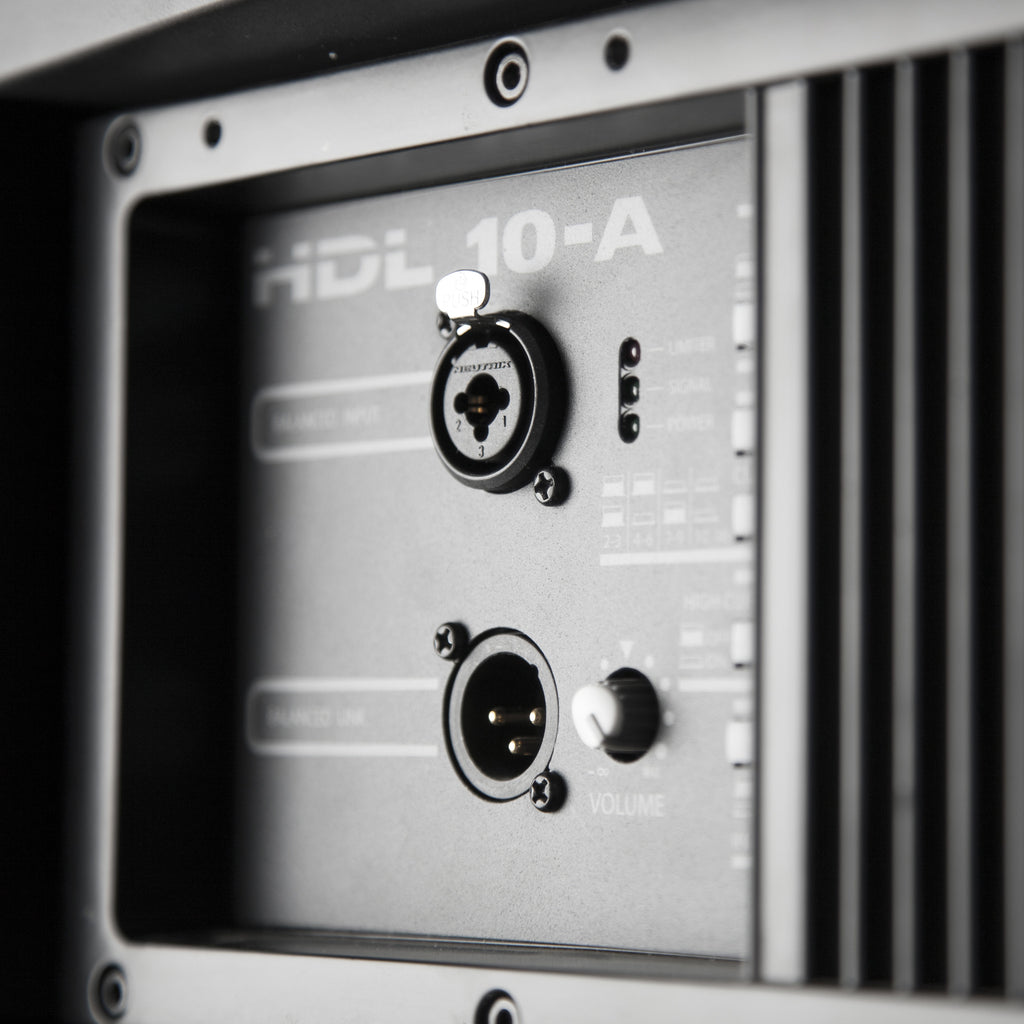

Input/Output section
Input signal bal/unbal
Input connectors XLR
Output connectors XLR
Input sensitivity -2 dBu/+4 dBu
Processor section
Crossover Frequencies 800 Hz
Protections Thermal, RMS
Limiter Soft Limiter
Controls Cluster, HF, High curving, Indoor

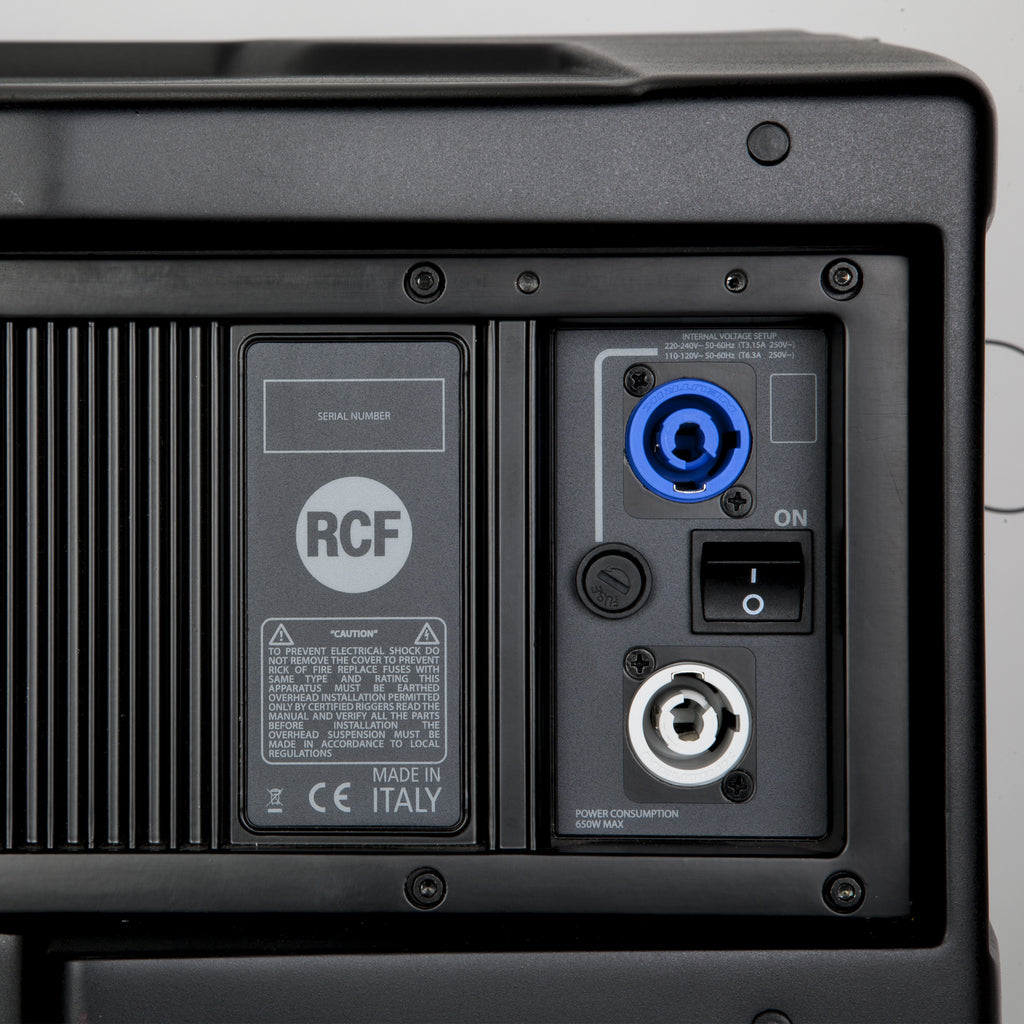

Power section
Total Power 1400 W Peak, 700 W RMS
High frequencies 400 W Peak, 200 W RMS
Low frequencies 1000 W Peak, 500 W RMS
Cooling Convection
Connections Powercon IN/OUT
Standard compliance
Safety agency CE compliant
Physical specifications
Cabinet/Case Material PP Composite

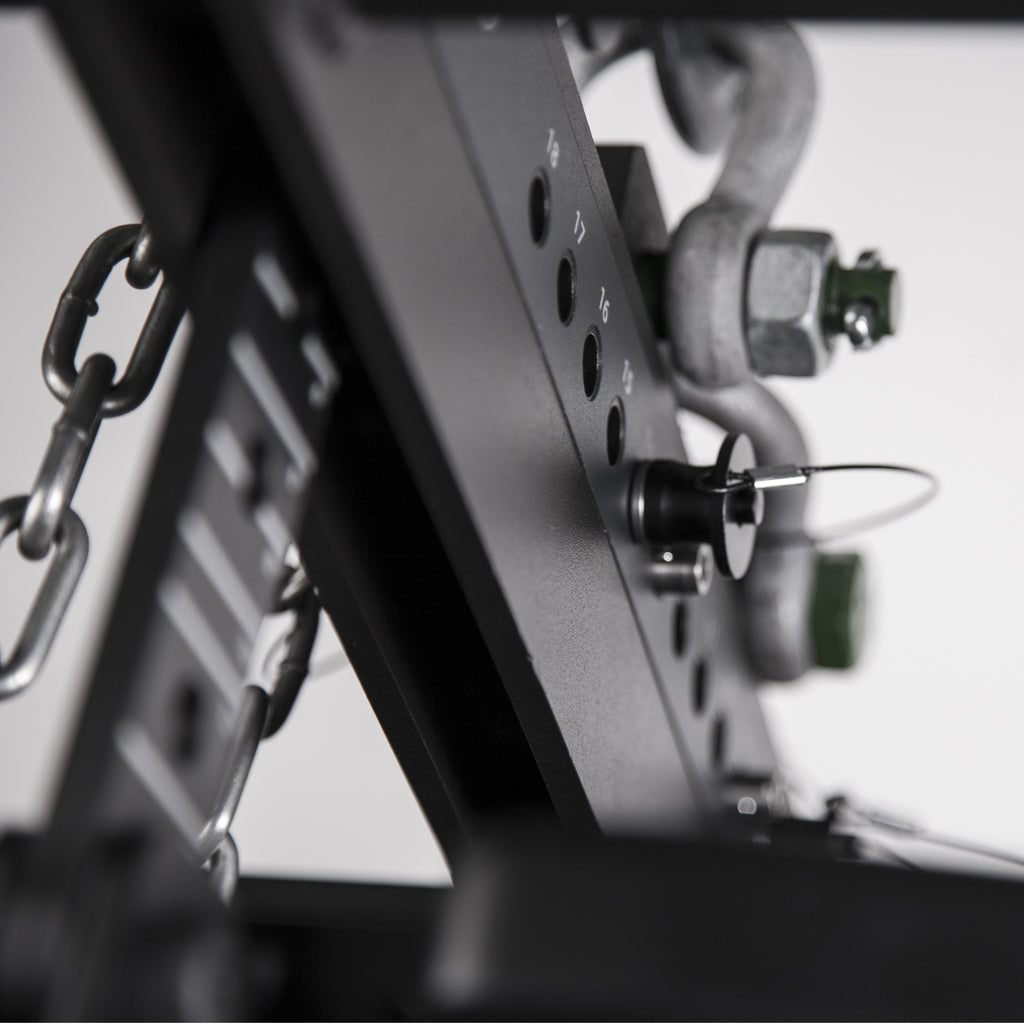

Hardware Rigging flyware

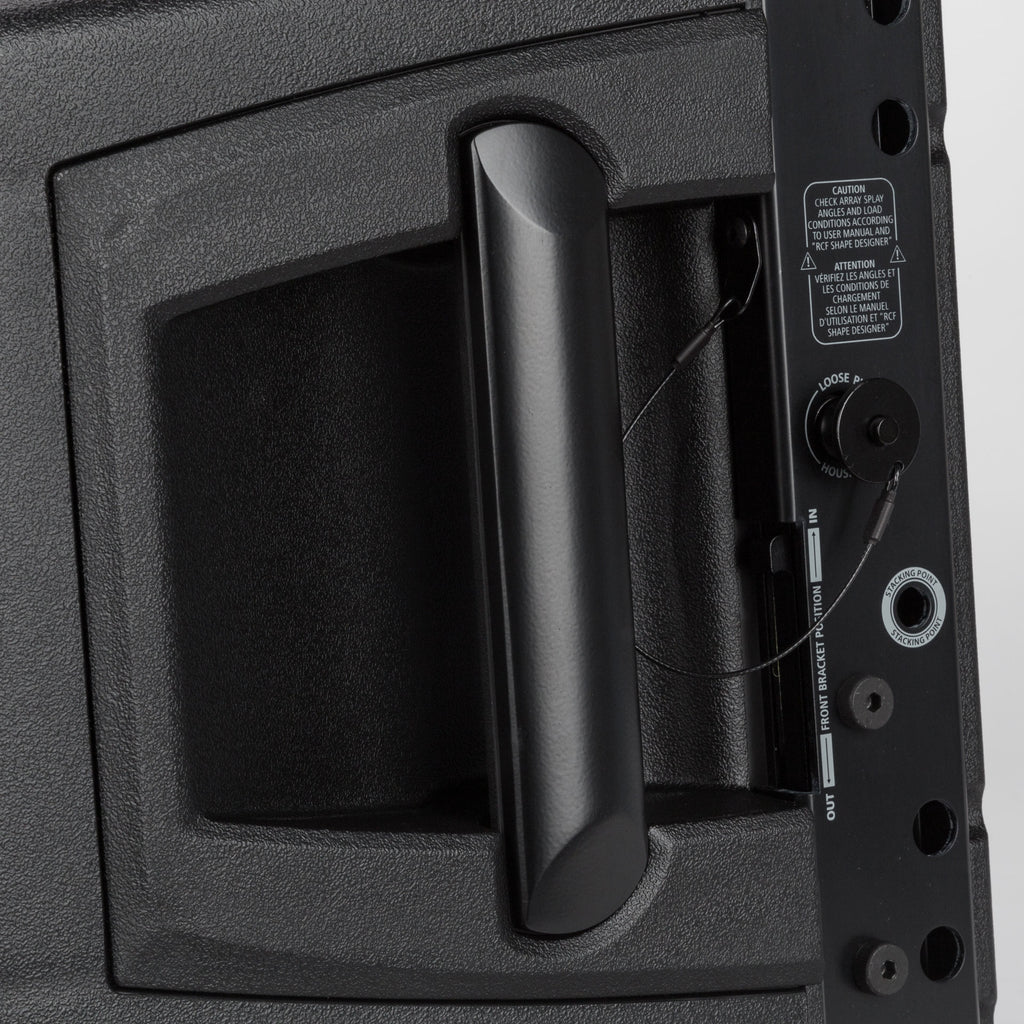

Handles 2 side
Grille Steel
Color Black, White
Size / Weight
Height 294 mm / 11.57 inches
Width 569 mm / 22.4 inches
Depth 434 mm / 17.09 inches
Weight 20.4 kg / 44.97 lbs
Shipping information
Package Height 375 mm / 14.76 inches
Package Width 650 mm / 25.59 inches
Package Depth 500 mm / 19.69 inches
Package Weight 23 kg / 50.71 lbs
