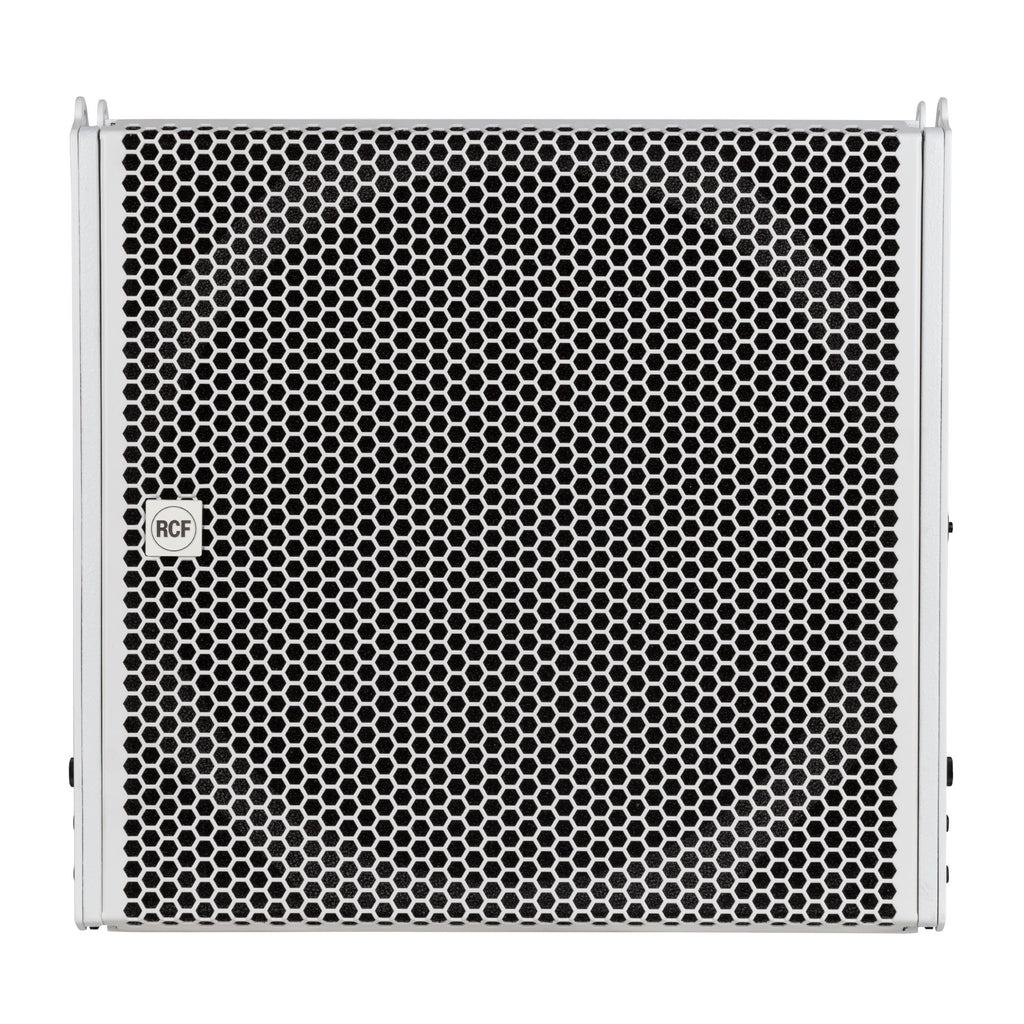

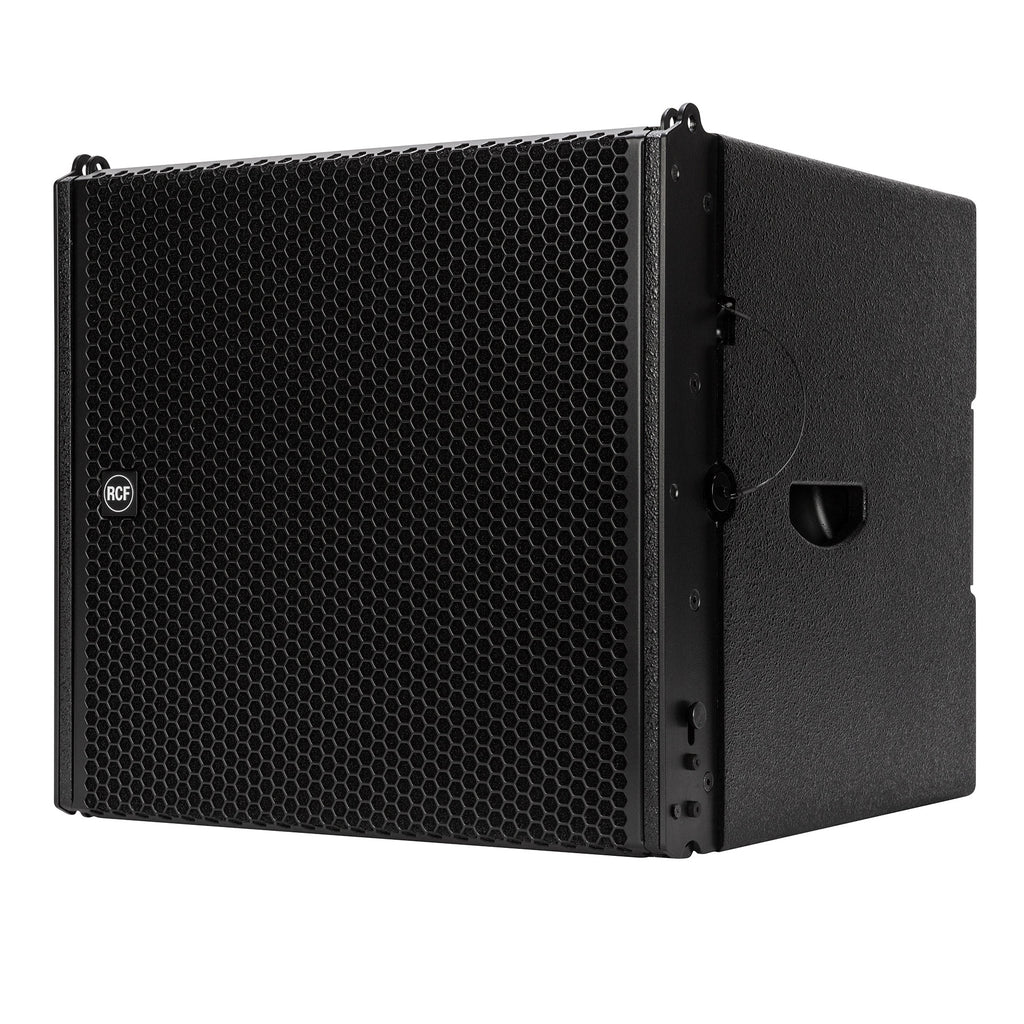

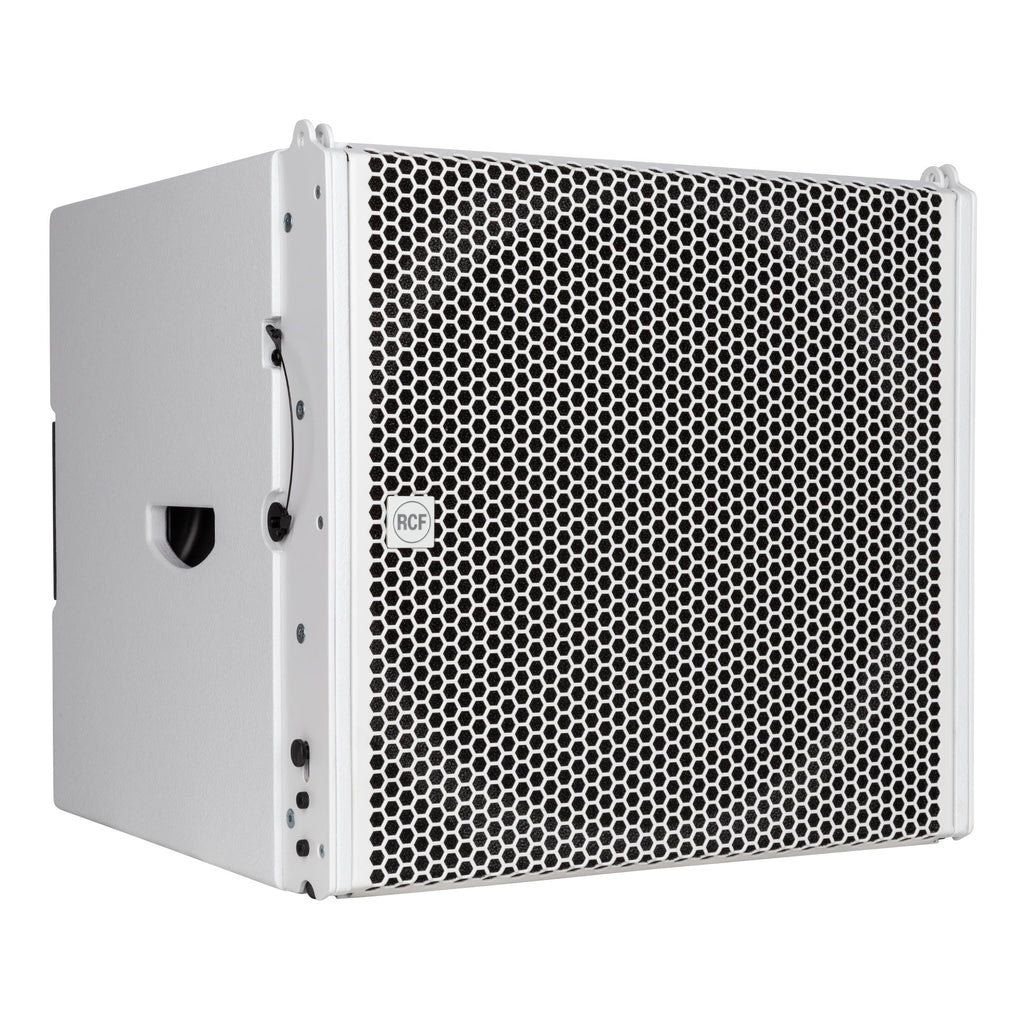

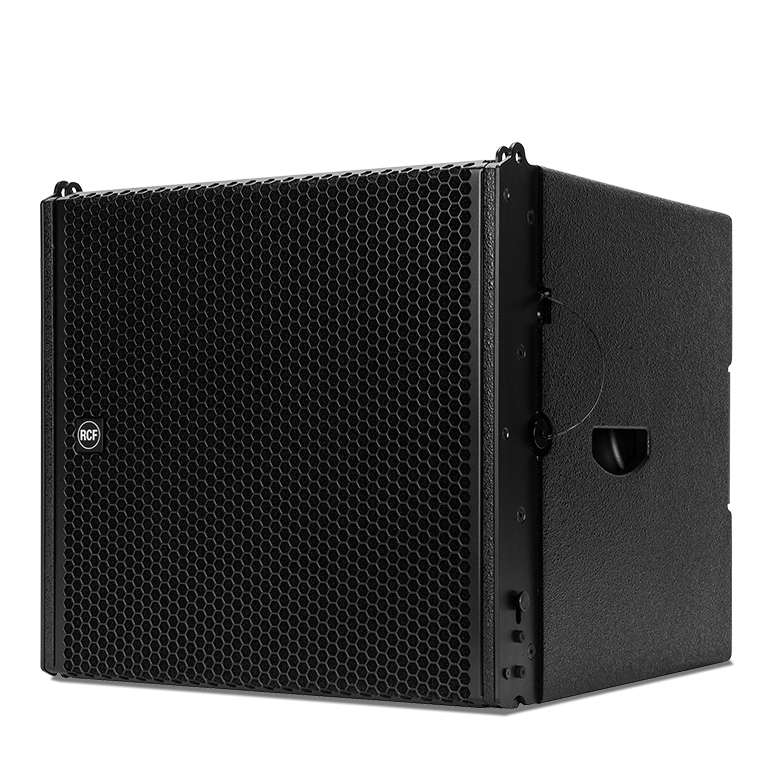

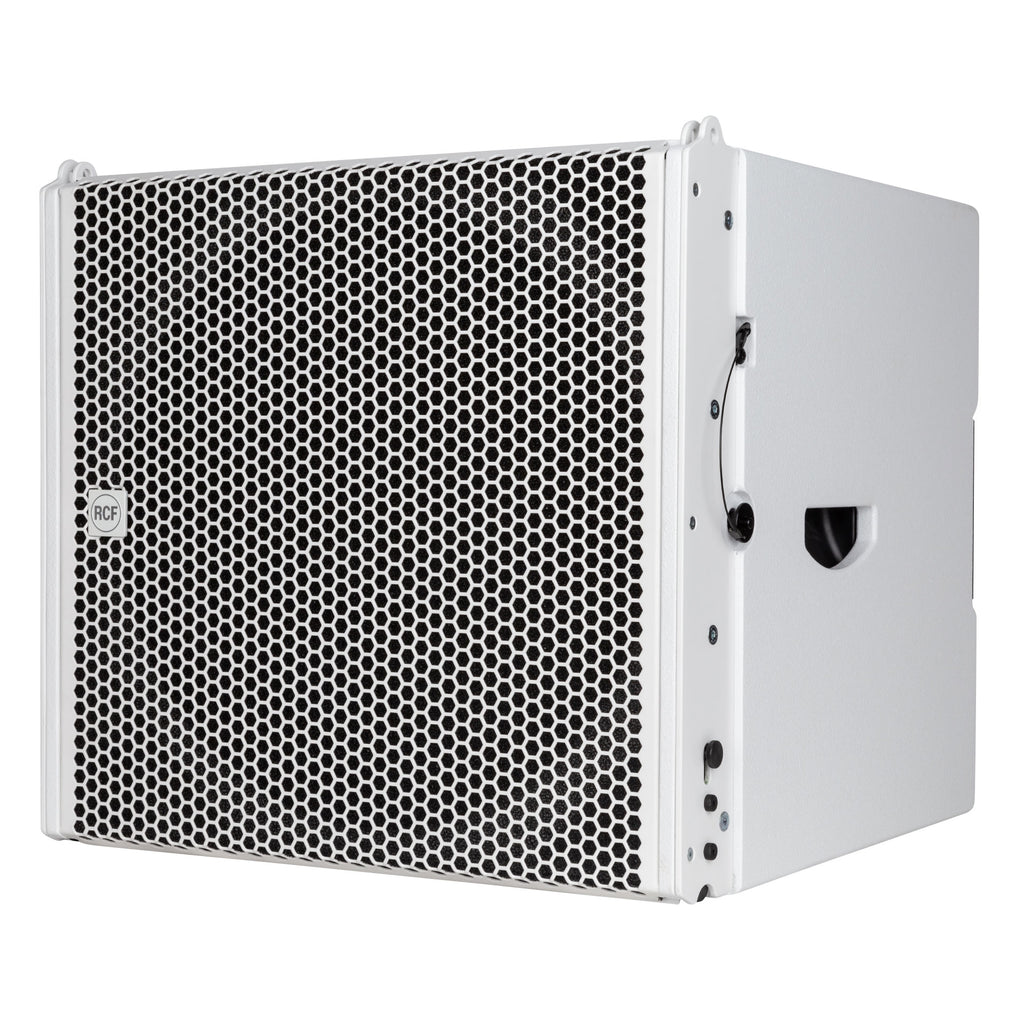

Description

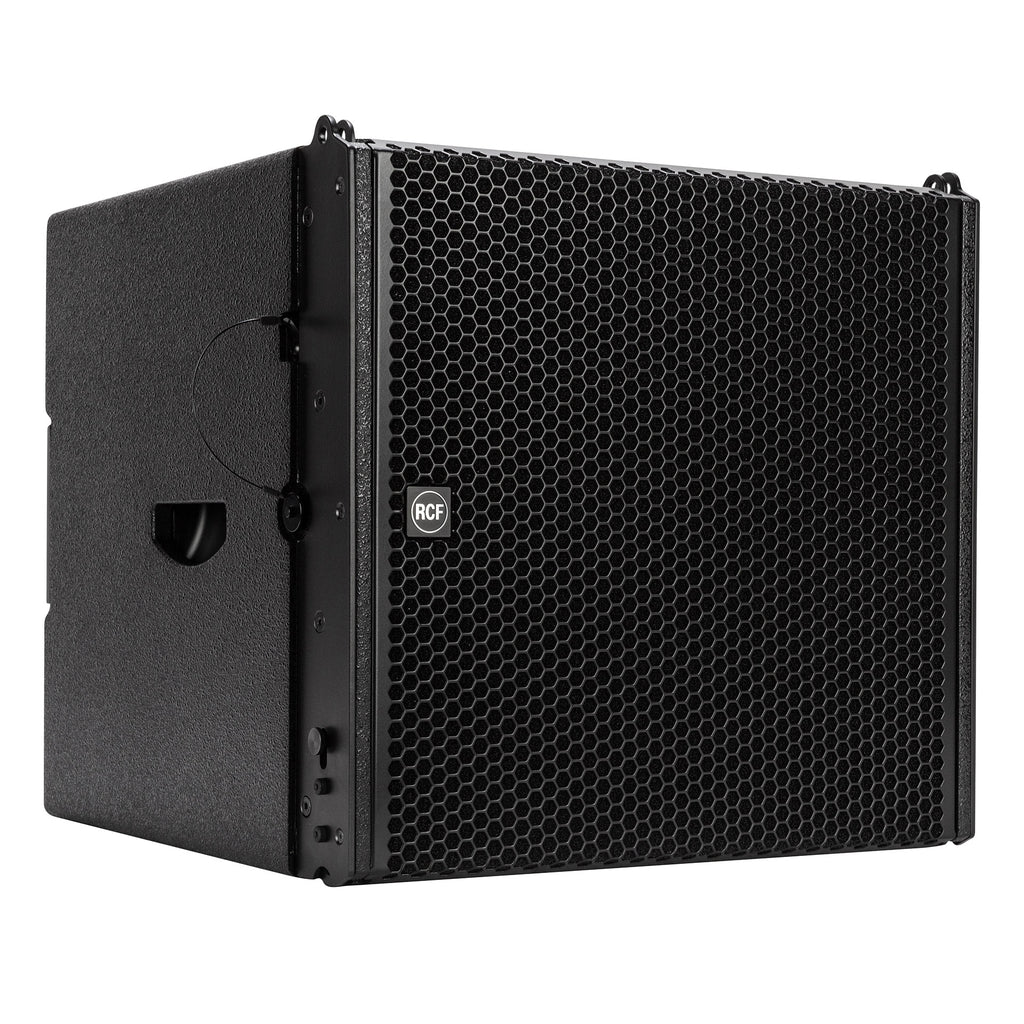

The HDL 35-AS is the ideal flyable bass complement for the HDL 26-A array system. It features a baltic birch plywood cabinet housing one 4.0" voice coil, 15" Neodymium woofer to handle frequencies from 40 Hz to 140 Hz with the maximum linearity and lowest distortion. The 2200 Watts class-D amplifier onboard delivers excellent playback clarity and up to 134 decibels SPL max. Due to its compatibility with RDNet - remote monitoring and control, the HDL 35-AS is part of the professional HDL System.
Features
- 134 dB Max SPL
- 2200W Class-D Amplifier
- 40-140 Hz frequency response
- RDNet Networked Management
- 1x15" Neodymium Woofer, 4.0" voice coil
NETWORKED CONTROL AND MUCH MORE
RDNet is an advanced platform for integrated monitoring and control of sound systems - from small live and installed setups to massive arena systems. Based on a robust networked architecture, RDNet combines system control, line array design, and comprehensive audio measurements into a single powerful software package. Engineers and technicians can intuitively manage every device on the network, from individual components to multiple groups. The platform provides full DSP control of compatible devices, with flexible configuration tools for perfectly tuning the system response at maximum speed. Users have real-time access and oversight of all key settings from a centralized interface.

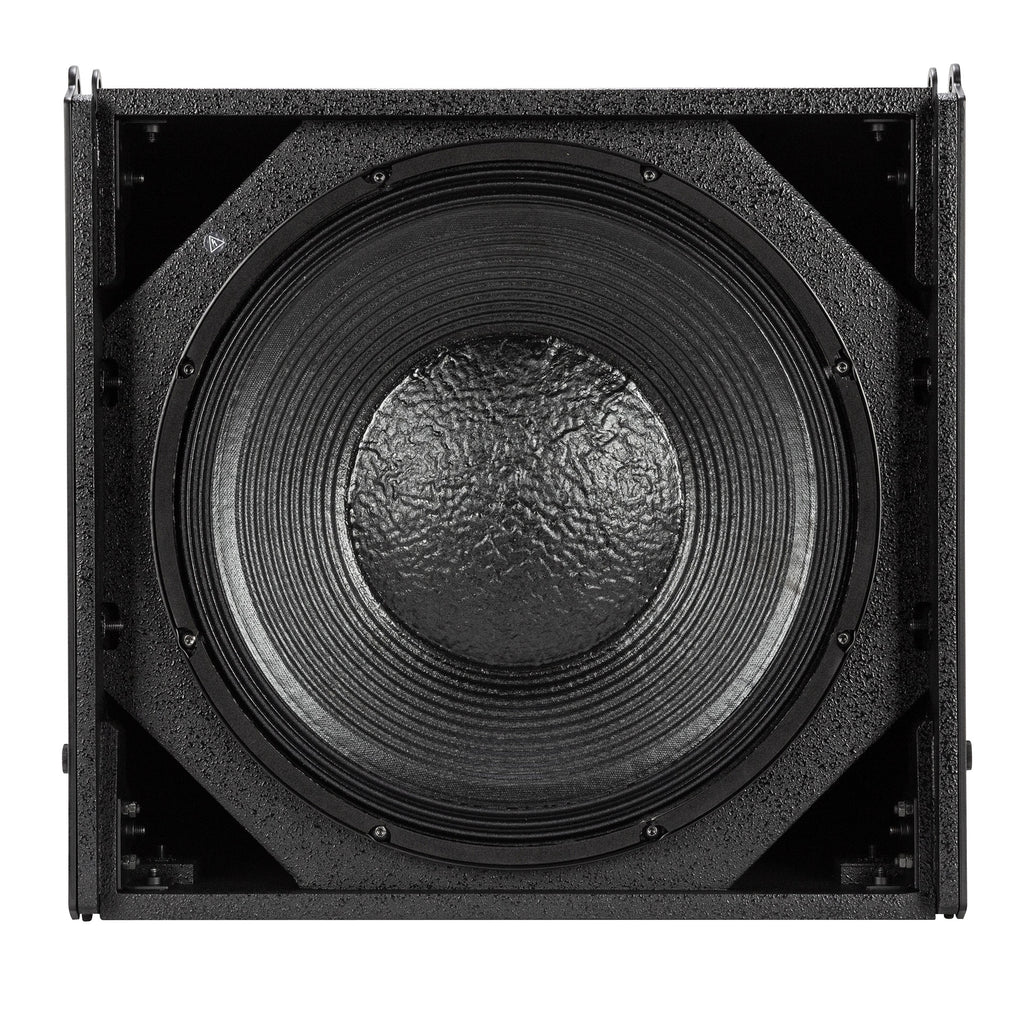

Precision transducers
Our latest developments have resulted in designing state of the art neodymium magnetic circuits, radically new voice coil ventilation systems and ground-breaking direct drive voice coil assemblies.
Powerful class D amplifiers
RCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. HDL amplifiers deliver a ultra-fast attack, realistic transient response, and impressive audio performance. The amplifier features a solid machined aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. All the HDL amplifiers present SMPS power supply section to produce maximum output and minimum weight.

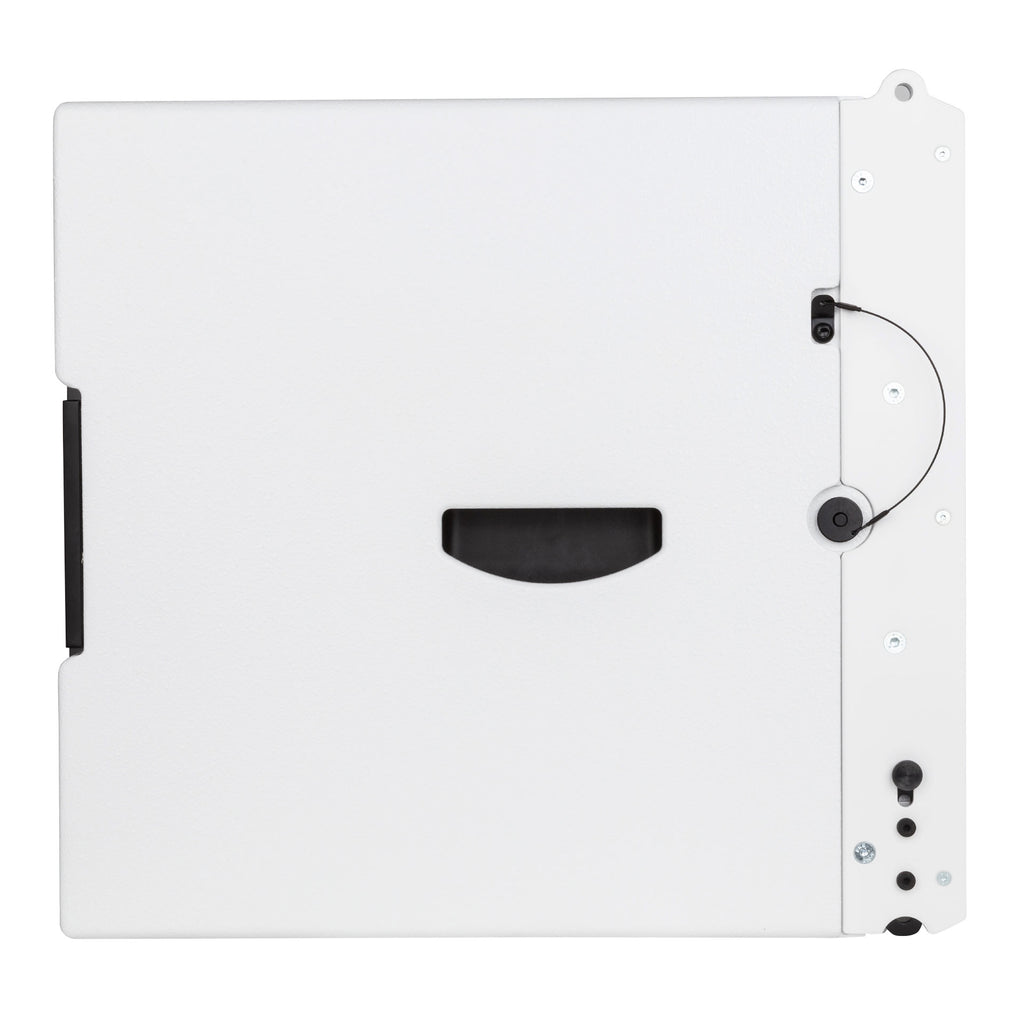

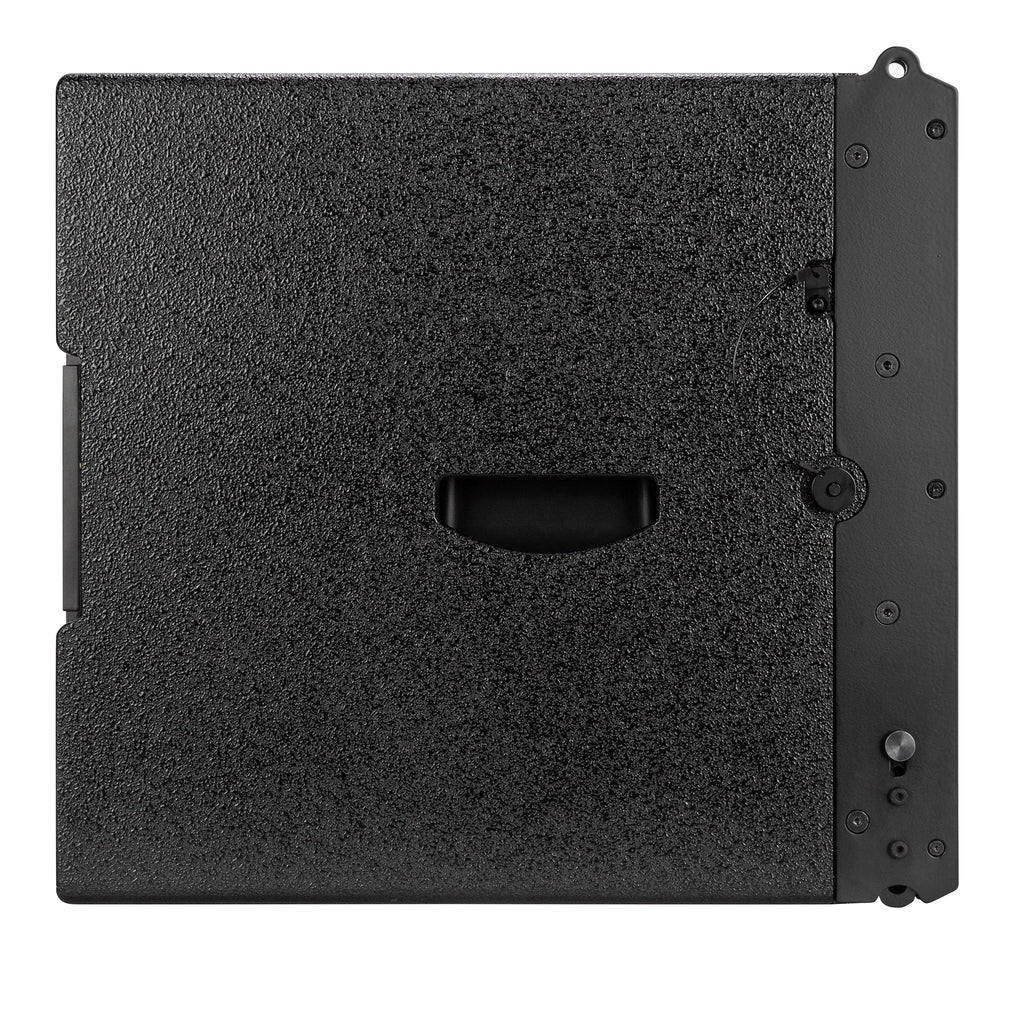

Cabinet and mechanics

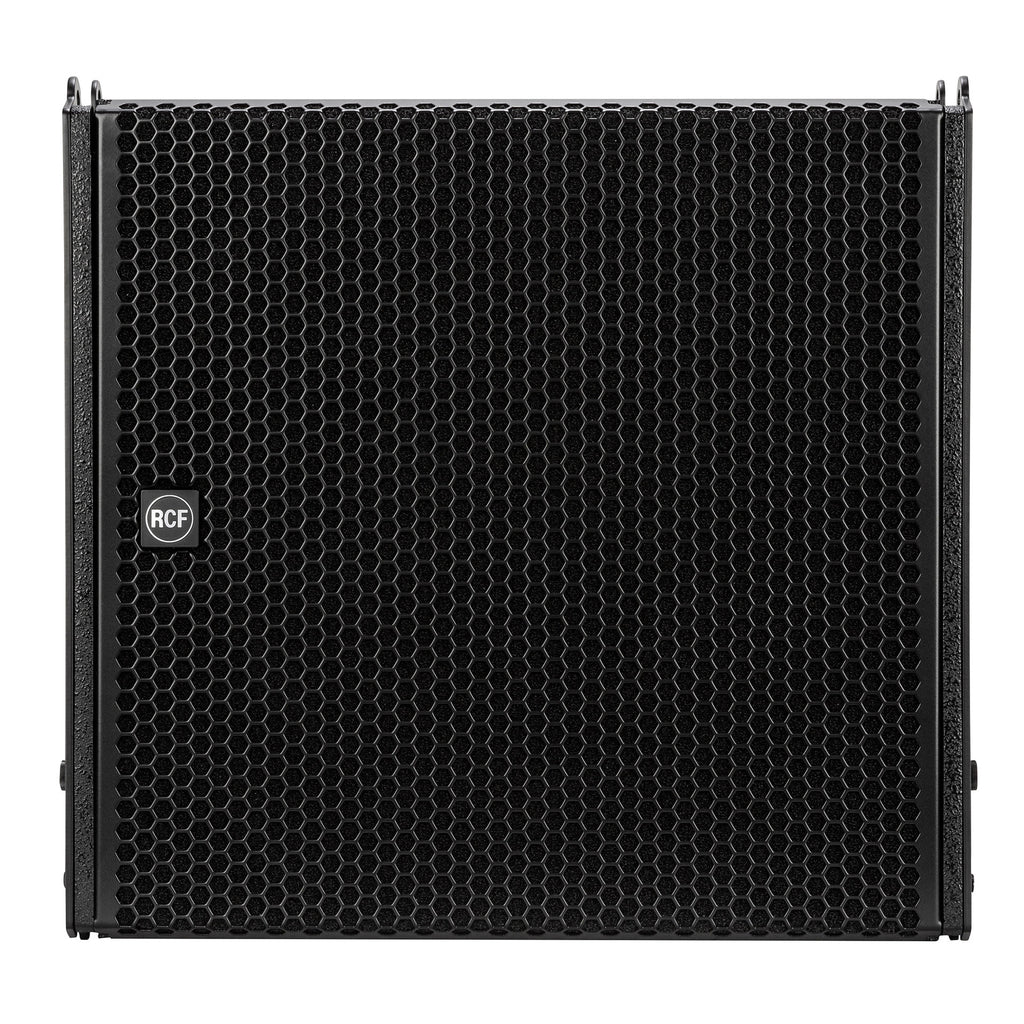

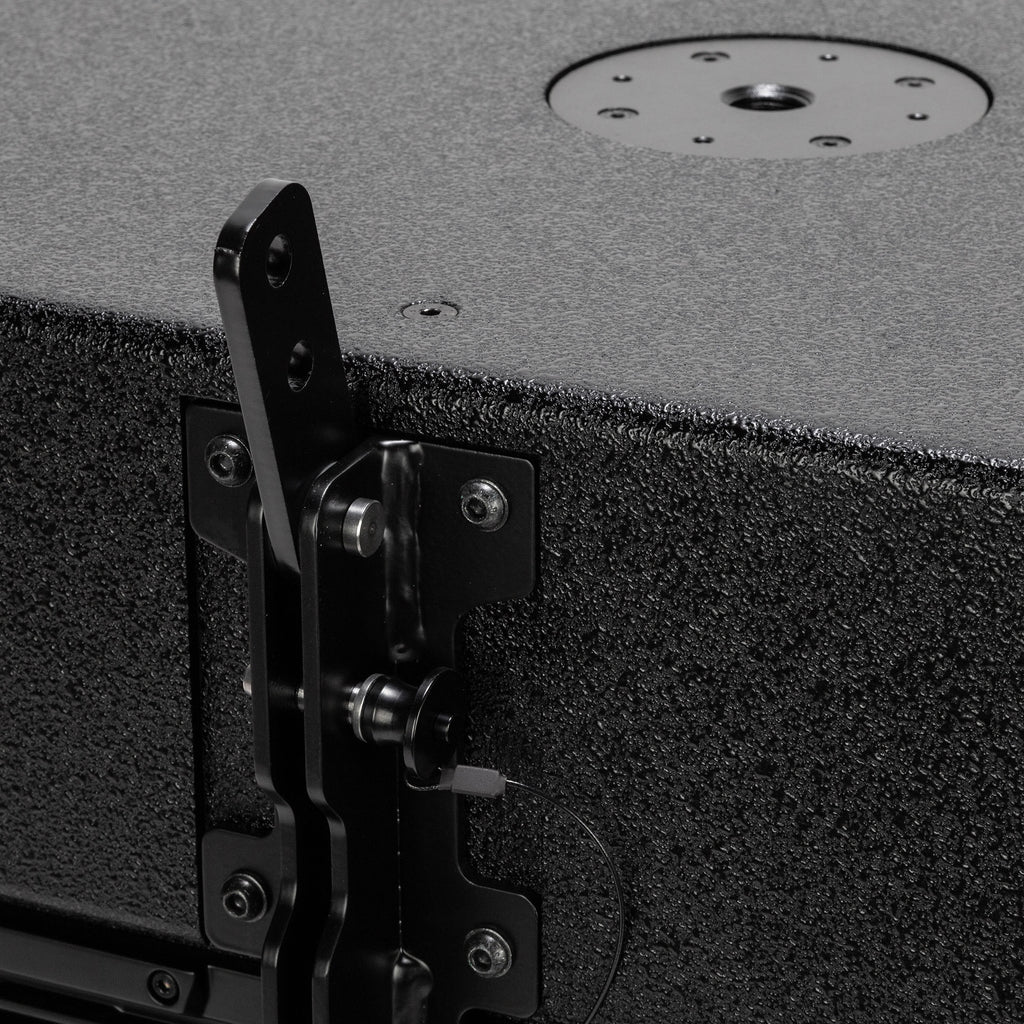

The hardware is designed for an easy and fast setup, completely compatible with the HDL 26-A rigging. The heavy-duty front grille is powder coated. A special transparent-to-sound foam backing inside helps to further protect the transducers from dust. For weatherproof capabilities, a rain cover is available.
Subwoofer alignment tutorials
Specifications
| Acoustical specifications | |
| Frequency Response | 40 Hz - 140 Hz |
| Max SPL @ 1m | 134 dB |
| Transducers | |
| Woofer | 1 x 15'' neo, 4.0'' v.c |

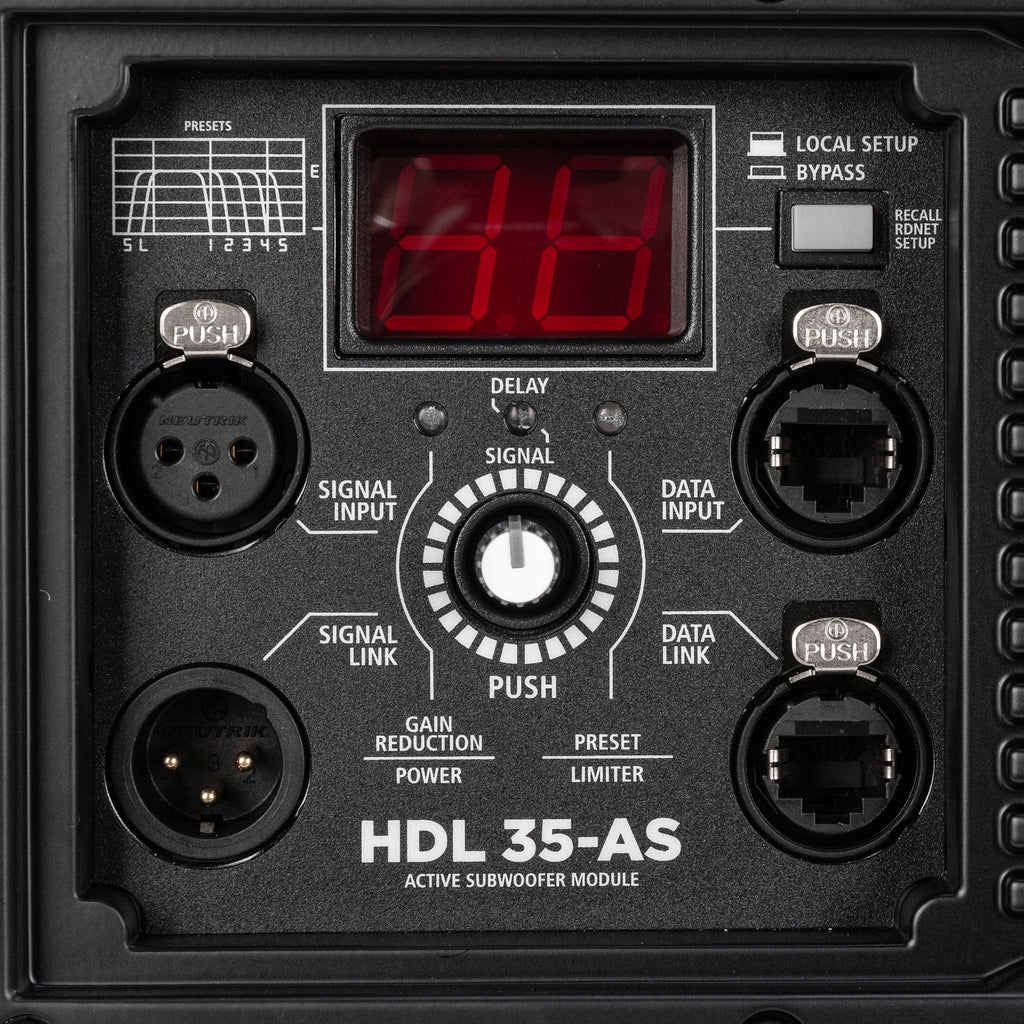

| Input/Output section | |
| Input signal | bal/unbal |
| Input connectors | XLR, RDNet Ethercon |
| Output connectors | XLR, RDNet Ethercon |
| Input sensitivity | +4 dBu |
| Processor section | |
| Protections | Thermal, RMS |
| Limiter | Soft Limiter |
| Controls | Volume, Preset selection, RDnet on board |
| RDNet | Onboard |
| Power section | |
| Total Power | 2200 W Peak, 1100 W RMS |
| Low frequencies | 2200 W Peak, 1100 W RMS |
| Cooling | Convection |
| Connections | Powercon IN/OUT |
| Standard compliance | |
| Safety agency | CE compliant |
| Physical specifications | |
| Cabinet/Case Material | Baltic birch plywood |
| Handles | 2 Side |
| Pole mount/Cap | M20 thread |
| Grille | Steel |

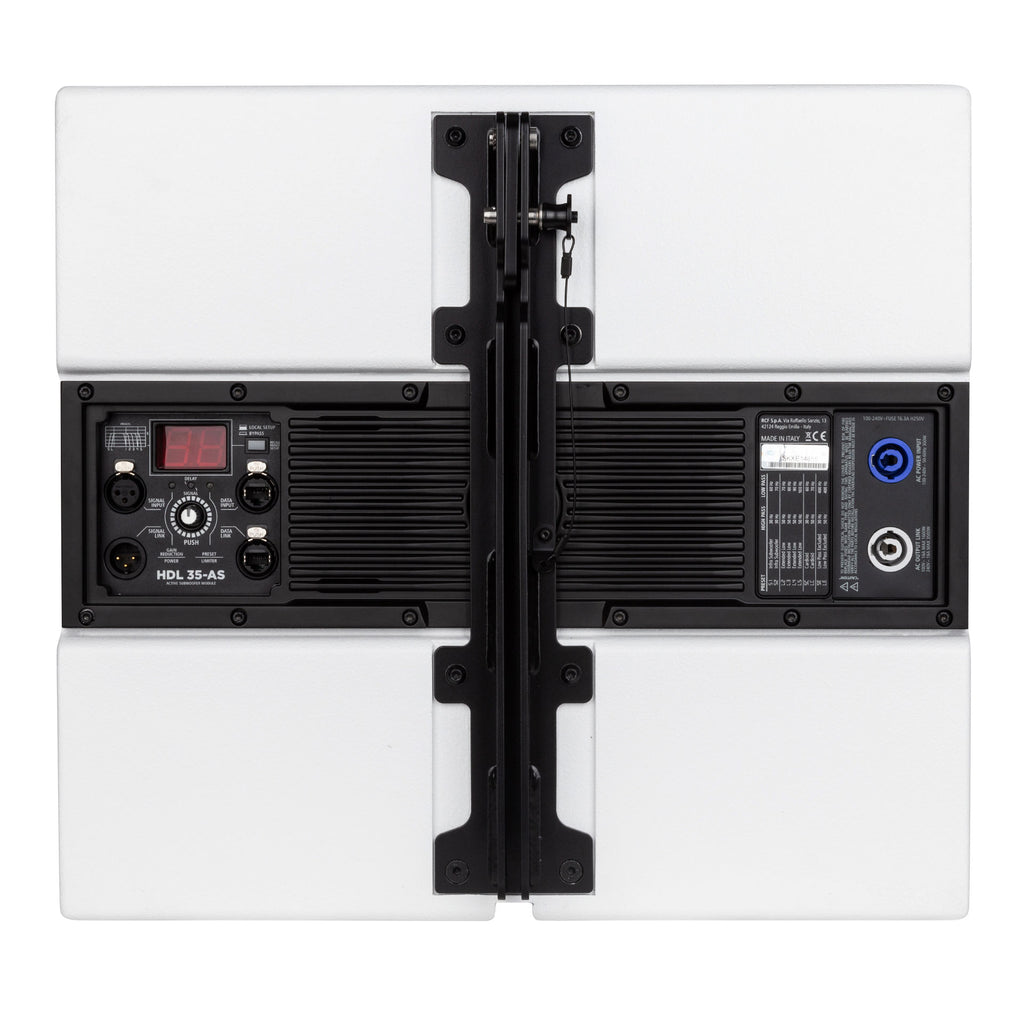

| Color | Black, White |
| Size / Weight | |
| Height | 444 mm / 17.48 inches |
| Width | 456 mm / 17.95 inches |
| Depth | 508 mm / 20 inches |
| Weight | 30 kg / 66.14 lbs |
| Shipping information | |
| Package Height | 530 mm / 20.87 inches |
| Package Width | 560 mm / 22.05 inches |
| Package Depth | 525 mm / 20.67 inches |
| Package Weight | 35 kg / 77.16 lbs |
