DAS Audio INTEGRAL-M48D - DSP, 4IN (analog & AES3 audio) x 8OUT , 48 kHz sampling rate, 1.54″ OLED screen,

Name: DAS Audio INTEGRAL-M48D - DSP, 4IN (analog & AES3 audio) x 8OUT , 48 kHz sampling rate, 1.54″ OLED screen,
Brand: DAS Audio
SKU: INTEGRAL-M48D
Price: 1999.99 USD
Availability: InStock

Save $800.01

DAS AudioSKU: INTEGRAL-M48D

Share this product

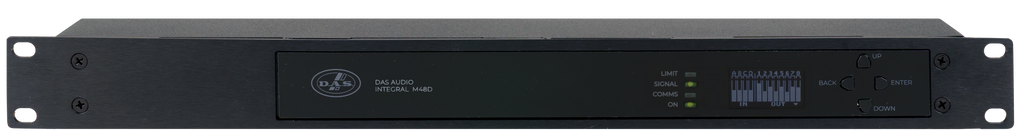

The INTEGRAL-M48D, a 1U rack-mount digital signal processor, features four configurable input channels supporting analog and AES3 digital signals, along with eight analog output channels equipped with balanced XLR connectors. Its compact, cost-effective design makes it a versatile choice for live sound reinforcement and fixed installation systems.

Remote control and monitoring are available via ALMA™ software or ALMAweb using IP technology, or alternatively through external controllers via OSC messages. Direct unit control is provided by a 1.54” OLED display with control buttons for access to basic parameters, including input and output levels, preset recall, mute, source selection, and link manager functions.

The device houses a complete signal processing matrix, offering gain, delay, routing, equalization, and limiter adjustment options. Its internal memory can store over 100 global presets and over 200 output channel presets, including dedicated FIR presets developed for all DAS Audio sound systems.

External control is further simplified through a General-Purpose Input/Output (GPIO) connector, providing an external 3V3 voltage, GND, and eight configurable pins via ALMA™ software.

Technical Specifications

Frequency Response	20 Hz-30 kHz (+0 -0.5 dB)
Max Input Level	+22 dBu
Max. Output Level	+22 dBu
Sampling Rate	48 kHz
Display	OLED 1.54″
AC Input Connector	IEC 15A
Power Supply
Operating Range	90 – 250 VAC
DSP
Analog Input Channels	4
Analog Output Channels	8
AD Converters	24 Bit @ 48 kHz 118 dBA Dynamic Range
DA Converters	24 Bit @ 48 kHz 118 dBA Dynamic Range
Internal Precision	32 Bit, 64 Bits Double Precission
Latency	1 ms
Delay	50ms per input / 135ms per output
High and Low Pass Filters	Up to 48 dB/oct
Dimensions ( H x W x D )	44 x 483 x 210 mm
Net Weight	2,6 kg ( 5,7 lb )
Carton Dimensions ( H x W x D )	130 x 530 x 315 mm
Shipping Weight	3,5 kg ( 7,7 lb )
