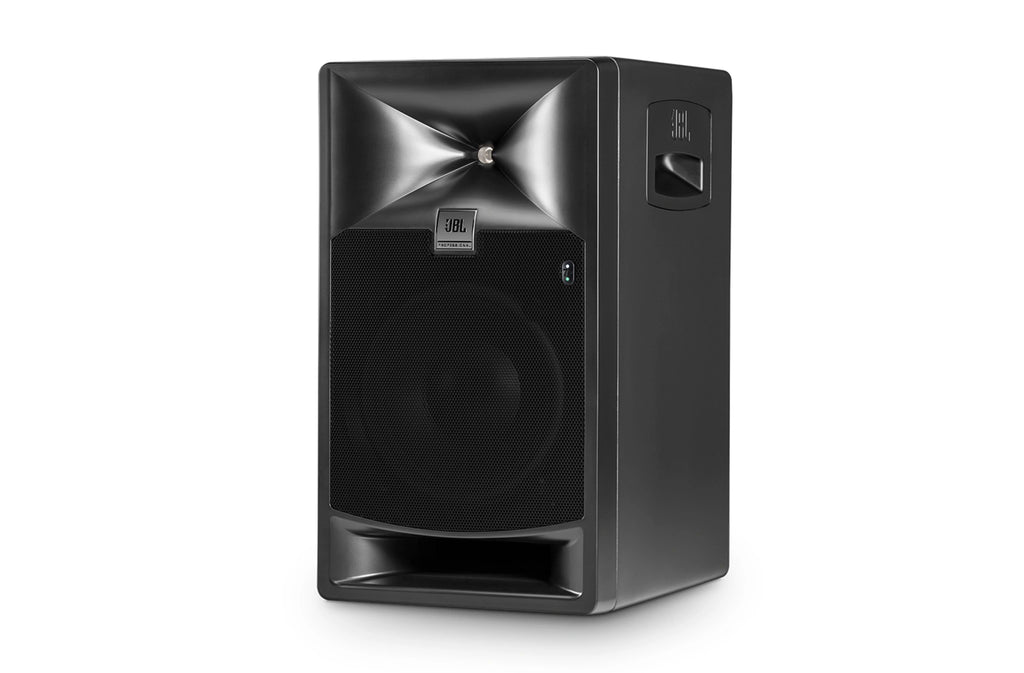

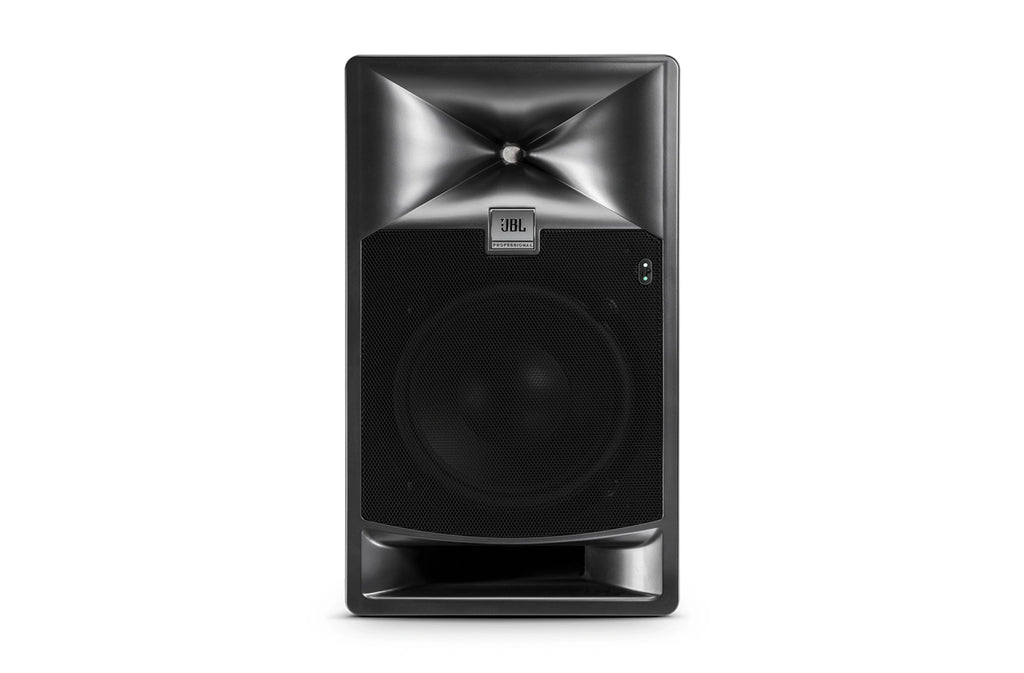

8" Bi-Amplified Master Reference Monitor JBL 708P is the self-powered reference monitor for critical music recording, film post and broadcast production applications. The 708P leverages new patented driver technologies and JBL’s renowned Image Control Waveguide to deliver extraordinary output, stunning detail, an expansive soundstage, and greater accuracy in a broad range of rooms. 708P delivers several times the output of other comparably-sized studio monitors, providing significantly greater dynamic range and greater working distances. "I'm really impressed by the power and clarity of these speakers." - Academy Award Winner, Justin Hurwitz (La La Land)

Features

• Next-generation JBL driver technology
• Patented Image Control Waveguide
• Integrated dual amplification system with internal floating-point DSP
• Comprehensive room EQ and delay controls
• Compact enclosures for easy placement and installation

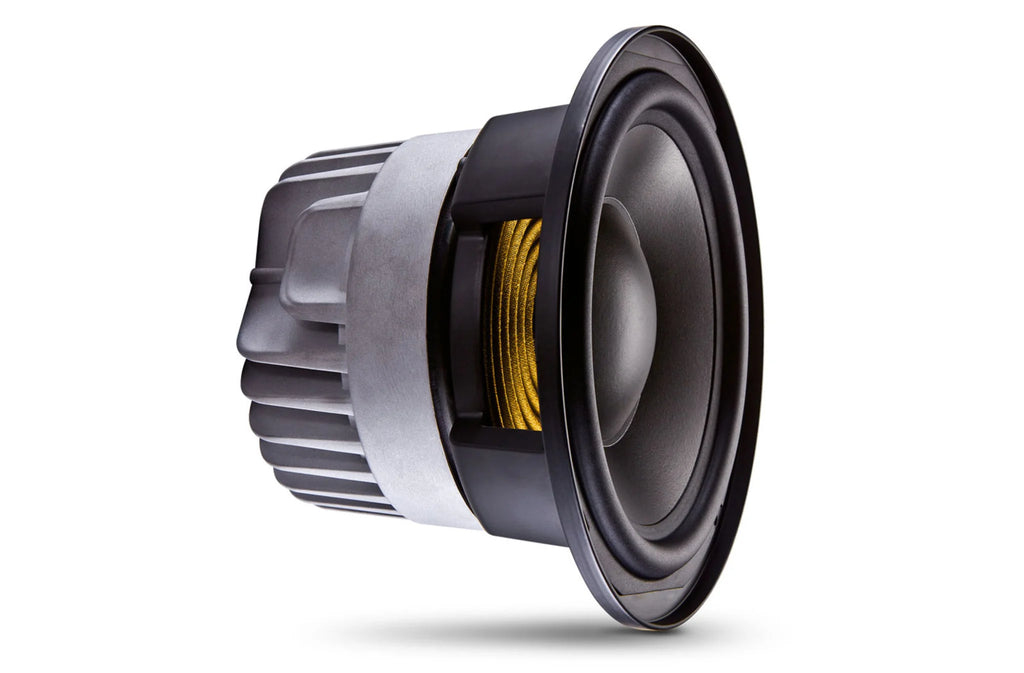

• JBL 728G low-frequency transducer with patented Differential Drive® allows extended low frequency with low distortion and high SPL

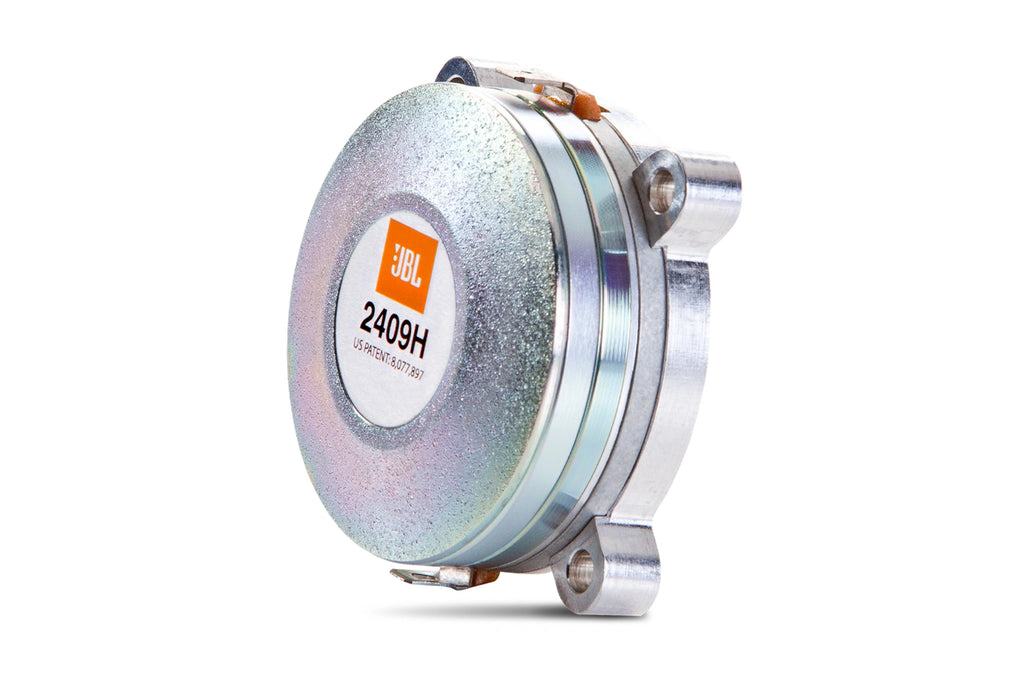

• JBL 2409H high-frequency transducer with low-mass annular diaphragm
• JBL-designed patented Image Control Waveguide
• 2-channel Class-D amplifier HF 250W / LF 250W
• 192 kHz 32-bit floating point processing
• 12 bands of Room EQ, 8 Bands of User EQ
• 6 factory presets, 6 user-defined presets
• 18 milliseconds of Room Delay, 150 milliseconds of AV Sync Delay
• 1 x XLR-1/4" balanced combination analog audio input
• 1 x XLR AES3 format digital input with 1 x XLR pass-through output
• Digital input will accept sample rates of up to 192 kHz
• User enabled sample rate converters
• RJ-45 network connection for HARMAN HiQnet connectivity

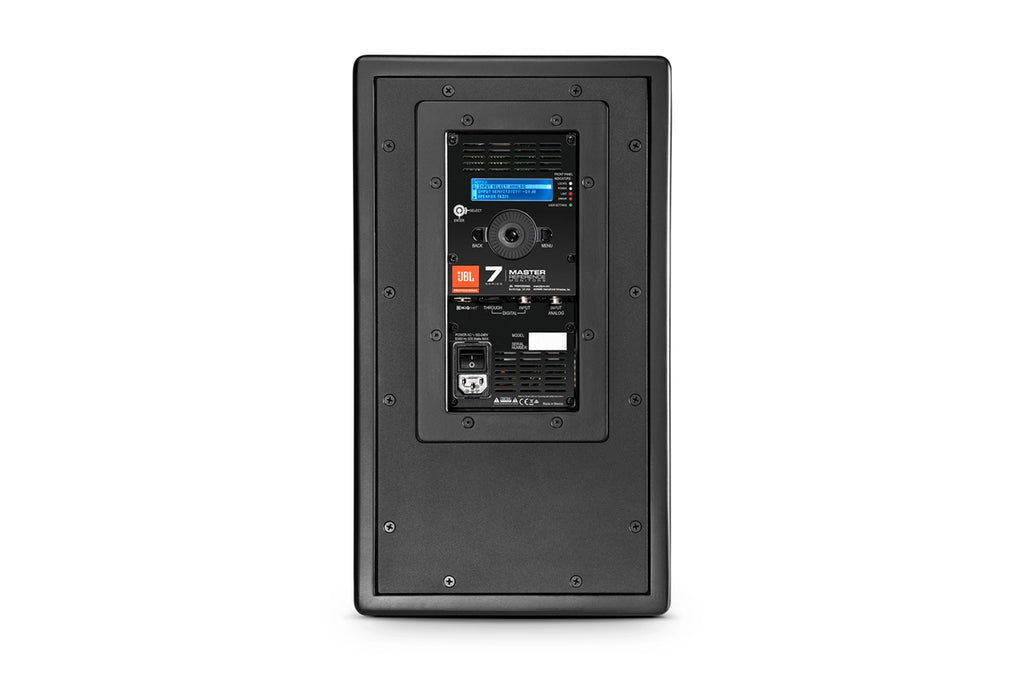

• Rear-panel multi-function controls and LCD display allow selection of of input sensitivity, input trim, Room EQ, User EQ, Room Delay, AV Sync Delay
• Integrated handles

Specifications

• Model: 708P
• Frequency Response (±3 dB): 41Hz-25kHz
• Frequency Range: 35Hz - 36 kHz
• Maximum Continuous SPL: (80 Hz - 20 kHz) >108 dB SPL / 1m
• Maximum Peak SPL: (80 Hz - 20 kHz) >114 dB SPL / 1m
• HF Driver: 2409H
• LF Driver: 728G - 8in (203mm)
• Dividing Network Transition Frequency: 1.7 kHz
• Input Connectors: 1 x XLR balanced analog audio input 1 x XLR AES3 format digital input with 1 x XLR pass-through output Digital input will accept sample rates up to 192 kHz
• Dimensions (HxWxD): 17.25 x 9.75 x 11.5 in (438 x 248 x 292 mm)
• Net Weight (each): 25.2 lb (11.5 kg)
• Enclosure: Birch plywood reinforced for mounting
• Mounting: Top, bottom and rear mounting points. 4-hole mounting pattern
• LF Driver Power Handling: 250W Class D
• Amplifier Power Rating: 250W
• Weight: 40 lb
• Dimensions (L x W x H): 16.5 x 14 x 22.75 in
• UPC: 691991006333
• Country of Origin: MX
