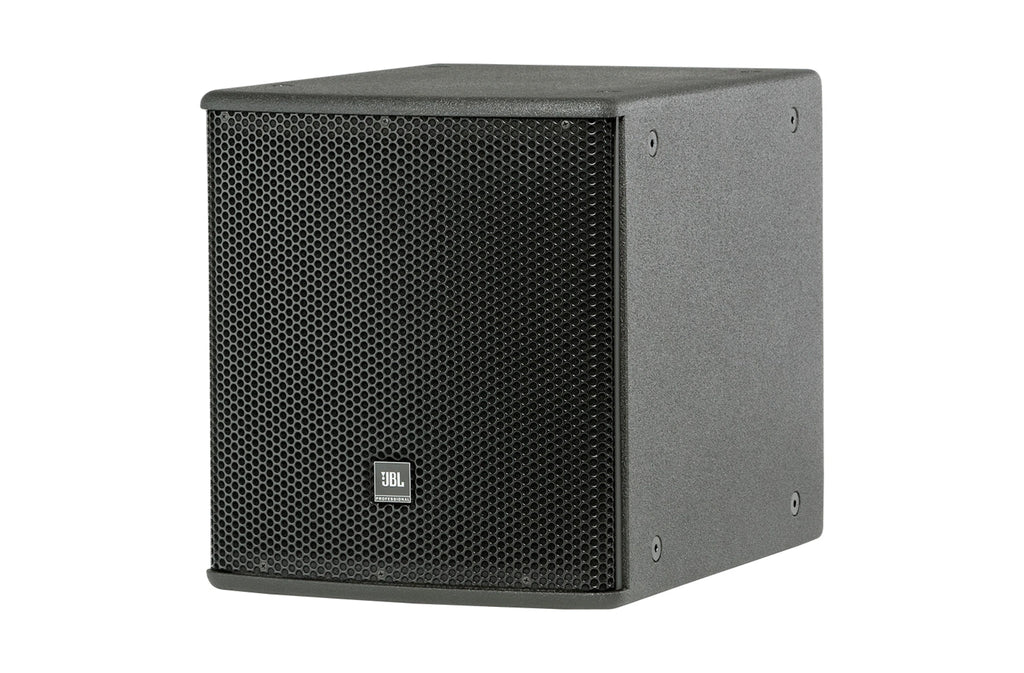

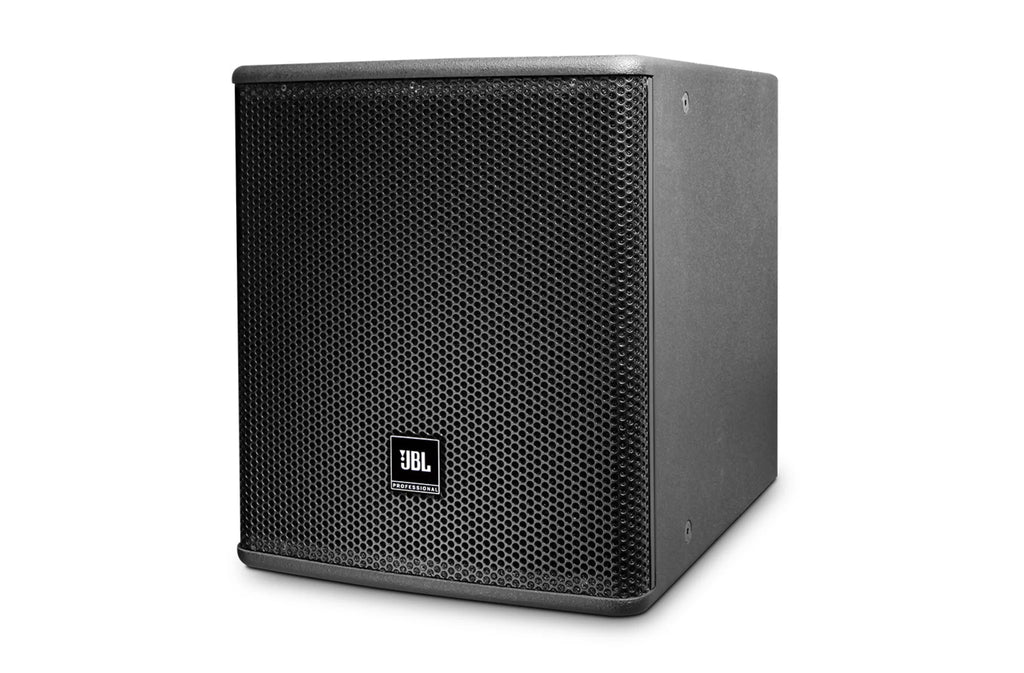

15-inch Subwoofer AC115S is a high power subwoofer system comprised of one 385 mm (15 in) low frequency driver in a vented, front-loaded configuration for extended bandwidth. The rectangular cabinet is fitted with M10 threaded suspension points for ultimate flexibility. As a part of JBL’s AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications, AC115S provides a natural low-frequency sound quality.

Features

• High power and long excursion driver for lower frequency reproduction
• High sensitivity with lower power compression
• Large port for high output and low-frequency reinforcement
• Multiple Attachment Points for Ultimate Flexibility
• Robust 18 mm multiply hardwood with textured black finish
• Performing Spaces
• Clubs & Bars
• Houses of Worship
• Multi Media Spaces
• Retail & Hospitality Spaces
• Presentation Suites
• Educational Facilities

Specifications

• Model: AC115S
• Frequency Range (-10dB): 32 Hz - 250 Hz
• Frequency Response (±3 dB): 40 Hz - 250 Hz
• System Sensitivity (1w @ 1m): 94 dB
• Nominal Impedance: 8 ohms
• Maximum SPL (1m): 120 dB (126 dB peak)
• System Power Rating: 500W (2000W peak), 2 hrs (AES rated) 400 W/800 W/1600 W (Continuous/Program/Peak) (IEC rated)

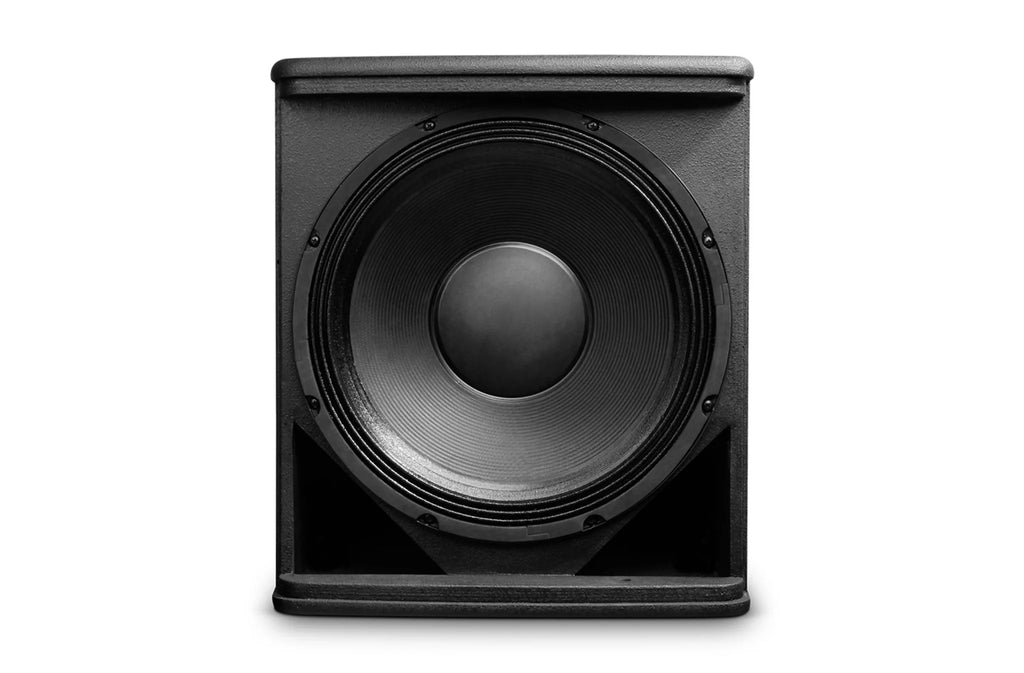

• LF Driver: 1 x 15″ woofer (P/N: 5055679), 385 mm (15 in) driver with 75 mm (3 in) voice-coil
• Input Connector: Dual Neutrik NL4MP connectors plus covered barrier trip terminals
• Enclosure: 18 mm multi-ply hardwood plywood

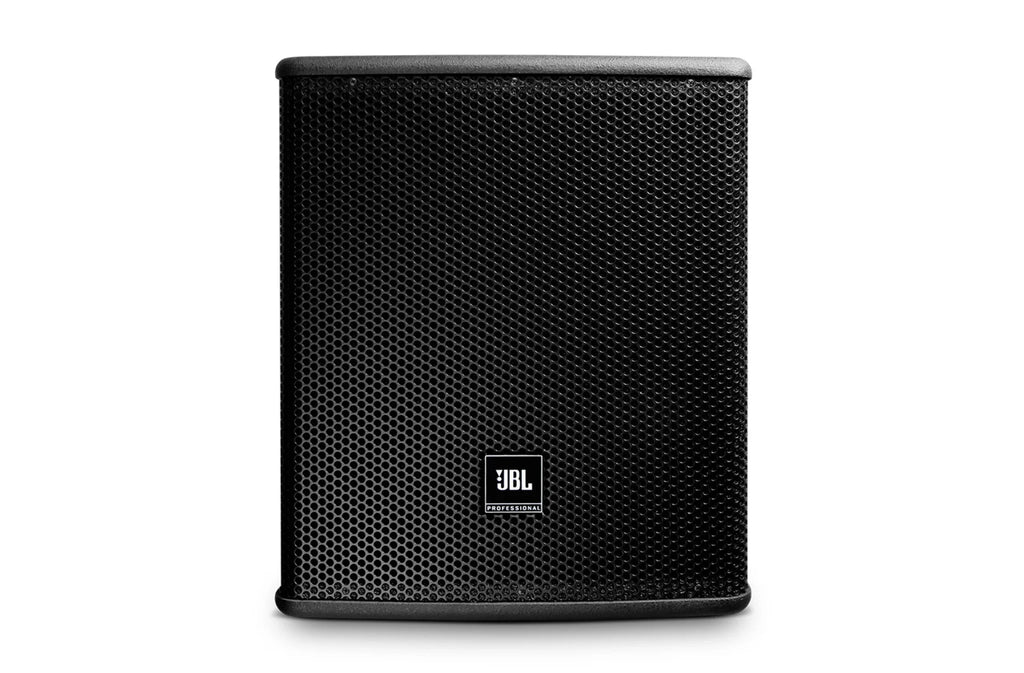

• Grille: Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing
• Finish: Textured black paint finish. White (-WH) available upon request. Not available with WRC & WRX finish.
• Suspension Attachment: 12 x M10 threaded suspension points
• Dimensions (H x W x D): 483 mm x 419 mm x 600 mm19 in x 16.5 in x 23.6 in
• Net Weight (each): 24 kg (52.9 lbs)
• Nominal LF Driver Impedance: 8 ohms
• Weight: 61.1 lb
• Dimensions (L x W x H): 25 x 18 x 21 in
• UPC: 691991001314
• Country of Origin: CN
