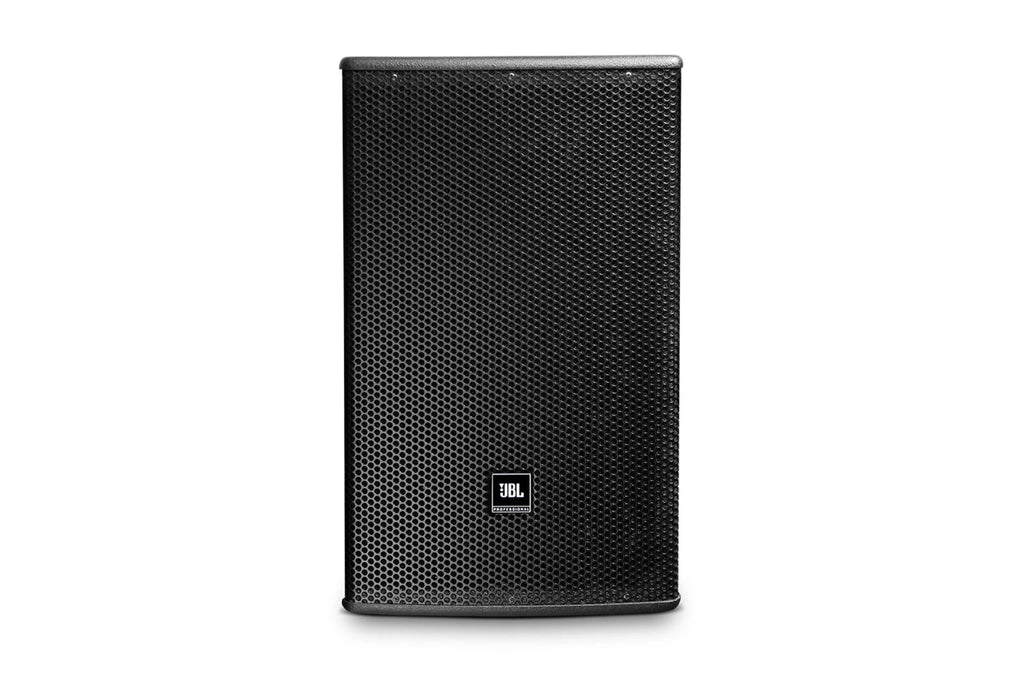

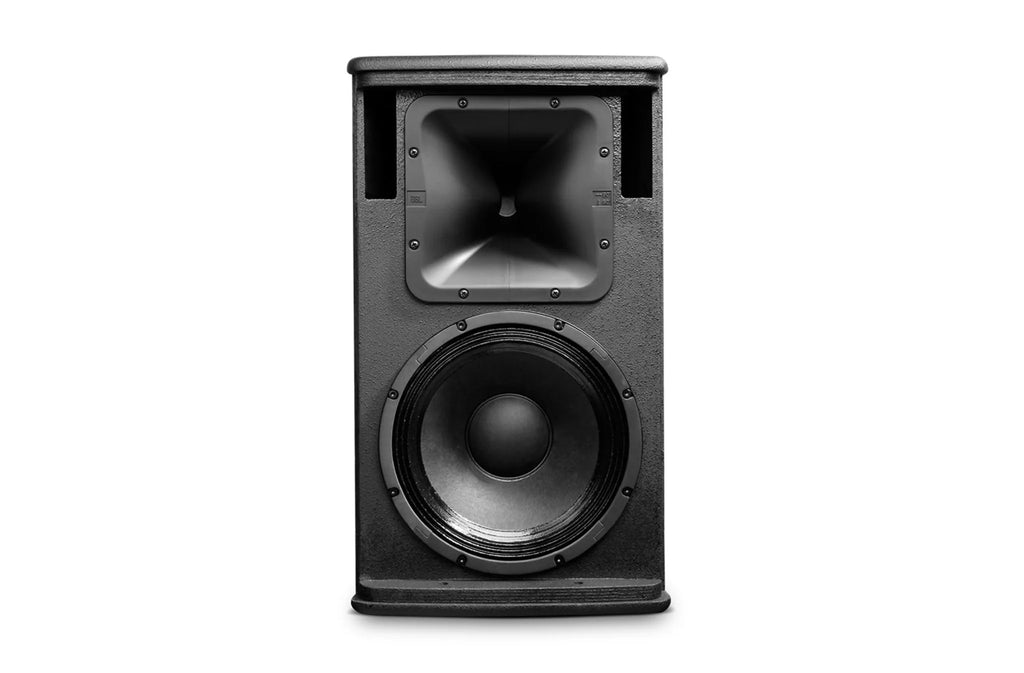

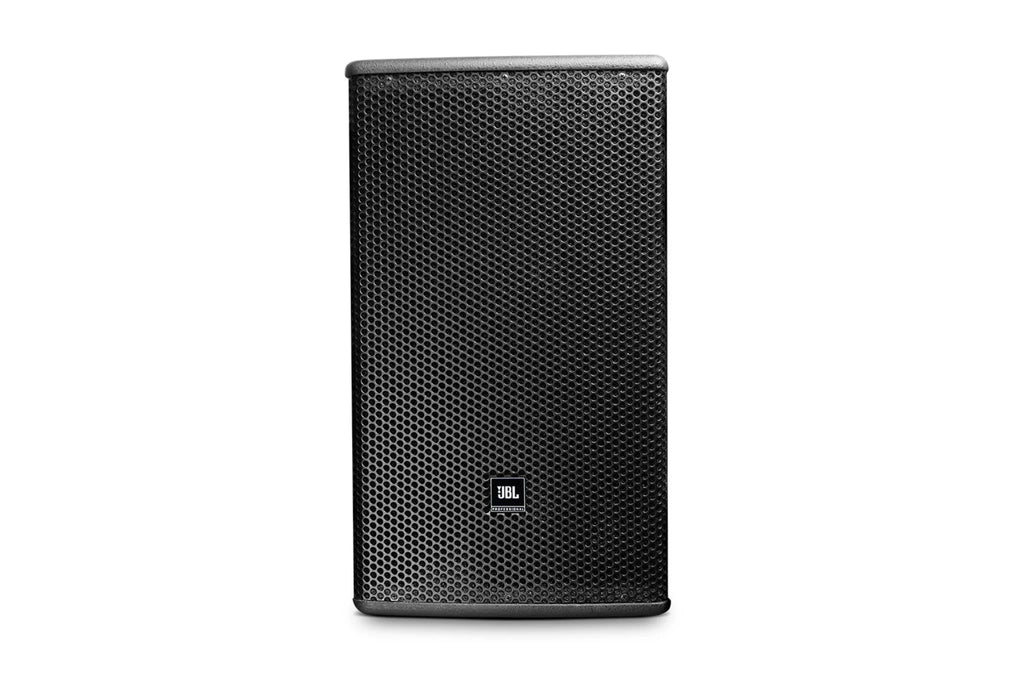

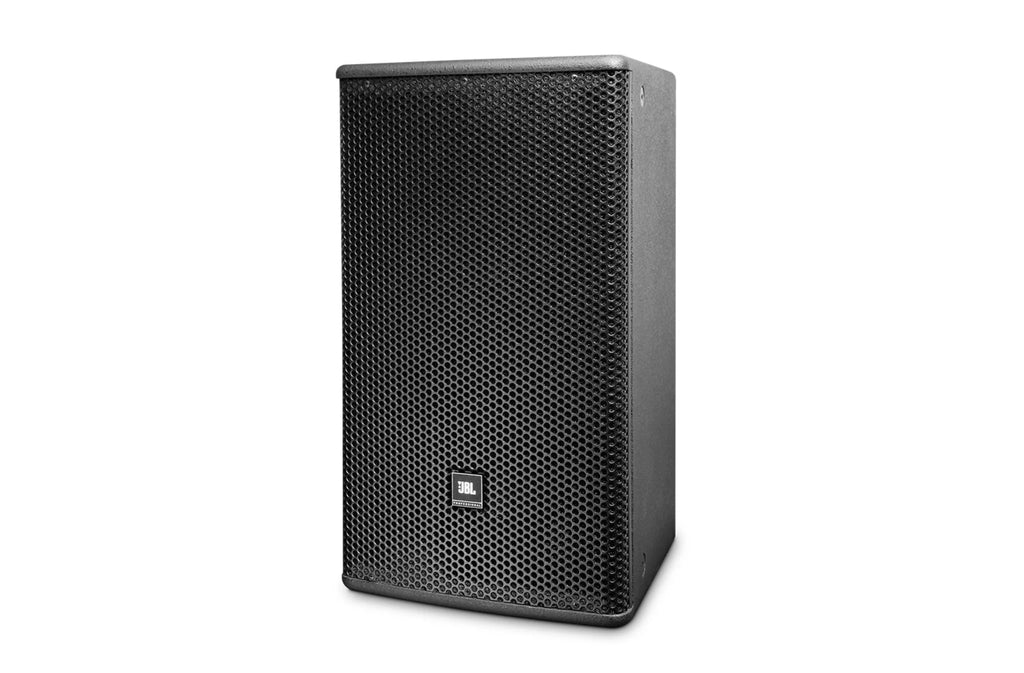

10-inch 2-Way Speaker with 90° x 50° Horn AC195 is a compact 2-way full-range loudspeaker system comprised of one 258 mm (10 in) low frequency driver and one 25 mm (1 in) exit/35 mm (1.5 in) voice-coil compression driver. The rotatable PT™ Progressive Transition waveguide provides 90° by 50° coverage in vertical cabinet orientation. Highslope passive crossovers minimize band overlap and well-controlled offaxis response. The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on back of the enclosure allow attachment of a MultiMount® or similar type mounting. AC195 is part of JBL’s AE Application Engineered Series, a versatil e family of loudspeakers for a wide variety of fixed installation applications

Features

• Compact enclosure
• 258 mm (10 in) LF transducer
• 90° x 50° Progressive Transition™ Field Rotatable Waveguide with a 25 mm (1 in) exit 35mm (1.5") voice-coil compression driver
• Dual Neutrik NL4 connectors plus screw terminals
• Multiple attachment points for ultimate flexibility
• Performing Spaces
• Clubs & Bars
• Houses of Worship
• Multi Media Spaces
• Retail & Hospitality Spaces
• Presentation Suites
• Educational Facilities

Specifications

• Model: AC195
• Frequency Range (-10dB): 68 Hz - 20 kHz
• Frequency Response (±3 dB): 85 Hz - 18kHz
• System Sensitivity (1w @ 1m): 95 dB
• Nominal Impedance: 8 ohms
• Maximum SPL (1m): 118 dB (124 dB peak)
• System Power Rating: 300W (1200W peak), 2 hrs (AES rated)
• Coverage Pattern: 90° x 50° (H x V)
• Crossover: 1.8 kHz
• LF Driver: 1 x 10" woofer (P/N: 5050692), 258 mm (10 in) driver with 66 mm (2.5 in) voice-coil
• HF Driver: 1 x 2408H-2 driver with 25 mm (1 in) exit/38 mm (1.5 in) voice-coil
• Input Connector: Dual Neutrik NL4MP connectors plus covered barrier trip terminals
• Enclosure: 15 mm multi-ply hardwood plywood
• Grille: Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing
• Finish: Textured black paint finish. White (-WH) available upon request. Not available with WRC & WRX finish.
• Suspension Attachment: 14 x M10 and 4 x M10 for Wall Mount Bracket. Optional U-bracket, L-bracket and wall-mount bracket
• Dimensions (H x W x D): 535 mm x 310 mm x 329 mm 21.0 in x 12.2 in x 12.9 in
• Net Weight (each): 13.1 kg (28.8 lbs)
• Nominal LF Driver Impedance: 8 ohms
• Nominal HF Driver Impedance: 8 ohms
• Weight: 33.5 lb
• Dimensions (L x W x H): 15 x 14 x 23 in
• UPC: 691991001260
• Country of Origin: CN
