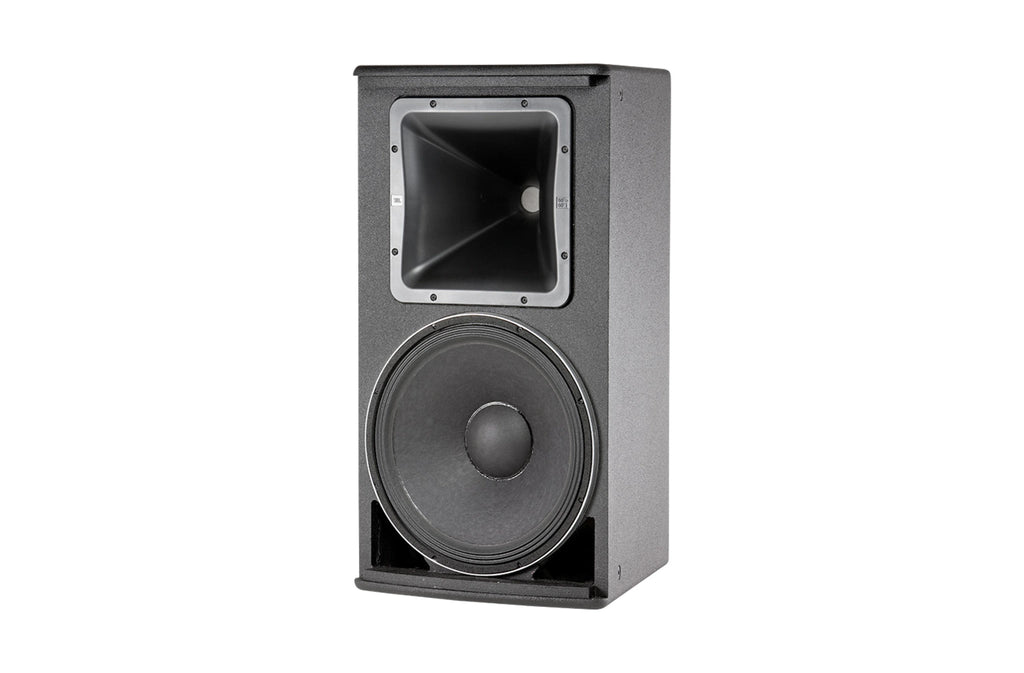

15-inch 2-Way Loudspeaker with 60° x 60° Rotatable Horn The AM5215 is a medium power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive® dual voice coil and dual magnetic gap 265H-1 380 mm (15 in) low frequency driver and 2408H-1 high frequency 38 mm (1.5 in) exit, 38 mm (1.5 in) voice-coil compression driver. The large format PT™ Progressive Transition waveguide provides excellent coverage in a variety of patterns. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.

Features

• 60° x 60° Coverage
• 265H-1 Differential Drive® Low-Frequency Driver
• 2408H-1 High-Frequency Compression Driver
• Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
• Rotatable waveguide for vertical or horizontal orientation
• Bi-Amp/Passive Switchable
• Bi-amp and Passive Mode FIR Tuning Set Delivers Optimized Frequency & Phase Response, Coverage Consistency, and Sound Quality
• Available in Black, White and WRC/WRX weather resistant finishes
• Performing Arts Facilities
• Theatrical Sound Design
• Auditoriums
• Worship Facilities
• Live Clubs
• Dance Clubs
• Sports Facilities
• Themed Entertainment Venues

Specifications

• Model: AM5215/66
• Frequency Range (-10dB): 35 Hz - 20 kHz
• Frequency Response (±3 dB): 41 Hz - 20 kHz
• Coverage Pattern: /64: 60° x 40°/66: 60° x 60°/95: 90° x 50° /26: 120° x 60°
• Directivity Factor (Q): 14.5
• Directivity Index (DI): 11.6 dB
• Crossover Modes: Bi-amp/Passive switchable
• Passive Crossover Frequency: 2 kHz
• Transducer Power Rating (AES): LF: 500 W (2000 W peak), 2 hrs350 W (1400 W peak), 100 hrsHF: 40 W (160 W peak), 2 hrs
• System Power Rating: Passive mode: 350 W (1400 W peak), 100 hrs
• Maximum SPL (1m): Bi-amp mode:LF: 125 dB-SPL cont avgHF: 131 dB-SPL cont avg.
• System Sensitivity (1w @ 1m): Passive mode: 98 dB SPL
• LF Driver: 1 x JBL 265H-1 380 mm (15 in) driver with 50.8 mm (2 in) dual voice coil
• Nominal Impedance: 8 ohms
• Sensitivity (1W @ 1m, within operational band): 99 dB SPL
• HF Driver: JBL 2408H-1, 38 mm (1.5 in) exit compression driver, 38 mm (1.5 in) voice coil
• Sensitivity: 115 dB SPL
• Waveguide: PT-H66HF-1
• Enclosure: Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply birch plywood
• Suspension Attachment: 15 points (4 top, 4 bottom, 2 each side, 3 rear), M10 threaded hardware
• Finish: Black DuraFlex™ finish. White available upon request.

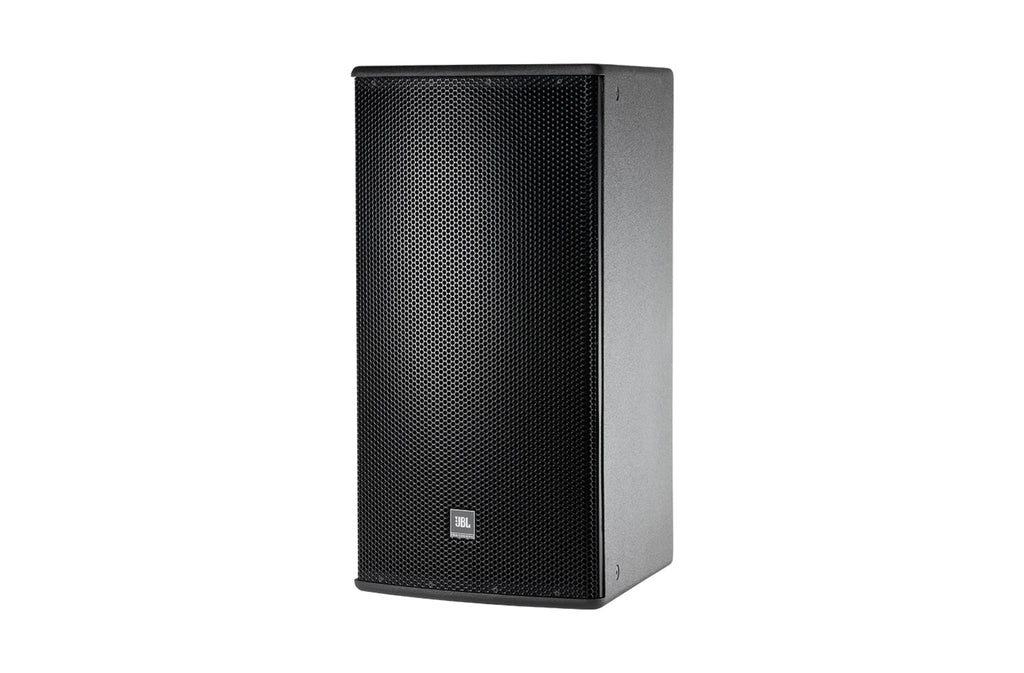

• Grille: Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
• Input Connector: NL4 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.
• Environmental: Mil-Std 810; IP-x3 per IEC529.
• Dimensions (H x W x D in vertical orientation): 783 x 422 x 504 mm(30.8 x 16.6 x 19.85 in)
• Net Weight (each): 25.0 kg (55 lb)
• Optional Accessories: M10 x 35 mm forged shoulder eyebolts with washers U-Bracket MTU-1
• Nominal LF Driver Impedance: 8 ohms
• Nominal HF Driver Impedance: 8 ohms
• Weight: 61.4 lb
• Dimensions (L x W x H): 18 x 22 x 32.5 in
• UPC: 691991011160
• Country of Origin: MX
