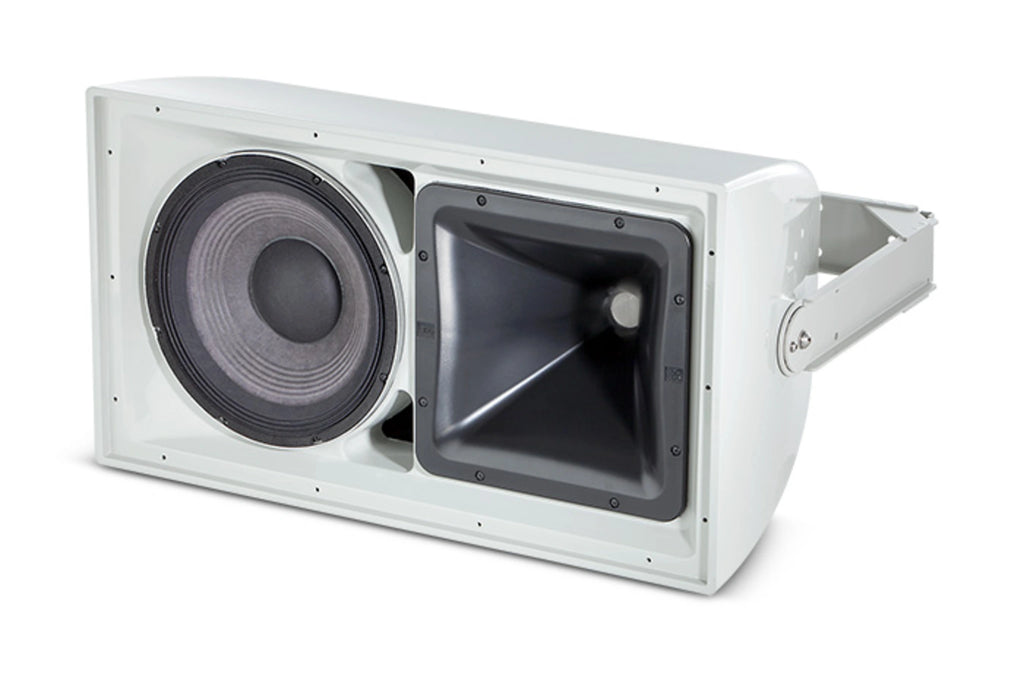

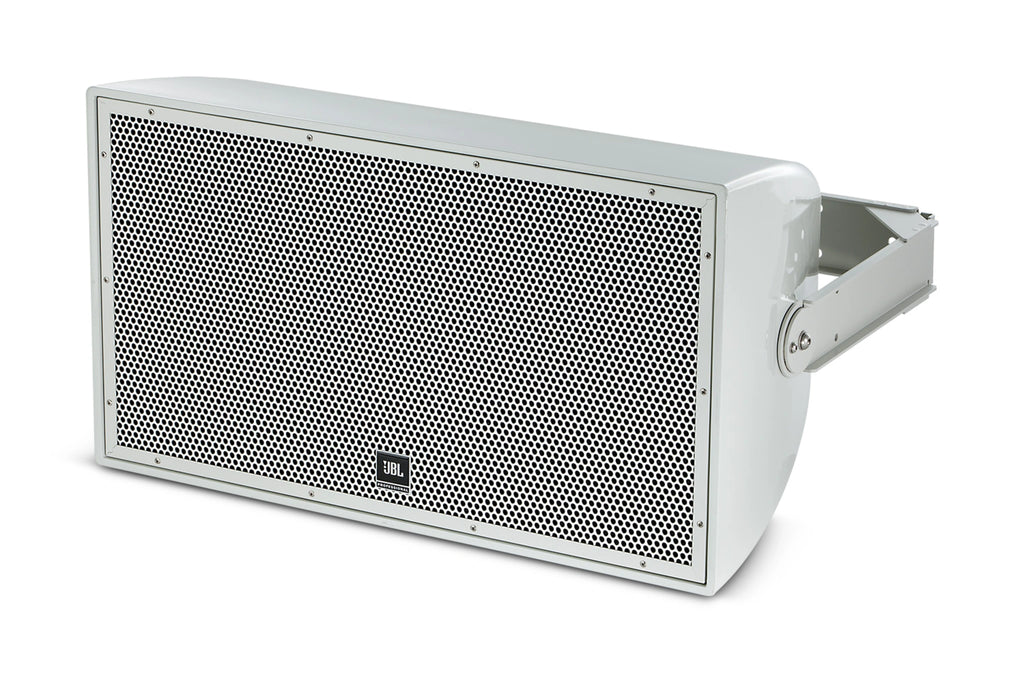

Parts are sealed on LS models (non-LS photo shown). High Power 2-Way All Weather Loudspeaker with 1 x 12" LF for Life Safety Applications The AW266-LS is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2262H 300 mm (12 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition wave-guide provides excellent 60° x 60° coverage. The loudspeaker system can used in either the vertical or horizontal orientation.

Features

• Weather-Resistant, All Fiberglass Enclosure
• EN 54-24 Compliant for life safety applications
• 60° x 60° Coverage
• 2262H Differential Drive® Low- Frequency Driver
• 2432H High Frequency Compression Driver
• Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
• Available in Gray and Black finish
• 400 W, 70/100V Transformer Included
• U-type Mounting Bracket Included
• Sports Facilities
• Themed Entertainment Venues
• Outdoor Entertainment Centers
• Water Parks

Specifications

• Model: AW266-LS-BK
• Frequency Range (-10dB): 54 Hz - 20 kHz
• Frequency Response (±3 dB): 102 Hz - 18 kHz
• Coverage Pattern: 60° x 60° waveguide
• Directivity Factor (Q): 15.8
• Directivity Index (DI): 12 dB
• Crossover Frequency: 1.1 kHz
• System Power Rating: 400 W (1600 W peak) 100 hrs
• Maximum SPL (1m): 125 dB SPL (131 dB peak)
• Maximum SPL (@ 4m): 112.45 dB
• System Sensitivity (1w @ 1m): 98 dB SPL
• Sensitivity (1W @ 4m): 87.16 dB SPL
• Transformer Taps: 70V: 400 W, 200 W, 100W 100V: 400W, 200W
• LF Driver: 1 x JBL 2262H 300 mm (12 in) Differential Drive® driver with 75 mm (3 in) dual voice coil
• Nominal Impedance: 8 ohms
• Sensitivity (1W @ 1m, within operational band): 96 dB SPL
• HF Driver: JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil
• Sensitivity: 113 dB SPL
• Waveguide: PT-H66HF-1

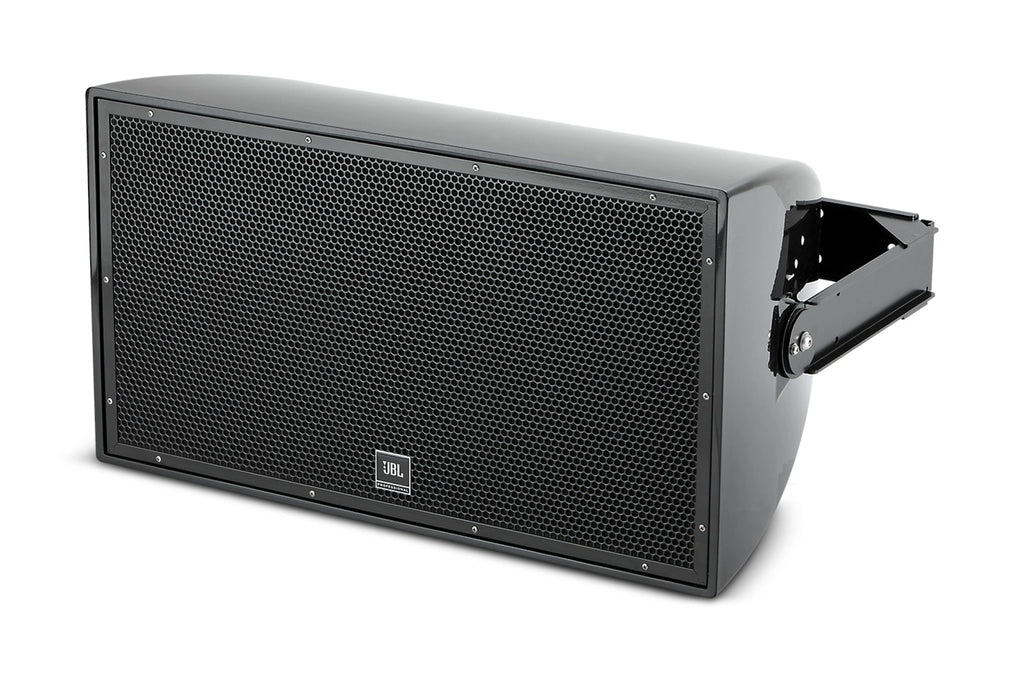

• Enclosure: Hand-Laminated Fiberglass, gray gelcoat (similar to Pantone 420C), available in black (-BK)
• Suspension Attachment: 2 x M10 for Included U-Bracket, 2 x M6 for aiming stabilization, 1 x M10 on rear for safety.

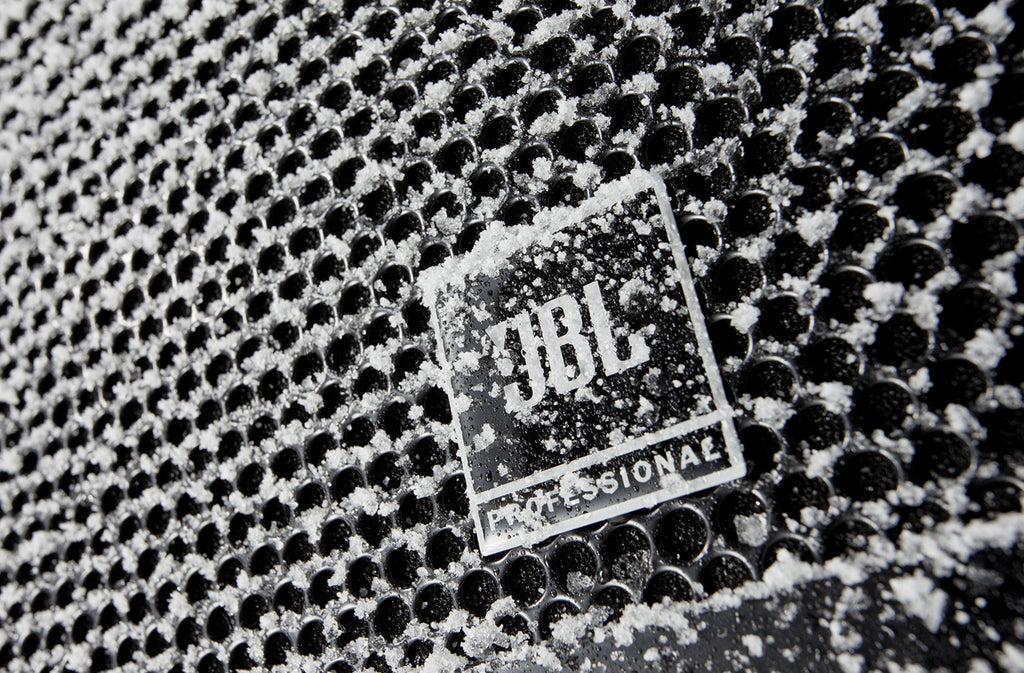

• Grille: Three layer grille assemblies consisting of 16-gauge powder coated stainless steel, backed with open cell foam and stainless steel mesh.
• Input Connector: CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs.
• Environmental: IP55C per IEC 529
• Dimensions (H x W x D in horizontal cabinet orientation): 409 x 732 x 452 mm(16.1 x 28.8 x 17.8 in)
• Net Weight (each): 25.2 kg (55.5 lb)
• UPC: 691991014215
• Country of Origin: MX
