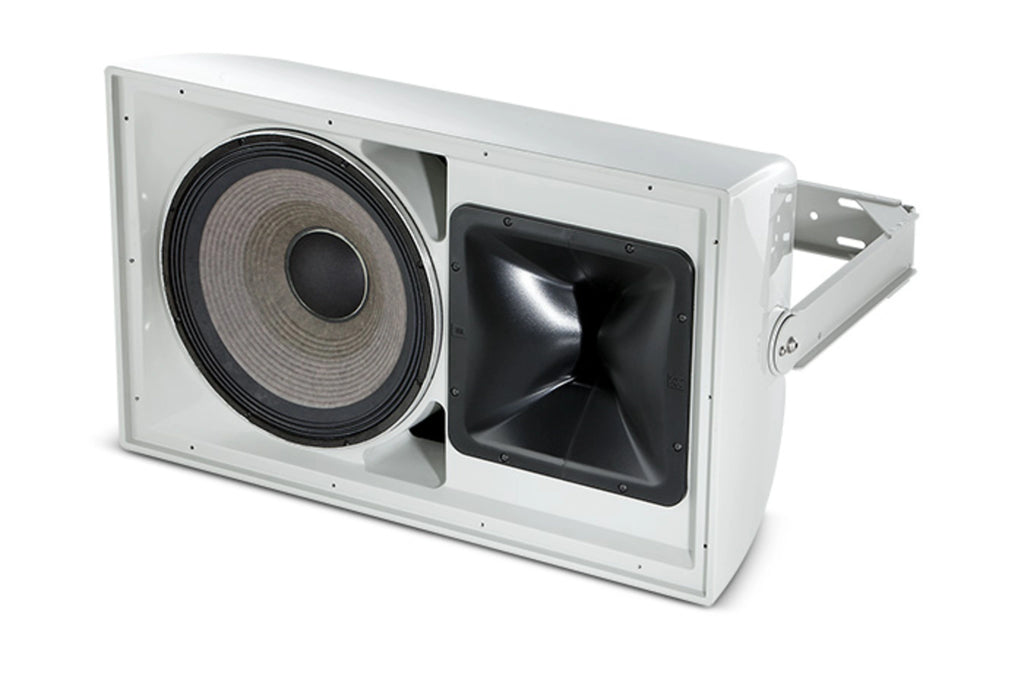

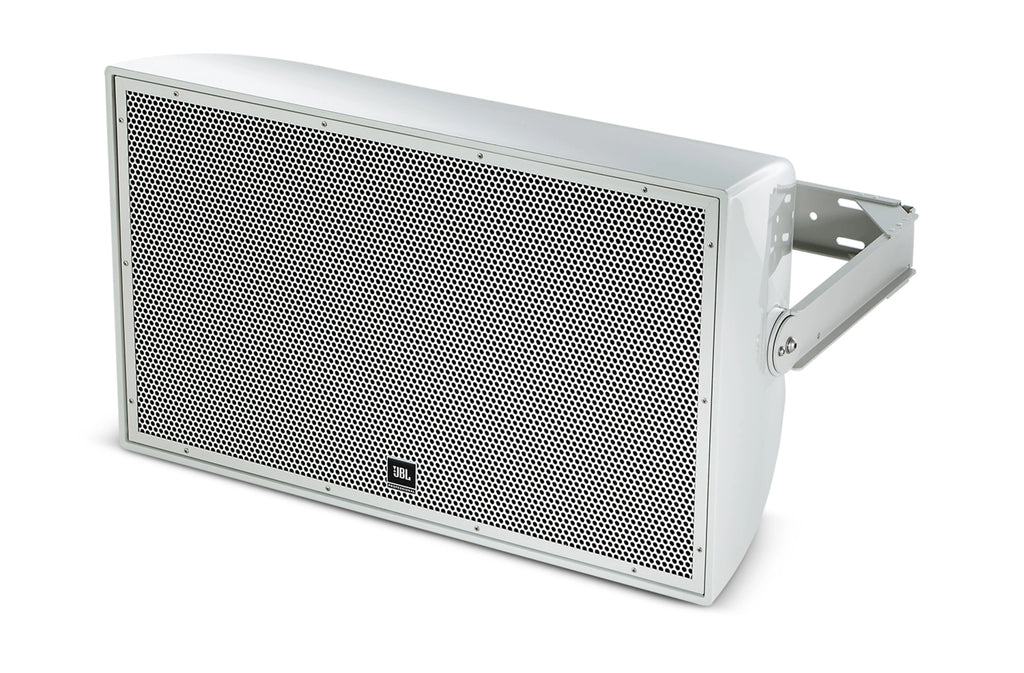

Parts are sealed on LS models (non-LS photo shown). High Power 2-Way All Weather Loudspeaker with 1 x 15" LF for Life Safety Applications The AW526-LS is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2265H 380 mm (15 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition wave-guide provides excellent 120° x 60° coverage. The waveguide is rotatable so the loudspeaker system can used in either the vertical or horizontal orientation. This loudspeaker is EN 54-24 Compliant for life safety applications. The system is equipped with a 500 W 70/100V transformer.

Features

• Weather-Resistant, All Fiberglass Enclosure
• EN 54-24 Compliant for life safety applications
• 120° x 60° Coverage
• 2265H Differential Drive® Low-Frequency Driver
• 2432H High Frequency Compression Driver
• Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
• Rotatable waveguide for vertical or horizontal orientation
• Available in Gray and Black finish
• 500 W, 70/100V Transformer Included

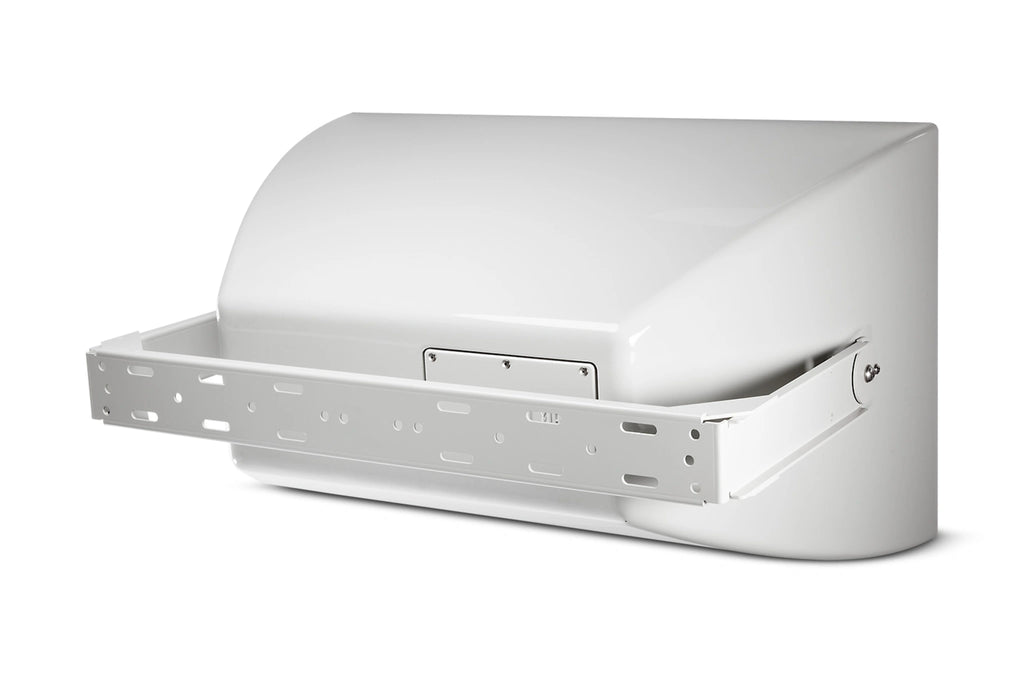

• U-type Mounting Bracket Included
• Sports Facilities
• Themed Entertainment Venues
• Outdoor Entertainment Centers
• Water Parks

Specifications

• Model: AW526-LS
• Frequency Range (-10dB): 39 Hz - 20 kHz
• Frequency Response (±3 dB): 86 Hz - 17 kHz
• Coverage Pattern: 120° x 60°, rotatable waveguide
• Coverage Angle: Frequency (kHz) Horizontal Coverage° Vertical Coverage° 0.5 kHz 135° 108° 1 kHz 98° 95° 2 kHz 115° 67° 4 kHz 108° 46°
• Frequency (kHz): Horizontal Coverage°
• 0.5 kHz: 135°
• 1 kHz: 98°
• 2 kHz: 115°
• 4 kHz: 108°
• Directivity Factor (Q): 7.9
• Directivity Index (DI): 9 dB
• Crossover Frequency: 1.1 kHz
• System Power Rating: 400 W (1600 W peak), 100 hrs
• Maximum SPL (1m): 127 dB-SPL cont avg (133 dB peak)
• Maximum SPL (@ 4m): 108 dB per EN54 Standard
• System Sensitivity (1w @ 1m): 100 dB
• Sensitivity (1W @ 4m): 86.98 dB SPL
• Transformer Taps: 70V: 400 W, 200 W, 100W100V: 400W, 200W
• LF Driver: 1 x JBL 2265H 380 mm (15 in.) Differential Drive® driver with 75 mm (3 in) dual voice coil
• Nominal Impedance: 8 ohms (6.2 ohms per EN54)
• Sensitivity (1W @ 1m, within operational band): 98 dB SPL
• HF Driver: JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil
• Sensitivity: 113 dB SPL
• Waveguide: PT-H126HF -1
• Enclosure: Hand-Laminated Fiberglass, gray gelcoat (similar to Pantone 420C), available in black (-BK)
• Suspension Attachment: 2 x M10 for Included U-Bracket, 2 x M6 for aiming stabilization, 1 x M10 on rear for safety.
• Grille: Three layer grille assemblies consisting of 16-gauge powder coated stainless steel, backed with open cell foam and stainless steel mesh.
• Input Connector: CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs.
• Environmental: IP55C per IEC 529
• Dimensions (H x W x D in horizontal cabinet orientation): 485 x 810 x 478 mm(19.1 x 31.9 x 18.8 in)
• Net Weight (each): 28.3 kg (62.5 lb)
• UPC: 691991014284
• Country of Origin: MX
