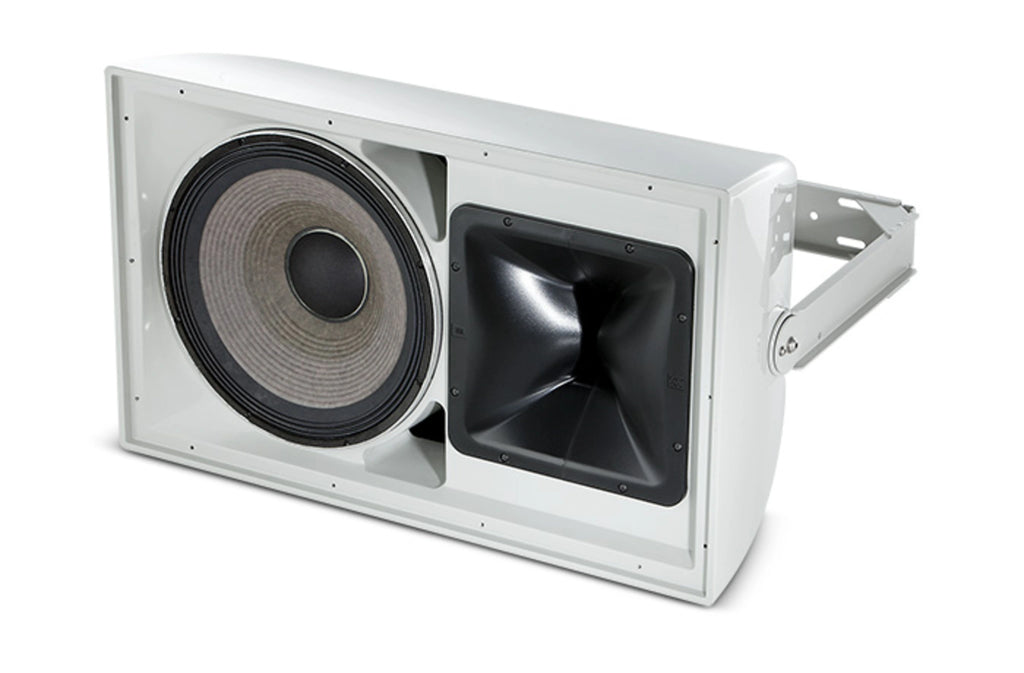

Parts are sealed on LS models (non-LS photo shown). High Power 2-Way All Weather Loudspeaker with 1 x 15" LF & Rotatable Horn for Life Safety Applications The AW595-LS is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2265H 380 mm (15 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition wave-guide provides excellent 90° x 50° coverage. The waveguide is rotatable so the loudspeaker system can used in either the vertical or horizontal orientation. The system is equipped with a 400 W 70/100V transformer. This loudspeaker is EN 54-24 Compliant for life safety applications.

Features

• Weather-Resistant, All Fiberglass Enclosure
• EN 54-24 Compliant for life safety applications
• 90° x 50° Coverage
• 2265H Differential Drive® Low-Frequency Driver
• 2432H High Frequency Compression Drive
• Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
• Rotatable wave guide for vertical or horizontal orientation
• Available in Gray and Black finish
• 400 W, 70/100V Transformer Included

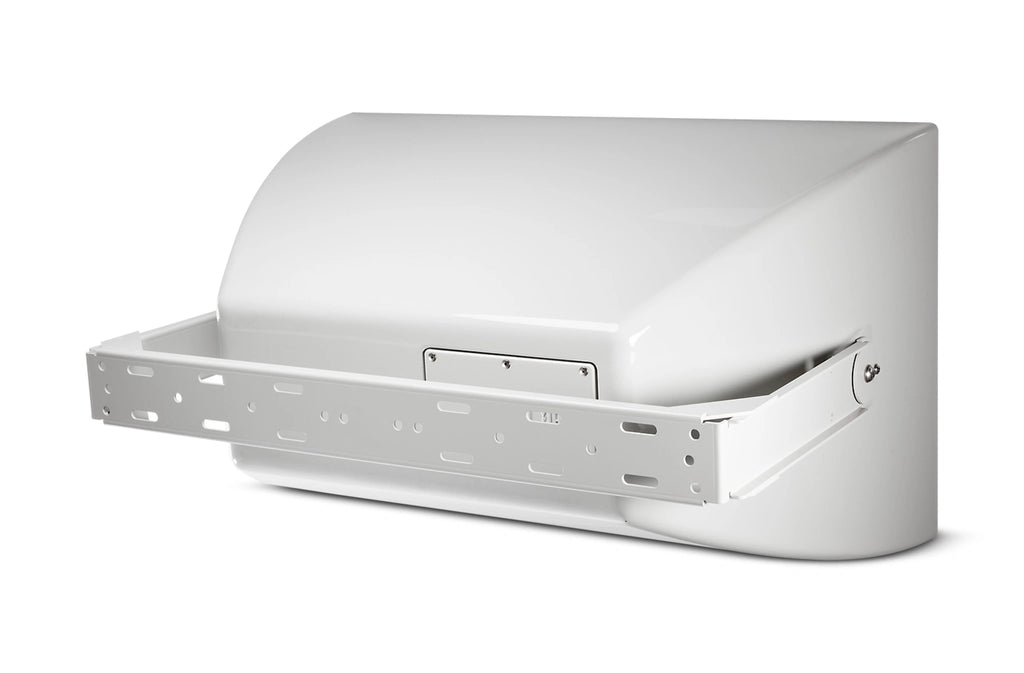

• U-type Mounting Bracket Included
• Sports Facilities
• Themed Entertainment Venues
• Outdoor Entertainment Centers
• Water Parks

Specifications

• Model: AW595-LS-BK
• Frequency Range (-10dB): 41 Hz - 20 kHz
• Frequency Response (±3 dB): 88 Hz - 19 kHz
• Coverage Pattern: 90° x 50°, rotatable waveguide
• Directivity Factor (Q): 12.6
• Directivity Index (DI): 11 dB
• Crossover Frequency: 1.2 kHz
• System Power Rating: 400 W (1600 W peak), 100 hrs
• Maximum SPL (1m): 127 dB-SPL cont avg (133 dB peak)
• Maximum SPL (@ 4m): 113.34 dB
• System Sensitivity (1w @ 1m): 100 dB SPL
• Sensitivity (1W @ 4m): 88.43 dB SPL
• Transformer Taps: 70V: 400 W, 200 W, 100W100V: 400W, 200W
• LF Driver: 1 x JBL 2265H 380 mm (15 in.) Differential Drive® driver with 75 mm (3 in) dual voice coil
• Nominal Impedance: 8 ohms
• Sensitivity (1W @ 1m, within operational band): 98 dB SPL
• HF Driver: JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil
• Sensitivity: 113 dB SPL
• Waveguide: PT-H95HF -1
• Enclosure: Hand-Laminated Fiberglass, gray gelcoat (similar to Pantone 420C), available in black (-BK)
• Suspension Attachment: 2 x M10 for Included U-Bracket, 2 x M6 for aiming stabilization, 1 x M10 on rear for safety.

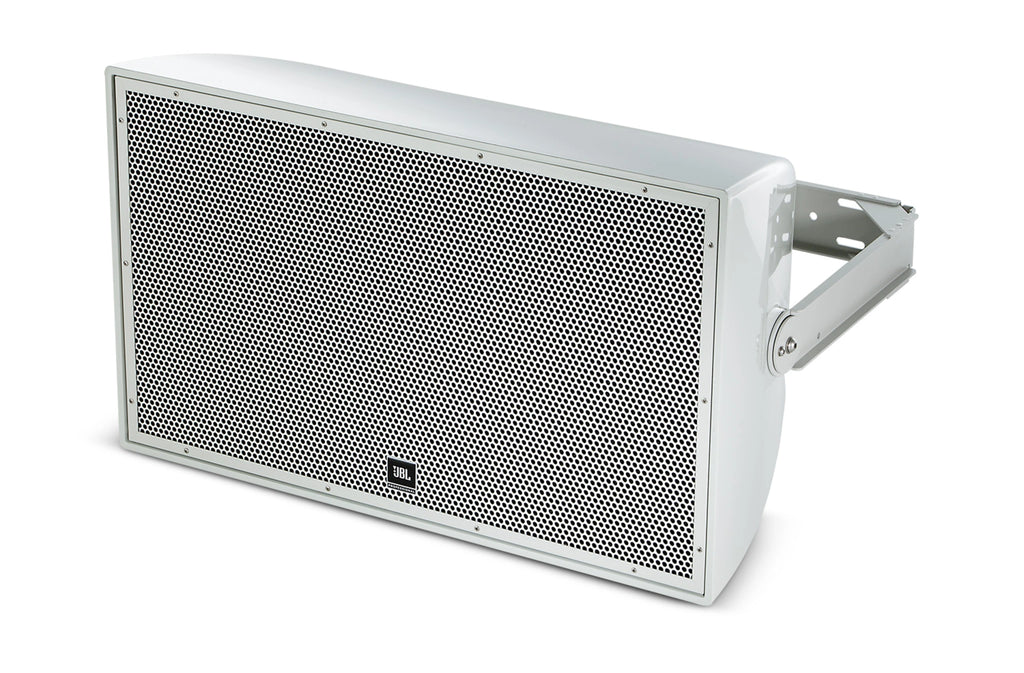

• Grille: Three layer grille assemblies consisting of 16-gauge powder coated stainless steel, backed with open cell foam and stainless steel mesh
• Input Connector: CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs.
• Environmental: IP55C per IEC 529
• Dimensions (H x W x D in horizontal cabinet orientation): 485 x 810 x 478 mm(19.1 x 31.9 x 18.8 in)
• Net Weight (each): 28.3 kg (62.5 lb)
• Crossover Modes: Passive
• Weight: 55 lb
• Dimensions (L x W x H): 23 x 35 x 20 in
• UPC: 691991014376
• Country of Origin: ZZ
