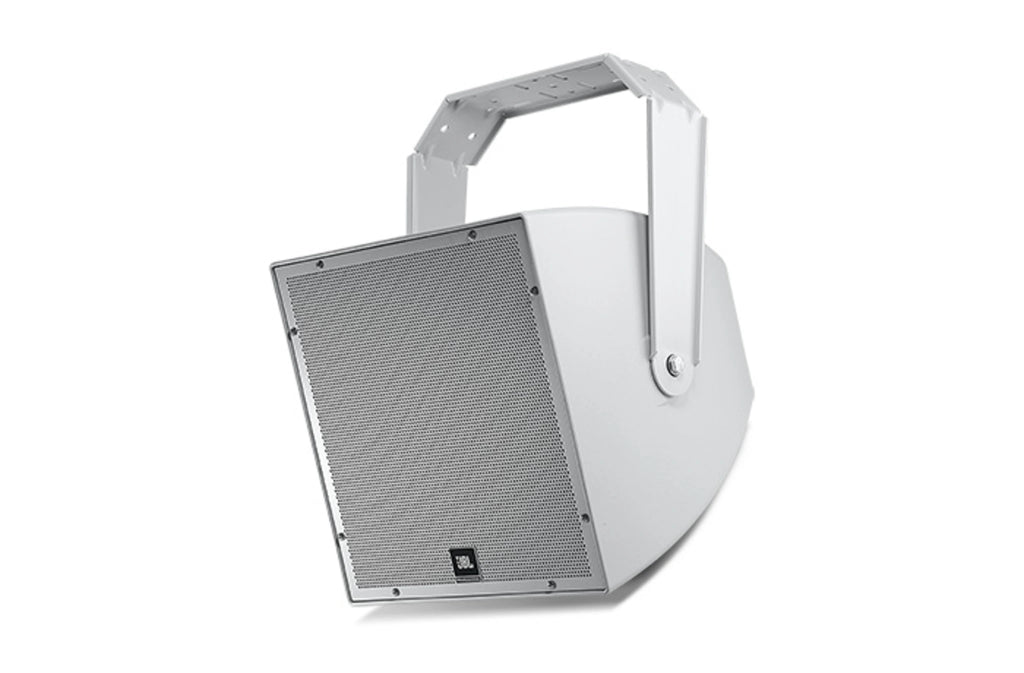

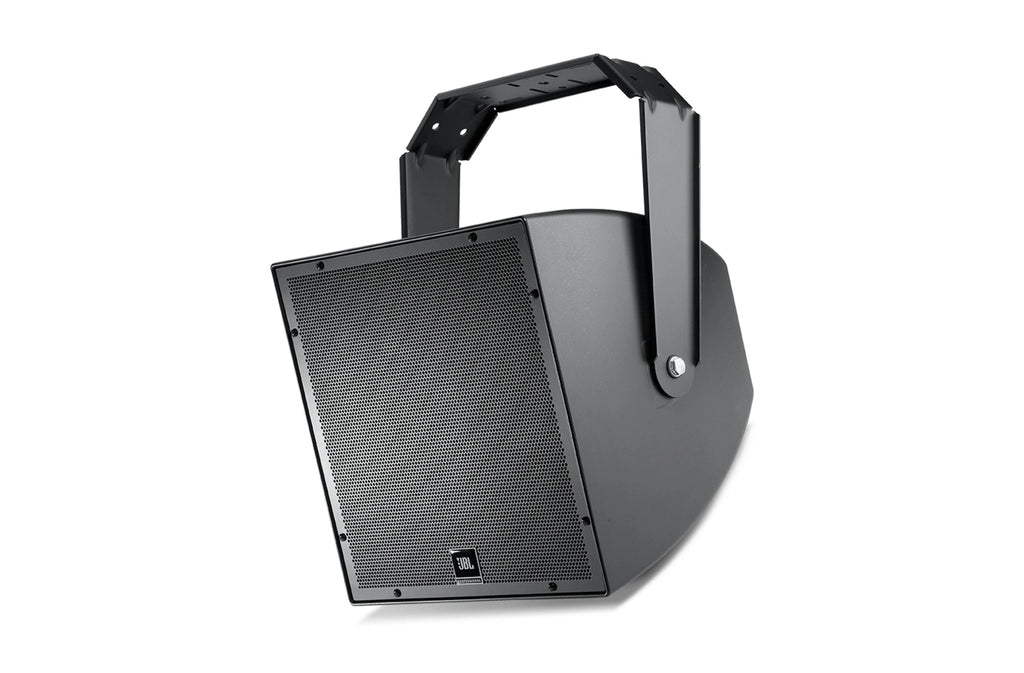

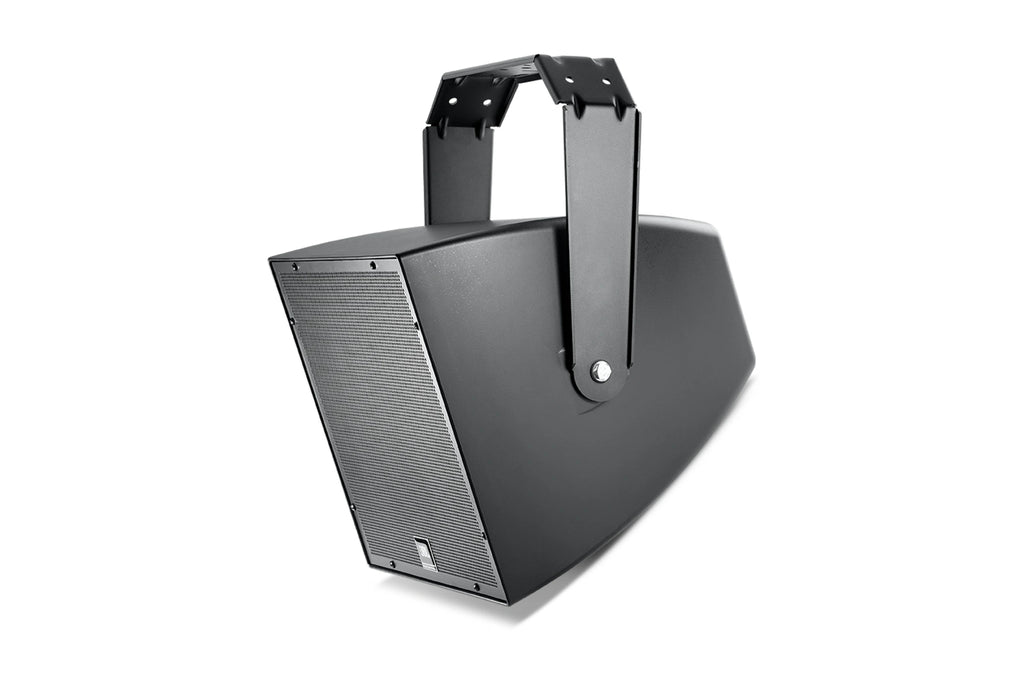

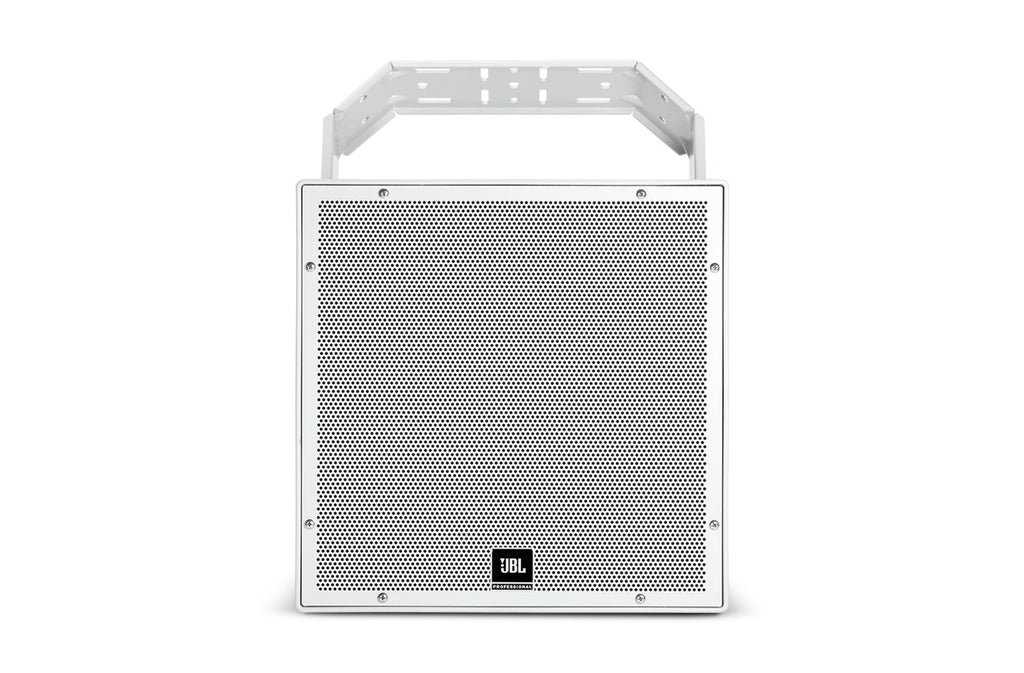

All-Weather Compact Low-Frequency Speaker with 15" LF The AWC15LF is a compact highly weather resistant loudspeaker for augmenting the low frequency capability of a sound system. AWC15LF is ideal for many applications, including sports facilities, racetracks, stadiums, fairgrounds, rodeos, skating rinks, themed entertainment venues, water parks, outdoor background music systems, swimming pools, and a wide variety of other outdoor and indoor venue types.

Features

• Low frequency reinforcement for outdoor applications
• Highly weather-resistant IP56 rating
• Component: • 380 mm (15 in) woofer with Kevlarreinforced cone and 75 mm (3 in) voice coil.
• 500 Watt power handling (average continuous pink noise)
• Frequency range down to 45 Hz
• 300 Watt 70V/100V multi-tap transformer or direct 8Ω low-impedance.

Specifications

• Model: AWC15LF-BK
• Frequency Range (-10dB): 45 Hz - 2.2 kHz
• Frequency Response (±3 dB): 70 Hz - 1.2 kHz
• System Power Rating: 500 W (2000 W peak), 2 hrs. 300 W (1200 W peak), 100 hrs.
• Sensitivity (2.83V @ 1m): 94 dB (Ave. 80 Hz - 300 Hz)
• Maximum SPL (1m): Direct 8Ω: 121 dB (peaks of 127 dB) 300 W Tap: 119 dB (peaks of 125 dB)
• Nominal Impedance: 8 ohms (in Direct mode)
• Transformer Taps: 70V: 300W, 150W, 75W, 38W 100V: 300W, 150W, 75W
• LF Driver: 380 mm (15 in), Kevlar-reinforced cone, with weather treatment, 75 mm (3 in) voice coil, long throw.
• Enclosure: ABS with Glass enclosure, heavily braced
• Attachment: Two M10 (course-thread) points for included U-bracket. M6 secondary safety attachment point on back panel.
• Grille: Corrosion-resistant zinc-rich extra-thick powder coated steel grille, 3-layer assembly with foam and woven poly mesh backing.
• Input Connection: CE-compliant covered barrier strip terminals. Barrier terminals accept up to 8 mm outside 4 mm inside openlug (#6 or #8) plus bare wire up to 2.5 mm2 (12 AWG) wire or spade lugs. Terminal compartment cover equipped with gland nut that forms water-tight seal with round-jacketed cables with outside diameters between 4.0 mm (0.16") and 9.0 mm (0.36")
• Environmental: IP56 per IEC529, with a minimum 5° downward aiming angle. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, and ASTM G85 for acid-air/salt-spray (336 hrs).
• Dimensions: 486 x 486 x 479 mm (19.1 x 19.1 x 18.8), cabinet 507 mm (19.9 in) depth with gland nut 546 mm (21.5 in) including bracket extending to back
• Included Accessories: U-bracket, matches loudspeaker color (gray or black), zinc-rich extra-thick powder coated, steel.
• Nominal LF Driver Impedance: 8 ohms (in Direct mode)
• Suspension Attachment: Two M10 (fine-thread) points for included U-bracket. M6 secondary safety attachment point on back panel.
• Net Weight (each): 20.2 kgs. (44.5 lbs.)
• Coverage Pattern: Omnidirectional
• Weight: 50 lb
• Dimensions (L x W x H): 24 x 24 x 24 in
• UPC: 50036905343
• Country of Origin: CN
