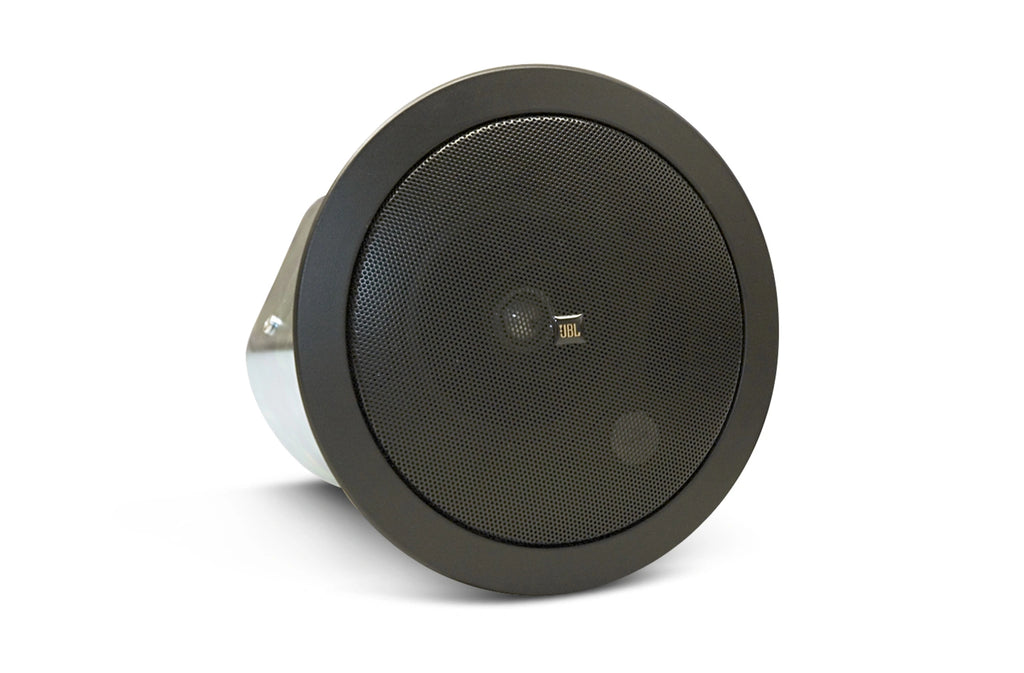

Background/Foreground Ceiling Speaker The Control 24CT-BK is a compact ceiling speaker providing premium performance in background, foreground and music-pluspaging sound systems. The Control 24CT-BK is perfectly suited for a wide variety of applications from professional offices and airports to restaurants and specialty retail stores. High power handling, wide frequency response and low distortion make the Control 24CT-BK ideal for sound systems requiring a higher fidelity sound from ceiling loudspeakers. The premium performance capability ensures excellent sound character, providing pleasant, enveloping sound throughout the listening area.

Features

• Coaxially mounted 100 mm (4 in) woofer with butyl rubber surround and 19 mm (¾ in) titanium coated diffraction-loaded tweeter
• High power, wide frequency response and low distortion for high sound level capability
• Wide coverage allows fewer speakers, reducing the cost of the installed sound system without sacrificing performance
• Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking
• Black baffle and grille works well in black and dark ceiling

Specifications

• Model: C24CT-BK
• Frequency Range: 80 Hz - 20 kHz
• Power Rating: See transformer taps
• Transformer Taps: 70V: 30W, 15W, 7.5W (& 3.7W @ 70V)
• Coverage Angle: 130° conical
• Directivity Factor (Q): 2.4 dB averaged 500 Hz to 4 kHz
• Directivity Index (DI): 3.8 dB averaged 500 Hz to 4 kHz
• Maximum SPL (1m): 102 dB (top 70V/100V tap)
• Nominal Impedance: 16 ohms (Min Z 16.1 ohms @ 320 Hz)
• Sensitivity: 86 dB (100 Hz - 10 kHz)
• Input Connectors: Removable 4-pin locking connector with screw-down terminals.
• Drivers: LF Driver: 100 mm (4.0 in) HF Driver: 19 mm (0.75 in)
• Color: Black
• Safety Agency: Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
• Backcan: formed steel (included "blind-mount")
• Baffle/Rim: Medium impact polystyrene, fire rated UL94V-0
• Ceiling Cutout Size: 168 mm (6.6 in) diameter (cardboard cutout template included)
• Included Accessories: C-shaped support backing plate 2 tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles) Cutout template Paint shield Removable locking wiring connector
• Plenum Usage: Yes, backcan included
• Weight: 13 lb
• Dimensions (L x W x H): 4.75 x 26 x 6 in
• UPC: 50036904896
• Country of Origin: CN
