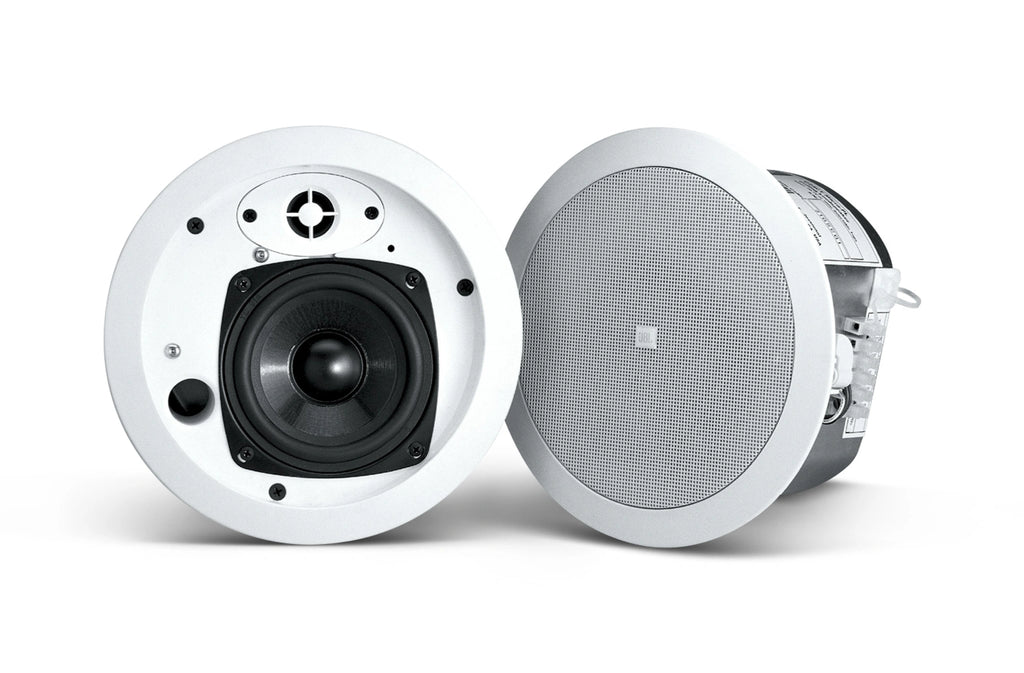

JBL C24CT MICROPLUS, 4.5" Compact 2-WAY Ceiling Speaker w Transformer

JBLSKU: C24CT MICROPLUS

Price:
$160

Shipping calculated at checkout

Description

Background Music Ceiling Loudspeaker The Control 24CT MicroPlus is a compact in-ceiling speaker, providing full, high quality sound for background music and music-plus-paging systems.

Features

  • 150° conical coverage.
  • Smooth frequency response.
  • Advanced crossover network provides very even coverage throughout listening area.
  • Components: 115 mm (4.5 in) woofer, injection molded graphite cone with butyl rubber surround. 12 mm (.5 in) polycarbonate tweeter for extended response.
  • Includes 25 W multi-tap transformer for 70 V/100 V systems.
  • Shallow 105 mm (4.1 inch) depth from back of baffle.
  • Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking.

Specifications

  • Model: C24CT MICROPLUS
  • Frequency Range: 80 Hz - 25 kHz
  • Power Capacity: 30 W Continuous Program Power; 15 W Continuous Pink Noise
  • Transformer Taps: 70 V: 25 W, 12 W, 6 W taps100 V: 25 W, 12 W taps
  • Nominal Sensitivity: 85 dB SPL @ 1 m (3.3 ft)
  • Coverage Angle: 150° conical
  • Crossover Frequency: 3.5 kHz, 3rd order low-pass plus 3rd order high-pass with conjugate
  • Maximum SPL (1m): 99 dB @ 1 m (3.3 ft), 25 W tap
  • Low Frequency: 115 mm (4.5 in) IMG (injection molded graphite), 24 mm (1 in) voice coil
  • High Frequency: 12 mm (0.5 in) polycarbonate
  • Weight: 8 lb
  • Dimensions (L x W x H): 13 x 10.75 x 7.75 in
  • UPC: 691991011863
  • Country of Origin: CN
