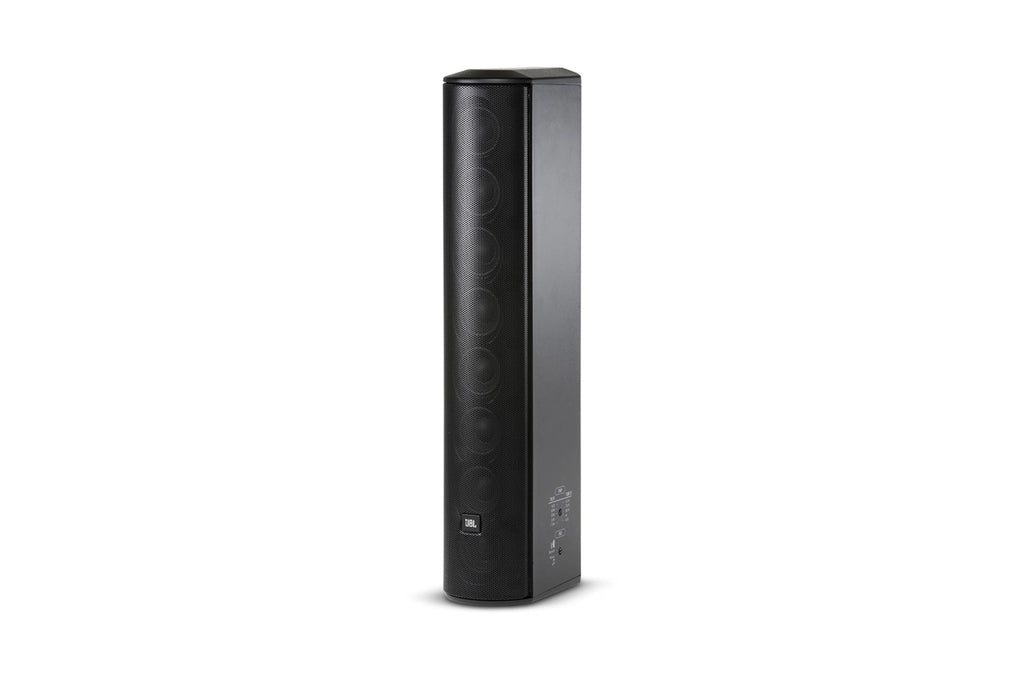

Line Array Column Loudspeaker with with Eight 50 mm (2 in) Drivers and EN54:24 Certification The CBT 50LA-LS, with Constant Beamwidth Technology™, represents a breakthrough in pattern control, utilizing analog delay beamforming and amplitude tapering to accomplish consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of straight form-factor passive column speakers. This loudspeaker is EN 54-24 Compliant for life safety applications.

Features

• Patent-pending Constant Beamwidth Technology™ provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing.
• EN 54-24 Compliant for Life Safety Applications (when installed with included MTC-PC2 panel cover)
• Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode.
• Dynamic SonicGuard™ overload protection
• Built-in 70V/100V transformer, plus 8 ohm direct capability.
• Swivel (pan) / tilt wall bracket included.

Specifications

• Model: CBT 50LA-LS-WH
• Drivers: Eight 50 mm(2 in) Full-Range
• Frequency Range (-10dB): 120 Hz - 20 kHz
• Coverage Pattern: Vertical: 20° (1.5 kHz - 16 kHz, ±10°) Horizontal: 150° (ave, 1 kHz - 4 kHz, ±20°)
• Coverage Angle: Frequency (kHz) Horizontal Coverage° Vertical Coverage° 0.5 kHz 360° 100° 1 kHz 247° 55° 2 kHz 194° 32° 4 kHz 135° 18°
• Frequency (kHz): Horizontal Coverage°
• 0.5 kHz: 360°
• 1 kHz: 247°
• 2 kHz: 194°
• 4 kHz: 135°
• Sensitivity (1W/1m) free field: (speech mode) 93 dB (2 kHz - 14 kHz ) (music mode) 89 dB (300 Hz - 18 kHz)
• Sensitivity (1W @ 4m): (speech mode) 78.8 dB SPL (100 Hz - 10 kHz) (music mode) 76.5 dB SPL (100 Hz - 10 kHz)
• Nominal Impedance: 8Ω (in bypass mode) 7.5w@70v; 15w@100v Tap = 667Ω 15w@70v; 30w@100v Tap = 333Ω 30w@70v; 60w@100v Tap = 167Ω 60w@70v; N/C@100v Tap = 83Ω
• Power Rating: 150W (600W peak), 2 hrs100 W (400W peak), 100 hrs
• Maximum SPL: Speech: 115 dB cont ave (121 peak @ 1m); 103 dB cont ave (109 peak @ 4m) Music: 111 dB cont ave (117 peak @ 1m); 99 dB cont ave (105 peak @ 4m)
• EN54 Max SPL (@ 4m): Speech: 96 dB, Music: 93 dB

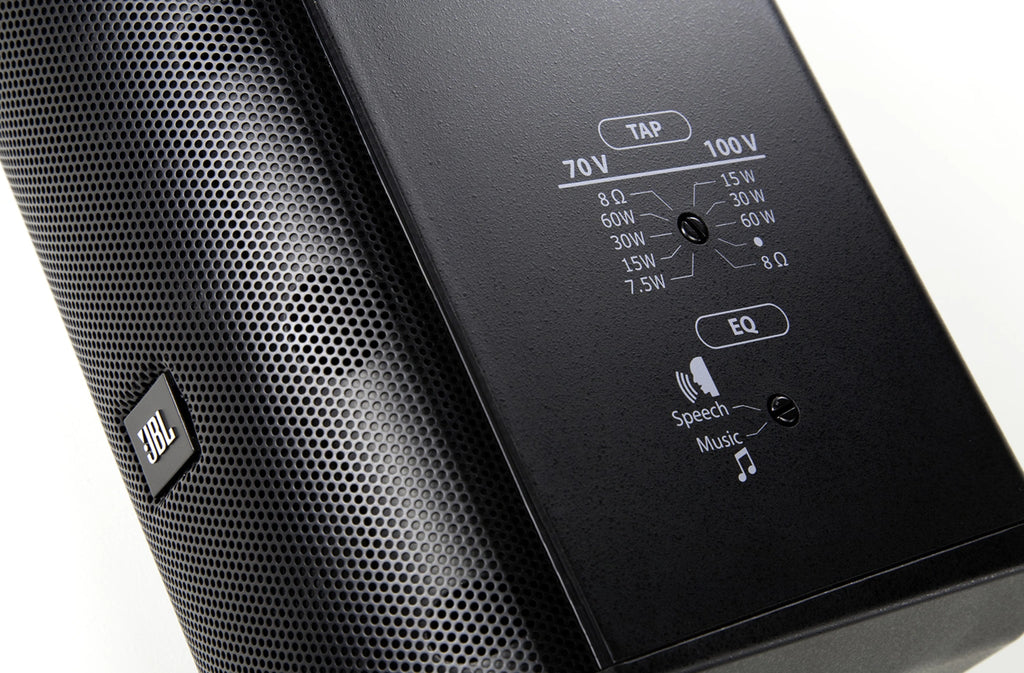

• Transformer Taps: 60W, 30W, 15W, (7.5W at 70V only), and 8Ω thru, via switch
• Enclosure: Fiberglass reinforced ABS cabinet, painted aluminum grille
• Outdoor Capability: IP-55 rated, per IEC529, when installed with optional MTC-PC2 panel cover. UV, moisture and 200-hr ASTM G85 acid-air/salt-spray resistant.
• Color: Black or White (-WH)
• Insert Points: Ten M6 insert points on back panel.
• Mounting: Included swivel (pan) / tilt wall bracket provides continuously variable +/-80 degree left-right swivel aiming (at no up/down tilt -- see Bracket Guide for maximum swivel range at various up/down tilt angles), continuously adjustable ±15 degree tilt, as well as 5 degree fixed increment points within the range. Ten threaded mounting points located on back panel located on back panel conform to industry standard rectangular 108 x 51 mm (4.25 x 2.0 in) pattern for OmniMount® 30.0 and other compatible third-party brackets. Threaded mounting points can be utilized for suspension.
• Safety Agency Rating: EN54-24:2008 certified, when installed with MTC-PC2 terminal panel cover. In accordance with the requirements of IEC60849/EN60849.
• Dimensions (H x W x D): 528 x 99 x 153 mm(20.8 x 3.9 x 6.0 in)
• Net Weight: 4.1 kg (9.0 lb)
• Included Accessories: Swivel (pan) / tilt wall bracketMTC-PC2 terminal panel cover
• Optional Accessories: MTC-CBT-FM1 flush-mount low-profile wall-mount bracket MTC-CBT-SMB1 Stand-Mount Bracket for use with 35 mm speaker stand
• Weight: 20 lb
• Dimensions (L x W x H): 30 x 12.5 x 8 in
• UPC: 691991011887
• Country of Origin: CN
