Ultra-Compact 8-Ohm Indoor/Outdoor Background/Foreground Speaker The Control® 23-1L is a two-way 3” speaker with rich sonic character, wide coverage, consistent dispersion, versatile mounting, and a contemporary high-design look that fits into a wide range of decors. This makes Control 23-1L an excellent choice for a wide variety of applications, including retail stores, restaurants, health clubs, theme parks, educational facilities, hospitality, music cafes, leisure venues, and anywhere where a top quality compact indoor/outdoor foreground/background music (and/or paging) speaker is required.

Features

• 3” woofer with woven fiberglass cone
• 1/2” PEI diaphragm tweeter with fluid cooling
• Contemporary, high-design appearance
• Built-in InvisiBall® mounting hardware, plus available U-bracket
• Weather resistant enclosure and transducers
• Wide 100° x 100° coverage
• 50 Watt power handling (100 Watt program)
• High fidelity sound character with broad frequency response of 70 Hz - 20 kHz

Specifications

• Model: CONTROL 23-1L
• Frequency Range (-10dB): 70 Hz to 20 kHz
• Frequency Response (±3 dB): 95 Hz - 19 kHz
• Power Rating: 100W Continuous Program (2 hrs) *Continuous Pink Noise rating is IEC-shaped pink noise with a 6 dB crest factor. Continuous Program Power is defined as 3 dB above the Continuous Pink Noise Rating and is a conservative expression of the system’s ability to handle normal speech and music program material.
• Maximum Input Voltage: 17.2 V RMS (2 hrs), 34.4 V peak
• Maximum SPL (1m): 103 dB ave. Continuous Pink Noise (109 dB peak) *Calculated from sensitivity and power handling, exclusive of power compression.
• Sensitivity: 86 dB, 1W/1m (ave. 100 Hz - 10 kHz) *Half-space (on-wall) averaged 100 Hz - 10 kHz, 2.83V.
• Coverage Angle: 100°H x 100°V
• Directivity Factor (Q): 5.8 (averaged 1kHz - 16kHz)
• Directivity Index (DI): 7.2 dB (averaged 1kHz - 16kHz)
• Impedance: 8 ohms
• Crossover Type: 2nd order low-pass, 2nd order high-pass
• Recommended Protective High-Pass: 70 Hz high-pass (24 dB/oct) *For protection against driving below resonant frequency and to keep transformer out of saturation.
• Drivers: LF: 76 mm (3.0 in), woven-fiberglass cone with pure butyl rubber surround with Weather-Edge frame protection, high-temp Kapton™ voice coil former, high-temp voice coil wire, optimized cone geometry, linear suspension spider, and FEA optimized motor structure. HF: 13 mm (0.5 in) PEI diaphragm, low-viscosity ferro-magnetic fluid, and lightweight Kapton™ voice coil former.
• Enclosure: High Impact Polystyrene (HIPS), painted with highly-UV resistant paint on white (-WH) version for maximum UV fade resistance.
• Grille: Highly zinc-plated, finished in durable TGIC polyester powdercoating. MTC-23WMG-1 (&-WH) available with WeatherMax™ multi-layer foam and tight-weave mesh vapor barrier backing.
• Mounting Hardware: InvisiBall™ wall-mounting system included. Two 6 mm attachment points (on top and bottom) for optional MTC-23UB-1 (&-WH) U-bracket. Secondary safety attachment loop point on back panel.
• Outdoor Capability: IP-44 per IEC529 (IP-55 when installed with the optional MTC-23WMG-1 WeatherMax™ grille and either MTC-PC2 or MTC-PC3 panel cover.) Exceeds MilSpec 810 for humidity, salt-spray, temperature & UV. Passes MilStd-202F for salt spray and ASTM G85 for acid-air plus salt spray. Optional MTC-23WMG-1 WeatherMax™ grille for breaking up driving rain and for especially difficult environments.
• Input Connectors: Screw-down terminal strip, zinc-plated copper based, nickel-plated metal screws and washers. Accepts up to 9 mm outside 4 mm inside open lugs (#6, #8, or #10 lug), plus bare wire (up to 12 AWG / 2.5 mm2). Optional MTC-PC2 and MTC-PC3 protective panel covers available to provide sealed entrance for additional weather protection.
• Agency Rating: ROHS-compliant

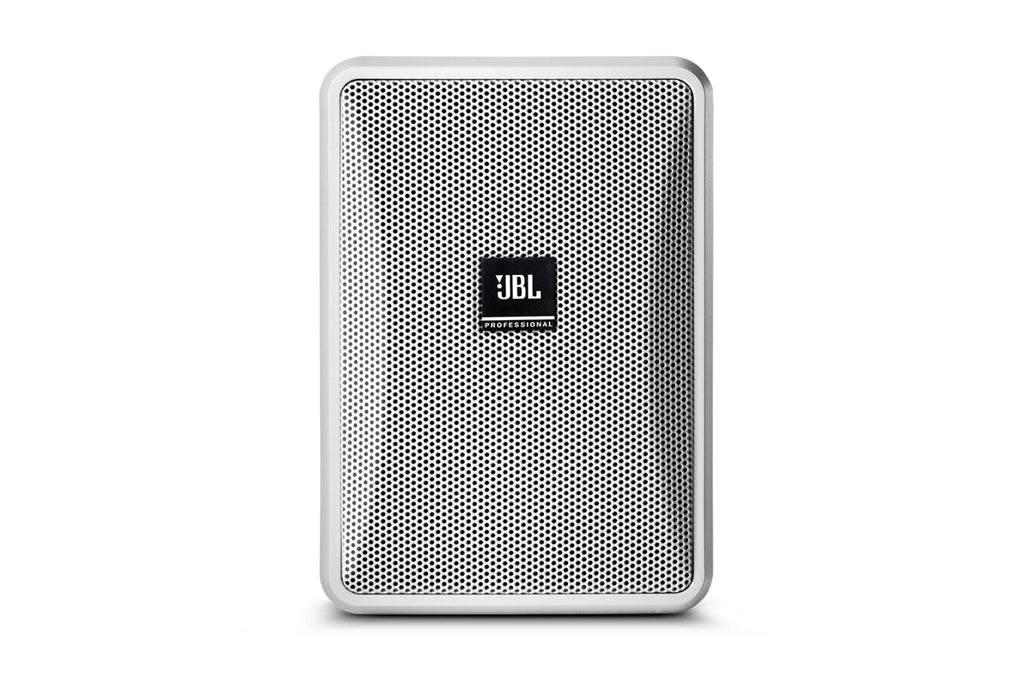

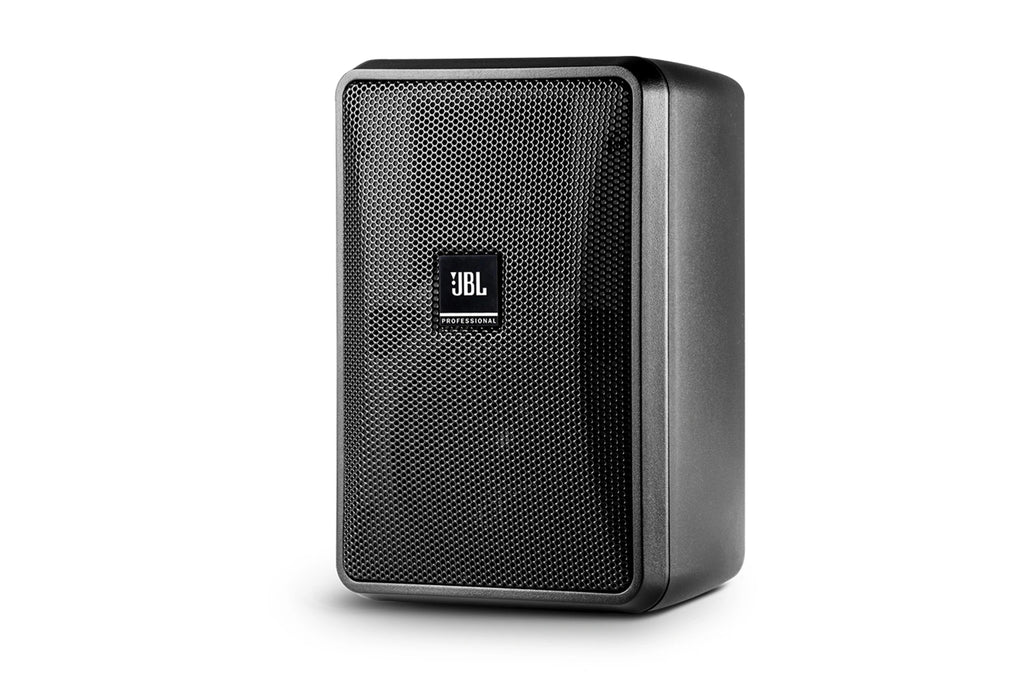

• Colors: Black (RAL9004) or white (-WH, RAL9016)
• Dimensions (H x W x D): 200 x 141 x 111 mm (7.9 x 5.6 x 4.4 in); 141 mm (5.6 in) deep total when mounted on InvisiBall wall-mount bracket. *In vertical orientation
• Net Weight (each): 1.6 kg (3.4 lbs)
• Shipping Weight: 3.5 kg (7.6 lbs) for the pair-pack (for 2 speakers), 11.0 kg (24.3 lbs) for master-pack (for 6 speakers)
• Included Accessories: InvisiBall™ wall-mounting system, 4 mm x 80 mm hex key
• Optional Accessories: MTC-23UB-1 - Yolk-type U-bracket (&-WH) MTC-23WMG-1 - WeatherMax grille with backing (&-WH) MTC-23CM - Ceiling-Mount InvisiBall adapter (&-WH)
• Weight: 3.5 lb
• Dimensions (L x W x H): 6.25 x 7.25 x 9.5 in
• UPC: 691991005091
• Country of Origin: CN
