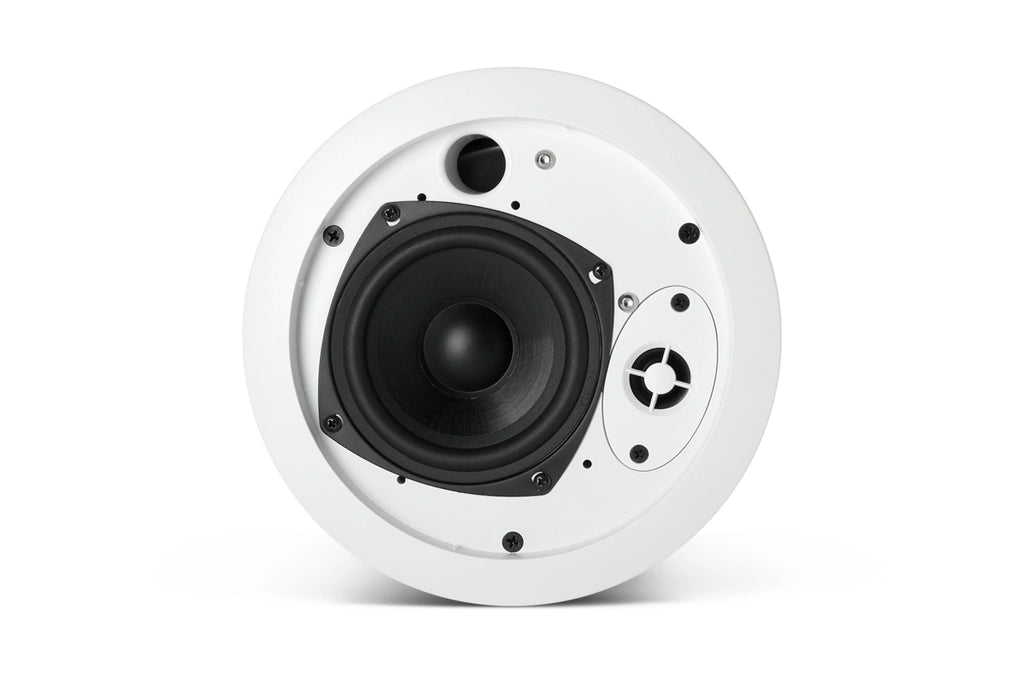

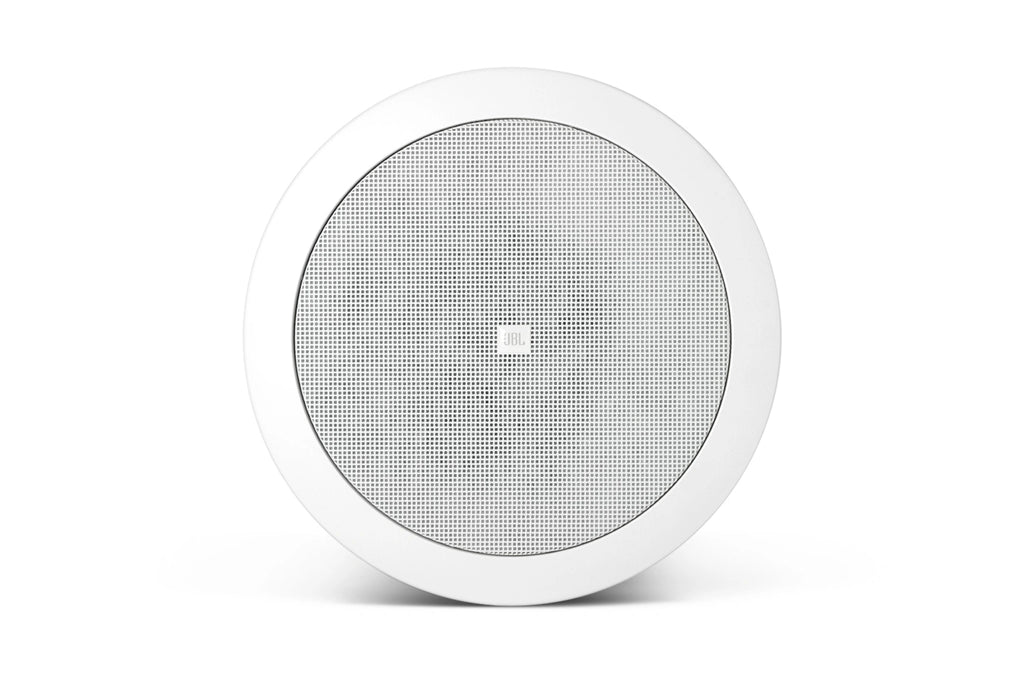

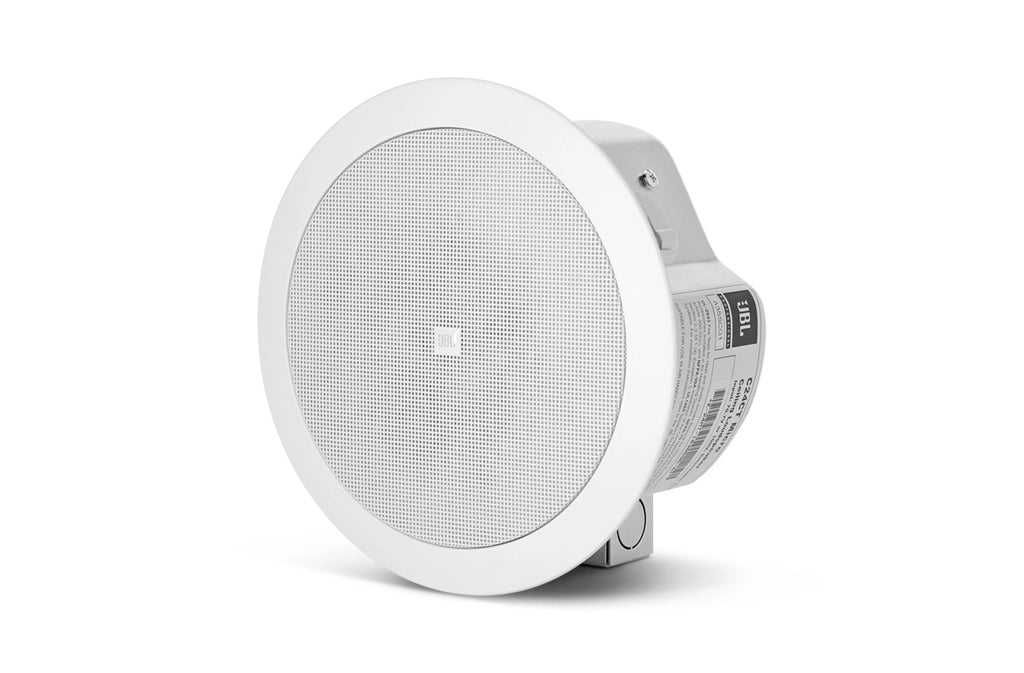

Background Music The Control 24CT Micro is a compact in-ceiling speaker, providing full, high quality sound for background music and music-plus-paging systems.

Features

• Extremely wide 150° coverage.
• Smooth frequency response.
• Includes 9 W multitap transformer for
• Shallow 4 in (100 mm) depth.
• Packaged with grille, backcan and tile rails for fast

Specifications

• Model: CONTROL 24CT MICRO
• Frequency Range: 85 Hz - 25 kHz
• Power Rating: See transformer taps
• Transformer Taps: 9W, 4W, 2W, 1W (& 0.5 W taps @ 70V)
• Crossover Frequency: 3.5 kHz
• Maximum SPL (1m): 94 dB (top 70V/100V tap)
• Sensitivity: 86 dB (100 Hz - 10 kHz)
• Coverage Angle: 150° conical
• Input Connectors: Screw-down terminals.
• Drivers: LF Driver: 115 mm (4.5 in) HF Driver: 12 mm (0.5 in)
• Color: White
• Safety Agency: Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
• Backcan: formed steel (included "blind-mount")
• Baffle/Rim: Medium impact polystyrene, fire rated UL94V-O
• Ceiling Cutout Size: 167 mm (6.6 in) diameter (cardboard cutout template included)
• Included Accessories: C-shaped support backing plate 2 tile support rails (fits both 2 ft and 600 mm tiles) Cutout template, cardboard
• Optional Accessories: MTC-24TR trim ring for retrofit installations MTC-24NC optional new construction bracket, flat MTC-24MR optional mud ring construction bracket
• Plenum Usage: Yes, backcan included
• Weight: 7.95 lb
• Dimensions (L x W x H): 13 x 10.75 x 7.5 in
• UPC: 50036904650
• Country of Origin: CN
