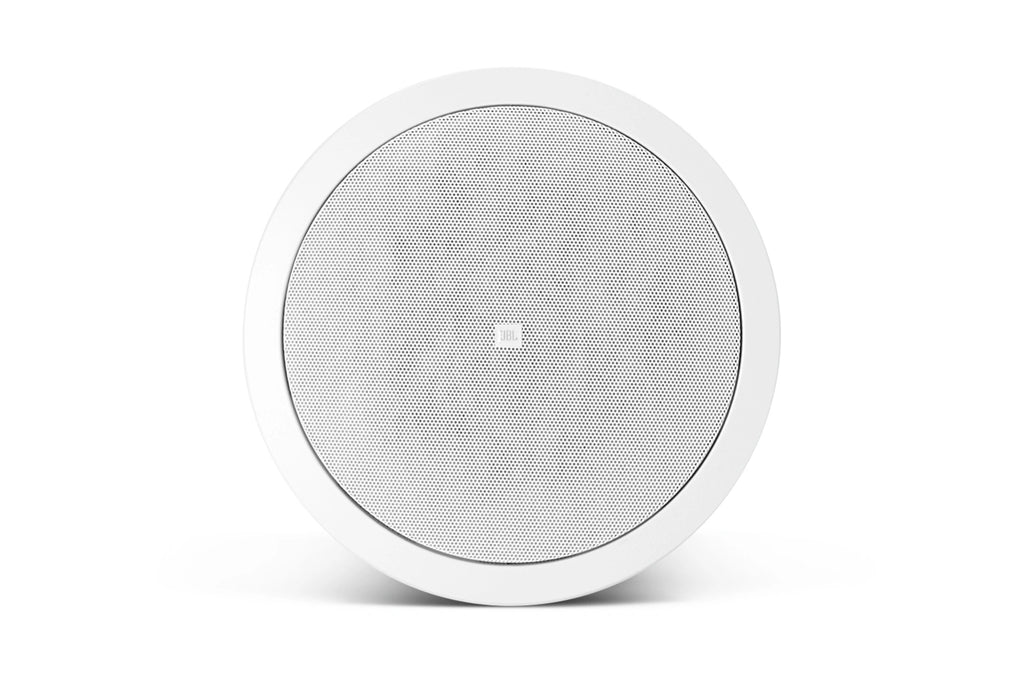

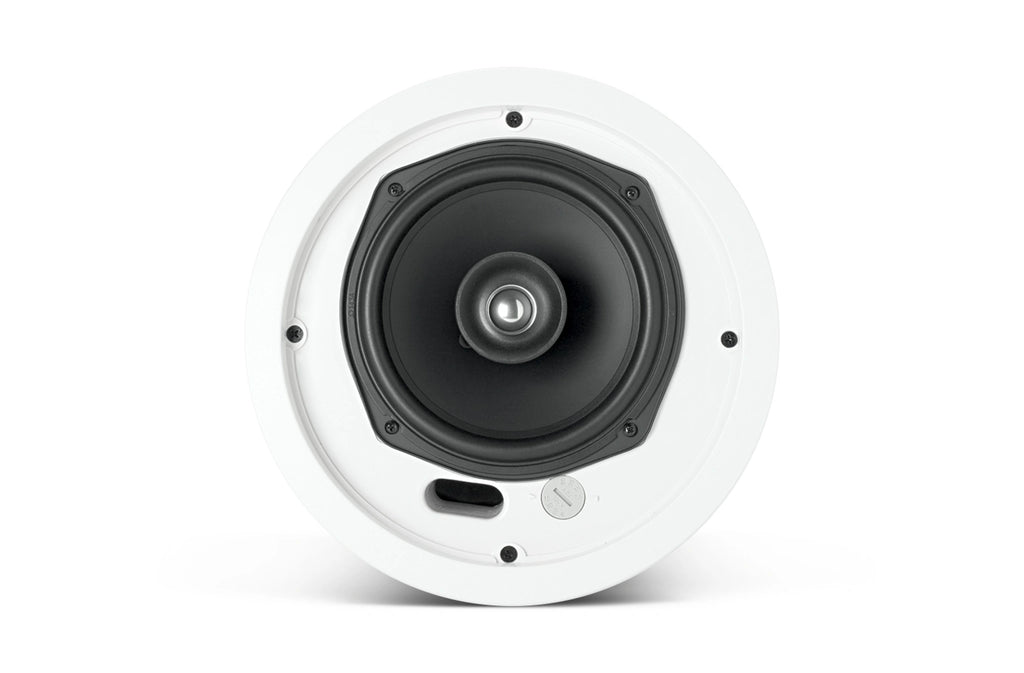

6.5" Ceiling Loudspeaker Transducer Assembly The Control 26CT is a powerhouse ceiling speaker containing a coaxially mounted 6.5" woofer and 3/4" titanium-coated tweeter, able to deliver maximum sound level over a wide coverage area. The Control 26CT includes a multitap transformer for a 70V or 100V line distribution system.

Features

• Coaxially mounted 165 mm (6.5 in) woofer with butyl rubber surround and 19 mm (.75 in) titanium coated
• High power, wide frequency response and low distortion for high sound level capability.
• Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking.

Specifications

• Model: CONTROL 26CT
• Frequency Range: 75 Hz - 20 kHz
• Power Rating: See transformer taps
• Transformer Taps: 60W, 30W, 15W (& 7.5W @ 70V)
• Coverage Angle: 110° conical
• Directivity Index (DI): 4.6 dB
• Maximum SPL (1m): 107 dB (top 70V/100V tap)
• Drivers: LF Driver: 165 mm (6.5 in) HF Driver: 19 mm (¾ in)
• Input Connectors: Removable 4-pin locking connector with screw-down terminals.
• Dimensions (H x Dia): 210 mm x 252 mm (8.3 in x 9.9 in)
• Net Weight (each): 4.2 kg (10 lbs)
• Shipping Weight (pair): 9.7 kg (21 lbs)
• Color: White
• Safety Agency: Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
• Backcan: formed steel (included "blind-mount")
• Baffle/Rim: Medium impact polystyrene, fire rated UL94V-0
• Ceiling Cutout Size: 220 mm (8.75 in) diameter (cardboard cutout template included)
• Included Accessories: C-shaped support backing plate 2 tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles) Cutout template Paint shield Removable locking wiring connector
• Plenum Usage: Yes, backcan included
• Weight: 10.3 lb
• Dimensions (L x W x H): 13 x 11.5 x 12 in
• UPC: 50036904087
• Country of Origin: CN
