High-output 12 in. Coaxial Ceiling Loudspeaker The Control 322C delivers exceptional next-generation performance in a coaxial point source design ceiling loudspeaker.

Features

• Consistent 90° broadband pattern control.
• Components • Kevlar-reinforced 300 mm (12 in) woofer with 75 mm (3 inch) voice-coil cone. • Medium-format compression driver.
• Extraordinary clarity for speech and vocals with extended frequency response for music.
• Power handling of 400 Watts with high sensitivity provides high SPL capability.
• Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
• Clean, contemporary grille and optional backbox available.

Specifications

• Model: CONTROL 322C
• Frequency Range (-10dB): 32 Hz - 20 kHz
• Power Rating: IEC Long-Term System Power Rating: 400 W continuous pink noise (1600 W peak), 2 hrs 250 W continuous pink noise (1000 W peak), 100 hrs
• Sensitivity: 95 dB (1 kHz - 16 kHz)
• Frequency Response (±3 dB): 48 Hz - 19 kHz
• Coverage Angle: 90° conical, constant directivity
• Directivity Factor (Q): 9 (1k - 16kHz)
• Directivity Index (DI): 9.5dB (1k - 16kHz)
• Crossover Network: 1.4 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 2nd order low-pass to LF
• Impedance: 8 ohms
• Dimensions (H x W x D): 366 x 366 mm (14.4 x 14.4 in) square baffle x depth from back of baffle of 223 mm (8.8 in)
• Maximum SPL (1m): 121 dB (127 dB peak)
• Input Connectors: Screw locking barrier strip for bare wire
• Drivers: LF Driver: 300 mm (12 in) HF Driver: compression driver, 37 mm (1.5 inch) coil
• Color: White
• Safety Agency: Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70 when installed with UL listed backcan such as JBL MTC-300BB12. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
• Backcan: formed steel (wood-lined; accessory)

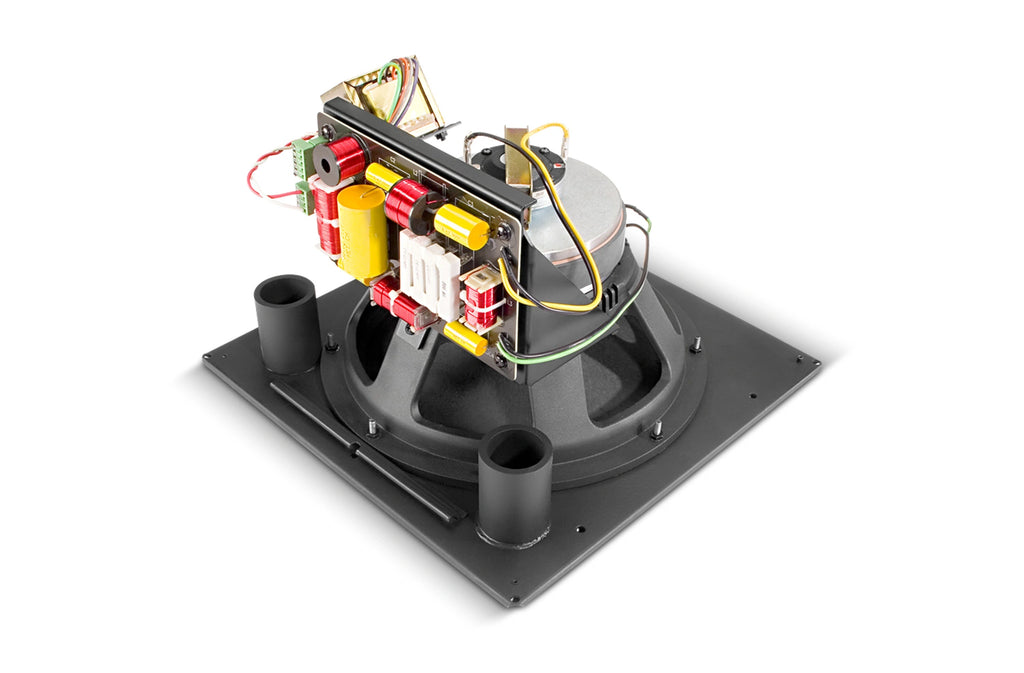

• Baffle/Rim: Metal, driver pre-mounted to baffle, ported.
• Ceiling Cutout Size: 378 x 378 mm (14.9 x 14.9 in) (for MTC-300BB12 backcan)

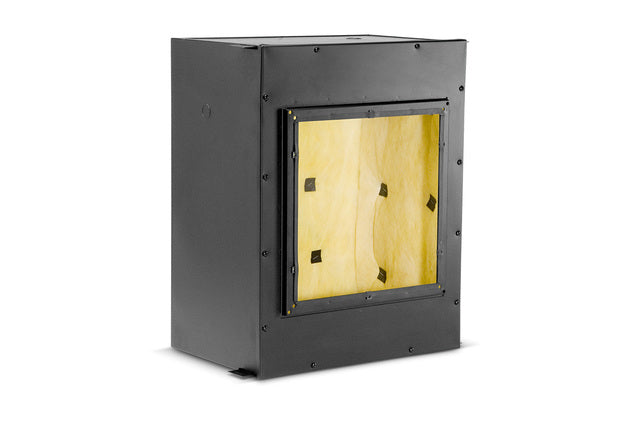

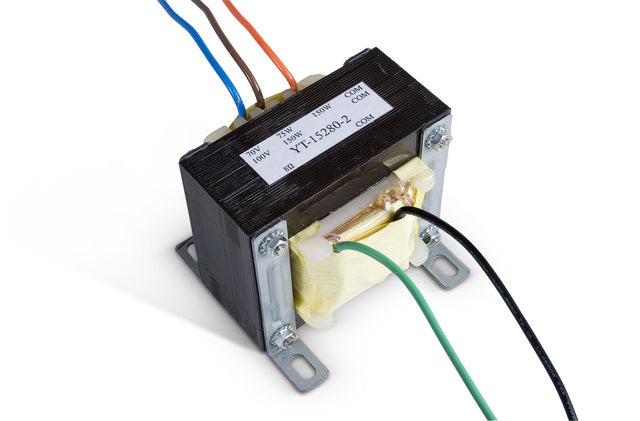

• Optional Accessories: MTC-300SG12 Grille, square contoured, white. MTC-300BB12 Backbox, 80 liters (3 cubic feet) MTC-300T150 Transformer, 150 W for use with 322C.
• Plenum Usage: Yes, with accessory backcan
• Weight: 24 lb
• Dimensions (L x W x H): 17 x 17 x 12 in
• UPC: 50036905152
• Country of Origin: MX
