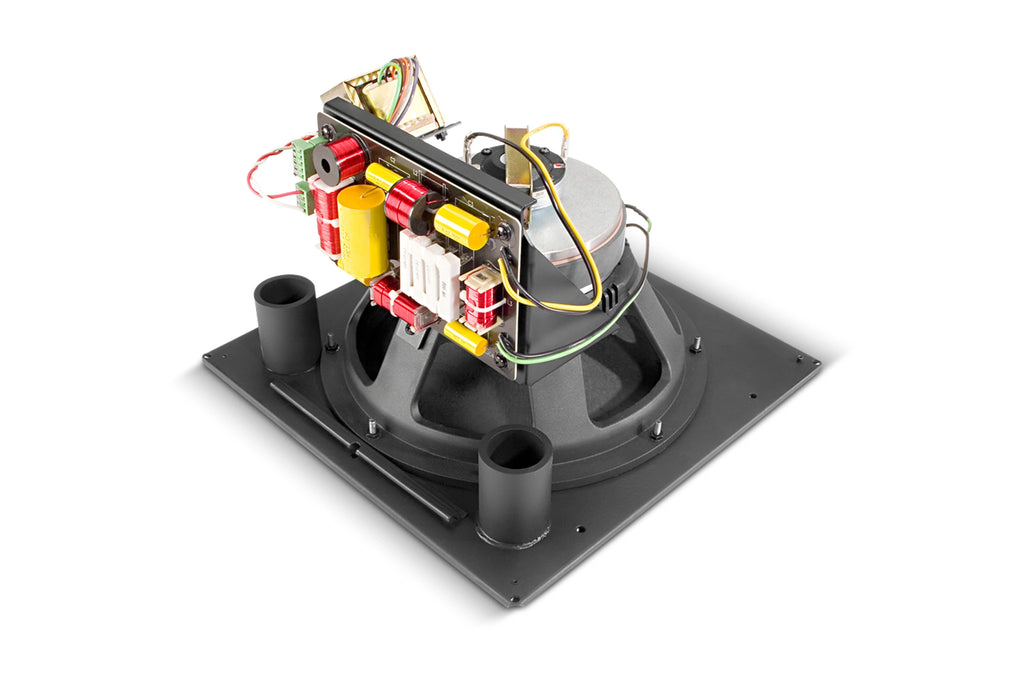

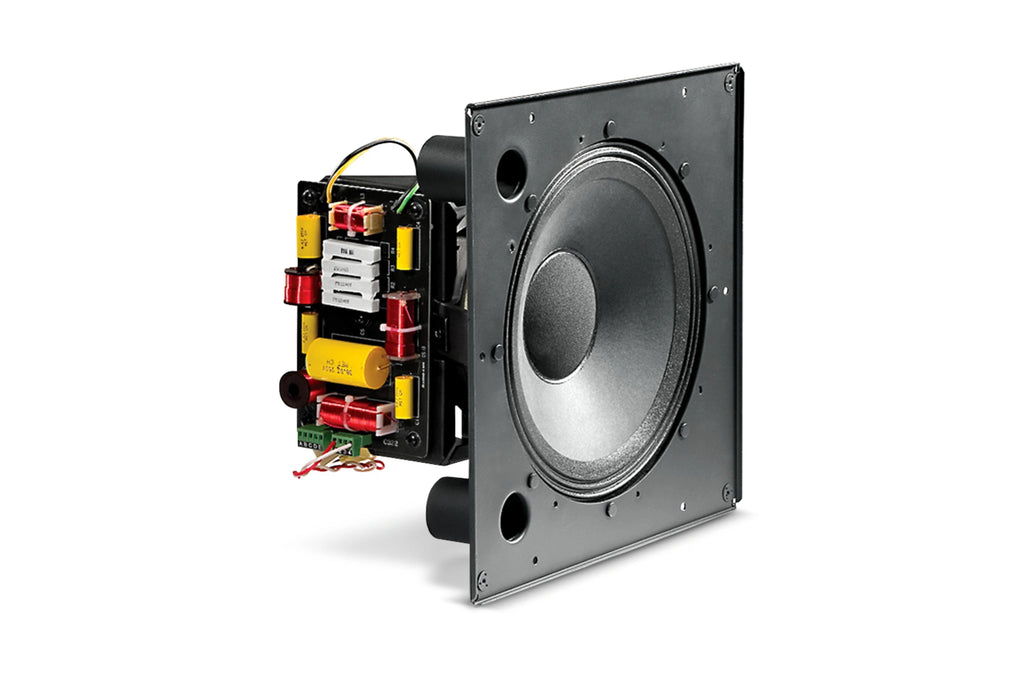

JBL CONTROL 322CT, 12" Hi-Output Coax 2-WAY Ceiling Speaker w Transformer

Roll over image to zoom in

JBL CONTROL 322CT, 12" Hi-Output Coax 2-WAY Ceiling Speaker w Transformer

Name: JBL CONTROL 322CT, 12" Hi-Output Coax 2-WAY Ceiling Speaker w Transformer
Brand: JBL
SKU: CONTROL 322CT
Price: 760.0 USD
Availability: InStock

Save $180

JBLSKU: CONTROL 322CT

Share this product

High-output 12 in. Coaxial Ceiling Loudspeaker The 322CT delivers exceptional next-generation performance in a coaxial point source design ceiling loudspeaker.

Features

Consistent 90° broadband pattern control.
Components • Kevlar-reinforced 300 mm (12 in) woofer with 75 mm (3 inch) voice-coil cone. • Medium-format compression driver.
Extraordinary clarity for speech and vocals with extended frequency response for music.
Power handling of 400 Watts with high sensitivity provides high SPL capability.
Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
Clean, contemporary grille and optional backbox available.

Specifications

Model: CONTROL 322CT
Frequency Range (-10dB): 32 Hz - 20 kHz
Power Rating: see transformer taps
Transformer Taps: 100W, 50W, 25W (& 12.5W @ 70V)
Frequency Response (±3 dB): 48 Hz - 19 kHz
Coverage Angle: 90° conical, constant directivity
Directivity Factor (Q): 9 (1k - 16kHz)
Directivity Index (DI): 9.5dB (1k - 16kHz)
Sensitivity: 95 dB (1 kHz - 16 kHz)
Maximum SPL (1m): 121 dB (top 70V/100V tap)
Dimensions (H x W x D): 366 x 366 mm (14.4 x 14.4 in) square baffle x depth from back of baffle of 240 mm (9.5 in)
Input Connectors: Screw locking barrier strip for bare wire
Drivers: LF Driver: 300 mm (12 in) HF Driver: compression driver, 37 mm (1.5 inch) coil
Color: White
Safety Agency: Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70 when installed with UL listed backcan such as JBL MTC-300BB12. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.

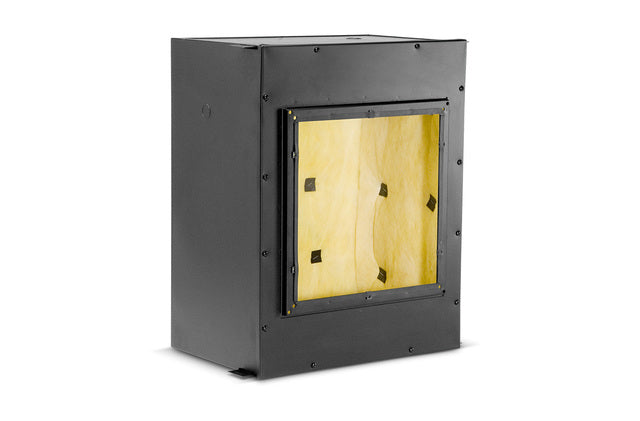

Backcan: formed steel (wood-lined; accessory)
Baffle/Rim: Metal, driver pre-mounted to baffle, ported.
Ceiling Cutout Size: 378 x 378 mm (14.9 x 14.9 in) (for MTC-300BB12 backcan)
Included Accessories: Ported baffle pre-attached, transformer on 322CT
Plenum Usage: Yes, with accessory backcan
Weight: 26.15 lb
Dimensions (L x W x H): 18 x 18 x 13 in
UPC: 50036905169
Country of Origin: MX
