JBL CONTROL 50S/T-WH, 8" Surface-Mount Subwoofer, Wht

JBLSKU: CONTROL 50S/T-WH

Price:
$475

Shipping calculated at checkout

Description

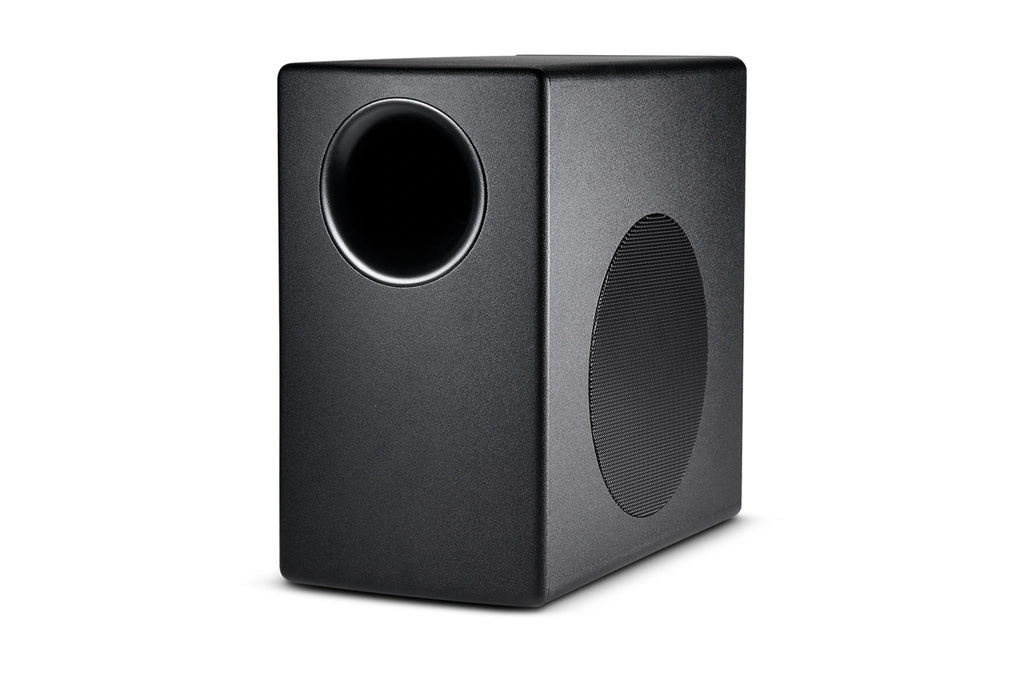

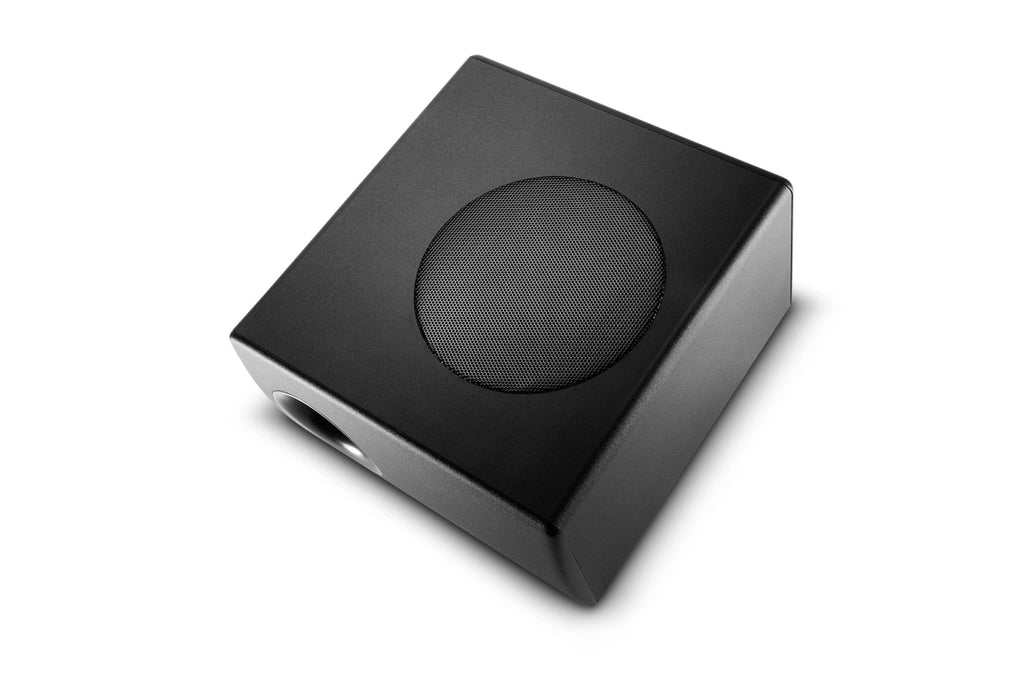

Surface-Mount Subwoofer for Subwoofer-Satellite Loudspeaker System The 150 Watt (600 Watt peak) Control 50S/T subwoofer contains a high-power, long-excursion, 200 mm (8 inch) driver which features an extremely robust high-mass cone for extended low frequency response, a 38 mm (1.5 in) 4-layer copper voice coil for high motor strength, an aluminum former for good transient response, and a rubber half roll surround for enhanced bass performance.

Features

  • Full bandwidth 32 Hz - 20 kHz high fidelity sound
  • Selectable 70V/100V for distributed lines, or low impedance
  • Versatility for either two or four satellite speakers per system
  • Available in black or white

Specifications

  • Model: CONTROL 50S/T-WH
  • Frequency Range (-10dB): 32 Hz - 200 Hz
  • Frequency Response (±3 dB): 50 Hz - 150 Hz
  • Power Capacity: 300 Watts Continuous Program Power (2 hrs)150 Watts Continuous Pink Noise (2 hrs)200 Watts Continuous Program Power (100 hrs)100 Watts Continuous Pink Noise (100 hrs)
  • Sensitivity: 95 dB (near corner), 89 dB (center of wall)
  • Maximum SPL (1m): 115 dB average, 121 dB peak (near corner)109 dB average, 115 dB peak (center of wall)
  • Impedance: 8 ohms (in bypass/thru mode)
  • Transformer Taps: 80W, 40W, 20W, (& 10W @ 70V), 8 ohm bypass/thru
  • Drivers: 200 mm (8 in) with polypropylene cone, butyl rubber surround, 38 mm (1.5 in) 4-layer copper-clad coil, vented aluminum former
  • Input Connectors: Six removable locking 2-pin connectors with screw-down terminals. Max wire 12 AWG (2.5 mm2)
  • Enclosure: Top, bottom, front & bottom: Structural plywood. Port & terminal panels: MDF. Grille: Painted zinc-plated metal.
  • Dimensions (H x W x D): Cabinet: 356 x 391 x 203 mm (14.0 x 15.4 x 8.0 in)Wall Bracket: 15 mm (0.6 in) deep
  • Mounting Hardware: 2.3 mm (0.9 in) thick zinc-plated and painted cold-rolled steel
  • Net Weight (each): 9.0 kg (20 lbs)
  • Shipping Weight: 10.2 kg (23 lbs)
  • Included Accessories: Wall bracket (both speaker and wall parts) with 4 pcs M6 screws to attach to speaker, terminal cover, 6 pcs 2-pin locking connectors, M6 screw for safety lanyard attachment.
  • Grille: Zinc-plated steel
  • Coverage Angle: Omnidirectional
  • Weight: 23 lb
  • Dimensions (L x W x H): 11 x 18 x 17 in
  • UPC: 50036905244
  • Country of Origin: CN
