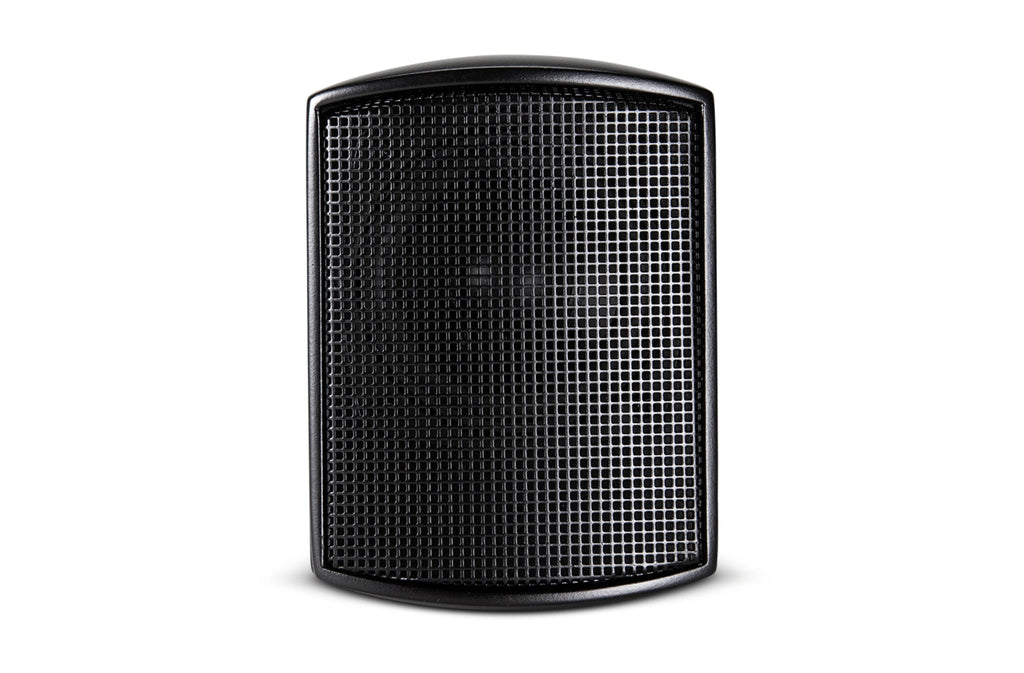

Surface-Mount Satellite Speaker for Subwoofer-Satellite Loudspeaker System The stylish Control 52 satellite loudspeaker produces superb high fidelity sound via a low distortion 60 mm (2.5 in) driver, which features a secondary bucking magnet for high efficiency, rubber half roll surround for enhanced bass performance, 19 mm (0.75 in) copper clad aluminum wire voice coil on a vented Nomex® former for high fidelity and reliability, and a copper-capped pole piece for more consistent impedance and extended high frequency response. The wall bracket allows each speaker to be angled up to 45° off-axis. For full-range wide-bandwidth performance, either 2 or 4 Control 52P mid-high speakers can be driven from the Control 50S/T pendant subwoofer (or from a Control 60PS/T pendant or Control 40CS/T in-ceiling subwoofer). The crossover for this subwoofer-satellite system is included in the subwoofer, and the system can be driven either low-impedance or from a 70V/100V distributed speaker line.

Features

• Stylish, unobtrusive design fits into a wide variety of decors
• Ability to intermix with Control 42C in-ceiling and Control 62P pendant satellite speakers
• 16 ohms impedance

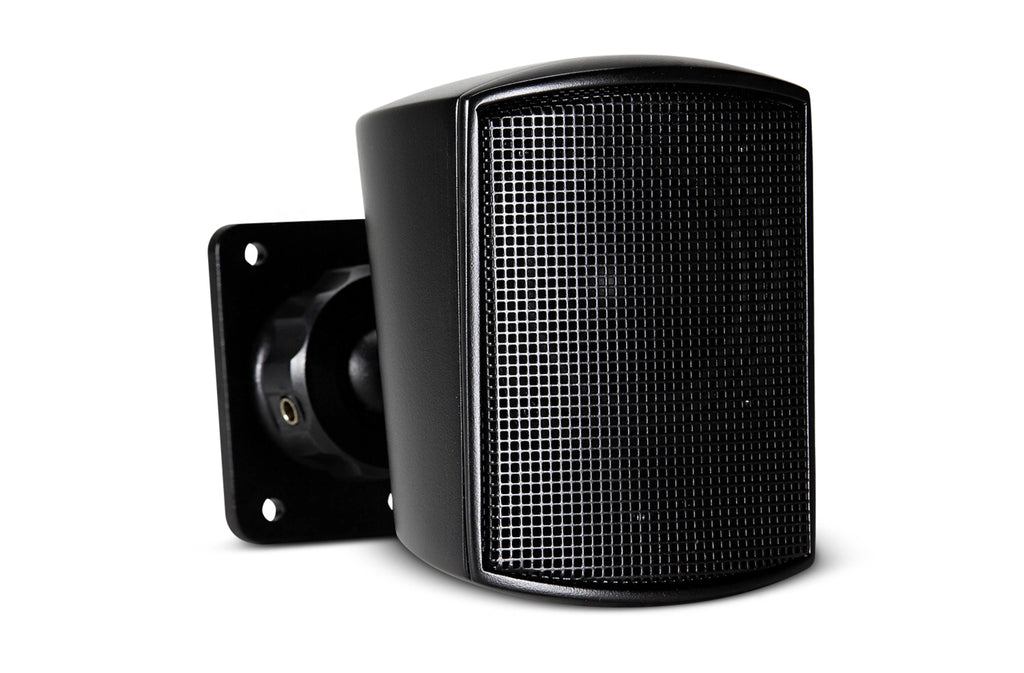

• Wall-mount brackets included
• Available in black or white

Specifications

• Model: CONTROL 52
• Frequency Range (-10dB): 140 Hz - 20 kHz
• Frequency Response (±3 dB): 180 Hz - 17 kHz
• Power Rating: 50 Watts Continuous Program Power (2 hrs) 25 Watts Continuous Pink Noise (2 hrs)30 Watts Continuous Program Power (100 hrs)15 Watts Continuous Pink Noise (100 hrs)
• Sensitivity: 85 dB (4.0V/1m = 1W), 82 dB (2.83V, 1m)
• Coverage Angle: Omnidirectional
• Maximum SPL (1m): 94 dB average, 100 dB peak
• Impedance: 16 ohms
• Drivers: 60 mm (2.5 in) with polypropylene cone, butyl rubber surround, 19 mm (0.75 in) copper-clad coil, vented Nomex® former, secondary bucking magnet, and copper sleeved pole piece for high frequency extension.
• Input Connectors: Removable locking 2-pin connector with screw-down terminals. Max wire 12 AWG (2.5 mm2)
• Enclosure: High impact polystyrene, painted zinc-plated metal grille.
• Dimensions (H x W x D): Cabinet: 115 x 84 x 96 mm (4.5 x 3.3 x 3.75 in)Wall bracket: 51 mm (2.0 in)
• Net Weight (each): 0.7 kg (1.5 lbs)
• Shipping Weight: 0.8 kg (1.8 lbs)
• Included Accessories: Wall bracket (both speaker and wall parts), 2-pin locking connector.
• Grille: Zinc-plated steel
• Mounting Hardware: Included wall swivel ball bracket
• Optional Accessories: Wall-mount ball-type bracket
• Weight: 3.7 lb
• Dimensions (L x W x H): 2 x 5 x 3 in
• UPC: 50036905190
• Country of Origin: CN
