Ultra-Compact Mid-High Satellite Pendant Speaker Ideal for visually sensitive applications, Control 62 P’s 2" driver is great for speech and mid-high music applications (external high-pass required). For full-range, wide bandwidth performance, up to 4 pieces can be driven from a Control 50 S/T or 40 CS/T subwoofer.

Features

• 2.5" (60 mm) driver
• 20 Watts, 16 ohms
• Can intermix with Control 52 surface-mount and Control 42C in-ceiling satellite speakers
• Black or white

Specifications

• Model: Control 62P-WH
• Frequency Range (-10dB): 150 Hz - 20 kHz
• Frequency Range (±3 dB): 200 Hz - 17 kHz
• Power Rating: 50 Watts Continuous Program Power (2 hrs) 25 Watts Continuous Pink Noise (2 hrs) 30 Watts Continuous Program Power (100 hrs)15 Watts Continuous Pink Noise (100 hrs)
• Nominal Sensitivity: 87 dB (4.0 V, 1 W) 84 dB (2.83 V)
• Coverage Angle: 140° conical
• Directivity Factor (Q): 4.7
• Directivity Index (DI): 6.2 dB
• Maximum SPL (1m): 97 dB continuous pink noise, 103 dB peak
• Impedance: 16 ohms (no transformer taps)
• Recommended High-Pass Frequency: 150 Hz

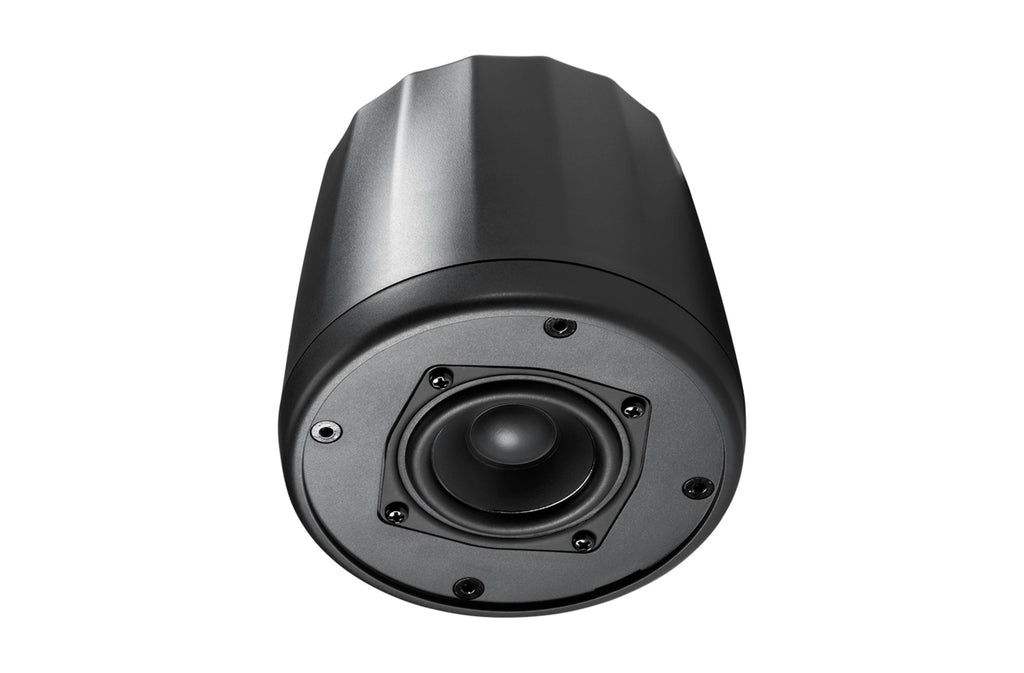

• Drivers: 60 mm (2.5 in), polypropylene-coated paper with pure butyl rubber surround, 20 mm (¾ in) copper clad aluminum voice coil with vented Nomex® coil-former.
• Enclosure: High impact polystyrene

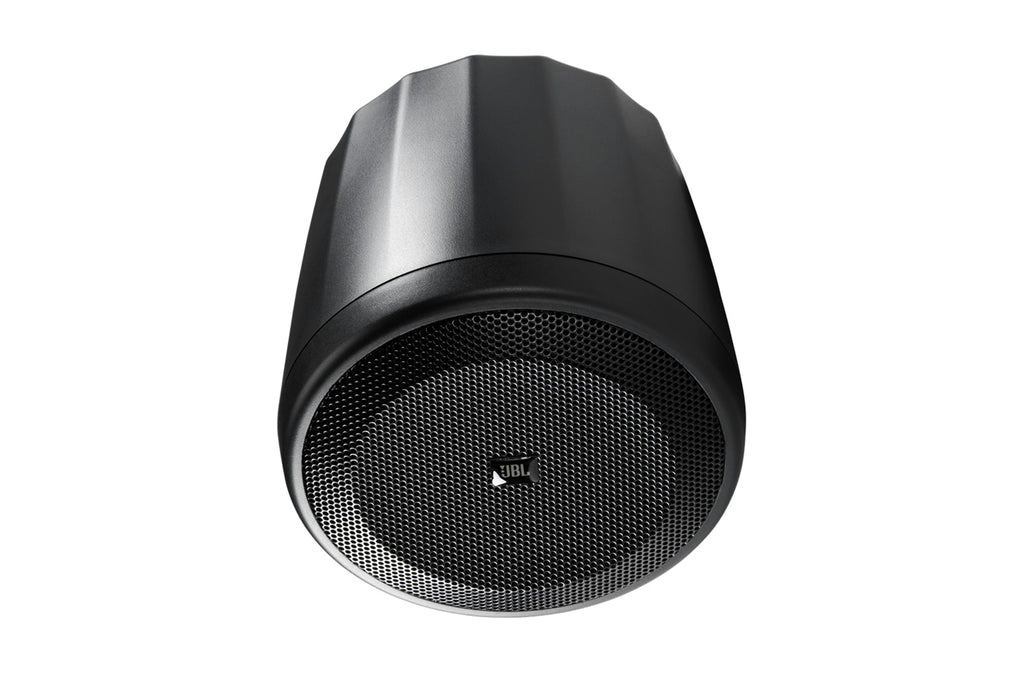

• Grille: Zinc-plated steel grille with powder-coat finish, foam backing (removable for painting)
• Outdoor Capability: Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 - splashproof rating.

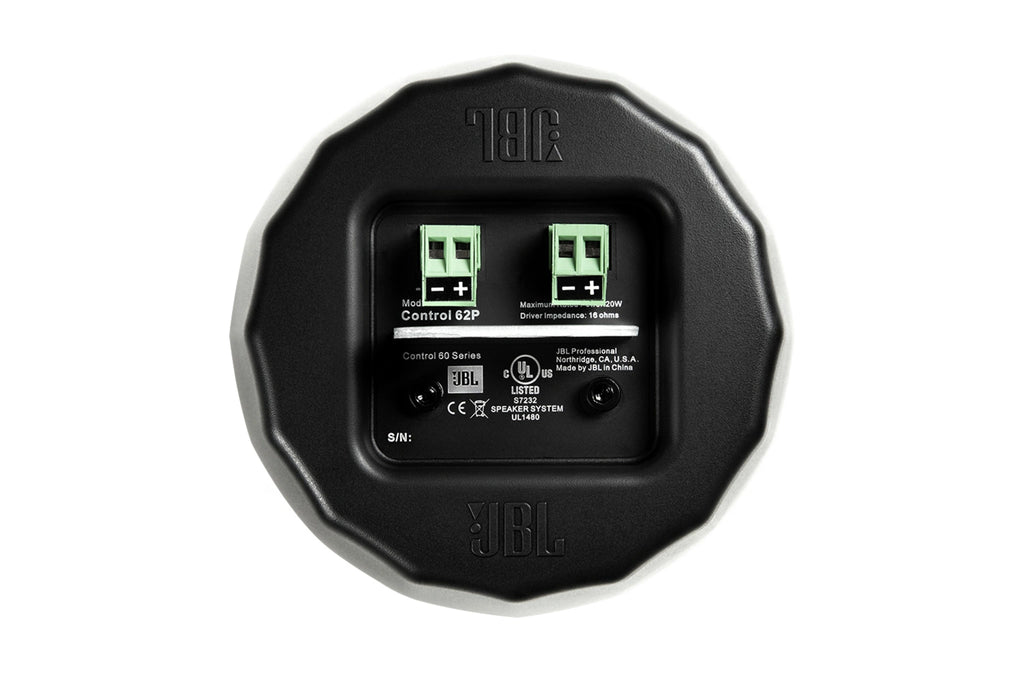

• Input Connectors: Two removable locking euro-block 2-pin connectors with screwdown terminals for bare wire. Connectors paralleled for input and loop-thru. Max. wire 12 AWG (2.5 mm2). Rubber terminal covers included.
• Suspension: Two identical suspension systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple™ brand adjustable-height cable fasteners for infinitely adjustable height. Cables have SWL rating of 45 kg (99 lb).
• Safety Agency: Speaker listed per UL1480, transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple®-brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81.
• Dimensions (H x W x D): 128 mm (5.1 in) diameter x 121 mm (4.8 in) height to top of cabinet. 141 mm (5.6 in) to top of suspension bracket.
• Net Weight (each): 0.7 kg (1.5 lbs)
• Shipping Weight (pair): 2.0 kg (4.3 lbs)
• Included Accessories: Two suspension cable systems (see “Suspension”, above), two 2-pin removable locking euro-block connectors, two rubber covers for euro-block connectors.
• Optional Accessories: MTC-PC62 top panel / terminal cover
• Colors: Available in black or white (-WH). Paintable.
• Weight: 5.5 lb
• Dimensions (L x W x H): 3 x 6 x 3.5 in
• UPC: 50036903844
• Country of Origin: CN
