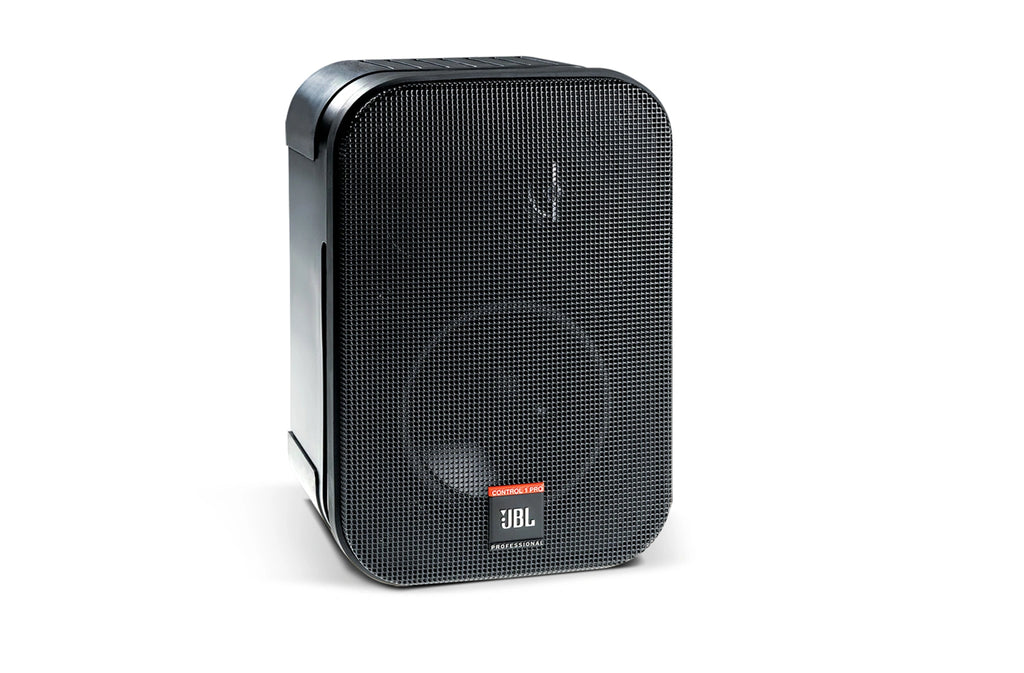

Compact Two-Way 100V/70V/8-Ohm Loudspeaker CSS-1S/T is a versatile, compact two-way loudspeaker designed for use on 100V or 70V distributed speaker lines, or in 8 ohm direct mode. The 135 mm (5.25 inch) low frequency loudspeaker and 19 mm (.75 inch) polycarbonate dome tweeter reproduce full-range sound quality for foreground or background music and are voiced for maximum speech clarity and intelligibility.

Features

• 10 Watt Multi-Tap Transformer for 100V or 70V Distributed Speaker Lines
• 8 Ohm Direct Setting
• Included Wall-Mounting Bracket
• Professional Drivers and Network

Specifications

• Model: CSS-1S/T
• Frequency Range (-10dB): 85 Hz - 18 kHz
• Frequency Response (±3 dB): 120 Hz - 16 kHz
• Power Capacity: 60 Watts
• Sensitivity: 86 dB SPL, 1W (2.83V) at 1m (3.3 ft)
• Maximum SPL (1m): 106 dB at 8 Ohm Direct setting; 96 dB at 10W setting
• Nominal Coverage: 120ºH x 120ºV
• Directivity Factor (Q): 6.2
• Directivity Index (DI): 7.9 dB
• Nominal Impedance: 8 ohms (in 8Ω DIRECT mode, selectable on back panel)
• Transformer Taps: 10 W, 5 W (& 2.5W @ 70V)
• Crossover Frequency: 4.3 kHz
• LF Driver: 135 mm (5.25 in) low frequency driver
• HF Driver: 19 mm (0.75 in) polycarbonate dome tweeter
• Input Connectors: Spring-loaded terminals
• Enclosure Material: Polypropylene Structural Foam
• Color: Black
• Dimensions: 229 mm x 159 mm x 143 mm(9.0 in x 6.3 in x 5.6 in)
• Net Weight (each): 2.0 kg (4.5 lb)
• Shipping Weight (pair): 4.8 kg (10.5 lb)
• Included Accessories: Wall-mounting bracket assembly
• Weight: 6.1 lb
• Dimensions (L x W x H): 28 x 15 x 15 in
• UPC: 50036904698
• Country of Origin: CN
