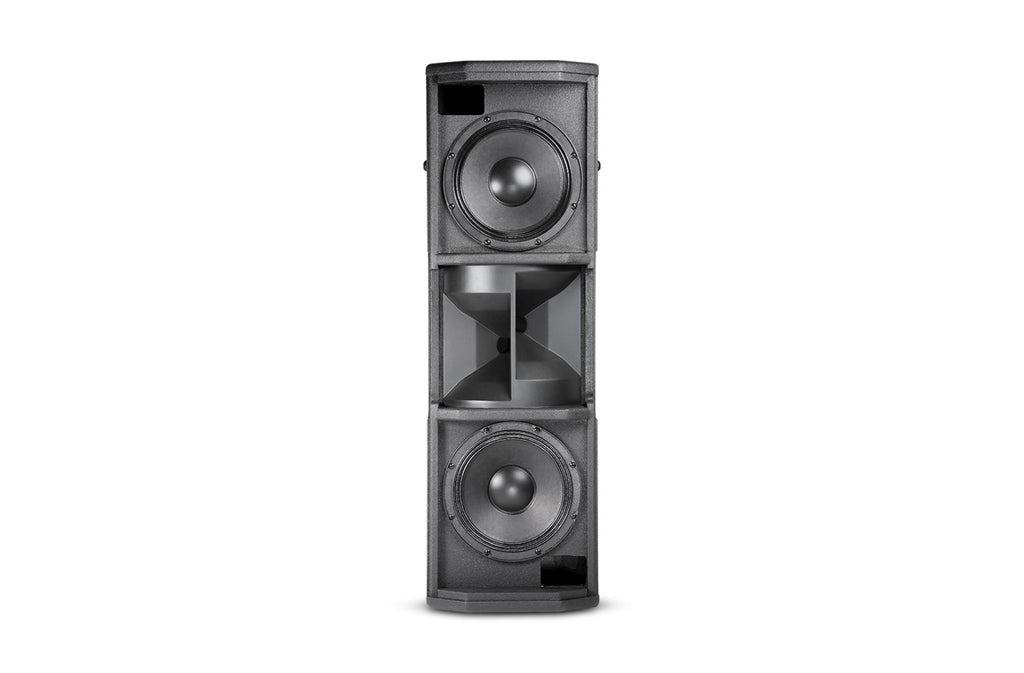

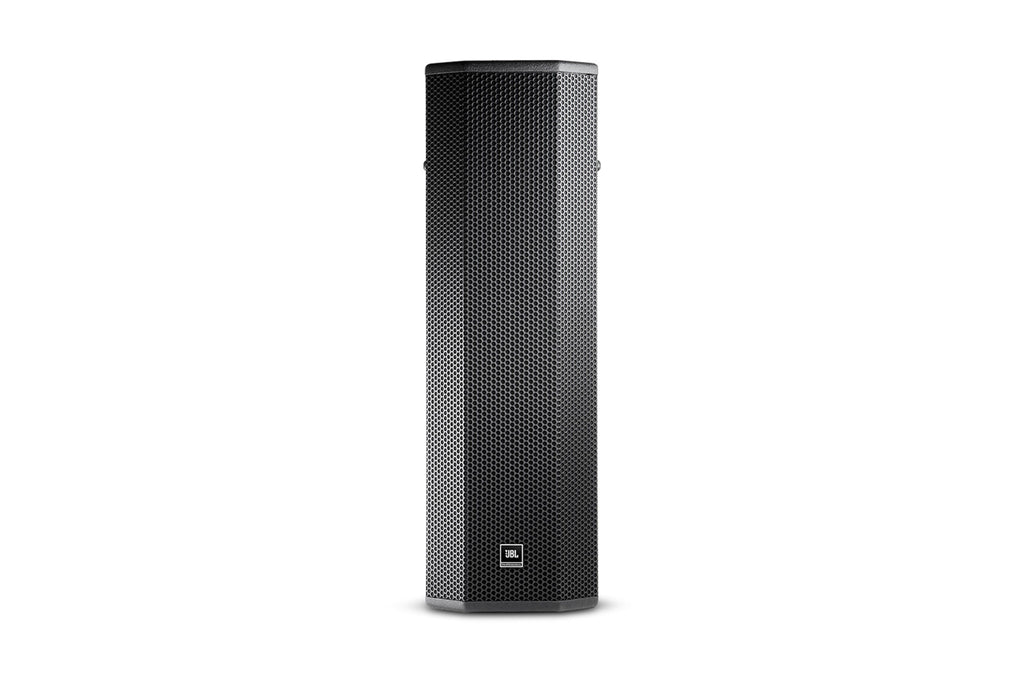

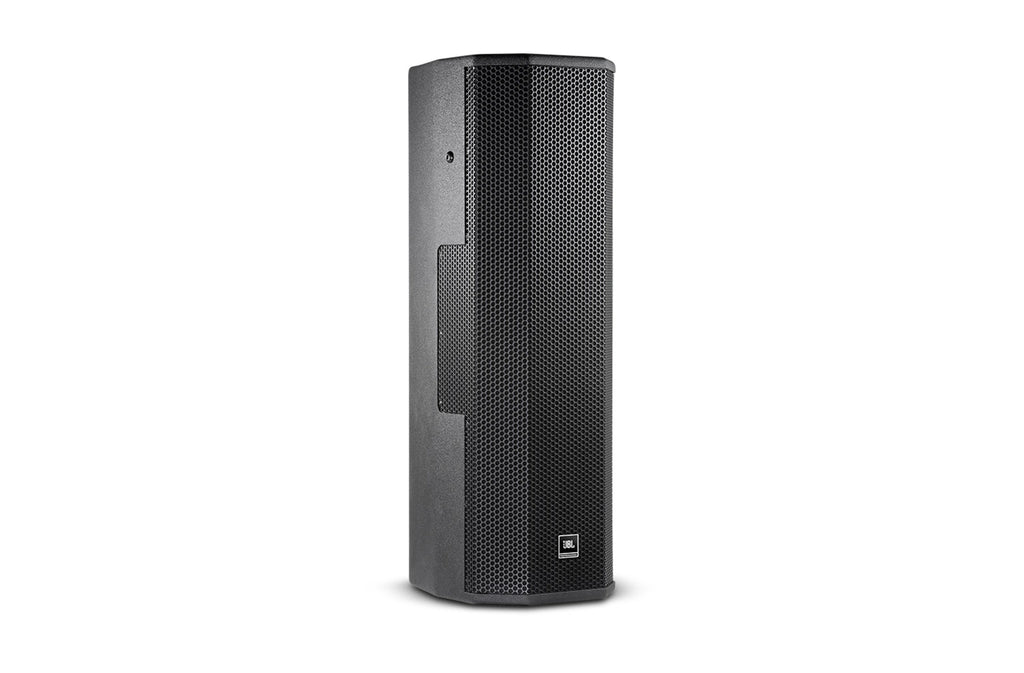

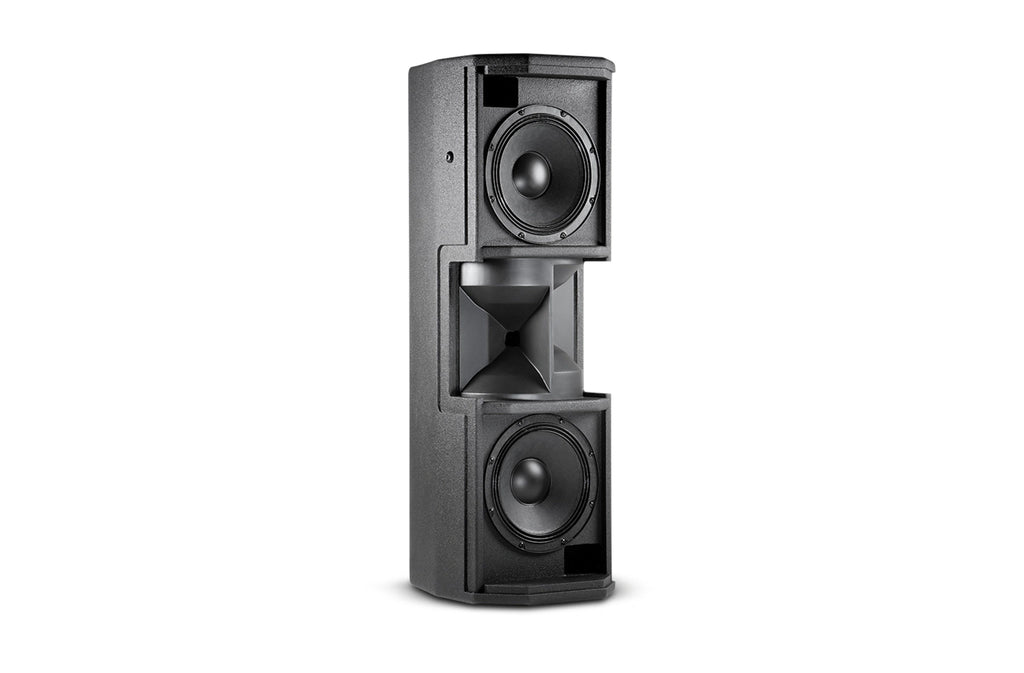

Dual 8" 2-Way Loudspeaker System featuring CWT Crossfired Waveguide Technology The JBL Crossfired Waveguide Technology CWT128 is a compact full-range 2-way system designed to provide extremely wide-angle coverage with maximum bandwidth and SPL in a single system package. The unique wide coverage pattern horn is designed to provide seamless coverage to 160-degrees horizontally. CWT128’s small footprint makes the system ideal for nearly all architecturally sensitive environments, taking up about a third of the footprint of two speakers splayed side by side.

Features

• Seamless horizontal coverage across a full 160°
• Compact size and small footprint make it ideal for architecturally sensitive environments
• Dual 205 mm (8 in) LF transducers
• Extremely wide-coverage 160° x 60° waveguide
• Dual 25 mm (1") exit, 38 mm (1.5") diaphragm compression driver
• Easy to install with 4 M10 attachment points built in across the top and sides
• 4 M8 points on the back panel accept OmniMount® wall mounting brackets
• WRC and WRX weather resistant versions are available upon request
• CWT128 is available in white - WH
• Transportation Facilities
• Cinema
• Sports Facilities
• Theme Parks

Specifications

• Model: CWT128
• System Format: Extremely Wide Angle Coverage Dual 8" 2-Way Loudspeaker System
• Frequency Range (-10dB): 71 Hz - 20 kHz
• Frequency Response (±3 dB): 96 Hz - 19 kHz
• Coverage Pattern: 160° x 60°
• Maximum SPL (1m): 129 dB
• System Nominal Impedance: 8 Ohms
• Long-Term System Power Rating: 450W (1800W Peak)
• System Power Rating: 850W/1700W/3400W Continuous/Program/Peak
• Crossover: 1.5 kHz
• LF Driver: 2 x JBL 228J, 205 mm (8 in) SFG™ driver with 64 mm (2.5 in) edge wound voice coil
• HF Driver: 2 x 2408H-1 25 mm (1 in) exit compression driver, 38 mm (1.5 in) voice coil

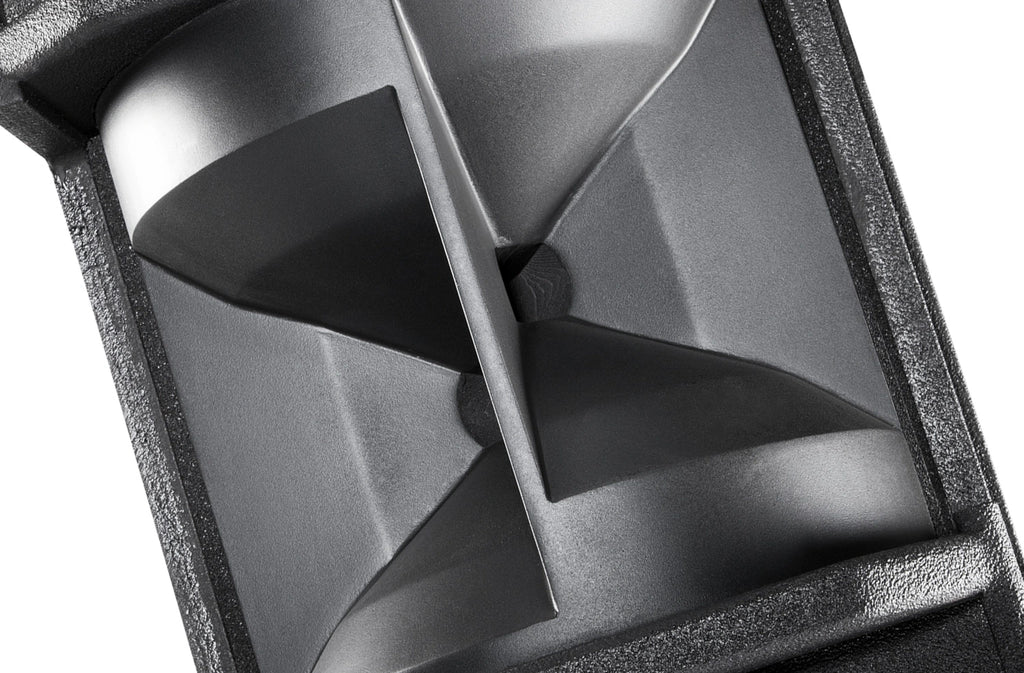

• High-Frequency Waveguide: Crossfired Waveguide
• Finish: Black DuraFlex™ finish. White (-WH) available upon request
• Dimensions (w x h x d): 811.28 x 259.59 x 300.74 mm (31.94 x 10.22 x 11.84 in)
• Net Weight (each): 18.6 kg (40.9 lb)
• Crossover Modes: Passive
• System Sensitivity (1w @ 1m): 94 dB SPL
• Nominal LF Driver Impedance: 8 Ohms
• Transformer Taps: 70V: 110W, 55W, *28W 100V: 110W & 55W
• Enclosure: 12 mm and 15 mm exterior grade multi-ply hardwood plywood
• Suspension Attachment: 4 x M10 (1 x M10 points, one top, one bottom, plus 1 x M10 point on each side panel.) 4 x M8 rear for MultiMount® MM-120-BT
• Environmental: Mil-Std 810; IPx3 per IEC529. For higher environmental ratings, use WRC or WRX.
• Weight: 66.85 lb
• Dimensions (L x W x H): 18 x 16 x 34 in
• UPC: 691991007569
• Country of Origin: MX
