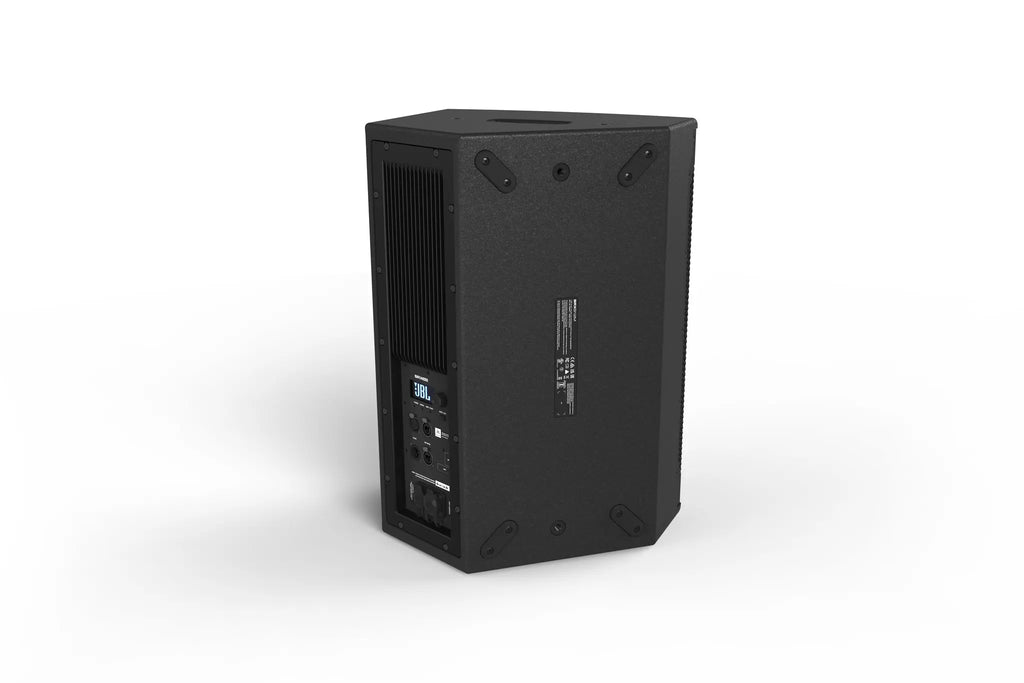

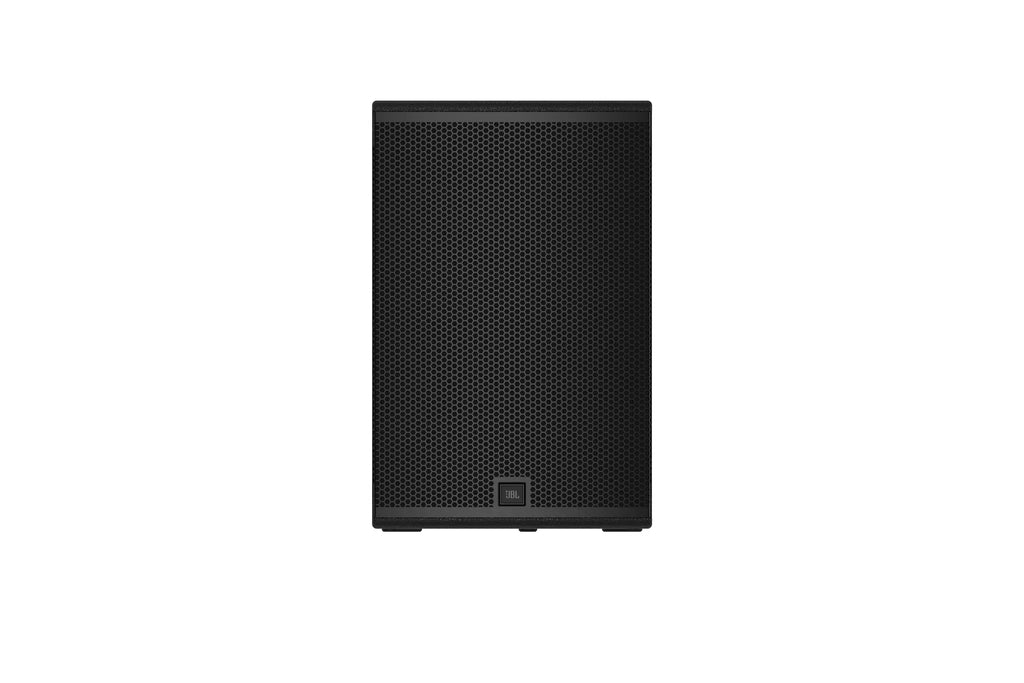

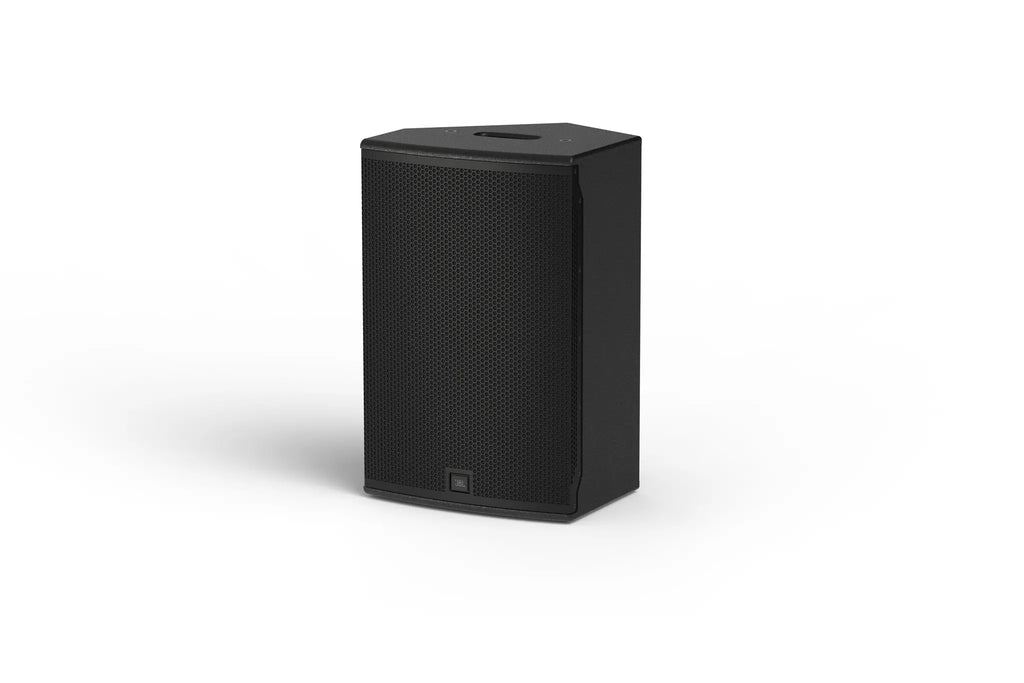

The SRX912M is an exceptionally compact, multi-purpose, two-way 12-inch powered point-source loudspeaker that delivers remarkably high output for its size. It is designed for a wide range of applications, including use as a main PA, stage monitor, or front fill. When deployed as a stage monitor, the enclosure’s multi-purpose design provides a 42-degree monitor angle in an ultra-low-profile package. Multiple M10 QuickLink™ suspension points support quick and secure integration with a variety of accessories for both portable and installed sound applications. Integrated DSP and amplification provide a true plug-and-play experience, ensuring consistent, optimized performance anywhere in the world. JBL transducers and proprietary Progressive Transition™ waveguides deliver outstanding fidelity and best-in-class SPL from an enclosure of this size. A full-featured software suite provides comprehensive control and monitoring across Windows, macOS, and iPadOS platforms.

Features

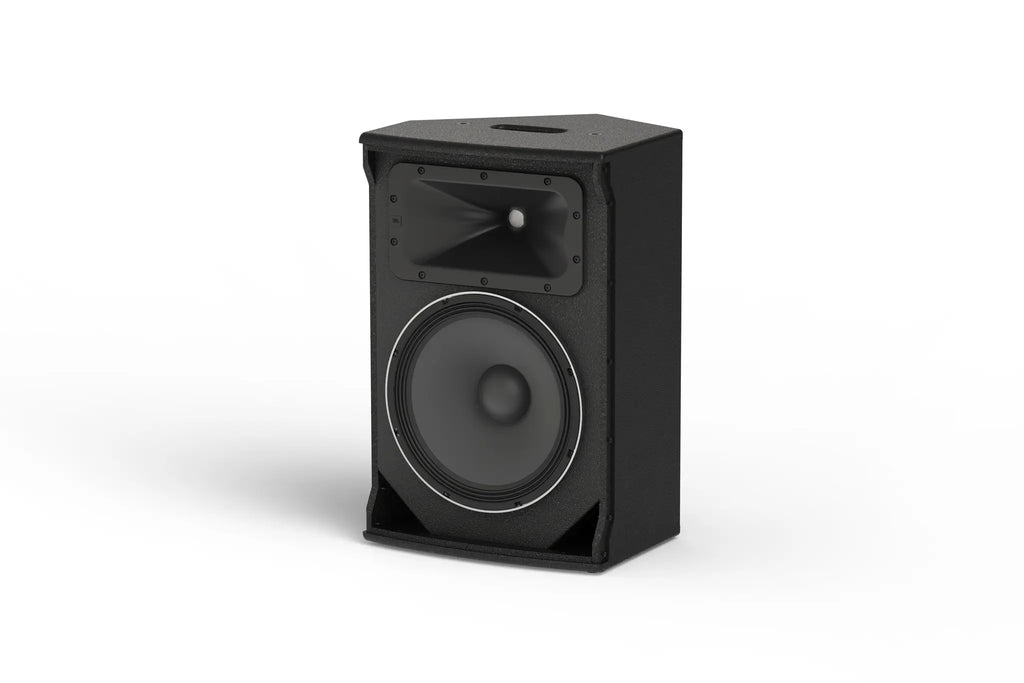

• Includes single 12-inch low-frequency driver and neodymium 1.5-inch annular-diaphragm compression driver
• 272F woofer employs JBL’s patented Differential Drive® technology
• Dual 2-inch voice coils and a ferrite magnet provide ideal balance of output, weight, and thermal performance

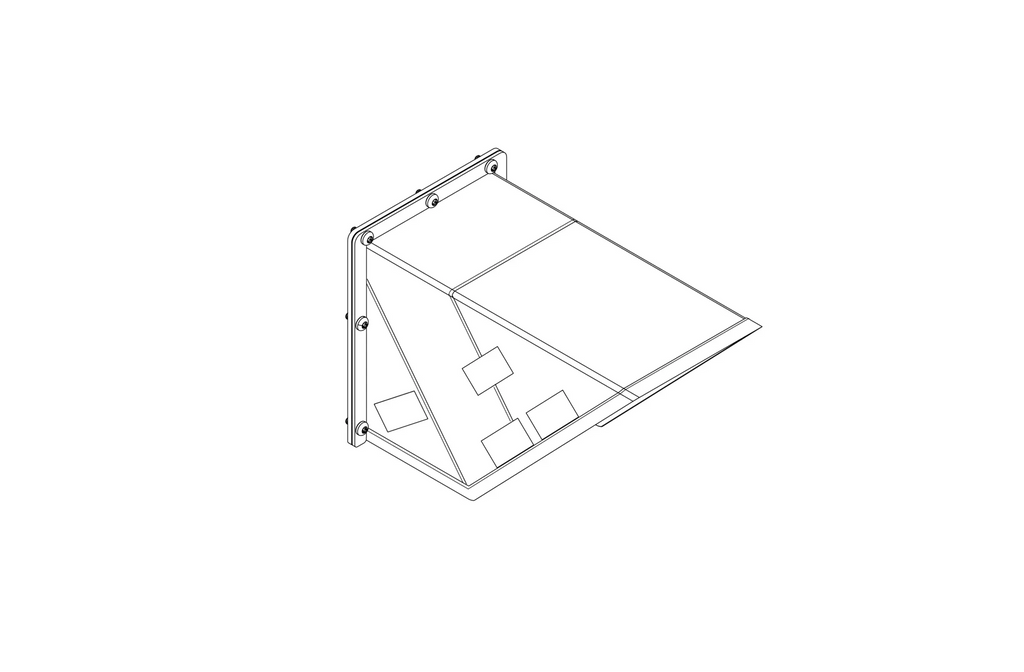

• 90° × 60° Progressive Transition™ waveguide ensures smooth, predictable coverage
• LF extension reaches down to 50 Hz

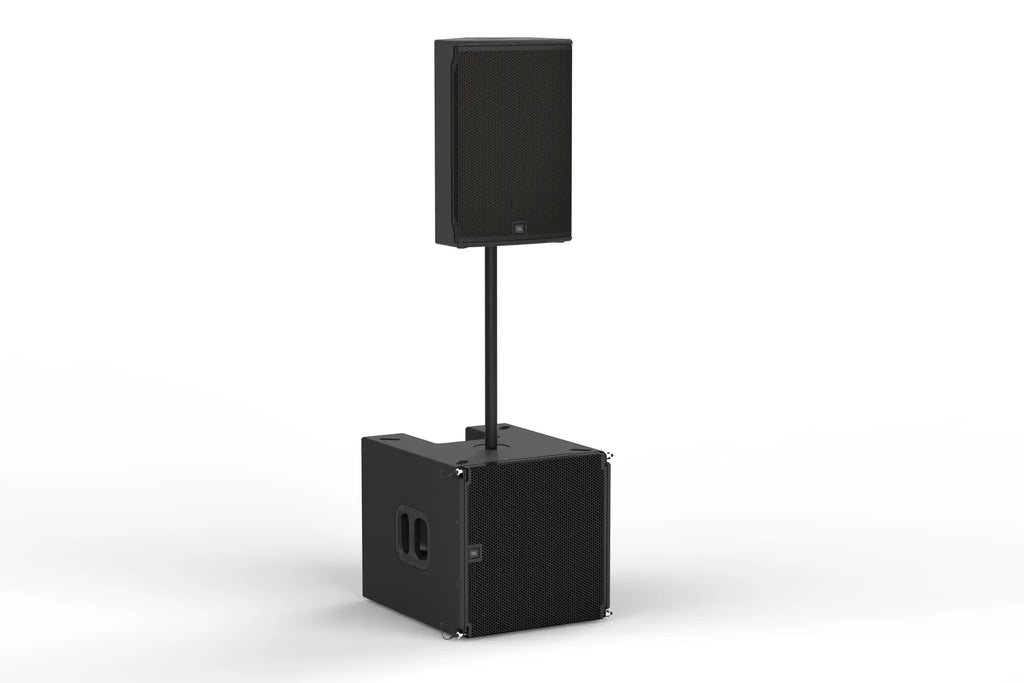

• 80 Hz high-pass preset available for applications using SRX900 subwoofers

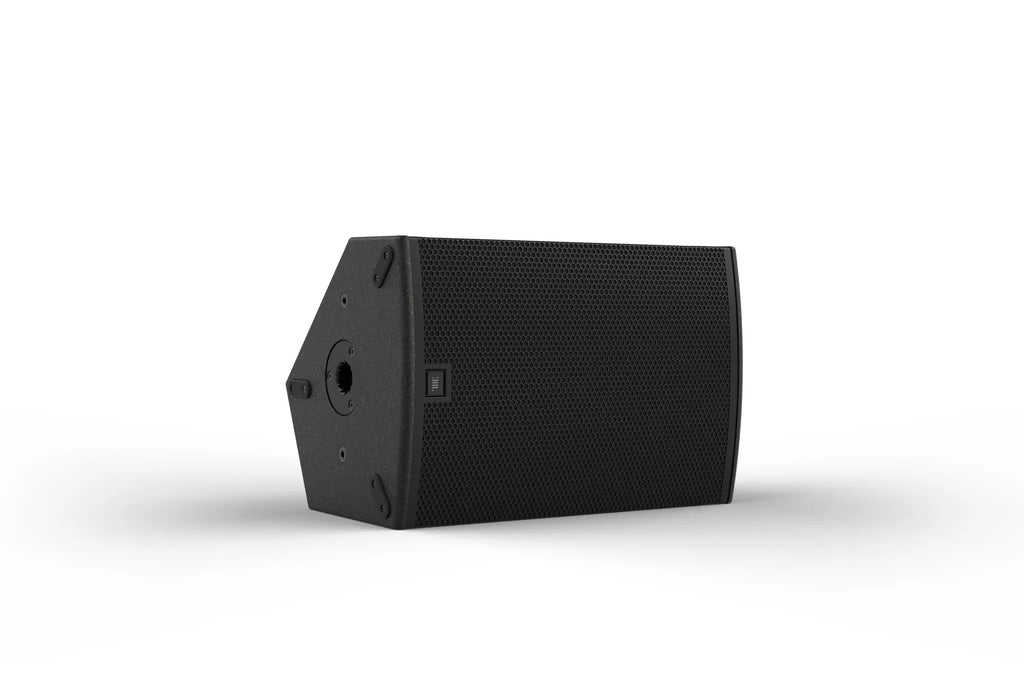

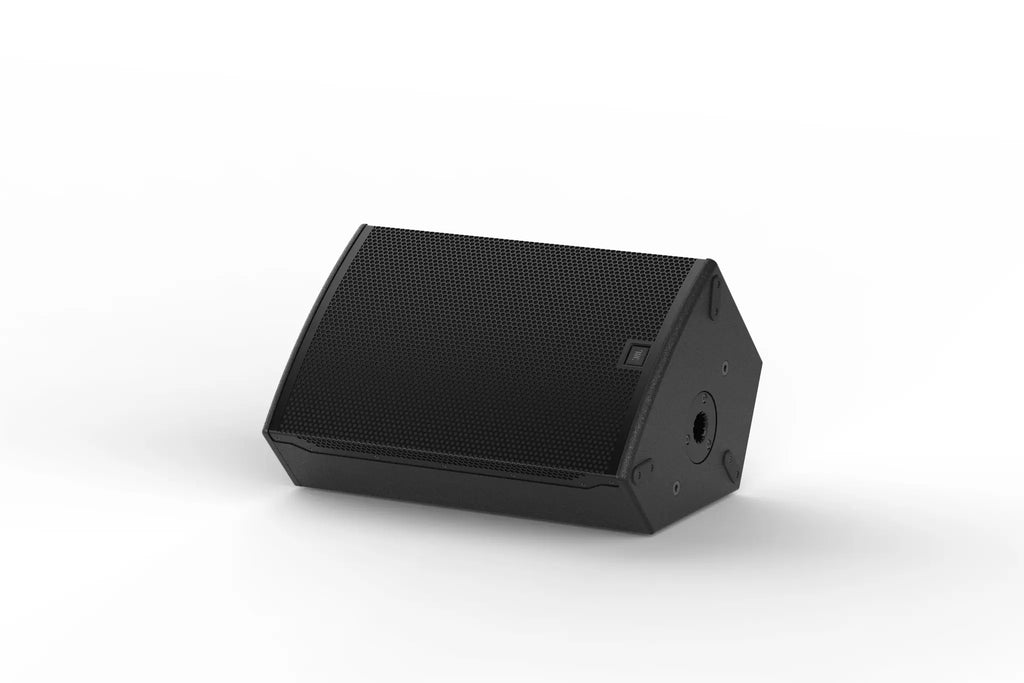

• 42-degree monitor angle for use as a high-performance, full-range stage monitor

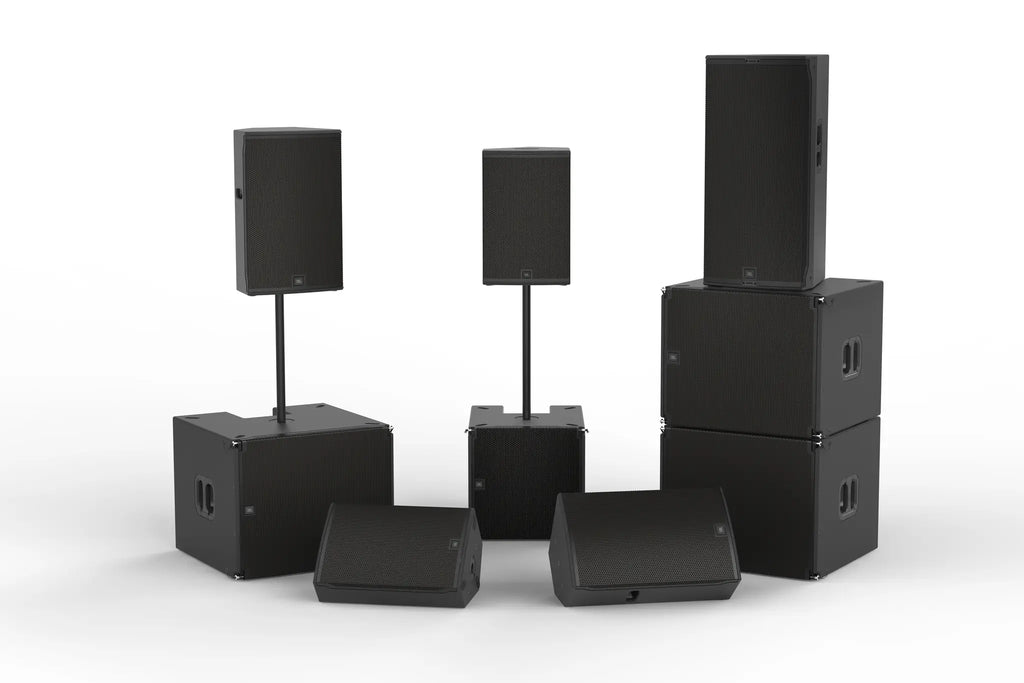

• Voicing and phase response optimized to match SRX900 line-source products
• Integrated amplification delivers plug-and-play operation

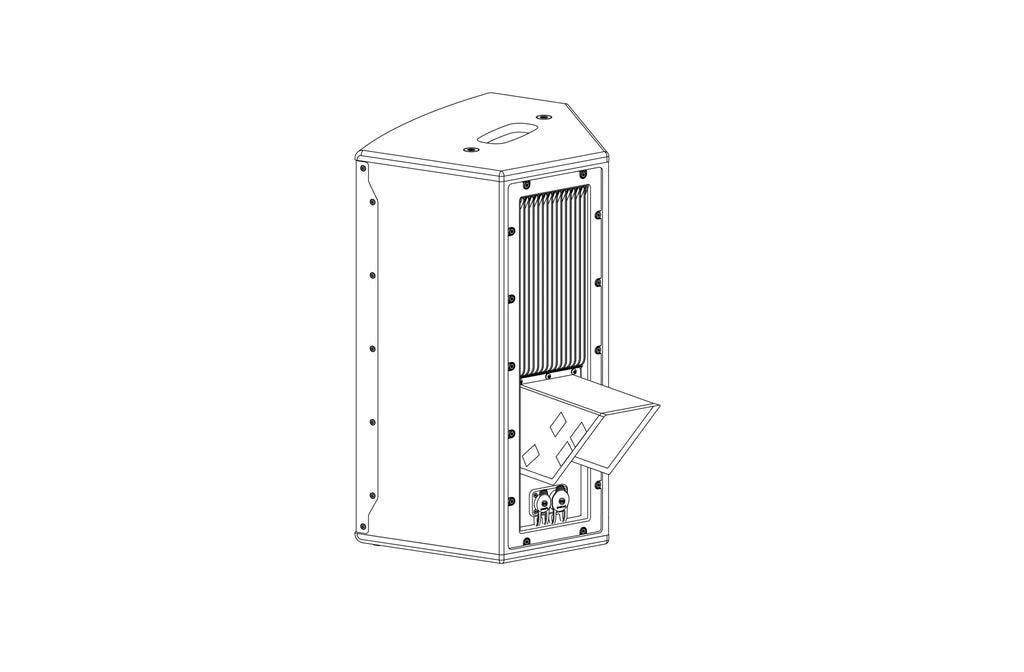

• Rear LCD enables fast configuration
• DSP includes 24 user-adjustable filters, 2,000 ms delay, and essential loudspeaker management tools

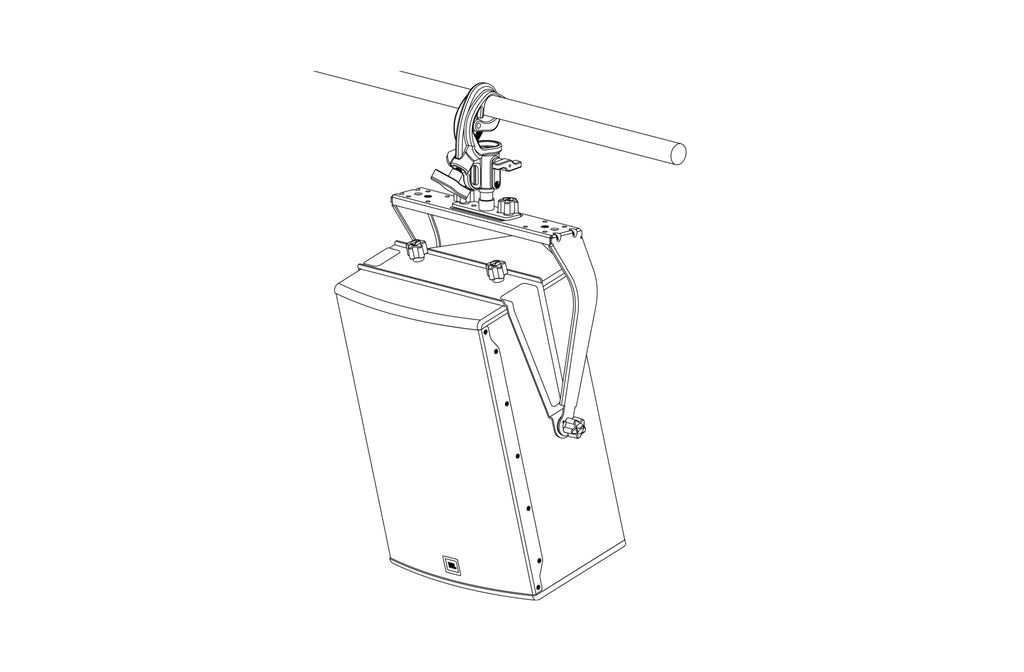

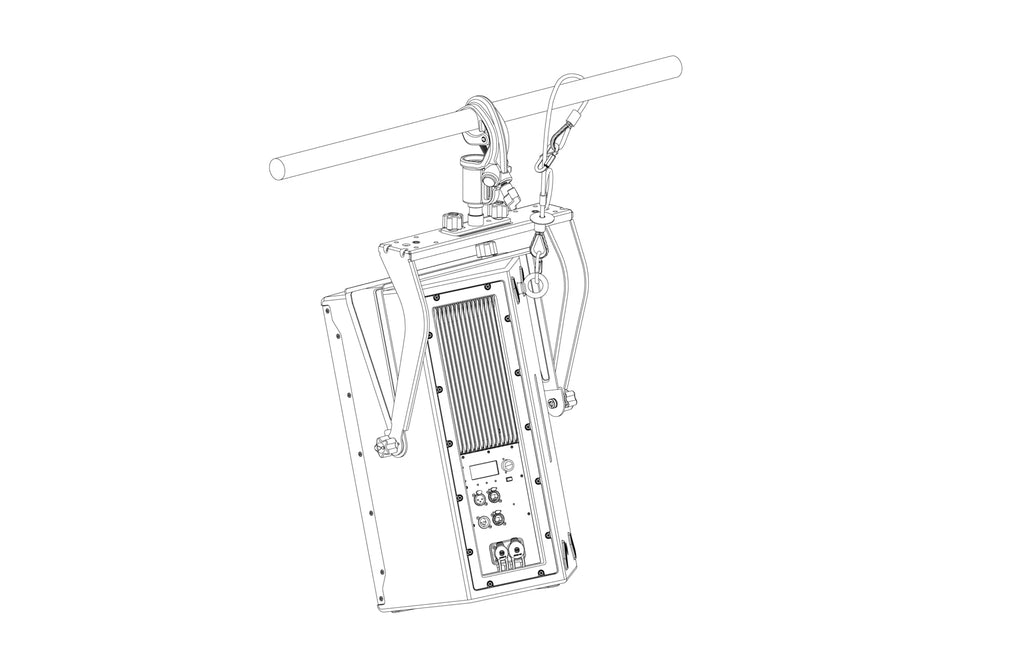

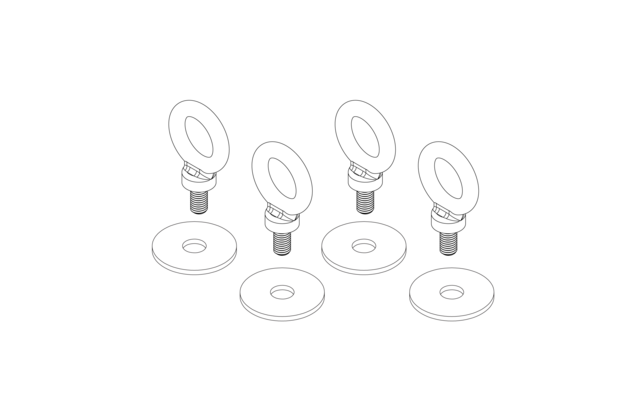

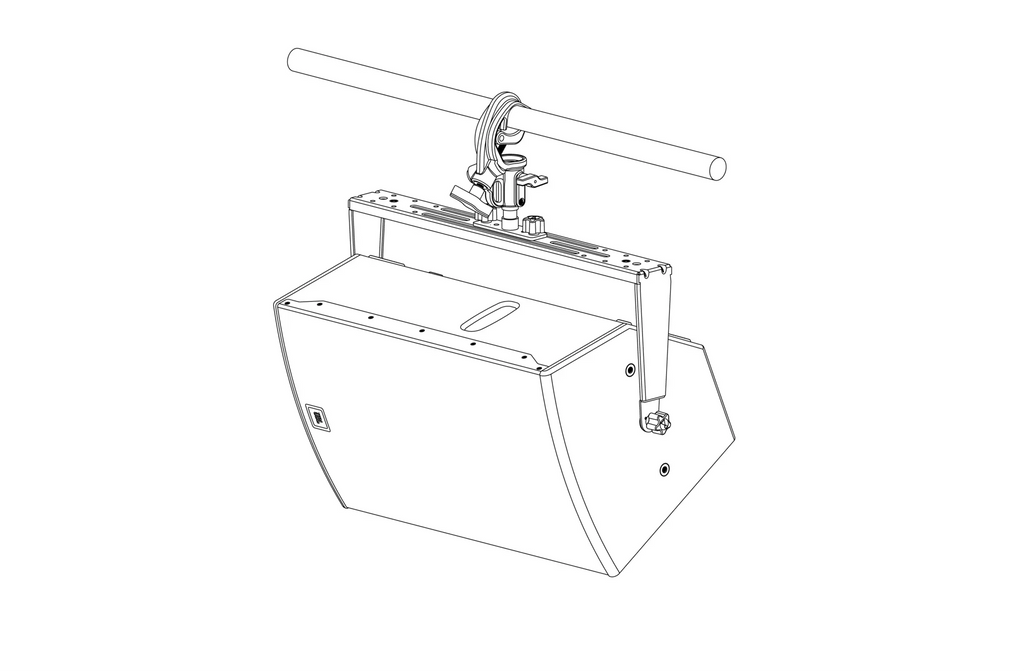

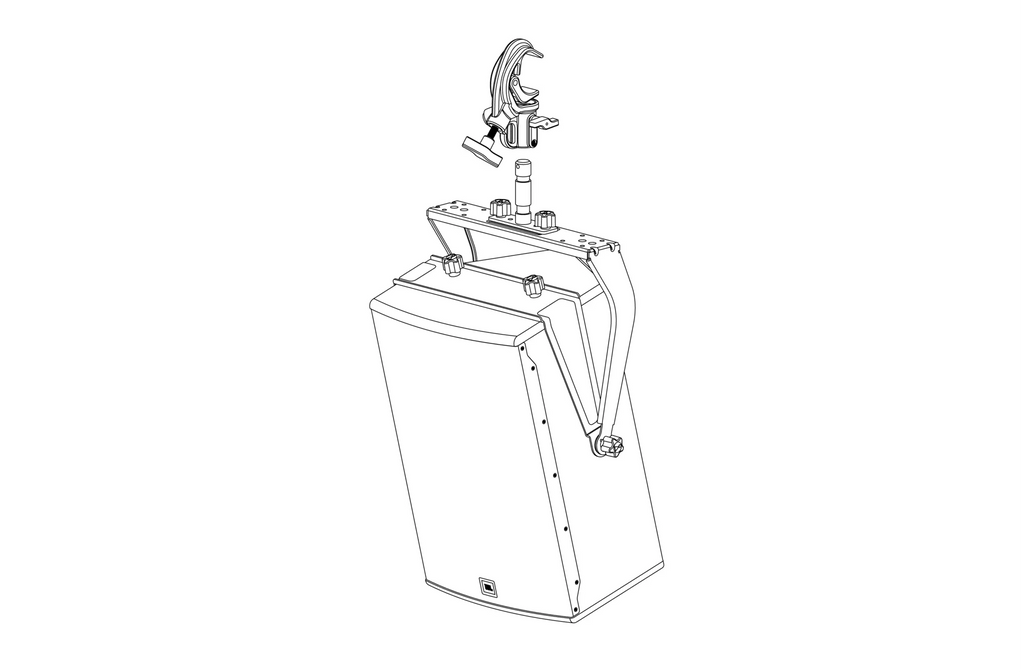

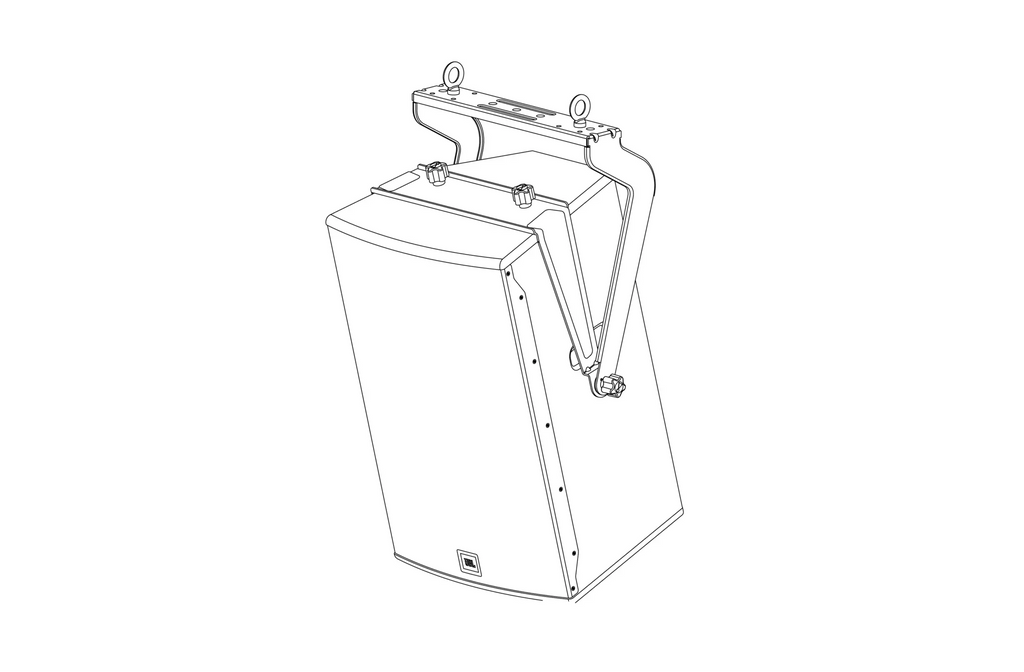

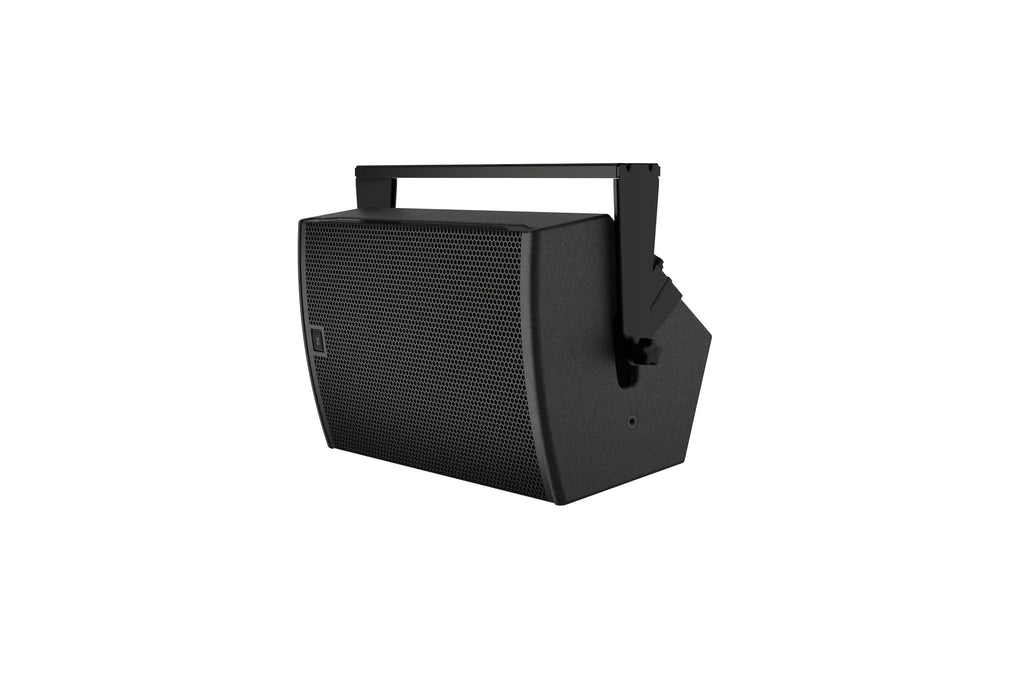

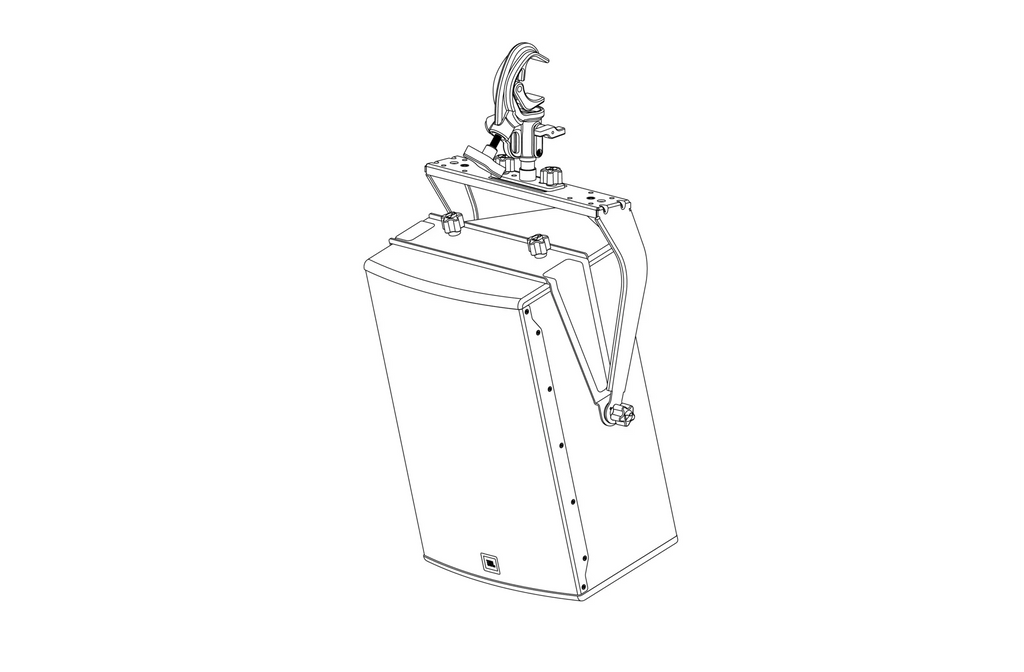

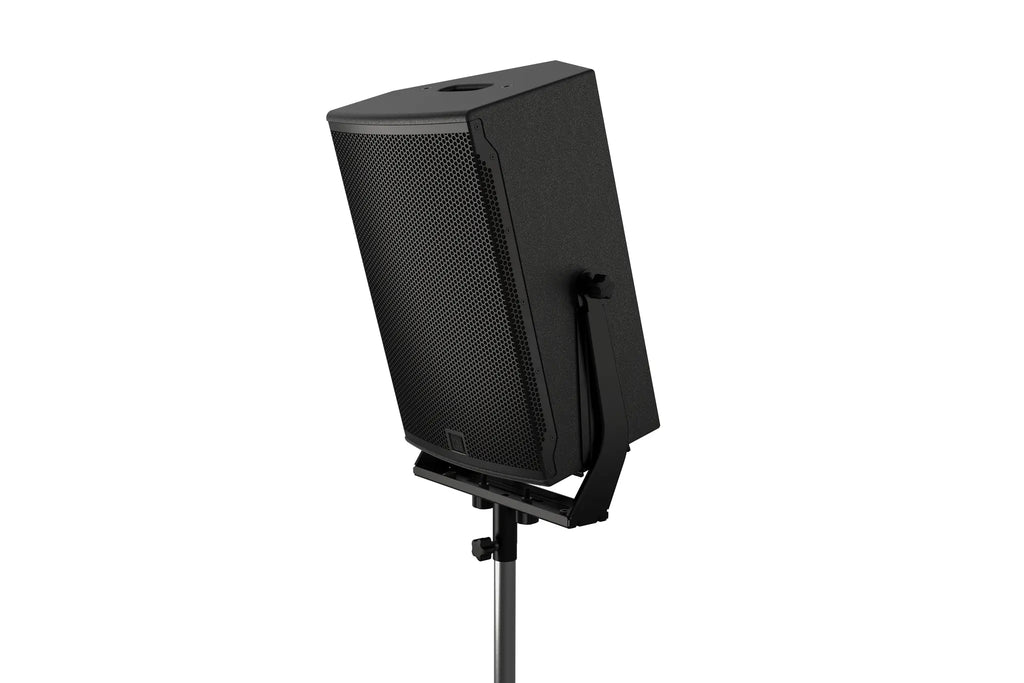

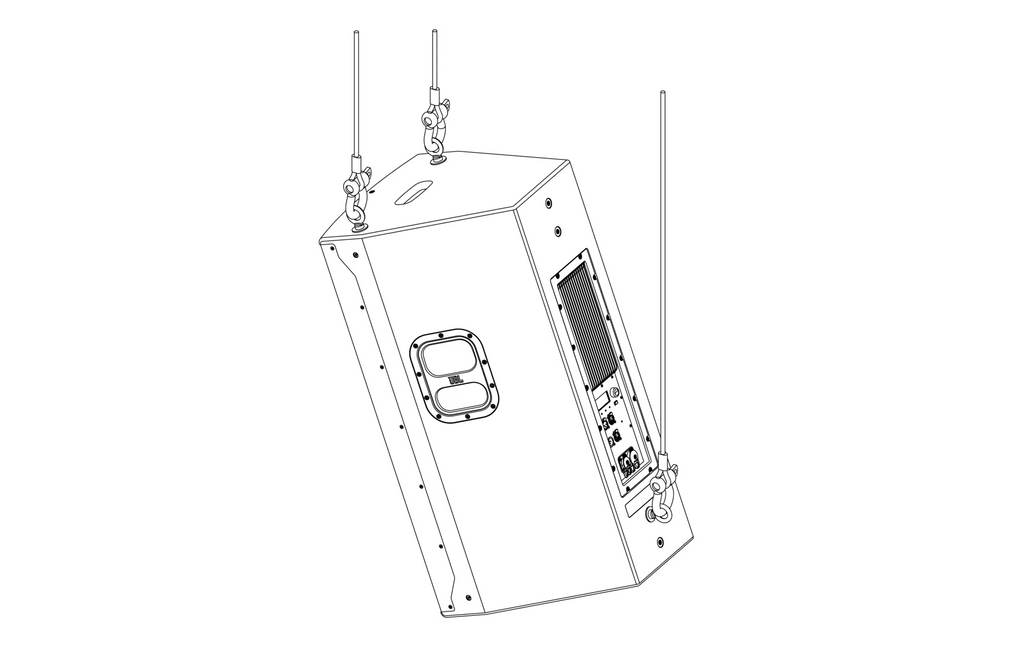

• Six M10 Quick-Link™ attachment points are provided for suspension using standard M10 eye bolts
• Constructed from outdoor-grade Baltic birch plywood for excellent durability

Specifications

• Model: SRX912M
• Frequency Range (-10dB): 50 Hz-20 kHz
• Coverage Pattern: 90° x 60°
• Maximum SPL: 133 dB
• System Type: Multi-purpose point-source, two-way powered
• Amplifier Design: Class-D
• Continuous Power Rating: 600 Watts | LF: 400 Watts | HF: 200 Watts
• LF Driver: (1) JBL 272F, 12 in diameter, dual 2.0 in diameter voice coil, ferrite Differential Drive®
• HF Driver: (1) JBL 2408H-1, 1 in exit neodymium compression driver with 1.5 in voice coil
• Enclosure: Exterior grade birch plywood, DuraFlex finish, one integral handhold
• Suspension: (6) JBL QuickLink M10 points
• Dimensions (H x W x D): 585 mm x 380 mm x 341 mm (23.0 in x 15.0 in x 13.4 in)
• Net Weight (each): 20.6 kg (45 lbs)
• Weight: 45 lb
• Dimensions (L x W x H): 13.4 x 15 x 23 in
• UPC: 691991039843
• Country of Origin: Mexico
